5.25 Inch Drive Bay Devices and Multi-Function Panels Guide

A 5.25-inch drive bay is a standardized PC case opening 146 mm wide and 41.3 mm tall, built for optical drives and compatible accessories.

Last updated: July 2026

Quick Answer: What PC Cases Still Have a 5.25-Inch Optical Drive Bay?

Yes, PC cases with 5.25-inch optical drive bays are still in production. Full towers and prosumer-oriented mid-towers from brands like Fractal Design, Thermaltake, Cooler Master, and Corsair continue to include one or more 5.25 bays. They’re not on the front page of every case review anymore, but they’re far from gone. If you need one, you have real options, and plenty of them are under $100.

You just spent an hour on PCPartPicker looking for a case that fits an optical drive, only to realize every “best case 2025” list either ignores 5.25 bays entirely or casually mentions that you should “just buy an external drive.” Not helpful. Whether you’re building a home media PC, a photo editing workstation, or a NAS-adjacent rig, there are still cases and accessories built specifically for what you need. This guide covers all of it: exact bay specs, every type of accessory that fits a 5.25 slot, and which modern cases still support them.

What Is a 5.25-Inch Drive Bay? Dimensions, Standards, and Specs

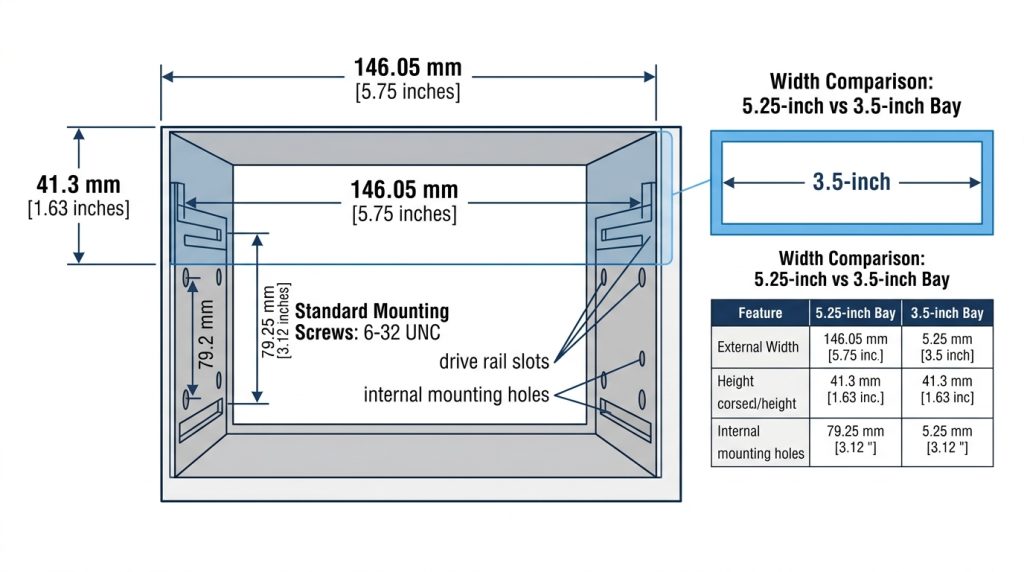

Exact 5.25 Bay Dimensions You Need to Know

The 5.25 bay dimensions are more specific than most people realize, and getting them wrong means buying an accessory that doesn’t fit. Here’s what you’re working with:

• External width: 146.05 mm (5.75 inches), yes, wider than “5.25 inches” suggests. The name comes from the original floppy disk size, not the bay opening.
• Single-height (1H) height: 41.3 mm (1.625 inches)
• Double-height (2H) height: 82.6 mm (3.25 inches), used for multi-drive cages
• Screw hole spacing: 79.25 mm vertical, using 6-32 UNC thread (the same standard screw used across most PC hardware)
• Depth clearance: varies by case. Most ATX mid-towers allow 180–210 mm. Cramped cases, especially mATX, may only offer 150–170 mm, always check before buying a deep accessory like a 4-in-3 hot swap cage.

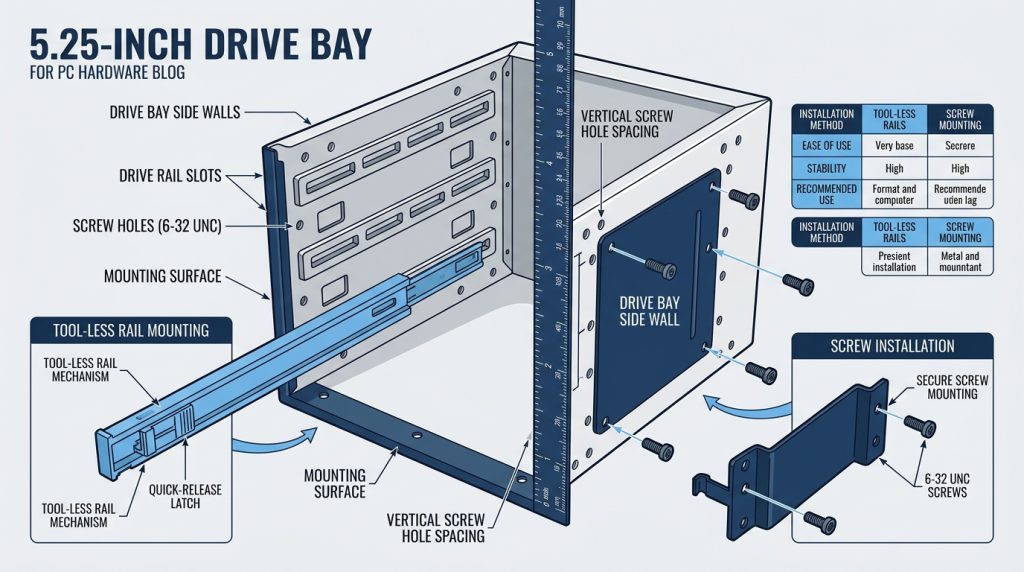

The bay also includes drive rail slots along the internal side walls. Most accessories either use the standard screw pattern or snap into tool-less rails. Budget cases sometimes only support screw installation. Not the end of the world, but worth knowing.

How 5.25 Bays Differ From 3.5 and 2.5-Inch Bays

Size matters here more than people think. A 3.5-inch HDD won’t mount directly into a 5.25 bay without an adapter, the width gap is significant. That’s exactly why 5.25 to 3.5 adapter products exist. Here’s how all three form factors compare:

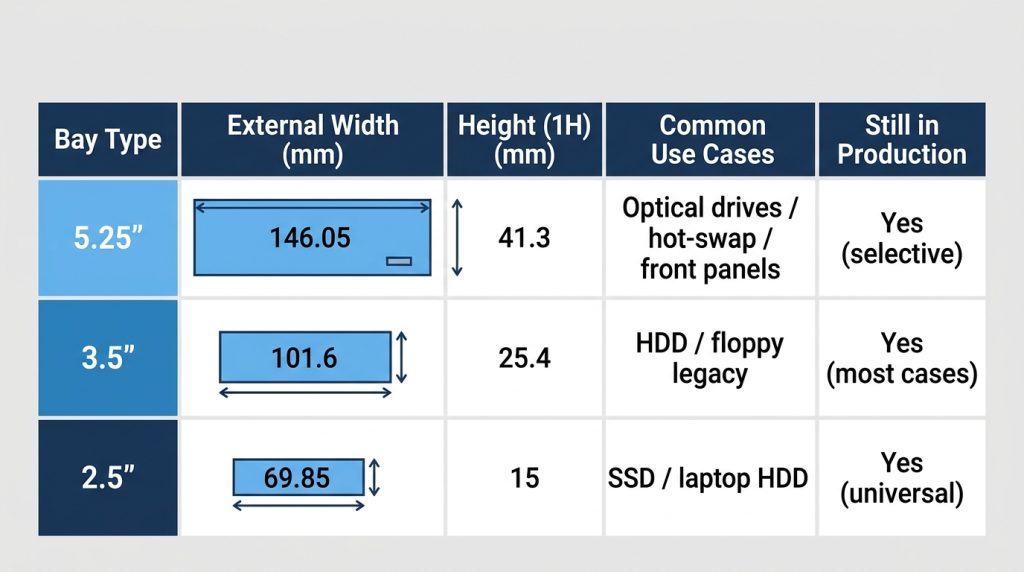

Bay Type	External Width	Height (1H)	Common Use Cases	Still in Production Cases?
5.25-inch	146.05 mm	41.3 mm	Optical, hot-swap, panels	Yes (selective)
3.5-inch	101.6 mm	25.4 mm	HDD, floppy (legacy)	Yes (most cases)
2.5-inch	69.85 mm	15 mm	SSD, laptop HDD	Yes (universal)

The 5.25 inch bay survived because nothing else matches its internal volume. That space gives you room to pack in multi-drive cages, card readers with multiple slots, or multi-function panels that combine USB ports, audio jacks, and fan controls in a single unit.

Every Type of 5.25 Bay Accessory Explained

Most search results for 5.25 drive bay accessories focus entirely on optical drives and stop there. That’s leaving a lot of genuinely useful hardware on the table. Here’s everything you can put in a 5.25 slot.

Optical Drives (Blu-ray, DVD, CD)

The original reason people search for a pc case with optical drive bay. Optical drives connect via a standard SATA data cable and SATA power, the same interfaces your hard drives use. No proprietary connectors, no special adapters. Just plug it in.

You’ll find two physical formats:

• Full-height (standard) optical drives: the classic 5.25-inch height, fits any bay with standard clearance
• Slim optical drives: typically 12.7 mm or 9.5 mm height, require a slim-to-5.25 bay adapter bracket to mount properly

Use cases are broader than “watch a DVD.” Blu-ray ripping for local media libraries, playing disc-based game libraries (particularly older PS2 or Xbox titles via emulation), CD ripping for audiophile FLAC collections, and archiving physical media to NAS storage are all legitimate reasons to want an internal optical drive in 2025. The community on r/buildapc confirms this, a recurring thread there asks exactly this question, with members citing CD collections and Blu-ray ripping as their primary drivers.

5.25 Hot Swap Bays

A 5.25 hot swap bay lets you slide hard drives in and out of your PC without opening the case or touching a screwdriver. The drive locks into a tray, the tray slots into the bay, and the system recognizes it automatically, assuming your SATA port is set to AHCI mode in BIOS.

Two main configurations exist:

• Single-drive bays: one 3.5-inch HDD or SSD per 5.25 slot. Simple, affordable, fits any case with one open bay.
• 4-in-3 multi-drive cages: mount four 3.5-inch drives in three 5.25 slots using a backplane. Brands like Icy Dock and StarTech make these. They’re a favorite among the data hoarding community and anyone building a budget NAS inside a standard ATX tower.

Interface options matter. SATA III backplanes (6 Gbps) are the current standard and handle modern HDDs fine. SAS backplanes cost more but support SAS drives and enterprise HDD configurations, relevant if you’re repurposing server hardware. Most home builders don’t need SAS.

Who actually uses these? Video editors swapping large project drives between sessions. Photographers moving high-capacity archive disks. Home lab enthusiasts running Plex or TrueNAS in a desktop case rather than a dedicated NAS enclosure. Hot swappable. Very convenient.

5.25 to 3.5 Bay Adapters

The most unglamorous accessory on this list. Also one of the most useful. A 5.25 to 3.5 bay adapter is a simple metal bracket that lets you mount a 3.5-inch hard drive inside a 5.25-inch bay opening. You screw the drive to the bracket, slide the bracket into the bay, and secure it with the standard 6-32 screws.

Where they make sense: cases with multiple 5.25 bays but limited internal 3.5-inch drive cages. You can effectively convert unused optical bay space into HDD mounting points without buying a new case.

Price range is $5–$20 for basic adapters. Here’s how the different configurations compare:

Adapter Type	Drives Supported	Installation	Price Range	Best For
Single 3.5″ bracket	1x HDD	Screws	$5–$10	Basic HDD mounting
Dual 3.5″ cage	2x HDD	Screws/Rails	$15–$25	Storage expansion
3.5″ + 2.5″ combo	1x each	Screws	$10–$18	Mixed storage builds
4-in-3 hot swap	4x HDD	Tool-free	$40–$90	Power users/NAS

One compatibility note: always verify the depth of the adapter against your case’s internal clearance before buying. A cheap adapter that blocks airflow or physically conflicts with your power supply cables is worthless at any price.

Internal Card Readers (Multi-Format)

An internal card reader installs into a 5.25 bay and connects to your motherboard via a USB 2.0 or USB 3.0 internal header. It gives you front-panel access to memory cards without plugging anything into the back of your PC or using a USB dongle that inevitably gets lost.

The card format support breakdown matters more than most product listings explain:

• SD / SDHC / SDXC: universal. Every card reader includes this.
• Compact Flash (CF): a compact flash card reader is still genuinely relevant. Professional DSLR cameras, broadcast equipment, and industrial control systems continue to use CF cards in 2025. A CF card reader internally mounted is far faster and more reliable than a USB dongle for bulk image ingestion.
• CFast and CFexpress: newer pro video formats. Far fewer internal readers support these, check specs carefully before buying.
• microSD: common on multi-slot readers, sometimes requiring an adapter tray.
• Memory Stick / xD / MS Pro: legacy formats. Some older multi-slot readers include them; newer ones typically don’t bother.

The USB interface version of your internal card reader is the most important spec to verify. The speed difference is substantial:

• USB 2.0 internal header: theoretical 480 Mbps, real-world transfer speeds of 25–35 MB/s. Fine for SD cards, painfully slow for large CF card dumps from a 45MP camera.
• USB 3.0 internal header: theoretical 5 Gbps, real-world 90–200 MB/s depending on the card speed. This is what you want for any professional media workflow.

Before buying, check how many internal USB headers your motherboard has occupied already. If your front panel’s USB 3.0 header is the only one and it’s already taken, you’ll need a USB 3.0 hub or a card reader that supports USB 2.0 fallback. Our guide on USB 2.0 vs 3.0 vs 3.2 header differences walks through what each header type supports and how to identify them on your board.

Multi-Function Front Panels

Think of a multi-function front panel as everything you wish your case’s front panel already had, packaged into a single 5.25 bay unit. A typical high-quality panel includes USB-A 3.0 ports, a USB-C port, SD and CF card slots, 3.5mm audio in/out jacks, and sometimes a small digital fan speed display.

These are the most practical 5.25 bay accessories for desktop workstation builders. One slot gives you a significant front-panel upgrade over what most mid-tower cases ship with by default.

Key specs to look for when comparing panels:

• USB standard: USB 3.2 Gen 1 (5 Gbps) is the minimum worth buying today. Gen 2 (10 Gbps) panels exist but cost more and require a compatible header on your board.
• USB-C inclusion: not universal on 5.25 bay accessories yet. If you regularly use USB-C devices, confirm the panel includes it and that your motherboard has the corresponding 20-pin USB 3.2 front panel header.
• Card reader interface: same rule applies here as standalone card readers. USB 3.0 internal connection, not 2.0.
• Fan channels: if the panel includes a fan controller, check whether it supports PWM (4-pin) fans or only DC (3-pin). Mixing these in a controller produces unpredictable results.

Both 5.25 bay accessories and 5.25 drive bay accessories in the multi-function category are available from brands including Silverstone, Icy Dock, and Akasa, all have been making these panels for over a decade with solid compatibility records.

Fan and RGB Controllers

5.25 bay fan controllers range from simple analog dial units with basic RPM control to digital display panels showing real-time temperatures and fan speeds. Mostly a legacy category now. Modern motherboards with good BIOS fan curves do everything a basic bay controller does, without using a bay slot.

That said, they still have a place. Server-adjacent builds with many fans, cases with fan configurations that don’t map cleanly to motherboard headers, and builders who want physical knob control rather than software all have valid reasons to use one. You can also find ARGB hub panels with 5.25 bay mounting, which solve the problem of running many addressable RGB fans from a single controller in a tidy front-mounted unit. For more on managing multiple fan connections, the PC fan hub and splitter guide covers how powered hubs handle header load.

Other Niche Accessories

A few more options worth knowing about:

• Internal USB hubs: mount into a 5.25 bay and add USB-A or USB-C ports accessible from inside the case, useful for permanently connected devices like wireless receiver dongles or RGB controllers that would otherwise clutter your rear I/O.
• Drive bay covers and dust filters: if you have unused 5.25 bays, blank covers keep dust out and maintain airflow pressure. Some include magnetic mesh filters. Not exciting but genuinely useful.
• Floppy drives: yes, they still exist. Retro builds, legacy industrial use, and vintage computing enthusiasts sometimes install one. Requires a USB floppy adapter on modern boards. Not for everyone. Extremely niche.

PC Cases That Still Have 5.25-Inch Drive Bays in 2025 and 2026

Why Most Modern Cases Dropped 5.25 Bays

The shift started around 2012 and accelerated sharply between 2015 and 2018. Tempered glass side panels became the dominant aesthetic, and 5.25 bay devices don’t look great through glass. Simultaneously, optical drives dropped from nearly universal to genuinely rare in new PC builds. Case manufacturers responded to what the majority of buyers wanted: cleaner lines, better airflow through unobstructed chassis, and more room for front-mounted radiator options.

The result: most mid-tower cases sold today have zero 5.25 bays. The prosumer and workstation segment kept them. Full towers largely kept them. But the mainstream gaming case market moved on.

What to Look for in a Modern Case With 5.25 Bays

If you’re actively hunting for a modern pc case with optical drive bay support, here’s what the spec sheet needs to show:

• Number of bays: one bay is common, two is better, three or more is a full tower. Determine upfront whether you need room for both an optical drive and a card reader, or just one device.
• USB-C front panel header: one of the top questions in the r/buildapc community is whether cases with optical bays also have USB-C. Some older models don’t. Verify before buying.
• Internal depth clearance: especially important if you’re installing a hot swap cage. Get the case’s internal bay depth from the manufacturer spec page and compare it to the accessory depth.
• Color: white cases with 5.25 bays exist but are rarer than black variants. Fractal Design’s Define series and the Thermaltake Core V71 both offered white colorways historically. Check availability for current stock. That’s a data point worth paying attention to, if a major manufacturer is building new SKUs for this use case, the demand is real.

Here’s how some of the most-referenced cases compare:

Case	Form Factor	5.25 Bays	Front USB-C	Color Options	Approx. Price	Notes
Fractal Design Define R5	ATX Mid	2	No (older model)	Black, White	~$100–$150 used	Quiet-focused, excellent build quality
Fractal Design Focus G	ATX Mid	2	No	Black	~$50–$75	Best budget pick with dual bays
Thermaltake Core V71	Full Tower	2	No	Black	~$120–$160	Maximum expansion, large footprint
Corsair Carbide 200R	ATX Mid	3	No	Black	~$70–$90	Solid entry-level option
Cooler Master MasterBox CM695	ATX Mid	1	Yes	Black	~$100–$130	Modern design, current production

ATX vs. mATX vs. Full Tower, Which Supports the Most Bays?

Simple answer: go bigger if bays matter to you.

• Full tower: typically 3–5 bays. The undisputed winner for expansion. Also much larger on your desk.
• ATX mid-tower: 1–2 bays in cases that include them. Most mainstream mid-towers have zero.
• mATX cases: 0–1 bays, rarely more. The format prioritizes compactness over expansion.
• Mini-ITX: effectively zero 5.25 bay support. The physical constraints simply don’t allow it at any reasonable case size.

If you need two or more 5.25 bays, say, an optical drive plus a 4-in-3 hot swap cage, a full tower is your practical choice. Trying to fit that combination into a mid-tower means either finding an exceptionally expansion-friendly model or accepting that one device won’t fit.

What the Community Actually Recommends

Forum threads asking about cases with optical drive bays consistently surface a few patterns. The Fractal Design Define series gets recommended frequently, particularly the Define R5, for its combination of two 5.25 bays, excellent noise dampening, and wide compatibility with longer accessories. The Thermaltake Core V71 appears whenever someone needs a full tower with room for a storage-heavy build.

The “just buy an external drive” counterargument appears in nearly every thread. It’s not wrong for casual users. But for anyone doing regular disc-based work, media archiving, or hot-swap storage management, the internal solution is meaningfully faster and more convenient. External optical drives work. Internal ones work better if you use them daily.

How to Install Devices in a 5.25-Inch Drive Bay

Standard Installation Steps

The process is the same whether you’re installing an optical drive, a card reader, or a multi-function panel:

1. Remove the slot cover from the front of the case. Most use a push-tab or require removing a screw from the inside. Budget cases sometimes require breaking out a stamped metal blank, which is less elegant but works.
2. Slide the device into the bay from the front, aligning the screw holes on the device with the holes on the bay side rails.
3. Secure with 6-32 UNC screws, typically two to four screws per side depending on the device. Don’t overtighten. Finger-tight plus a quarter turn is sufficient for most accessories.
4. Connect the data cable. SATA for optical drives. USB internal header cable for card readers and multi-function panels.
5. Connect power. SATA power connector for optical drives. USB-powered devices (card readers, panels) draw power through the USB header, no separate power connector needed in most cases.
6. Connect any panel headers. If the device has front-panel audio or USB ports, run the appropriate cables to the corresponding motherboard headers. Check your motherboard manual for header locations.

For optical drives, the system should detect the drive automatically on the next boot, no driver installation required on Windows 10 or 11. Card readers may prompt for driver installation on first use depending on the chipset.

Common Fitment Issues and Fixes

A few problems come up repeatedly:

• Device is shallower than the bay: it’ll sit recessed or rattle. Use drive rails with adjustable depth, or add foam spacers behind the device to prevent movement.
• Panel cables don’t reach the motherboard: USB 3.0 internal header extension cables are available for under $10 and solve this immediately. Don’t try to stretch the original cable.
• USB 3.0 header already occupied: your front panel I/O and a new card reader can’t share one header without a USB 3.0 internal hub or splitter. Plan your header usage before buying.
• Screw holes don’t align: common on no-name accessories with inconsistent manufacturing tolerances. Try the opposite side or use drive rails to compensate.

For guidance on understanding USB headers on your motherboard, including which header types serve which purposes and how many your board likely includes, that’s a useful reference before you start stacking accessories.

5.25 Bay Accessories, Buying Guide and What to Avoid

Key Specs Checklist Before You Buy

Run through this list before adding anything to your cart:

• USB header version: does the accessory need a USB 2.0 or USB 3.0 internal header? Does your motherboard have an available one of that type?
• Depth vs. case clearance: measure your case’s internal bay depth. Compare it to the accessory’s specified depth. Add 10–15 mm buffer for cable routing behind the device.
• Interface type: SATA for optical drives. USB for panels and card readers. Some older fan controllers use proprietary connectors, verify compatibility with your board’s fan headers.
• Fan controller motor type: if the accessory includes fan control, confirm it supports PWM (4-pin) fans if that’s what you’re running. A DC-only controller connected to PWM fans won’t regulate speed correctly.
• Backplane SATA rating: for hot swap cages, confirm the backplane supports SATA III (6 Gbps). SATA I or II backplanes bottleneck modern HDDs and are common on cheap, older cage designs.

Red Flags to Watch For

Not worth buying. Full stop.

• USB 2.0 card readers marketed as “high speed”: the marketing is misleading. USB 2.0 maxes out around 35 MB/s in real-world conditions. If you’re dumping large CF or SD cards, that’s unacceptably slow. Check the internal header spec in the product listing, not the front-panel USB port rating.
• Hot swap bays with no backplane SATA rating listed: if the manufacturer won’t specify the backplane standard, assume it’s outdated. SATA I backplanes on modern HDDs cause reliability issues under sustained write loads.
• Adapters that block adjacent bays: some 5.25 to 3.5 adapters extend slightly beyond the bay edge internally, blocking the slot above or below. Check user reviews specifically for fitment complaints before buying cheap bracket adapters.
• No-name multi-function panels with USB-C: USB-C front panel accessories that don’t specify the internal header type are often using USB 2.0 internally for the USB-C port. That defeats the purpose of having USB-C in the first place.

FAQ, 5.25 Inch Drive Bays and PC Cases

Are PC cases with 5.25-inch drive bays still being made in 2025 and 2026?

Yes. It’s a smaller segment of the market than it was a decade ago, but several manufacturers continue producing cases with 5.25 bay support. Full towers almost universally include them. Mid-tower options are selective but available from Fractal Design, Thermaltake, Cooler Master, and Corsair, among others. The Cooler Master MasterBox CM695 is a current-production example built specifically to address demand for optical drive support. Prices for these cases range from around $70 for budget mid-towers to $150 and up for full towers with multiple bays.

Can I use a 5.25 bay for something other than an optical drive?

Absolutely. The 5.25 drive bay is one of the most versatile internal mounting points in a PC case. Hot-swap drive bays, multi-format internal card readers, multi-function front panel accessories, fan controllers, ARGB hubs, internal USB hubs, and 5.25 to 3.5 inch adapter brackets all mount directly into standard 5.25 bays. Many builders who don’t need an optical drive still specifically look for cases with these bays to install hot swap cages or card readers.

What are the exact dimensions of a 5.25-inch drive bay?

External width is 146.05 mm (5.75 inches). Single-height bays measure 41.3 mm (1.625 inches) tall. Double-height configurations measure 82.6 mm (3.25 inches) and accommodate multi-drive cages. Screw hole spacing is 79.25 mm vertical, using 6-32 UNC thread, the standard across virtually all PC hardware mounting. Internal depth clearance varies by case, with typical ATX mid-towers offering 180–210 mm of usable depth. Always verify your specific case’s clearance before buying deep accessories like 4-in-3 hot swap cages.

Do modern motherboards support internal card readers in a 5.25 bay?

Yes, with one condition: your motherboard needs an available USB internal header of the appropriate type. Card readers connect via either a USB 2.0 internal header (9-pin) or a USB 3.0 internal header (19-pin Type-A connector). Most ATX and mATX motherboards include at least one USB 3.0 internal header and one or two USB 2.0 headers. Check your motherboard’s spec page or manual to confirm how many you have and how many are already occupied by your front panel I/O cables.

What is the best 5.25 bay accessory for a video editing or photography workstation?

The combination most commonly used by prosumer photo and video builders is a multi-format internal card reader with a USB 3.0 internal connection paired with a hot-swap bay in an adjacent 5.25 slot. The card reader handles fast media ingestion from CF, CFast, and SD cards directly into the editing system, while the hot swap bay allows flexible project drive management without ever opening the case. If your case only has one 5.25 bay, a multi-function panel that includes a USB 3.0 card reader, USB-A ports, and audio jacks in a single unit is the most space-efficient option.

What You Should Do

If you need a pc case with optical drive bay support, you’re not looking for a unicorn, you’re looking in the wrong product categories. Skip the mainstream gaming case segment entirely and look at prosumer mid-towers and full towers from Fractal Design, Thermaltake, and Cooler Master. Verify the number of bays, the internal depth clearance, and whether the front panel includes USB-C if that matters to you. Then decide what goes in those bays beyond just the optical drive: a hot swap cage, a USB 3.0 card reader, or a multi-function panel turns that extra slot into something genuinely useful every day you sit down at the machine. The 5.25-inch bay isn’t dead. It’s just selective about which builds it belongs in now, and yours might be one of them.
