ARGB Controllers and Headers Explained

An ARGB controller is a standalone hardware device that generates and manages addressable RGB lighting signals via a 5V, 3-pin data connection, operating independently of a motherboard.

Last updated: June 2026

Quick Answer: What Is an ARGB Controller?

An ARGB controller is a small unit, usually powered by SATA or USB, that drives addressable RGB lighting without needing a motherboard ARGB header. It contains its own microprocessor, stores built-in lighting effects, and can be operated via remote, physical buttons, or USB software. If your motherboard lacks ARGB headers, or you’ve run out of them, a standalone controller is how you keep full lighting control across all your devices.

If you’re new to PC lighting, the terminology gets confusing fast. ARGB headers, ARGB hubs, standalone controllers, 5V vs 12V, proprietary connectors, it’s a lot. This guide breaks all of it down clearly: what each piece of hardware actually does, when you need a controller versus a hub, and how to pick the right setup for your build.

What Is ARGB? The Core Concept Explained

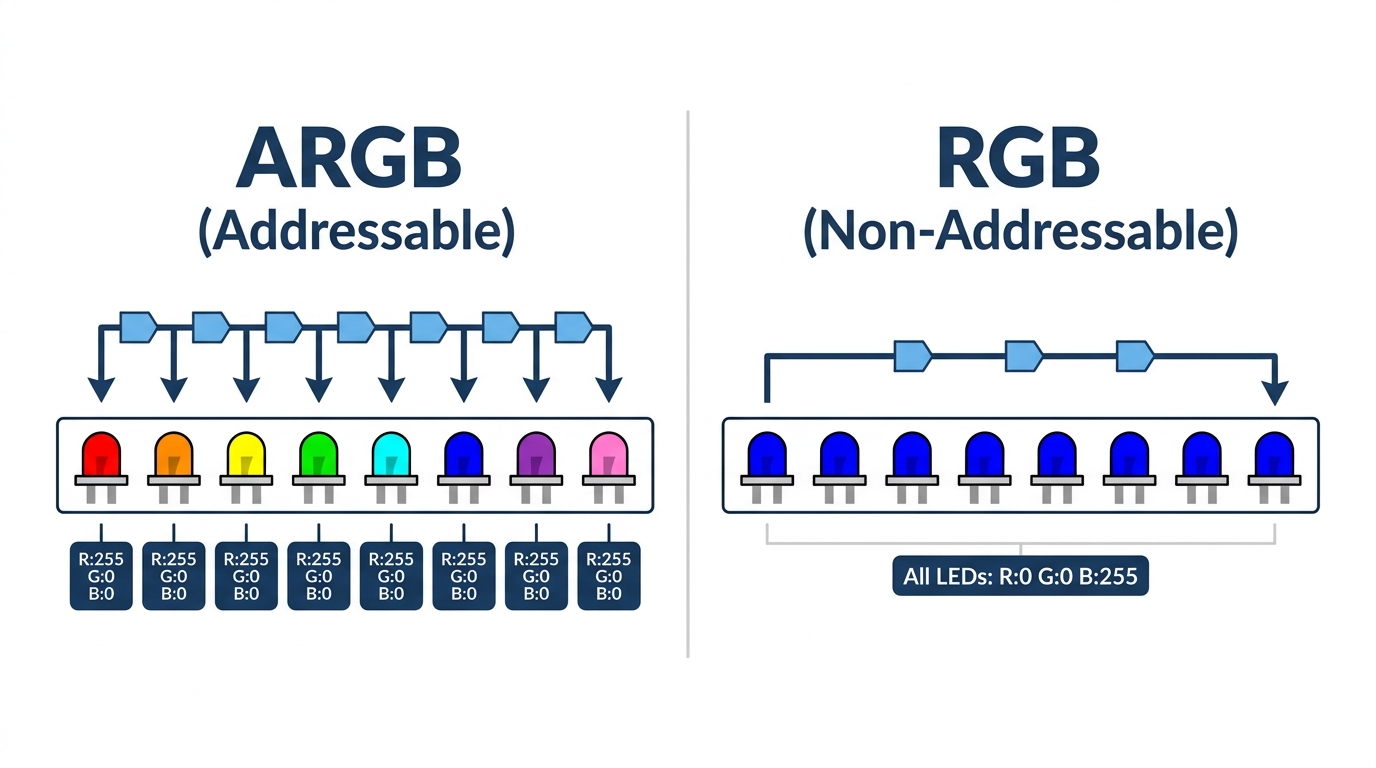

Addressable vs. Non-Addressable RGB: What’s the Actual Difference?

The fundamental split in PC lighting comes down to two connector types with very different capabilities.

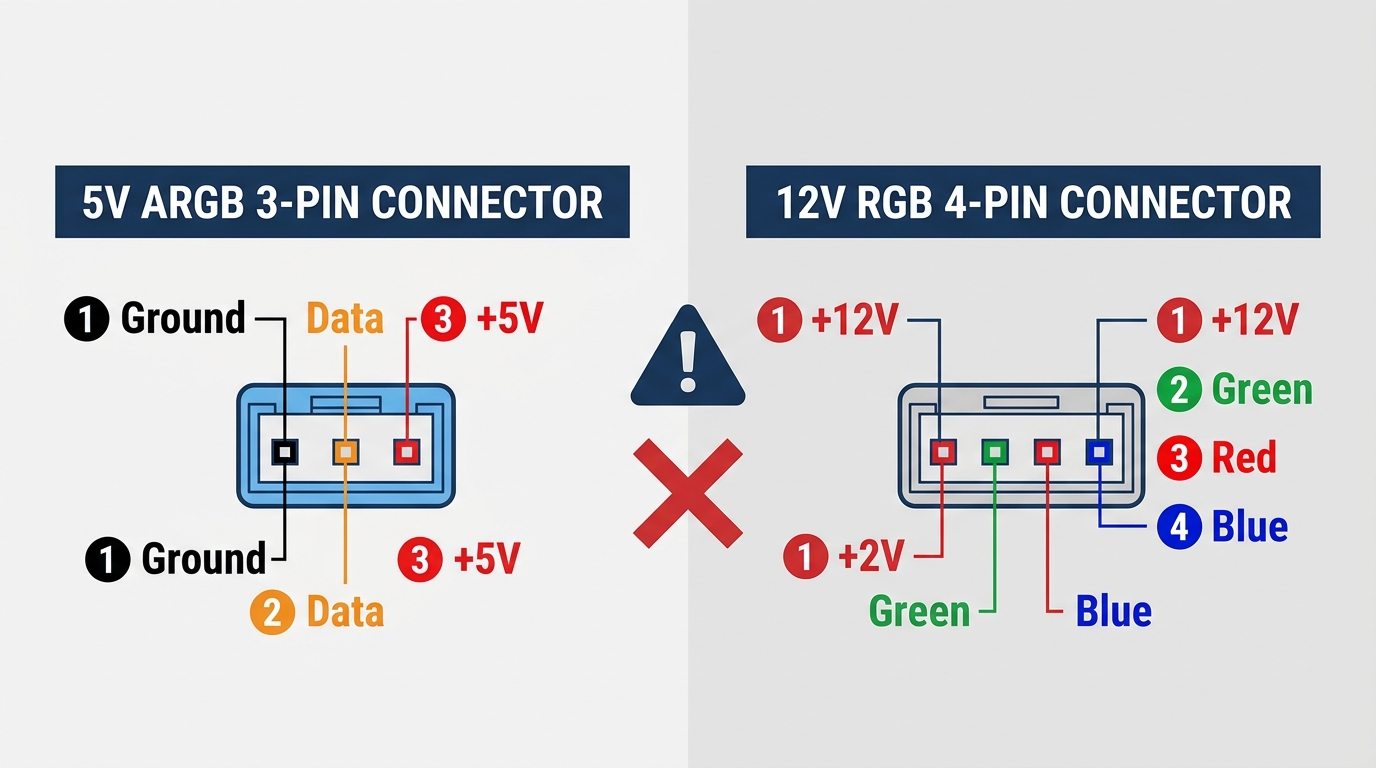

5V ARGB uses a 3-pin connector with three signals: Ground, Data, and +5V. The key word is “addressable.” Each LED has its own tiny controller IC (typically a WS2812B or SK6812) embedded in the strip, and the data pin sends individual R/G/B values (0-255 per channel) to each one in sequence. This is what lets a single strip show a rainbow wave, react to audio, or display completely different colors zone by zone. Most motherboard ARGB headers support up to 3A total (15W), which covers roughly 60 to 120 LEDs per header depending on the board.

12V RGB uses a 4-pin connector carrying +12V, Green, Red, and Blue signals. All LEDs on the strip share the same analog color signals, so they all display the same color at once. No individual addressing. It draws less current for the same LED count (around 3A for 150 LEDs) and the higher voltage means longer strips with less voltage drop, but you lose any per-LED control entirely.

One thing competitors don’t mention: LED count per strip matters beyond just power draw. More LEDs per strip means more data packets per refresh cycle. On lower-end or older controllers, very dense strips (above 300 LEDs) can produce visible flicker or color errors because the controller can’t refresh the full data chain fast enough. Worth knowing before you buy a 500-LED reel for a budget standalone unit.

If you want a deeper look at how these two standards compare visually and technically, the breakdown in our ARGB vs RGB differences guide covers connector pinouts and practical build advice side by side.

How ARGB Actually Works at the Hardware Level

The signal chain runs like this: your motherboard software (or a standalone controller’s onboard processor) generates a serial lighting command. That command travels down the single data wire to the first LED IC in the strip. The IC reads its color value (one byte each for R, G, and B), stores it, then passes the remaining data signal along to the next LED in the chain. This continues down every LED until the full frame is loaded, then all LEDs update simultaneously.

This “single-wire serial” protocol is exactly why ARGB enables effects that standard 12V RGB can’t. Each LED gets its own unique value per frame, refreshed dozens of times per second. The more LEDs in the chain, the more data that needs to move per refresh cycle, which is why controller bandwidth and processing speed matter for large installations.

ARGB Headers Explained

What Is an ARGB Header on a Motherboard?

An ARGB header is a physical connector on your motherboard, keyed as a 3-pin 5V port with one pin position blocked to prevent incorrect insertion. That notch isn’t cosmetic. It physically prevents you from plugging in a 4-pin 12V RGB device the wrong way, which would destroy both the device and the header.

The header connects directly to your motherboard’s 5V rail and passes a data signal generated by your system’s RGB sync software. The header itself supports up to 3A (15W) total across everything connected to it. Exceed that, and you risk burning out the header trace on the board. Not a fixable problem.

Most mid-range and above motherboards include at least one or two ARGB headers. This covers B450/B550/X570 on AMD, and Z490/Z590/Z690/Z790 on Intel. Budget boards (A320, H410, B460) sometimes skip them entirely or offer only one. Check your specific board’s spec sheet before assuming you have a header available.

For a full breakdown of the different header types you’ll find on a motherboard, including pinouts for both ARGB and standard RGB, the RGB header guide covers every connector type with diagrams.

Proprietary ARGB Headers: The Brand Compatibility Problem

Here’s where things get messy. Several major brands don’t use the standard 3-pin ARGB header.

• Corsair iCUE: Uses a proprietary 3-pin daisy-chain connector on its fans and strips, designed to connect through Corsair’s own lighting hub or commander units
• Thermaltake TT RGB PLUS: Uses its own connector format, designed around TT’s AI software ecosystem
• NZXT: Routes lighting through its CAM-controlled controller hub, not standard headers
• Lian Li: Uni fans use a proprietary hub-based daisy-chain system with their own controller
• Razer Chroma: Designed to integrate with Razer’s software ecosystem, with limited standard-header compatibility

Adapters exist to convert some of these to standard 3-pin ARGB, but they often strip out software sync features. You’ll get lighting, but you might lose effects or the ability to control the device through your motherboard’s RGB software. If you’re mixing brands, research adapter compatibility for your specific device before buying.

How Many ARGB Headers Do You Actually Need?

Count your ARGB devices first. Then check your motherboard spec sheet. Simple rule of thumb:

• Budget builds (1-2 headers): Covers a few case fans and one LED strip
• Mid-range builds (3-4 headers): Three case fans, an AIO pump head with lighting, and a front panel strip
• Full RGB builds (5+ headers): At this point, a hub or standalone controller isn’t optional, it’s necessary

If you’re already at three devices and your board only has two headers, a hub is your next move. If your board has no headers at all, skip the hub entirely and go straight to a standalone controller.

ARGB Controllers vs. ARGB Hubs: They Are Not the Same Thing

What a True ARGB Controller Does

A standalone ARGB controller contains its own microprocessor. That’s the key distinction. It doesn’t need a motherboard header to function because it generates the lighting data signal itself.

Power comes from a SATA connector (most common), Molex, or a USB header on your board. Many units include built-in effects accessible via physical buttons or an IR remote, with no software required at all. Higher-end models connect via USB and integrate with software like SignalRGB or a brand’s own application for full software control.

The Cooler Master Addressable RGB LED Controller is a solid real-world example: it offers four ARGB output ports plus one standard RGB port, connects via Micro USB 2.0 for software control, includes a thermal detection sensor wire, and measures just 88x53x15mm. It handles both addressable and non-addressable devices from a single unit. Genuinely useful if you’re adding lighting to a build from 2017 or 2018.

What an ARGB Hub Actually Does

An ARGB hub, also called a splitter, is a passive device. No microprocessor. It takes a single ARGB signal from a motherboard header (or standalone controller) and mirrors it identically across multiple output ports.

Every port outputs the same signal. You can’t give port 1 a different effect than port 3. All devices mirror each other. The hub doesn’t add any control capability; it only multiplies your connection count.

Thermaltake’s TT Sync Controller TT Premium Edition is a common example of confusing naming. Despite “controller” in the product name, it’s a signal splitter. It works well for what it is, but it absolutely requires a motherboard ARGB header or a true standalone controller upstream to function at all.

If you need to power multiple fans from a single header, the PC fan hub and splitter guide explains how to safely distribute both power and signal without overloading your headers.

Quick Comparison: Controller vs. Hub vs. Motherboard Header

Choosing the Right ARGB Controller for Your Build

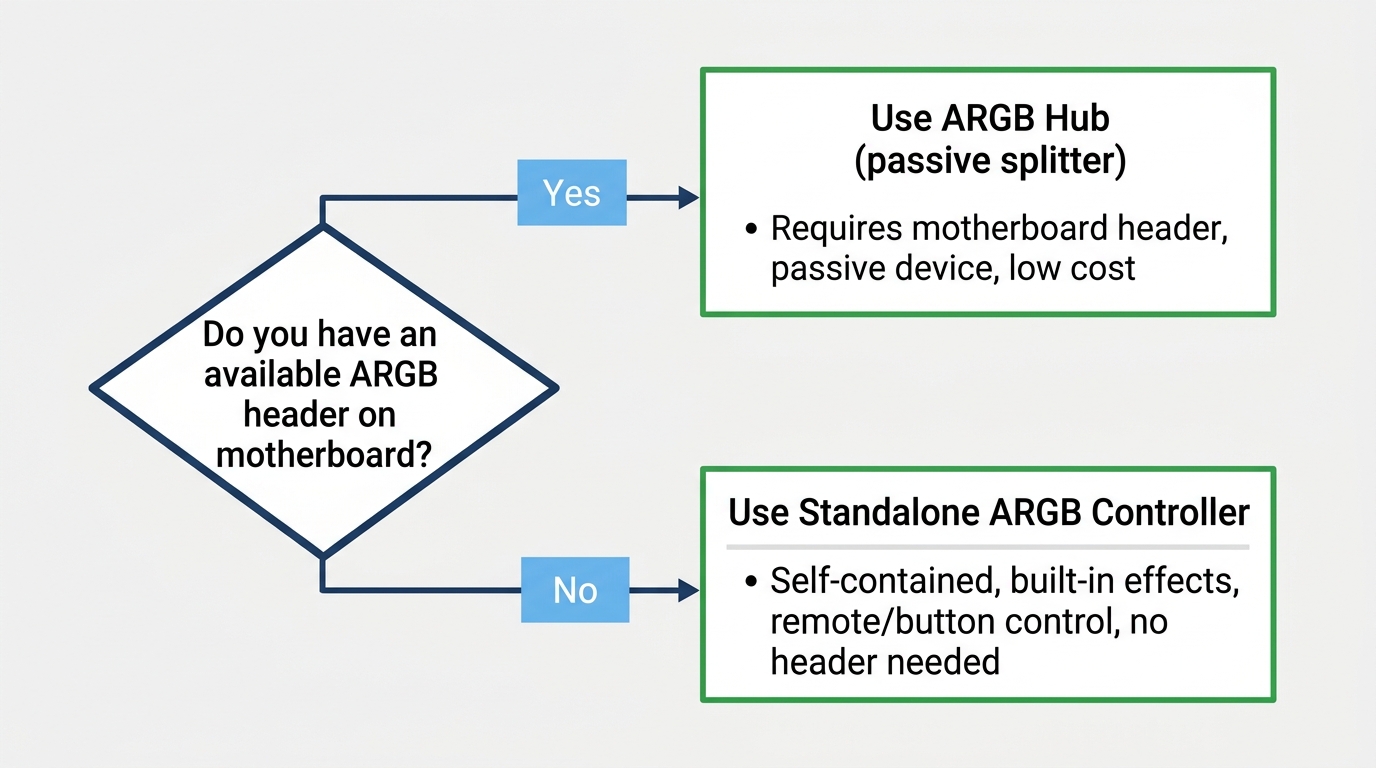

When You Need a Standalone Controller (and When You Don’t)

You need a standalone controller if:

• No ARGB header on your motherboard: Older boards (pre-2018 budget models especially) often lack 5V ARGB headers entirely
• Running a mini-ITX build: Compact boards frequently have only one ARGB header, not enough for a full fan stack plus strips
• Mixing brand ecosystems: If your fans use one proprietary system and your strips use another, a universal standalone controller unifies them
• Want hardware-level control without software: A controller with a remote works even when your OS isn’t running, useful for BIOS or POST screens

You don’t need one if your motherboard has enough headers for every device in your build and you’re happy controlling everything through your board’s RGB software. Keep it simple when you can.

Key Specs to Look for in an ARGB Controller

Not all standalone controllers are equal. Here’s what matters:

• Number of ARGB output ports: 4 ports is standard entry-level; go for 8-10 if you’re running more than three fans plus strips
• Amperage per port and combined: Look for at least 3A per port with clearly stated total combined capacity; controllers that skip this spec are often cutting corners
• LED capacity per channel: Higher-end controllers like those compatible with SignalRGB support up to 256 LEDs per channel with 16 individually addressable channels; budget units top out much lower
• Interface type: USB-connected units (Micro USB 2.0 is common) work with software like SignalRGB and OpenRGB; IR remote units are standalone-only with no software sync
• Power connector: SATA is the most stable and common; Molex works but is less clean for cable management
• Output connector type: Confirm it’s standard 3-pin 5V ARGB output, not proprietary, unless you’re buying into a specific brand ecosystem intentionally
• Mounting options: Magnetic backing or adhesive pads make installation much easier inside a case

Notable ARGB Controllers by Brand

Here’s a quick rundown of the major options you’ll actually encounter:

• Cooler Master ARGB LED Controller: Four ARGB ports plus one standard RGB port, Micro USB 2.0 interface, includes a thermal sensor wire and case restart wire, software support via Cooler Master’s application. Compact at 88x53x15mm. Solid general-purpose pick.
• ARCTIC A-RGB Controller: Uses a standard digital RGB 3-pin output, so non-ARCTIC ARGB products connect and work fully. Good option if you want brand-agnostic compatibility without locking into an ecosystem.
• Thermaltake TT RGB PLUS Controller: Integrates with Thermaltake’s AI software and ecosystem. Works great within the TT world. Outside it, compatibility gets complicated.
• Lian Li Hub (Uni Fan system): The three-pack of Uni fans ships with a four-port ARGB controller designed for their daisy-chain system. Purpose-built for Lian Li fans; not a universal controller.
• ASUS AURA Controller: Designed to extend the AURA Sync ecosystem to non-ASUS devices. Best value if you’re already on an ASUS board with AURA software.
• Budget / generic IR remote controllers: Available on Amazon in the $15-$25 range, SATA-powered, no software integration. Work fine for static or preset effects if you don’t need sync. Watch the maximum LED count specs carefully, cheaper units often max out around 100-120 LEDs total.

ARGB Software Ecosystem: Controlling Your Lighting

Motherboard-Native RGB Software

Every major motherboard brand ships its own RGB control software:

• ASUS AURA Sync: Covers ASUS boards, cards, and peripherals; deep integration within the ASUS ecosystem
• MSI Mystic Light: MSI’s equivalent, works across MSI boards and select MSI peripherals
• Gigabyte RGB Fusion 2.0: Supports Gigabyte hardware and some third-party ARGB headers
• ASRock Polychrome Sync: ASRock’s implementation with similar scope to the others

The limitation with all of these: they’re built around their own ecosystems. Cross-brand sync is limited and often unreliable. If you mix an ASUS board with Corsair fans and an MSI GPU, getting everything to sync in AURA Sync is a frustrating exercise. Native software is fine when you stay within one brand’s product family.

Third-Party Universal RGB Software

This is where things get genuinely useful for mixed-brand builds.

• SignalRGB: The widest hardware compatibility list of any RGB software available right now. Works across brands, free tier available, supports USB-connected standalone controllers, and includes a large library of effects. Per their published specifications, certain compatible controllers support up to 256 LEDs per channel across 16 individually addressable channels.
• OpenRGB: Fully open-source, no telemetry, growing device support list contributed by the community. Best choice if privacy matters to you or if you’re running Linux.
• Razer Chroma: Primarily covers Razer hardware but has limited third-party integration. Not a universal solution unless most of your gear is Razer.

USB-connected standalone controllers are much more likely to work with third-party software than hub-based systems. A hub shows up as a single header in software, not as individual devices. If per-device control and cross-platform sync matter to you, a USB-interface standalone controller is the right call.

ARGB Setup: Common Problems and How to Fix Them

LEDs Not Lighting Up

Start with the basics before assuming the device is dead. Check that your SATA or Molex power connector is fully seated. Then check the 3-pin data connector orientation, the keyed notch should only allow one direction, but cheap connectors can sometimes bypass the key. Confirm in your BIOS or RGB software that the header is set to 5V ARGB mode, not 12V RGB. Some boards default to 12V on universal headers and won’t drive ARGB devices at all until you change the setting. Not obvious. Frustrating.

Wrong Colors or Flickering

If your LEDs light up but colors look wrong or flicker, you’re likely dealing with one of three issues. Insufficient amperage from too many LEDs on one header is the most common cause: you’ve exceeded the 3A limit and the voltage is sagging under load. A bent or damaged data pin causes corruption in the serial signal, producing random color errors. Software conflict is also surprisingly common, if both your motherboard’s RGB software and SignalRGB are running simultaneously, they’ll fight over the header and produce exactly this symptom. Run one at a time.

Software Not Detecting ARGB Devices

Hub-based systems won’t show individual devices in software. The software sees the header, not the hub or the devices connected to it. That’s expected behavior, not a bug.

For USB-connected standalone controllers, missing detection usually means drivers haven’t installed. Check Device Manager for unrecognized USB devices and install the manufacturer’s driver package before opening the RGB software. If a device uses a proprietary protocol (Corsair CUE, for example), it won’t appear in generic RGB software at all, you need the brand’s own application.

Frequently Asked Questions

What is an ARGB controller used for?

An ARGB controller manages addressable RGB lighting in a PC, either independently or through a motherboard header. It lets you customize individual LED colors and effects across fans, strips, and other lighting components. Standalone controllers are particularly useful when your motherboard doesn’t have ARGB headers or when you’ve run out of available connections.

What is the difference between an ARGB header and an ARGB controller?

An ARGB header is a built-in connector on your motherboard that passes lighting data from your RGB software to connected devices. It can’t operate on its own, it needs software and the motherboard running to function. An ARGB controller is a separate unit with its own processor that generates lighting signals independently. It doesn’t need a motherboard header to operate.

Can I use an ARGB controller without a motherboard ARGB header?

Yes, and that’s the primary reason standalone ARGB controllers exist. They draw power from a SATA or USB connection and operate completely independently of your motherboard’s headers. You can run a full addressable RGB setup on a board from 2015 that has zero ARGB headers, as long as you have a standalone controller handling the signal generation.

How many ARGB devices can I connect to one header or controller?

A standard motherboard ARGB header supports up to 3A (15W) at 5V, enough for roughly 60 to 120 LEDs depending on strip density and the specific motherboard. Most hubs and entry-level controllers offer 4 to 10 ports but share that same total power budget across all ports. Higher-end controllers specify per-port amperage and total capacity separately, always check both numbers before buying.

Are ARGB and RGB controllers interchangeable?

No. ARGB uses a 3-pin 5V connector and controls each LED individually via a serial data signal. RGB uses a 4-pin 12V connector and controls all LEDs as a single color through analog signals. The connectors are different voltages and different protocols. Connecting an ARGB device to a 12V RGB controller, or vice versa, causes immediate permanent damage. Always verify voltage and pin count before connecting anything.

The Bottom Line

Three things matter most here: know your connector type (5V 3-pin vs. 12V 4-pin) before buying any lighting hardware, understand that a hub mirrors a signal while a controller generates one, and verify your software ecosystem before committing to a specific brand’s products. Get those three right and the rest of your setup falls into place cleanly. If you’re starting a new build from scratch, check your motherboard’s ARGB header count first, then count your lighting devices, and decide from there whether a hub or a standalone controller fills the gap. Check out our complete RGB lighting setup guide if you want step-by-step help getting everything configured and synced after installation.
