PSU Cables Explained: 24-Pin, EPS, PCIe, SATA

A PSU cable is a power delivery connector running between a PC power supply unit and a specific component, using standardized pin counts and voltage rails to deliver the correct power safely.

Last updated: July 2026

Quick Answer: What Are PSU Cable Types and What Does Each One Do?

Every PSU ships with a set of cables, each designed for a specific job. The 24-pin ATX cable powers the motherboard. The EPS cable feeds the CPU’s voltage regulator. PCIe cables power your GPU. SATA and Molex cables handle storage drives and legacy devices. None of these are interchangeable, and with modular PSUs, cables from one brand won’t safely work in another brand’s unit.

A new build comes with a bundle of cables that looks like a tangled mess. Most of them are labeled, but labels don’t always explain what the cable actually does, how much power it carries, or when you might need more than one. This guide covers every PSU power cable type you’ll encounter: what it is, where it connects, what voltage it delivers, and what goes wrong if you get it wrong. If you’re also weighing whether to go modular, there’s a full breakdown of that decision below.

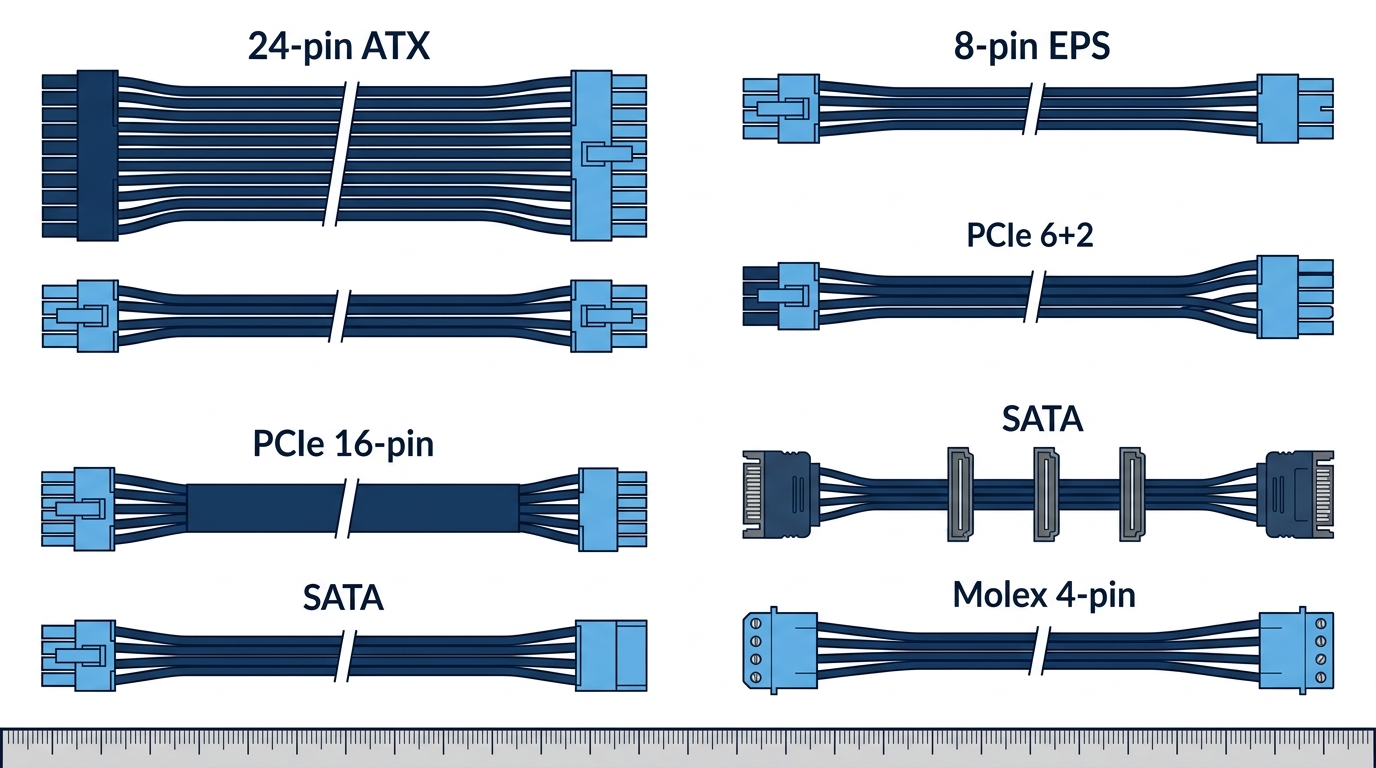

Every PSU Cable Type Explained

Think of this section as your reference sheet. Each connector type below follows the same structure: what it does, pin count, voltage rails, max power delivery, and the variants you’ll run into. Bookmark it before your next build.

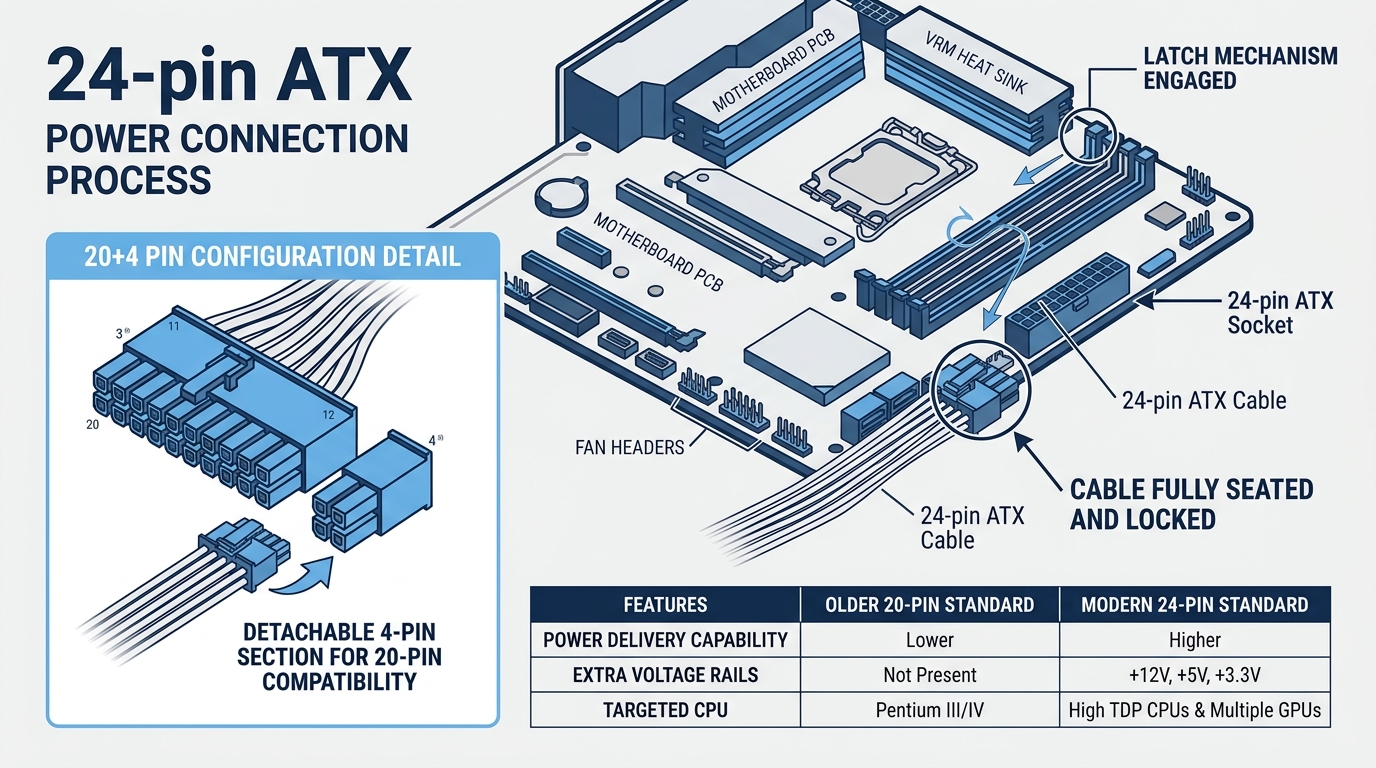

24-Pin ATX Motherboard Cable (The Main Power Connector)

This is the widest connector in the bundle, and it goes directly into the large socket on the right edge of your motherboard. It powers the motherboard’s voltage regulator module (VRM), the chipset, PCIe slots, USB headers, and onboard power delivery to RAM slots. Nothing else does this job. If this cable isn’t seated, your system won’t POST.

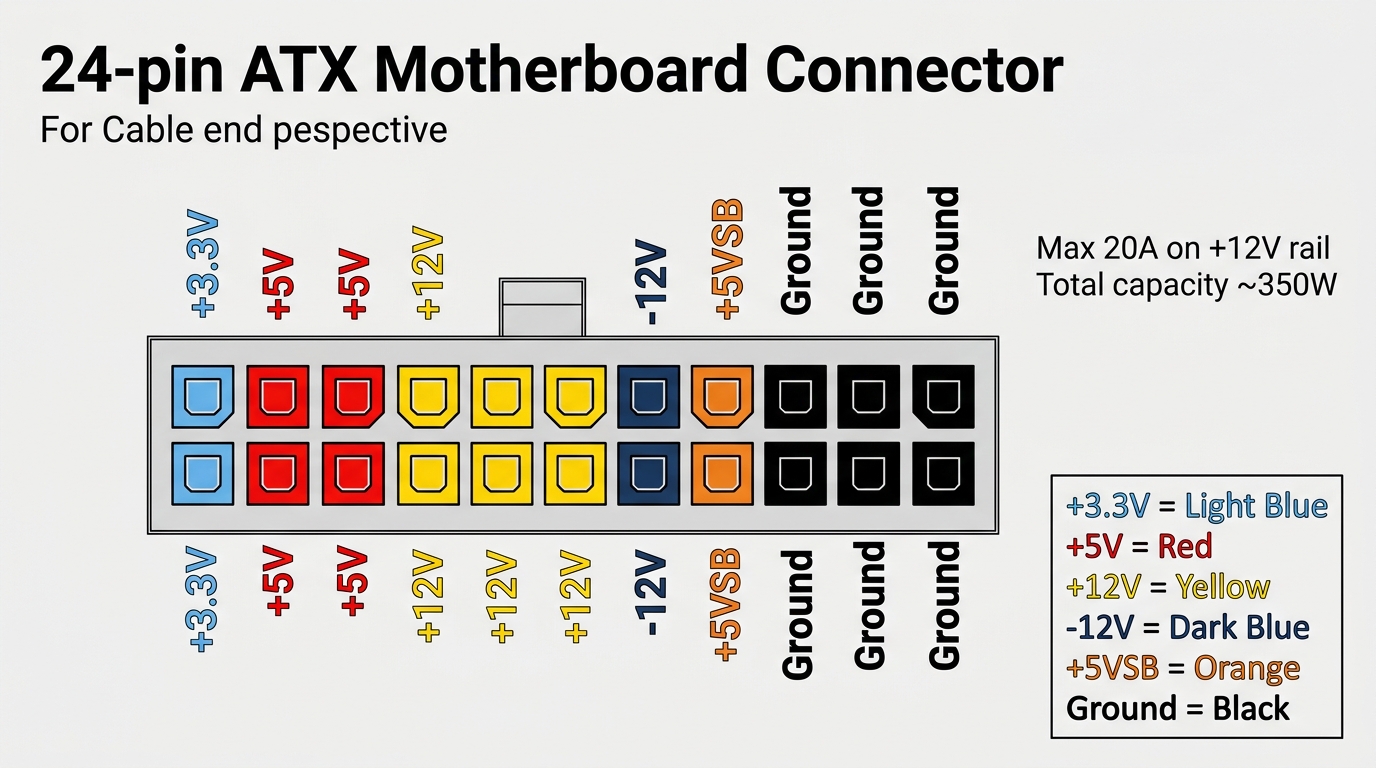

The connector carries five voltage rails simultaneously: +3.3V, +5V, +12V, -12V, and +5VSB (standby). The +12V rail alone can push up to 20A through this connector, making the sustained capacity across all rails somewhere around 350W total. In practice, the motherboard draws well under that, but the headroom matters for stability.

Modern boards use a 24-pin socket, but the cable itself is often built as a 20+4 configuration, meaning the last four pins detach. That design exists for backward compatibility with older 20-pin ATX boards. If you’re building on anything made in the last decade, you’ll always use all 24 pins. Plugging only 20 pins into a modern board is not a safe workaround. Not on a high-draw system.

The ATX 3.1 specification, published by Intel as part of the ATX Design Guide series, defines the pin assignments and current ratings for this connector in full.

EPS12V CPU Power Cable (4-Pin and 8-Pin)

Your CPU doesn’t get power from the 24-pin. It has its own dedicated cable that plugs into a square socket near the top-left corner of most motherboards. This is the EPS12V connector, and it exists purely to feed the CPU’s VRM with stable 12V power.

The variants:

• 4-pin ATX12V: Found on older builds, entry-level AM4 boards, and some budget B-series motherboards. Delivers roughly 168W (14A × 12V). Fine for low-TDP CPUs.
• 8-pin EPS12V: Standard on modern boards. Delivers up to 336W per connector (28A × 12V). Covers the vast majority of current CPUs.
• Dual 8-pin: Found on high-end desktop (HEDT) platforms and premium Z890, X870E, and B860 boards. Not strictly required — a single 8-pin EPS connector already covers power-hungry CPUs like the Intel Core Ultra 9 285K (250W peak) or AMD Ryzen 9 9950X3D (230W PPT) — but the second connector adds headroom and thermal margin under sustained full-load workloads.

The cable often ships as a 4+4 split connector. That means both halves can detach from each other, letting you plug just one four-pin group into a four-pin socket or combine both halves for an eight-pin socket. Convenient design.

One warning that trips up new builders: a PCIe 8-pin and an EPS 8-pin look nearly identical. They’re not the same. The keying is slightly different, so a PCIe cable generally won’t seat fully into an EPS socket, but don’t force it. Wiring differs between the two, and forcing the wrong connector in can damage the board or PSU.

PCIe Power Cable (6-Pin, 8-Pin, and 16-Pin 12V-2×6)

Your GPU gets power from two sources: the PCIe x16 slot (maxing out at 75W), and supplemental PCIe power cables plugged directly into the card. For anything above a basic low-profile GPU, you need at least one of these cables.

Here’s how the connector types stack up:

• 6-pin PCIe: Delivers 75W of supplemental power. Combined with slot power, total GPU ceiling is around 150W. Mostly legacy territory now, found on older mid-range cards.
• 8-pin (6+2) PCIe: The most common connector on the market. Delivers 150W supplemental (total ~225W with slot). Single 8-pin covers cards up to roughly 200W TDP. Dual 8-pin setups cover cards like the RTX 4070 Ti Super (285W TDP) or RX 9070 XT (304W TBP).
• 16-pin 12VHPWR: Introduced with the RTX 40 series, maxing at 600W on a single connector. The original 12VHPWR connector on launch RTX 4090 cards developed a reputation for melting when the adapter wasn’t fully seated.
• 16-pin 12V-2×6: The ATX 3.1 revision of the above. Better retention design, improved sensing pins. Used on RTX 50 series cards (RTX 5090, RTX 5080). AMD’s RX 9000 series flagships mostly stick with dual or triple 8-pin PCIe connectors instead — only a handful of AIB models (like the Sapphire Nitro and ASRock Taichi RX 9070 XT) have adopted 12V-2×6. This is the connector to look for on high-wattage Nvidia builds going forward.

If your PSU doesn’t have a native 16-pin output and you’re using an adapter (two 8-pin cables to one 16-pin), seat it completely until it clicks. The RTX 4090 melting incidents traced back almost entirely to partially-inserted adapters under sustained load. With 12V-2×6, the connector won’t register full power unless the sensing pins make contact, which adds a layer of protection the original 12VHPWR lacked.

According to the community at Tom’s Hardware Forum’s power supply cable guide, the safest approach is to always verify that all output pin voltages match the connector’s specifications before powering on, especially when using adapter cables.

SATA Power Cable

The flat, 15-pin SATA power connector handles storage devices: SATA SSDs, mechanical hard drives, optical drives, and quite a few fan hubs and RGB controllers. It’s a completely different connector from the thin SATA data cable that runs to your motherboard.

It delivers three voltage rails: +3.3V, +5V, and +12V. A SATA SSD pulls 2-4W under typical operation. A 7200 RPM hard drive draws 6-10W at peak spin-up, with sustained reads closer to 5-8W.

PSU manufacturers typically run three to five SATA connectors on a single daisy-chain cable. That’s fine for SSDs. If you’re daisy-chaining four or five HDDs on one cable, you may see voltage drop at the far end of the chain under simultaneous spin-up, which can cause drive errors or instability. If you’re running that many drives, use multiple SATA cable runs from separate PSU outputs. For a step-by-step walkthrough of physically installing these drives, the guide on how to install an SSD (SATA and M.2) covers the full process.

Molex (4-Pin) Cable: Legacy But Not Dead

Molex is old. It predates SATA by a decade. But it hasn’t disappeared entirely.

The 4-pin Molex connector delivers +5V and +12V at up to 11A per pin on the +12V rail. You’ll still find it useful for AIO pump headers on some older coolers, certain fan hubs, RGB light strips, and modding accessories that haven’t moved to SATA power. Some budget case fans ship with 3-pin-to-Molex adapters.

Worth knowing: modern modular PSUs sometimes omit Molex cables entirely or include just one. If you need Molex outputs and your PSU doesn’t have them, Molex-to-SATA adapters are cheap and widely available.

CPU Fan and Case Fan Headers: A Quick Clarification

Fan headers on your motherboard are not PSU cables. The PSU’s job here is indirect: it supplies stable 12V to the motherboard via the 24-pin and EPS connectors, and the motherboard’s onboard circuitry then regulates power to each fan header. The CPU fan header and the case fan headers receive their power from the board itself, not directly from a PSU cable.

If you’re confused about which fan header to use for your CPU cooler, the breakdown of CPU OPT vs CPU FAN header differences explains exactly what each socket does and when to use each one.

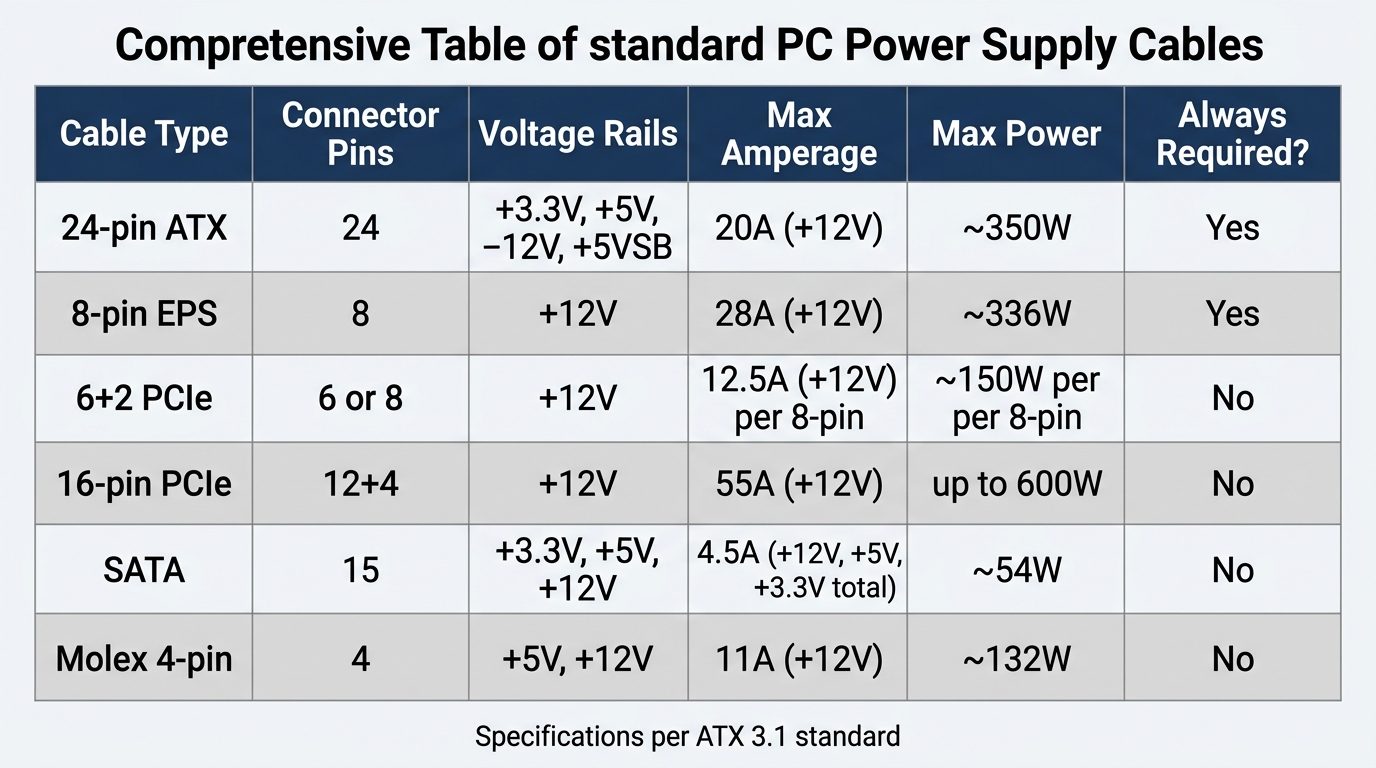

PSU Cable Specs at a Glance

No current top search result consolidates these specs in one place. Here’s the table you’ll want to keep open during a build.

Modular vs. Semi-Modular vs. Non-Modular PSUs: Which Cables Do You Get?

The modular question isn’t just about aesthetics. It directly affects which cables are physically attached to your unit and how much you’ll fight the case during installation. For a deep comparison of the trade-offs, the guide on modular vs. non-modular PSU differences breaks down the real-world scenarios in full. Here’s the quick version:

• Non-modular: Every cable is hardwired and permanently attached. You always get the 24-pin, EPS, PCIe, SATA, and Molex cables. You can’t remove the ones you don’t use. Cable management is harder because you’re routing dead cables somewhere out of sight.
• Semi-modular: The 24-pin ATX and EPS CPU cables are hardwired (you’ll always need them). PCIe, SATA, and Molex cables detach. A solid middle ground for most mid-tower builds.
• Full modular: Every single cable detaches from the PSU. Cleanest installation possible. Best choice for windowed cases, SFF builds, and anyone doing custom sleeved cables.

The price premium for going modular: roughly $10-30 more for semi-modular, $20-60 more for fully modular at the same wattage tier. Worth it for most builds.

The critical warning: modular PSU cables are not universal. A Corsair RM850x cable does not safely fit a Seasonic Focus GX-850, even if the PSU-side connector looks the same. Corsair’s own compatibility documentation confirms this, and Seasonic publishes detailed cable compatibility charts showing pinout differences between their own product lines. Mixing brands can cause a short circuit, blown components, or worse, on first boot. Always use the cables that came with your unit or cables verified compatible by the cable manufacturer’s own checker.

Stock Cables vs. Custom Sleeved PSU Cables: Should You Upgrade?

Stock cables work fine. Full stop.

Custom sleeved cables are a purely aesthetic upgrade. Individually sleeved cables separate each wire with its own braided sleeve, resulting in clean, combed runs that photograph well and look sharp through a windowed side panel. Performance difference? Zero. Heat transfer is the same. Voltage drop is the same. Your benchmarks won’t change by a single frame.

The main vendors are CableMod, Corsair, and LINKUP. Pricing breaks down roughly like this:

• Starter kits (24-pin + 1-2 PCIe + CPU): $40-70
• Pro kits (full set, individually sleeved): $80-110
• Individual cables (single connector): $25-35 each

Corsair’s Type 4 and Type 5 cable systems are specific to their PSU generations, and a Type 4 kit won’t correctly fit a Type 5 unit. Always cross-reference the kit against your PSU model before ordering. CableMod runs a compatibility checker on their site for exactly this reason.

Who actually benefits from the upgrade: builders doing a themed color build, open-frame or test bench setups where cables are fully visible, and anyone who wants a clean windowed-panel reveal. If your case has an opaque side panel, stock cables are genuinely fine.

What Happens If You Use the Wrong PSU Cable?

This section exists because the consequences range from “annoyingly broken” to “actually dangerous.” Here’s what actually happens in each scenario:

• Cross-brand modular cable (wrong PSU): The pinout on the PSU side is manufacturer-specific. Plugging in an incompatible cable can send incorrect voltages to your motherboard or GPU. Best case: the system fails to boot. Worst case: you fry the board, the GPU, or the PSU itself on first power-on.
• Missing the 24-pin: Your system will not POST. The motherboard won’t receive standby power or core voltage. Nothing happens when you press the power button.
• Missing the EPS CPU cable: Most modern boards won’t boot without CPU power. Some entry-level boards have a secondary 4-pin socket and will partially start without the full 8-pin, but you’ll likely get a BIOS warning or boot failure immediately.
• PCIe cable into an EPS socket: The key notch is positioned differently enough that a PCIe cable usually won’t seat fully into an EPS socket. If you somehow force it, the voltage mapping is wrong and you risk damage to the VRM.
• 6-pin where an 8-pin is required: The GPU will either throttle hard, crash under load, or refuse to boot at all. The card’s power delivery circuitry detects the missing pins via sensing contacts.
• Partially-seated 16-pin 12VHPWR adapter: This was the root cause of nearly all the RTX 4090 melting incidents at launch. Partial contact creates resistance, resistance creates heat, and at 400W+ that heat is enough to melt the plastic connector housing. The 12V-2×6 revision addresses this by tying full power delivery to proper sensing pin contact.

PSU Cable to Wall: What Connects Your PSU to the Outlet?

The cable running from your PSU to the wall is a separate, simpler story. Unlike the internal modular cables, the AC power cord is completely universal across PSU brands.

Most standard ATX PSUs use an IEC C14 inlet on the PSU side and an IEC C13 connector on the cable end. You’ve seen this connector on countless monitors, printers, and small appliances. It’s the “kettle plug” shape. The matching wall-side connector is a NEMA 5-15P in North America (the standard flat two-prong with ground).

High-wattage server and workstation PSUs above 1600W often use the larger C19/C20 connector pair, which carries higher current. You won’t encounter this in a gaming or workstation build unless you’re running an extreme dual-GPU or render farm setup.

Wire gauge matters at high wattage. Standard 18 AWG power cords handle typical gaming builds without issue. If you’re running a 1200W-plus PSU under sustained full load, a 14-16 AWG cord is a better choice. Replacement cords run $5-15 and are available everywhere.

Always plug into a quality surge protector or UPS. A $20 surge strip doesn’t offer meaningful protection. Look for units rated at 1000+ joules of absorption from reputable brands. A UPS adds battery backup, which protects against data corruption during sudden power loss.

Frequently Asked Questions About PSU Cables

Are all PSU cables the same?

No. The IEC C13 wall cable is universal across brands. But modular PSU cables are brand-specific and often model-specific. The connector shapes can look identical on the outside while carrying entirely different pin assignments internally. Corsair publishes compatibility charts for their own lineup, and Seasonic does the same. Never assume a cable fits just because it physically inserts.

What PSU cables do I actually need?

For any gaming build, the minimum is: one 24-pin ATX (always), one EPS 8-pin CPU cable (always, two if your motherboard has dual CPU sockets and your CPU draws over 125W sustained), and one or two PCIe 8-pin cables for your GPU. Add SATA cables for each storage device you’re running. Molex is optional unless your specific accessories require it. A typical mid-range build uses the 24-pin, one EPS 8-pin, one or two PCIe 8-pin, and one SATA daisy-chain.

Can I use any cable with my modular PSU?

No. Modular cables must match your PSU brand and often your specific model or generation. A Seasonic cable will not safely work in a be quiet! or EVGA unit. Always use the cables that shipped with your PSU. If you want custom cables, buy from a vendor like CableMod that publishes verified compatibility data for specific PSU models before you order.

What is a 3-pin PSU cable?

A 3-pin connector in the context of PSU cables usually refers to a legacy case fan connector or a Molex-to-3-pin adapter used for older fans. Modern PSUs don’t include dedicated 3-pin power outputs. Fan headers on your motherboard handle fan power independently of the PSU cable bundle. If you have a 3-pin fan and no adapter, Molex-to-3-pin adapters are inexpensive and widely available.

What’s the difference between a 6-pin and an 8-pin PCIe cable?

A 6-pin PCIe cable delivers 75W of supplemental GPU power. An 8-pin (6+2) PCIe cable delivers 150W. Most modern mid-range and high-end GPUs require one or two 8-pin connectors. Using a 6-pin adapter where the card requires an 8-pin will result in instability under load, hard crashes, or the GPU refusing to initialize entirely. The extra two pins carry current, not just signaling.

Final Thoughts

There are five cable types you’ll use in nearly every build: 24-pin ATX, EPS CPU, PCIe, SATA, and possibly Molex. Each one has a specific job and specific power limits that can’t be substituted. The single most costly mistake builders make isn’t about cable selection at all. It’s using a modular cable from the wrong PSU brand. Before you plug anything in, verify your cables match your unit using your PSU manufacturer’s compatibility documentation. Plan your cable needs alongside your PSU purchase, not after, and you’ll avoid the most common and most expensive mistakes before the build even starts.
