Cable Sleeving Guide: How to Make Your PC Build Look Pro

Cable sleeving is a braided, woven, or wrapped protective covering made from PET, nylon, or PVC that bundles and beautifies PC power cables for a cleaner, more professional build.

Last updated: July 2026

Quick Answer: What Is Cable Sleeving for PC Builds?

Cable sleeving is a fabric or polymer mesh that slides over existing PC cables (or individual wires during a full resleeve) to protect against abrasion, add heat resistance, and dramatically improve the look of a build. The most popular type for PC use is expandable PET braided sleeving, it stretches over connectors already attached to cables, making it beginner-friendly.

Most builders overlook cables completely. They spend hours choosing the right GPU, the right cooler, the right case, and then stuff the inside with a rat’s nest of stock black PSU wires. Sleeving is the fix. This guide covers every sleeving type, a PC-specific sizing chart no other guide provides, the tools you actually need, and a step-by-step walkthrough for both beginner and advanced methods.

What Is Cable Sleeving and Why Does It Matter for PC Builds?

At its core, cable sleeving serves two purposes: protection and presentation. On the functional side, stock PSU cables ship with 18–22 AWG conductors covered in basic PVC insulation. That’s it. No secondary protection against abrasion from case edges, sharp standoffs, or cable tie-wrap friction. Quality PET and nylon braided sleeving adds a second protective layer rated to 125°C–135°C, provides meaningful abrasion resistance, and bundles individual wires into clean, routed runs that don’t flop across your GPU cooler.

On the aesthetic side, sleeving is the single highest-ROI upgrade you can make to a finished build’s appearance. A $25 set of sleeving materials transforms a case full of stock gray cables into something that looks custom-built. Really custom.

There are two distinct camps of builders who use sleeving:

• Over-cable sleeving users: Wrap expandable or wrap-around sleeving over existing cables without any disassembly. Fast. No pin tools needed. Results are very good.
• Full resleeve modders: Depin individual wires, sleeve each wire separately with tight 1/8″ braid, and repin into connectors. Slower. Results are exceptional. This is what you see on award-winning builds.

If you want to understand what cables you’re actually working with before sleeving, the guide on PSU cable types (24-pin, EPS, PCIe, SATA) is a solid starting point for knowing which runs to prioritize.

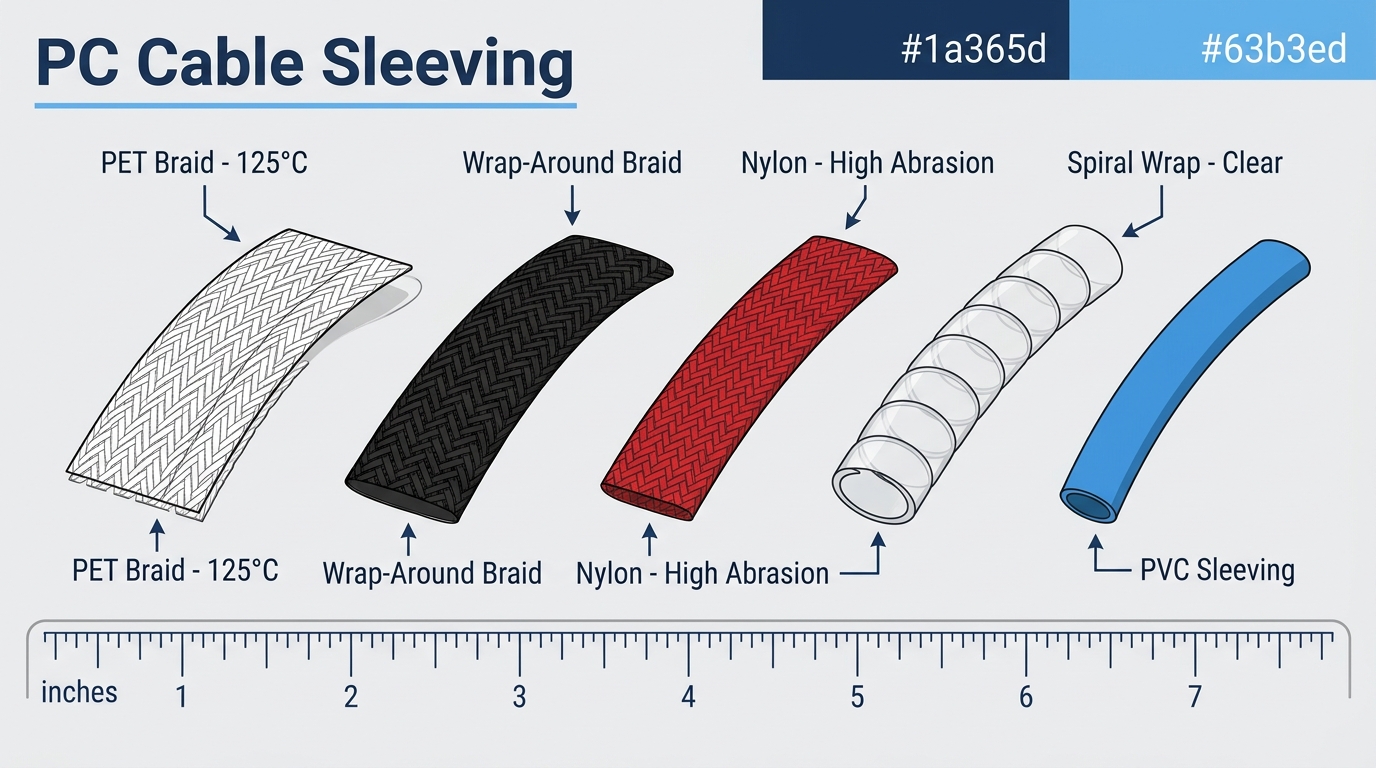

Types of Cable Sleeving Explained (And Which One Is Right for You)

This is where most guides fail you. They either list products or explain types, rarely both with real specs. Here’s everything you need to know to pick the right material before you buy anything.

Expandable Braided Cable Sleeving (PET)

This is the standard for PC builds. Expandable PET braided sleeving (the Techflex Flexo PET line is the gold standard) is woven from Polyethylene Terephthalate monofilament into a tubular braid that expands and contracts up to 150% of its nominal diameter. That expansion is the key feature: you can slide it over a connector already crimped onto a cable, which means no depinning required for basic installations.

Temperature rating: -70°C to 125°C (-94°F to 257°F). More than enough for any PC environment. Sizes relevant to PC building run from 1/8″ (roughly 3mm) for individual wires up to 3/4″ (19mm) for the 24-pin ATX cable. According to Techflex’s Flexo PET product documentation, the sleeving is available in over 45 colors and 15 diameter sizes, making it the most versatile option on the market.

Best for: nearly everything. This is your default choice.

Wrap Around Cable Sleeving

Wrap-around sleeving splits along one edge so you can press it onto a cable from the side, no threading required at all. It comes in two closure variants: hook-and-loop (Velcro-style closure) and self-closing woven wrap, where the braid’s tension holds it shut without fasteners. Installation speed is roughly 3 times faster than full-enclosure expandable PET, making it the right tool for a build that’s already assembled and cabled.

Diameter range for PC use: 1/4″ to 1″. Not the cleanest look if you’re going for a competition-level build, but completely solid for a tidy daily driver. No heat shrink needed at the ends if you’re using hook-and-loop closure variants.

Nylon Braided Cable Sleeving

Nylon 6-6 monofilament braiding offers higher abrasion resistance than PET and better chemical resistance, genuinely useful if your build has a custom water cooling loop and you’re running tubing or fittings near your cable runs. Temperature rating reaches 135°C (275°F), a step up from PET. The tradeoff: nylon braid is stiffer. It doesn’t bend as tightly around corners, which can make routing through cable management channels a little frustrating. Worth it for heavy-duty applications. Probably overkill for a standard gaming rig.

Spiral Wrap Cable Sleeving

Spiral wrap coils around cables in a continuous helix. You just start at one end and spin it down the cable run. No heat shrink needed; you just trim the end. Simple. The limitation is temperature: most spiral wrap is rated to only 80°C (176°F), which is fine for external desk cable management but not ideal for anything inside a case near PSU or GPU power delivery cables that can run warm under load. Use it for monitor cables and USB runs on your desk. Leave it out of the case.

PVC Cable Sleeving

PVC sleeving has a smooth, rigid outer finish rather than a braided texture. It’s the cheapest option per foot and comes in clean solid colors. The problem: PVC doesn’t breathe. Braided materials have gaps in the weave that allow some heat dissipation; PVC is a solid tube. On power delivery cables that generate heat under load, that’s not ideal. Common sizes for PC use are 3mm, 5mm, 8mm, and 10mm. Temperature rating tops out around 105°C (221°F). Use it for fan cables or low-power signal runs, not your 24-pin or PCIe GPU power cables.

Heat Shrink Cable Sleeving

Heat shrink isn’t a cable sleeve on its own, it’s the finishing component that locks braided sleeving in place at the ends and prevents fraying. For individual 18–22 AWG wires, 2mm heat shrink tubing is the standard size. Standard shrink ratio is 2:1; use 3:1 if you’re shrinking over irregular shapes or connector housings.

Application temperature: 90°C–120°C (194°F–248°F). Use a heat gun. Not a lighter. A lighter produces uneven heat and can scorch the braid. Not great. A cheap $20 heat gun from any hardware store does the job properly.

Sleeving Type	Material	Temp Rating	Expandable?	Best For	Avg. Cost (per ft)
Expandable PET Braid	PET Monofilament	-70°C to 125°C	Yes (up to 150%)	PSU cables, GPU power	$0.30–$0.80
Wrap Around Braided	PET or Nylon	-70°C to 125°C	Partial	Quick install, no disassembly	$0.50–$1.20
Nylon Braided	Nylon 6-6	Up to 135°C	Limited	Heavy-duty, liquid cooling	$0.40–$1.00
Spiral Wrap	PE or Nylon	Up to 80°C	No	External runs, desk cables	$0.20–$0.50
PVC Sleeving	PVC	Up to 105°C	No	Budget builds, solid color	$0.10–$0.30
Heat Shrink	Polyolefin	Up to 125°C	No (shrinks)	End finishing, strain relief	$0.05–$0.15

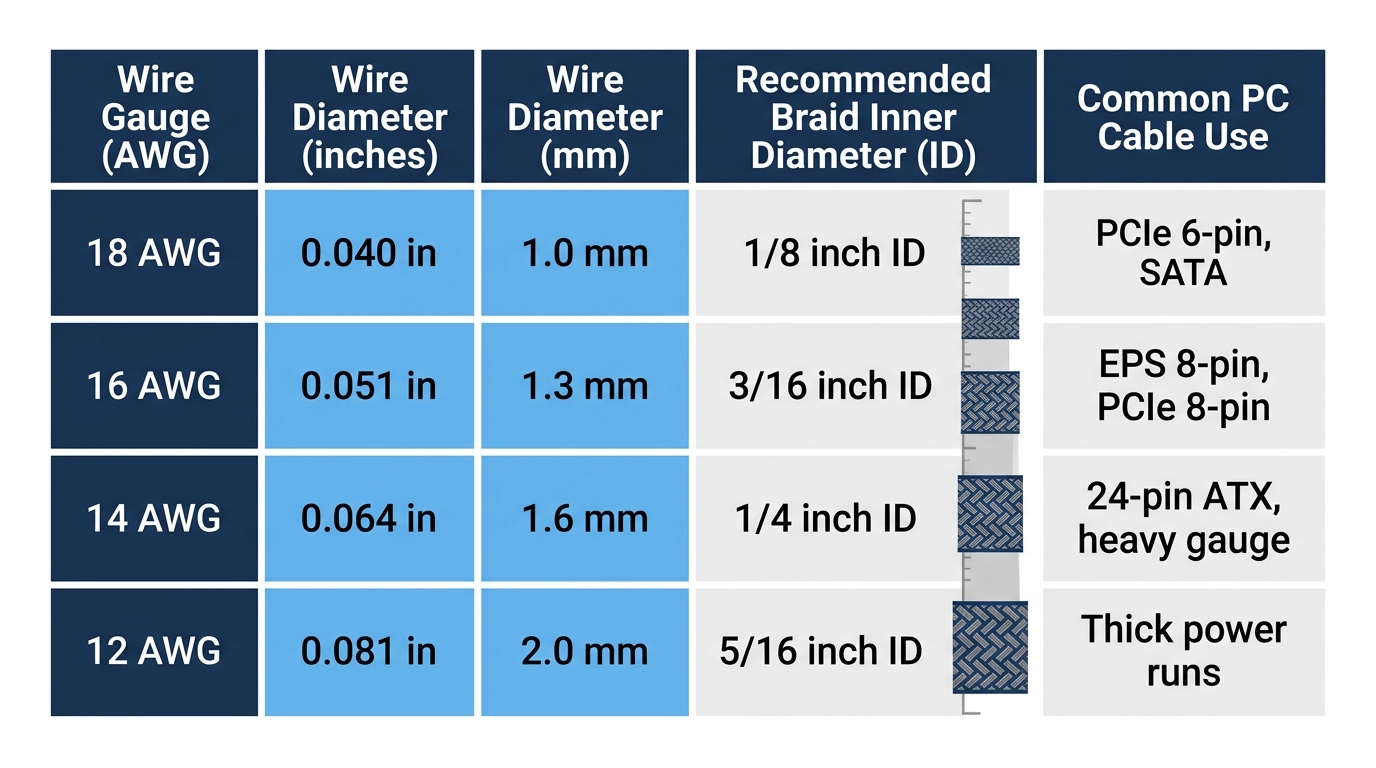

Cable Sleeving Size Guide, Choosing the Right Diameter for Every PC Cable

This is the section that no competitor has bothered to write. Size matters a lot here, and getting it wrong means sleeving that’s either too loose (slides and bunches) or too tight to pull over connectors. Here’s what you need to know before ordering anything.

Expandable PET braid is sold by its nominal diameter, which is its resting size when the braid is relaxed. At full stretch, it can expand up to 150% of that number. At rest, the braid contracts around whatever’s inside it. The practical rule: choose sleeving whose nominal diameter is close to or slightly below your cable bundle’s resting diameter. The braid will grip the bundle cleanly. Size up if you’re sleeving over connectors rather than bare cable.

Cable Type	Wire Count	Bundle Diameter (approx.)	Recommended Sleeving Size	Notes
24-Pin ATX Motherboard	24	~14–16mm	3/4″ (19mm) expandable PET	Largest cable in any build, don’t undersize
8-Pin EPS CPU Power	8	~8–10mm	1/2″ (13mm) expandable PET	Often sleeved individually for a cleaner run
8-Pin PCIe GPU Power	8	~8–10mm	1/2″ (13mm) expandable PET	Most visible cable, prioritize this one first
SATA Power (per run)	5	~5–6mm	1/4″ (6mm) expandable PET	Flat-ribbon SATA data cables prefer wrap-around
Individual 18–22 AWG Wire	1	~1.5–2.5mm	1/8″ (3mm) or 2mm PET/nylon	Used for full custom resleeve of each wire
SATA Data Cable	7	~5mm flat ribbon	1/4″ wrap-around sleeving	Flat profile makes wrap-around the practical choice

If you’re buying for a full build in one order: grab 3/4″ for the 24-pin, 1/2″ for the EPS and PCIe GPU cables, and 1/4″ for SATA power runs. Add 10–15% extra length to your measurements, braid compresses when it contracts around cables, and practice cuts waste material. Buy more than you think you need. Every experienced builder makes this mistake once.

The Best Cable Sleeving Tools, What You Actually Need

You don’t need to spend $200 on a full toolkit. But you do need the right pieces. Going without a heat gun, for example, will give you frayed braid ends and loose heat shrink. Worth getting it right from the start.

Essential Tools

• Modular cable pin removal tool (depinning tool): Required for any full resleeve. You use this to press in the retention tab on each crimped pin and slide the wire out of its connector housing. Budget options run $5–$15 and work fine. Look for a Molex-specification pin extraction tool (Molex 11-03-0044 or equivalent), purpose-built for ATX, EPS, and PCIe Mini-Fit Jr. terminals — not a crimping tool, which performs the opposite operation and won’t safely release a seated pin.
• Heat gun: A 300°C–500°C rated heat gun is what activates heat shrink properly. Don’t use a hair dryer, it tops out around 60°C, nowhere near the 90°C minimum needed to activate 2:1 polyolefin heat shrink. A basic $20–$30 heat gun from any hardware store works perfectly.
• Cable sleeving cutter or sharp scissors: Purpose-built rotary sleeving cutters make clean, fray-free cuts on braided PET. Regular scissors work but often leave frayed edges that need immediate heat sealing. Budget $8–$25 for a decent rotary cutter.
• Lighter (PET only): A brief pass from a flame seals PET braid ends before you slide on heat shrink. This only works on PET, don’t use a lighter on PVC or nylon braid.

Nice-to-Have Tools

• Sleeving needle (paracord needle): A rigid, blunt needle that threads individual wires through tight 1/8″ braided sleeving. Dramatically faster than trying to push wire through by hand. Cost: $2–$10.
• Helping hands tool: A weighted third-hand clamp that holds connectors in place while you work. Useful when soldering or holding a connector steady during repinning.
• Ruler and masking tape: Mark consistent cut lengths across all your sleeving before cutting. Uniform lengths make the finished install look intentional.

Tool	Required?	Price Range	Use Case
Depinning Tool	Yes (full resleeve)	$5–$15	Removing wires from PSU connector housings
Heat Gun	Yes	$20–$60	Activating heat shrink ends cleanly
Sleeving Cutter	Recommended	$8–$25	Clean, fray-free cuts on braided PET
Sleeving Needle	Recommended	$3–$10	Threading wire through tight braid
Paracord Needle	Optional	$2–$8	Budget alternative to sleeving needle

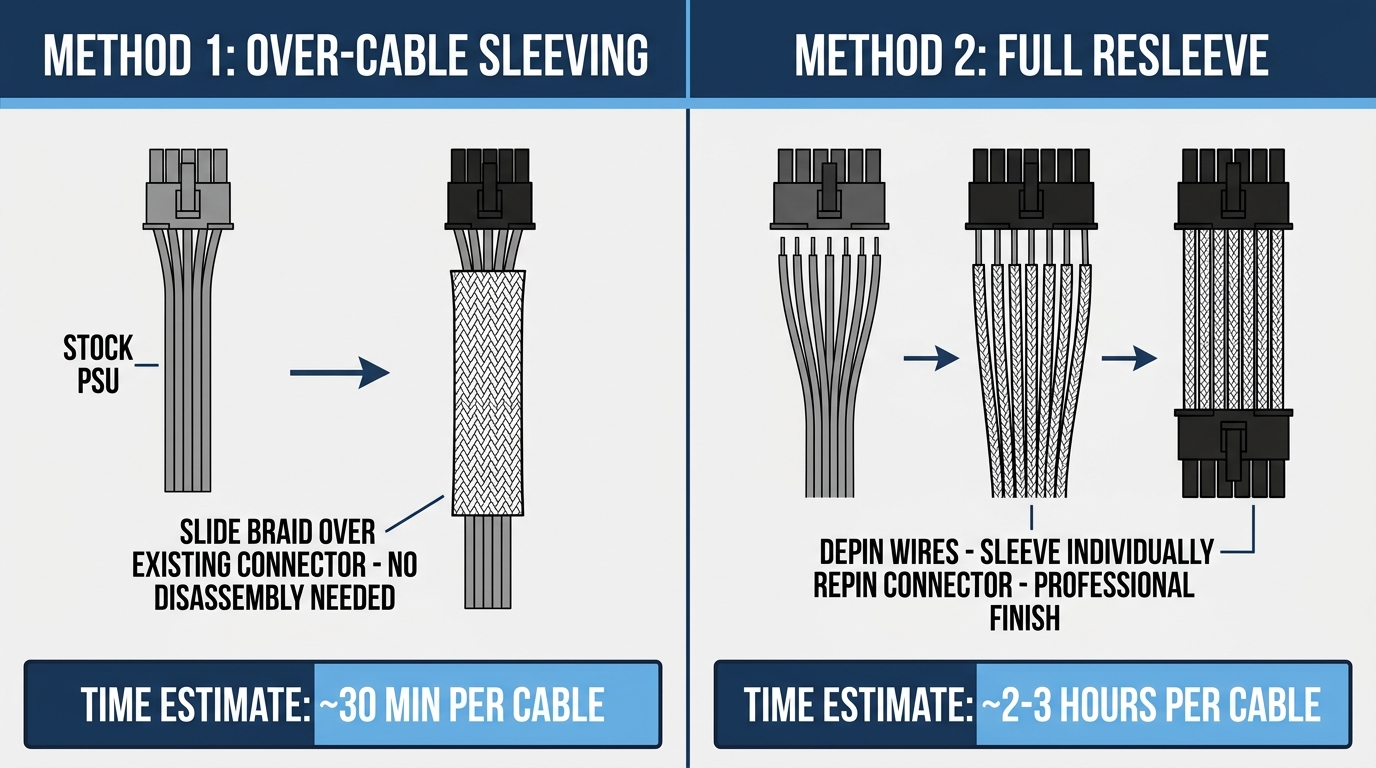

Step-by-Step Guide, How to Sleeve Your PC Cables (Two Methods)

Two approaches. One for builders who don’t want to touch their connectors. One for builders who want the best possible result and don’t mind a few extra hours of careful work.

Method 1, Over-Cable Sleeving (Beginner, No Disassembly Required)

This works with expandable PET or wrap-around braided sleeving over cables that are still fully assembled. Best for the 24-pin ATX, EPS CPU, and PCIe GPU cables that are already attached to your PSU.

1. Measure the length of the cable run from connector to connector. Add 1 to 2 inches of overhang at each end for the heat shrink termination.
2. Cut your sleeving to length using a sleeving cutter or sharp scissors. Immediately run a brief pass from your heat gun (or lighter for PET only) across the cut end to prevent the braid from unraveling while you work.
3. Slide the expandable PET over the cable from the connector end, stretching it slightly to fit over the connector body as needed. For wrap-around sleeving, press it onto the cable from the side, no threading required.
4. Cut 1″ sections of 2mm heat shrink tubing for each end of the sleeved cable. Slide one section over the sleeving end and position it at the base of the connector.
5. Apply your heat gun at 90°C–120°C (194°F–248°F) for 3–5 seconds per end. The heat shrink will contract, locking the braid end against the connector base cleanly.
6. If you’re doing multiple parallel cables (like GPU power runs), use cable combs to keep spacing uniform. They clip between individual cables and give that “production build” look.

That’s it for the beginner method. Fast and very effective. You can do all three primary cables in a build (24-pin, EPS, PCIe GPU) in under two hours.

Method 2, Full Resleeve / Custom Cable Sleeving (Advanced)

This is the method used for competition builds and fully custom cable sets. Every individual wire gets its own 1/8″ sleeve. The finished result has a density and uniformity that over-cable sleeving can’t replicate. It takes longer. Worth it.

1. Safety first: Disconnect your PSU from the wall completely. Wait at least 30 seconds for capacitors inside the unit to discharge before touching any connectors.
2. Use your depinning tool to press the retention tab on each individual pin inside the connector housing and slide that wire out. Work methodically, one wire at a time, one connector at a time.
3. Thread the wire through a sleeving needle, then pull it through a pre-cut length of 1/8″ (3mm) braided sleeving. The needle makes this fast. Without it, you’re spending 20 minutes per cable.
4. Slide a 1″ section of 2mm heat shrink over each sleeved wire end. Apply heat at 90°C–120°C to lock the braid at both the pin end and the free end of the wire.
5. Repin the wire back into its connector housing in the correct pinout order. This is where mistakes happen: before you depin anything, photograph your connector pinout or reference the PSU manufacturer’s documentation for your specific model. A wrong pinout can damage components. Not a theoretical risk. A real one.
6. Repeat for every wire in the cable, then repeat for every cable you’re sleeving.
7. Once all wires are back in their connectors, use cable combs across multi-wire parallel runs to lock spacing and create that uniform, flat-ribbon appearance.

In my experience building around modular PSUs, the PCIe GPU cables give you the highest visual return on a full resleeve because they run from behind the motherboard tray directly to your GPU in a highly visible path. Start there if you only want to resleeve one cable.

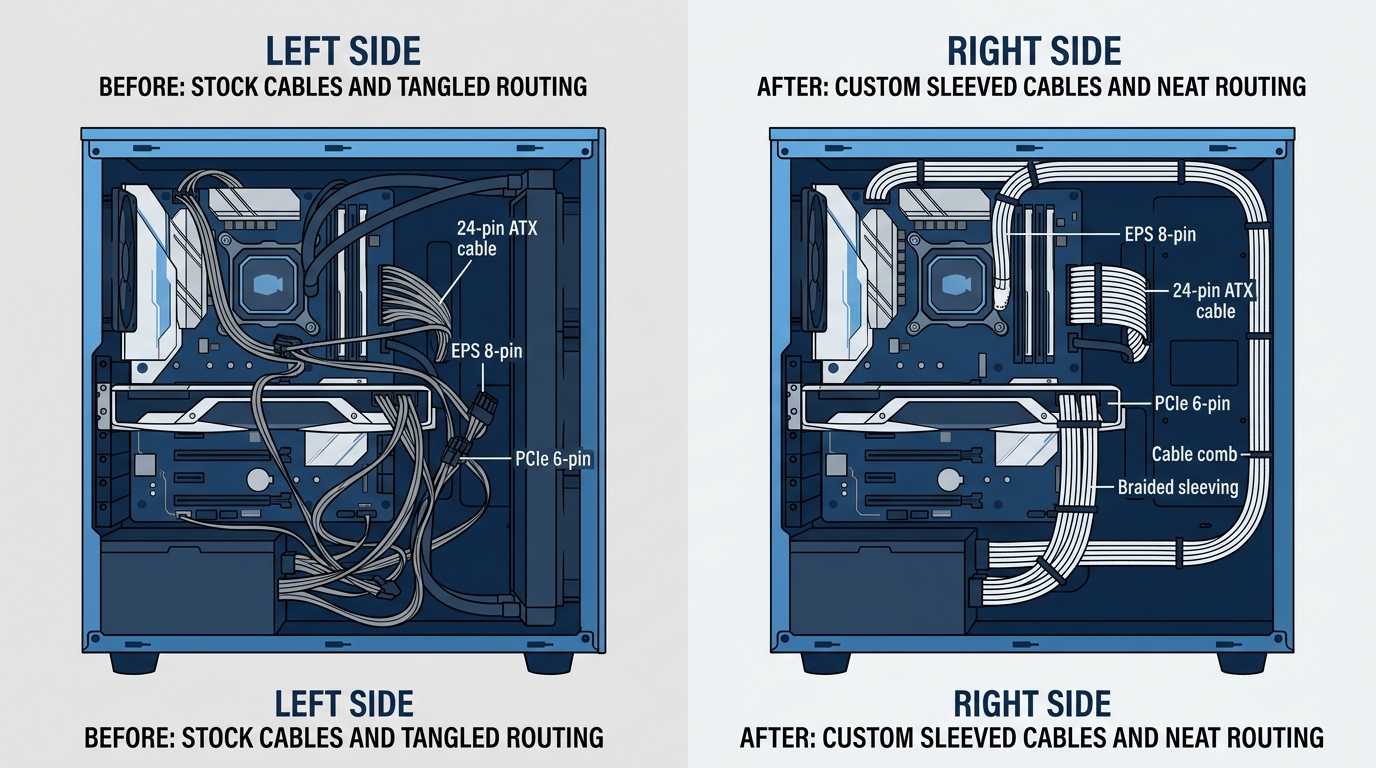

For proper cable routing technique after sleeving, the PC cable management guide covers routing strategies that work with and without sleeved cables.

Choosing the Right Cable Sleeving for Your Aesthetic, Colors, Finishes, and Brands

No competitor covers this. Getting the color choice right is where most builders get tripped up, they pick a sleeving color in isolation and end up with cables that clash with the build instead of completing it.

The strategy that works: pick your anchor color first. That’s usually your case’s accent color, your GPU shroud, or your lighting theme. Then sleeve to complement that anchor, not compete with it.

• All-black (stealth): Black PET braid with black heat shrink. Works in any case. Especially strong in cases with tempered glass and dark interior finishes.
• Monochrome white/black: White sleeving on the 24-pin and EPS, black on GPU power. Clean contrast. Works well in cases with white interiors.
• Gaming red and black: Red PET braid on primary power cables, black on secondary runs. Classic look. Easier to pull off than people expect.
• White cable sleeving: The current trend, driven by the explosion of white build aesthetics. White PET braid specifically requires white heat shrink at the termination points, clear or black heat shrink looks wrong against it. Buy both together.

On materials for specialty builds: kevlar braided cable sleeving exists and is genuinely impressive in terms of tensile strength, but it’s an industrial material designed for environments where cables face mechanical stress, not PC cases. It’s a flex on a high-end custom build but provides no real-world advantage over nylon for PC use.

Brand breakdown:

• MDPC-X: Made in Germany. Widely considered the best quality PC sleeving on the market. Slim profile, consistent color saturation across 40+ colorways. The choice for high-end builds. Ships to the UK and EU. Available at cable-sleeving.com (MDPC-X official store).
• Techflex Flexo PET: Most widely available. 25+ standard colors plus patterns. Reliable, consistent quality. The practical choice for most builders.
• Kable Kontrol: Good range of products including wrap-around and hook-and-loop variants. Budget-friendly. Solid option if you’re sleeving a secondary build or want to experiment before committing to MDPC-X pricing.

For UK builders specifically: MDPC-X ships EU-wide and to the UK post-Brexit via their EU store. TechFlex Flexo PET is also stocked by several UK distributors including ModDIY. Shipping costs are the main variable to calculate before ordering, especially on bulk footage.

Custom PC Cable Sleeving Kits, Are They Worth It?

Pre-packaged cable sleeving kits include measured lengths of expandable PET braid, heat shrink end pieces, and sometimes a basic depinning tool and sleeving needle. Companies like CableMod sell these as complete sets matched to specific PSU models. Convenient. Not always the right call.

Kit pros:

• No math. Pre-measured lengths for standard ATX form factor runs.
• Often color-coordinated as a set.
• Includes heat shrink in matching colors.

Kit cons:

• Fixed lengths may not match your case’s actual cable routing distances, especially in larger full-tower cases.
• Color options are limited to whatever the kit manufacturer stocks.
• Cost per foot is higher than buying raw sleeving material.

DIY component buying wins when you’re doing more than one build, need a specific color that isn’t in a kit, or have an unusually long or short routing distance. A kit for a standard mid-tower ATX, EPS, and PCIe run costs $15–$40 depending on the brand. That same budget buys 20–30 feet of raw PET braid with heat shrink if you buy the materials separately. Makes sense for a one-time build. Doesn’t make sense for a repeat builder.

Frequently Asked Questions About Cable Sleeving

What is the best cable sleeving for PC builds?

Expandable PET braided sleeving is the best all-around choice for PC builders. Techflex Flexo PET is the most accessible brand with wide color selection and solid quality. MDPC-X is the premium option with better color density and a slimmer profile that produces more refined results on individual wire resleeves. For the highest-quality finish, combine 1/8″ MDPC-X sleeving on each individual wire with 2mm heat shrink terminations at both ends.

Do I need to remove my cables to sleeve them?

Not for the beginner method. Expandable PET sleeving slides over fully assembled cables with connectors still attached, and wrap-around sleeving presses on from the side without any threading. For a full custom resleeve, where each wire gets its own individual sleeve, you do need to depin the wires from their connector housings using a pin removal tool, sleeve each wire separately, and repin in the correct order. The over-cable method takes 1–2 hours for a full build. A full resleeve takes 4–8 hours or more depending on experience.

What size cable sleeving do I need for PC cables?

For a 24-pin ATX motherboard cable, use 3/4″ (19mm) expandable PET. For 8-pin EPS CPU power and 8-pin PCIe GPU power cables, use 1/2″ (13mm). For SATA power runs, use 1/4″ (6mm). For individual 18–22 AWG wires in a full custom resleeve, use 1/8″ (3mm) or 2mm braided sleeving. When sizing expandable PET, remember the nominal diameter is the resting size, the braid can expand to about 150% of that to slide over connectors. If in doubt, size up by one increment.

Is cable sleeving just cosmetic, or does it actually protect cables?

Both. Braided cable sleeving provides real functional protection: abrasion resistance against sharp case edges and cable management teeth, a second thermal barrier rated to 125°C–135°C depending on material, and structural bundling that keeps cable runs from vibrating against fans or heatsinks. The aesthetic improvement is the primary reason PC builders use it, but the protective properties are genuine. Nylon braided sleeving in particular offers significantly better abrasion and chemical resistance than stock PVC cable insulation alone.

What is Flexo cable sleeving?

Flexo is a product line name from Techflex, the largest manufacturer of expandable braided cable sleeving for consumer and industrial use. “Flexo PET” is their standard expandable polyethylene terephthalate braided sleeve, available in over 45 colors and 15 diameter sizes from 1/8″ to 3″. “Flexo PET Plus” is a coated variant with non-fray ends that don’t require a heat gun or lighter to seal after cutting, useful for builders who don’t have a heat gun yet. Both products are widely available through distributors in the US, UK, and EU.

Where to Buy Cable Sleeving

For US builders: MDPC-X ships internationally from their German store. Techflex Flexo PET is available on Amazon and through distributors like Kable Kontrol’s direct site in bulk footage. CableMod and Moddiy both sell pre-cut kits and raw materials in the US. For UK and EU builders, the MDPC-X EU store (cable-sleeving.com) is the most direct option, with ModDIY and CableMod EU as alternatives for Techflex Flexo PET.

One practical buying tip: always add 10–15% to your measured cable lengths before ordering. Sleeving compresses when it contracts around a cable, your first few practice cuts will be rough, and running out mid-project is genuinely frustrating. Buy a little extra upfront.

If you’re rethinking your PSU selection before committing to a custom sleeved build, note that modular PSUs make the resleeve process significantly cleaner since you only need to work with the cables you’re actually using, the guide on modular vs non-modular PSU differences covers the tradeoffs in detail.

The Short Version

Start with expandable PET braided sleeving in 3/4″ for your 24-pin, 1/2″ for EPS and PCIe GPU cables. Use 2mm heat shrink at the ends. If you don’t want to touch your connectors, the over-cable method takes an afternoon and produces a build that looks completely different from stock. If you’re ready for a full resleeve, grab a depinning tool, a sleeving needle, and a heat gun, and take it one cable at a time. The PCIe GPU cable is the highest-visibility run in almost any build, start there, get your technique right, then work outward. That’s the decision that transforms how a finished build looks.
