Motherboard Standoffs: What They Are and Why They Matter

A motherboard standoff is a small, threaded metal spacer that elevates your motherboard above the PC case’s metal chassis, preventing electrical short circuits and ensuring secure, stable mounting.

Last updated: July 2026

Quick Answer: What Is a Motherboard Standoff?

A motherboard standoff is a brass (or steel) hex-shaped spacer that threads into your case’s motherboard tray and accepts a screw through the PCB from above. Standard consumer builds use #6-32 UNC standoffs at 6.35mm height. They come with your case, not your motherboard, and every single one needs to be in the right position before your board goes in.

You’ve got your new build laid out on the desk. CPU installed, RAM clicked in, the motherboard looks perfect. Then you go to drop it into the case and realize you have no idea what those little brass cylinders in the accessory bag actually are or where they go. Skip them, and you risk a dead $300 board. Put one in the wrong spot, and you might not find out until your PC randomly crashes three weeks later. Getting standoffs right is one of those fundamentals that separates a solid build from a frustrating one.

What Is a Motherboard Standoff?

The Basic Definition

Standoffs go by a few names: brass standoffs, hex standoffs, PCB standoffs, or just “motherboard risers.” Whatever you call them, they’re all the same component. The body is hexagonal, which lets you grip it with a tool. One end has an externally threaded post that screws into the tapped holes in your case’s motherboard tray. The other end has an internally threaded hole that accepts the screw coming down through the motherboard’s mounting holes.

Most are made from brass. That combination of softness and conductivity is intentional: brass threads easily without galling, resists corrosion, and provides a reliable grounding path between the board and chassis. Some server builds use steel standoffs for extra durability. Nylon standoffs exist too, mostly for specialized non-conductive applications like test benches or prototype work.

What Do Motherboard Standoffs Actually Do?

Three things, and all three matter.

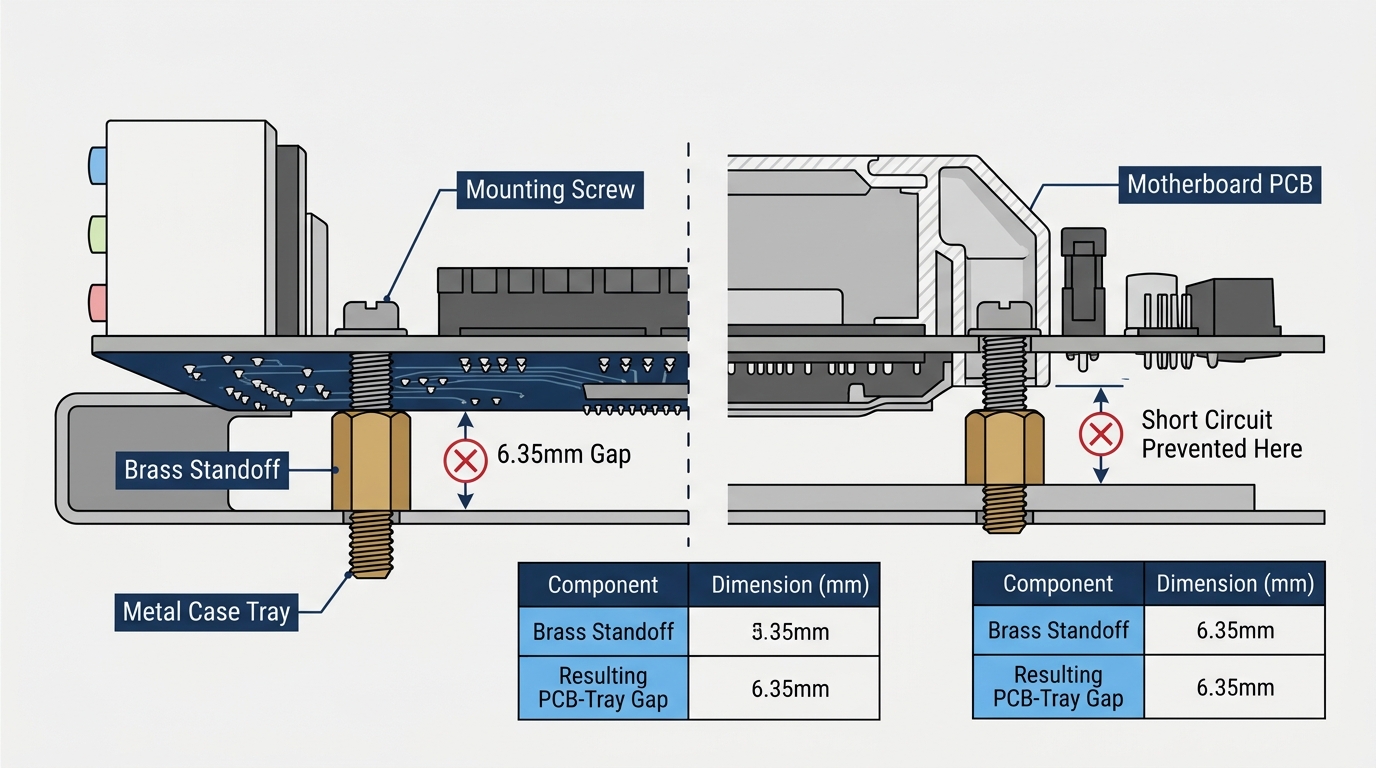

• Short circuit prevention: The underside of your motherboard is covered in exposed solder points, copper traces, and component leads. Rest that directly on a grounded metal case tray and you’re bridging circuits that shouldn’t be connected. That’s a short. One power-on is all it takes to damage the board permanently.
• Physical stabilization: Inserting DDR5 RAM takes real force. Mounting a 1.4kg AIO pump block onto a Core Ultra 9 285K or a Ryzen 9 9950X3D takes more. Without standoffs distributing that load across multiple fixed points, the PCB flexes. Flex causes micro-fractures in traces and solder joints.
• Airflow clearance: The 6.35mm gap isn’t much, but it prevents the PCB from sitting flush against a surface that traps heat. It also makes cable routing under the board slightly less miserable.

Motherboard Standoff Size and Specs: The Numbers You Need

Standard Motherboard Standoff Dimensions

Here’s where most guides go vague. They say “use the right standoffs” without telling you what “right” actually means. These are the specific numbers:

Spec	Standard Value	Notes
Standoff thread (into case tray)	#6-32 UNC	Dominant standard for ATX, mATX, ITX cases
Standoff height	6.35mm (~6.5mm)	Gap between PCB and case panel; functionally identical
Screw type (board to standoff)	#6-32 UNC	Most common in North American cases
Alternate screw type	M3	Some Mini-ITX builds, European and Asian cases
Material	Brass	Standard for consumer builds; steel in server environments

The #6-32 UNC screw is a coarse-threaded imperial fastener. It’s the same thread you’ll find on most case fan screws and drive mounting hardware in North American cases. According to the Tom’s Hardware Forums community, when a screw spins endlessly during installation without catching, it usually means the standoff’s internal threads have stripped or the tray hole is stripped. Don’t force it. A stripped standoff should be replaced, not muscled through.

Does Every Motherboard Use the Same Standoff?

For practical purposes, yes. The #6-32 UNC standard applies across ATX, Micro-ATX, and Mini-ITX form factors, with M3 screws as the alternative on some Mini-ITX and international cases. Your X870E board and your B860 board both use the same standoffs.

The exception is proprietary OEM systems. Dell OptiPlex cases, HP EliteDesk enclosures, and similar prebuilt chassis often use non-standard mounting patterns or modified standoff dimensions. If you’re swapping a retail ATX board into a salvaged OEM case, verify compatibility before assuming the holes line up.

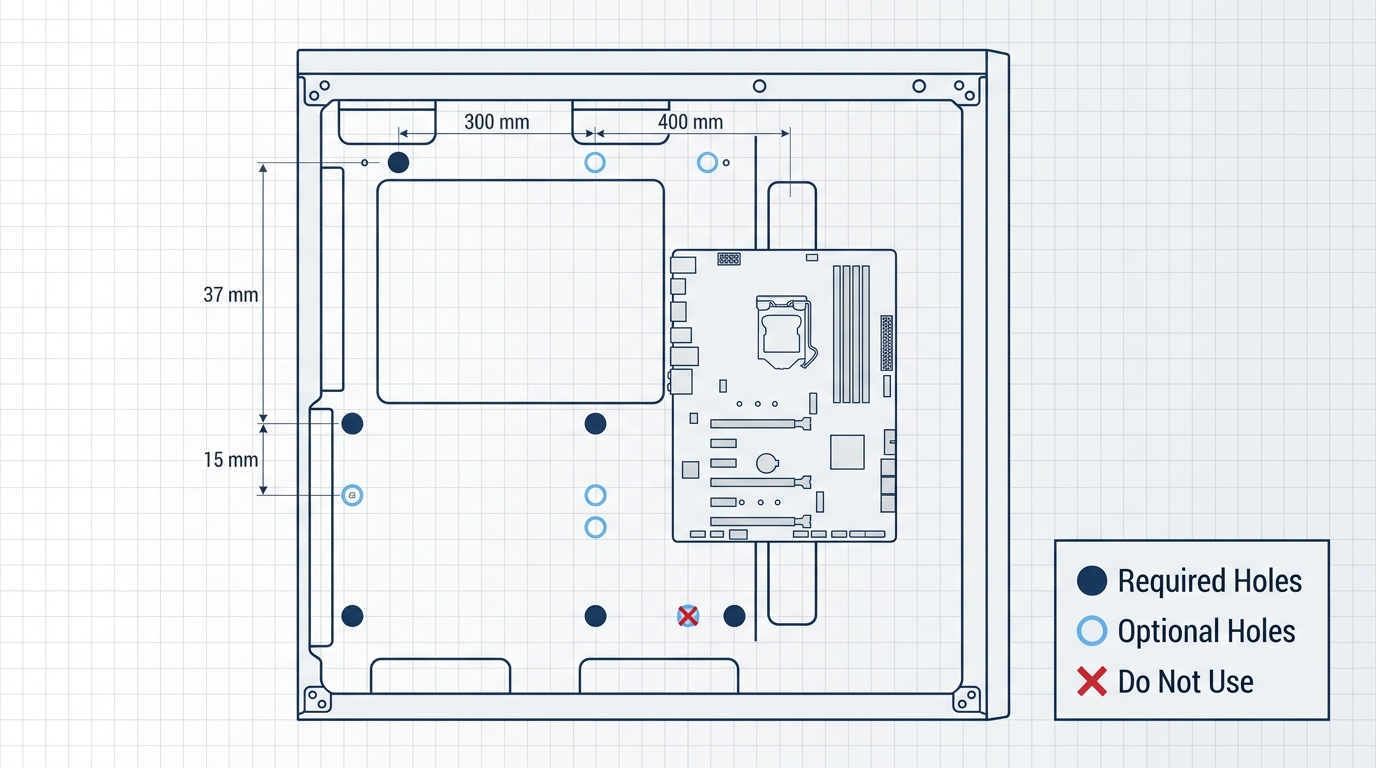

ATX Motherboard Standoff Layout: Where Do Standoffs Go?

Motherboard Form Factor Standoff Positions

Standoff hole positions follow the ATX specification, originally established by Intel’s ATX form factor spec. Each form factor uses a specific subset of a standardized mounting grid. The positions are labeled A through J in the spec, and your case manual should map these to your specific tray.

• ATX (Full size): Up to 9 standoffs across the full mounting grid
• Micro-ATX: Up to 6 standoffs, a subset of the ATX pattern
• Mini-ITX: 4 standoffs, the smallest standard configuration
• E-ATX: Up to 12 standoffs on an extended grid (verify case support before buying)

The ATX specification is publicly documented by Intel. You can cross-reference exact hole positions in the ATX 2.2 Form Factor specification (archived).

How to Find the Right Holes for Your Build

Your case manual is the fastest path to the right answer. Most modern cases label their standoff positions by form factor directly on the tray or in the included documentation. If you’ve lost the manual, the manufacturer’s website almost always has a PDF version.

When in doubt, use a physical dry-fit. Hold the motherboard over the tray without actually setting it down, and look through the PCB mounting holes to see which tray holes align. This takes about 30 seconds and eliminates guesswork.

One critical point: if a standoff ends up under a spot on the board that has no corresponding hole, that raised metal post will press against the underside of your PCB. That’s a grounding point touching live circuitry. It won’t necessarily fry the board immediately, but it’s a recipe for intermittent POST failures, random shutdowns, and behavior that gets misdiagnosed as bad RAM or a defective GPU for weeks. Remove any standoff that doesn’t have a matching hole above it.

How to Install Motherboard Standoffs (Step-by-Step)

What You’ll Need

• Standoffs: Included with the case in the accessory box, typically a small labeled bag
• Installation tool: A 5mm hex driver or dedicated standoff tool (more on this below)
• Motherboard screws: Usually also in the case accessory kit
• Case manual: To identify the correct standoff positions for your form factor

Step-by-Step Installation Process

1. Remove the side panel and lay the case on its side so the motherboard tray faces up.
2. Identify your form factor using the case manual and mark or count the correct standoff positions.
3. Thread standoffs into the tray by hand first, then snug them down with your hex driver. Do not overtighten. Brass strips surprisingly easily, and a stripped standoff stuck in a tray is an annoying problem you don’t want.
4. Do a dry-fit check before the board ever touches the tray. Hold the motherboard above it and confirm every standoff aligns with a PCB hole, and that no standoff sits under a non-hole location.
5. Install the I/O shield into the rear case cutout before lowering the board. Trying to install it after the motherboard is seated is a miserable experience.
6. Lower the board onto the standoffs and finger-thread the center screw first to hold position while you work outward.
7. Secure remaining screws in a cross pattern, similar to lug nut torque sequence on a wheel. Snug is the goal. Fingertight plus a quarter turn is a practical benchmark; 4 to 5 inch-pounds of torque if you’re using a torque driver. You’re not building an engine block.

Common Installation Mistakes to Avoid

• Missing a standoff: The board flexes under pressure from cooler installation and PCIe card seating. Over time, that flex damages solder joints. For tips on seating your graphics card after the board is installed, see our guide on how to install a GPU step by step.
• Extra standoff in a wrong position: The single most dangerous installation error. Can kill a board on first POST or cause weeks of mysterious instability.
• Overtightening screws: Cracks PCB laminate, strips standoff threads, and gains you nothing.
• Skipping the dry-fit: Discovering misaligned holes after full cable management means a complete teardown. Not fun.

Motherboard Standoff Replacement and Sourcing

What to Do If Your Case Didn’t Include Standoffs

Standoffs come with the case, not the motherboard. If yours are missing, check the accessory box thoroughly. Cases typically pack them in a small cardboard box or labeled plastic bag inside the main packaging. They’re easy to overlook when you’re ripping through packaging to get to the hardware.

If they’re genuinely absent, contact the case manufacturer’s support team. Most will ship replacement hardware at no cost under warranty. Alternatively, #6-32 UNC brass standoff kits are widely available from PC hardware retailers and specialty modding suppliers like ModMyMods. A 20-pack typically runs $5 to $10, and having extras on hand is never a bad idea.

What to Look for When Buying Replacement Standoffs

• Thread spec: #6-32 UNC standoffs at 6.35mm height for standard ATX, mATX, and ITX builds
• Material: Brass over steel for consumer use; easier threading, less corrosion risk
• Buy a kit: Getting a 20-pack means you’ll never be short on a future build
• Included screws: Look for kits that bundle matching #6-32 UNC screws and a hex installation tool

What Happens If You Skip Standoffs? Real Failure Scenarios

This is the part most guides skip. Here’s what actually happens in each failure scenario.

Scenario A: No standoffs at all. The motherboard rests directly on the grounded metal tray. Solder points and copper traces on the PCB underside bridge to the chassis on first power-on. You get a short. Best case, nothing boots and you figure it out quickly. Worst case, you blow VRM fuses or damage the PSU before the board shuts down. Either way, a $400 board may not survive it.

Scenario B: One standoff in the wrong position. This one is sneaky. A single grounding point touching a non-hole area of the PCB creates an intermittent fault. You might see random POST failures, spontaneous reboots under load, or corrupted storage data. It gets misdiagnosed as faulty RAM, a dying SSD, or a bad GPU for weeks. If your PC won’t POST and you can’t figure out why, a step-by-step troubleshooting checklist can help you isolate the problem systematically. Wrong standoff placement is on that list for a reason.

Scenario C: Missing standoffs (partial). Without full support, the PCB flexes every time you press down a RAM stick or torque a cooler mounting bracket. Micro-fractures in PCB traces develop gradually. The board might work fine for months, then start failing intermittently as the fractures propagate. By the time symptoms appear, the cause is long gone from memory.

Misplaced or missing standoffs are one of the most common root causes of “I built my PC and it won’t POST” posts on r/buildapc and r/techsupport. Small parts, expensive consequences.

Standoffs in Non-Standard Builds: Test Benches, Open Frames, and Custom Cases

Most guides assume you’re building into a standard steel mid-tower. Not everyone is.

On open-air test benches, you typically don’t need traditional brass standoffs. Acrylic and aluminum test bench kits use their own mounting systems, often rubber-footed posts or nylon standoffs that provide electrical isolation without a grounded metal chassis. The goal is the same: keep the board off any conductive surface. For a full breakdown of how open-frame builds work, the open air PC case and test bench guide covers mounting considerations in detail.

Custom scratch-built cases require manually calculating standoff positions from the ATX spec sheet and either drilling and tapping the tray yourself or sourcing a pre-drilled ATX-compatible panel. The ATX 2.2 specification defines exact hole coordinates in millimeters from the board’s reference corner.

Modded OEM cases present a different challenge. If you’re fitting a retail ATX board into a salvaged Dell or HP chassis, the tray’s hole pattern almost certainly won’t match the ATX standard. Riser plates with re-drilled mounting patterns are available as a solution, but verify dimensions carefully before committing.

Standoff Tools: Why the Right Tool Matters

You can technically install standoffs with needle-nose pliers. You can also cut bread with a butter knife. Neither is a good idea.

A dedicated standoff tool is a combo hex socket, typically 5mm on one end for #6-32 UNC standoffs and Phillips on the other for the screws. It costs $3 to $8 and makes the job faster and safer. The 5mm socket engages the hex body cleanly without slipping, which protects both the standoff threads and the motherboard tray finish.

Needle-nose pliers work in a pinch but risk slipping and gouging the tray. Standard screwdrivers can’t engage a hex body at all without the same slip risk.

Pro tip: premium case brands including Fractal Design, be quiet!, and Lian Li often include a standoff installation tool in the accessory kit. Check before ordering one separately.

Frequently Asked Questions About Motherboard Standoffs

What is a standoff on a motherboard?

A standoff isn’t part of the motherboard itself. It’s a small threaded metal spacer that mounts between the PC case’s motherboard tray and the board’s PCB. It lifts the motherboard off the metal surface to prevent short circuits and provides the fixed mounting points that keep the board stable under load.

Is a motherboard standoff necessary?

Yes. No exceptions for standard case builds. Without standoffs, the underside of the motherboard makes direct contact with a grounded metal surface. The exposed solder joints and copper traces bridge to the chassis, causing shorts that can permanently damage the board, connected components, and in some cases the PSU. Standoffs aren’t optional hardware.

Does every motherboard need standoffs?

Every ATX, Micro-ATX, Mini-ITX, and E-ATX motherboard requires standoffs when installed in a standard metal PC case. The number and position vary by form factor: full ATX uses up to 9, Mini-ITX uses 4. Open-air test benches with insulated mounting surfaces are the one scenario where traditional brass standoffs aren’t required, since there’s no grounded metal chassis to short against.

What size are standard motherboard standoffs?

The industry standard for consumer builds is #6-32 UNC brass standoffs at 6.35mm height. This applies to virtually all ATX, Micro-ATX, and Mini-ITX builds across consumer cases. Some Mini-ITX and European cases use M3 screws instead of #6-32 UNC, so verify your case spec if something feels off during installation.

Where do motherboard standoffs go?

Standoffs thread into the tapped holes on your PC case’s motherboard tray. The correct positions depend on your motherboard’s form factor. Check your case manual for labeled positions, or hold the board above the tray and look through its mounting holes to visually confirm alignment. Every standoff must match a corresponding hole in the PCB. Any standoff without a matching hole above it needs to come out.

What You Should Do

Before your motherboard ever touches the case tray, take two minutes to install standoffs correctly. Find the accessory bag, identify your form factor in the case manual, thread in the standoffs, and do the dry-fit check. That brief step protects a component that costs anywhere from $150 to over $500 from a failure caused by a $0.10 spacer in the wrong place. Get the standoffs right, do the dry-fit, and you’ll never have to wonder why your brand-new build won’t POST.
