Motherboard Fan Headers Explained (CPU, SYS, CHA, AUX)

A motherboard fan header is a 3-pin or 4-pin connector on a motherboard that delivers 12V power and speed-control signals to PC cooling fans while receiving RPM feedback.

Last updated: July 2026

Quick Answer: What Is a Motherboard Fan Header?

A fan header on a motherboard is a small cluster of pins that powers cooling fans and lets the BIOS monitor and adjust their speed. The four main types are CPU_FAN, SYS_FAN (or CHA_FAN depending on brand), AUX_FAN, and CPU_OPT. Each serves a different role. CPU_FAN is the only one wired to trigger a system halt if it detects no fan signal. The others handle general case airflow and are more flexible about what you connect and where.

You’re mid-build, holding a fan cable, staring at a motherboard that has six different labeled pin clusters and no obvious indication of which one your case fan belongs in. Totally normal. The naming varies by manufacturer, the labels seem arbitrary, and nobody hands you a decoder ring with the motherboard box.

This guide breaks down every pc fan header type, what it actually does, how much power it provides, and which fans connect where. By the end, the labels won’t seem random at all.

What Is a Fan Header on a Motherboard?

The Basic Function of a PC Fan Header

Every fan header on a motherboard does two things: it sends power out and it receives data back. The outgoing side delivers 12V DC to spin the fan motor. The incoming side receives a tachometer (RPM) signal, which tells the motherboard how fast that fan is spinning. The BIOS then uses that RPM data to run fan curves, ramp speeds up when temperatures climb, and back them off when things cool down.

Without a header, your only alternative is connecting fans directly to a SATA or Molex power connector from the PSU. That works, but the fans run at 100% all the time with no speed control and no RPM reporting. Loud. Wasteful. Not ideal.

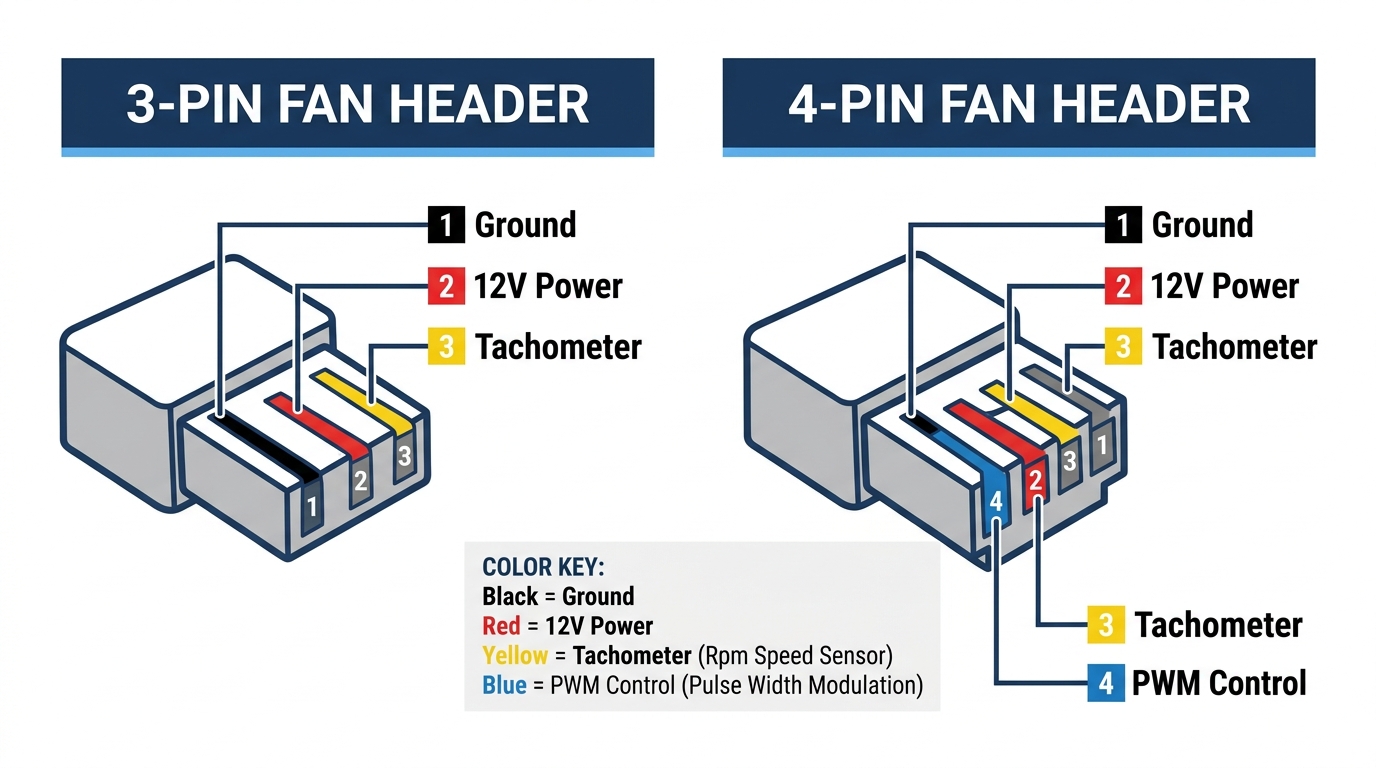

3-Pin vs. 4-Pin Fan Headers: What’s the Difference?

The difference comes down to how speed is controlled. A 3-pin header uses DC voltage variation: to slow the fan down, it reduces the voltage below 12V. A 4-pin header adds a PWM (pulse-width modulation) signal on a fourth pin that switches power on and off thousands of times per second, keeping voltage at a constant 12V while varying effective speed. Per the industry-standard 4-wire PWM fan specification, as documented in Noctua’s PWM specifications white paper, the PWM signal runs at a target frequency of 25 kHz (with a 21-28 kHz tolerance range).

PWM control is more precise and lets fans spin slower before they stall out. A DC-controlled fan typically can’t go below 40-50% speed without cutting out. A PWM fan can often hit 20-30% without issue, which matters a lot for noise levels in a quiet build.

Cross-compatibility exists in both directions. A 3-pin fan plugged into a 4-pin header will work in DC mode, pins 1-3 aligned, pin 4 unused. A 4-pin fan plugged into a 3-pin header will either run at full speed or follow DC voltage control, without PWM precision. Neither combination damages anything.

Feature	3-Pin (DC)	4-Pin (PWM)
Control Method	Voltage variation	Pulse-width modulation
Voltage at Full Speed	12V	12V (constant)
Minimum Controllable Speed	~40-50%	~20-30%
RPM Reporting	Yes	Yes
Noise at Low Loads	Moderate	Lower
Best For	Budget or older fans	Modern case and CPU fans

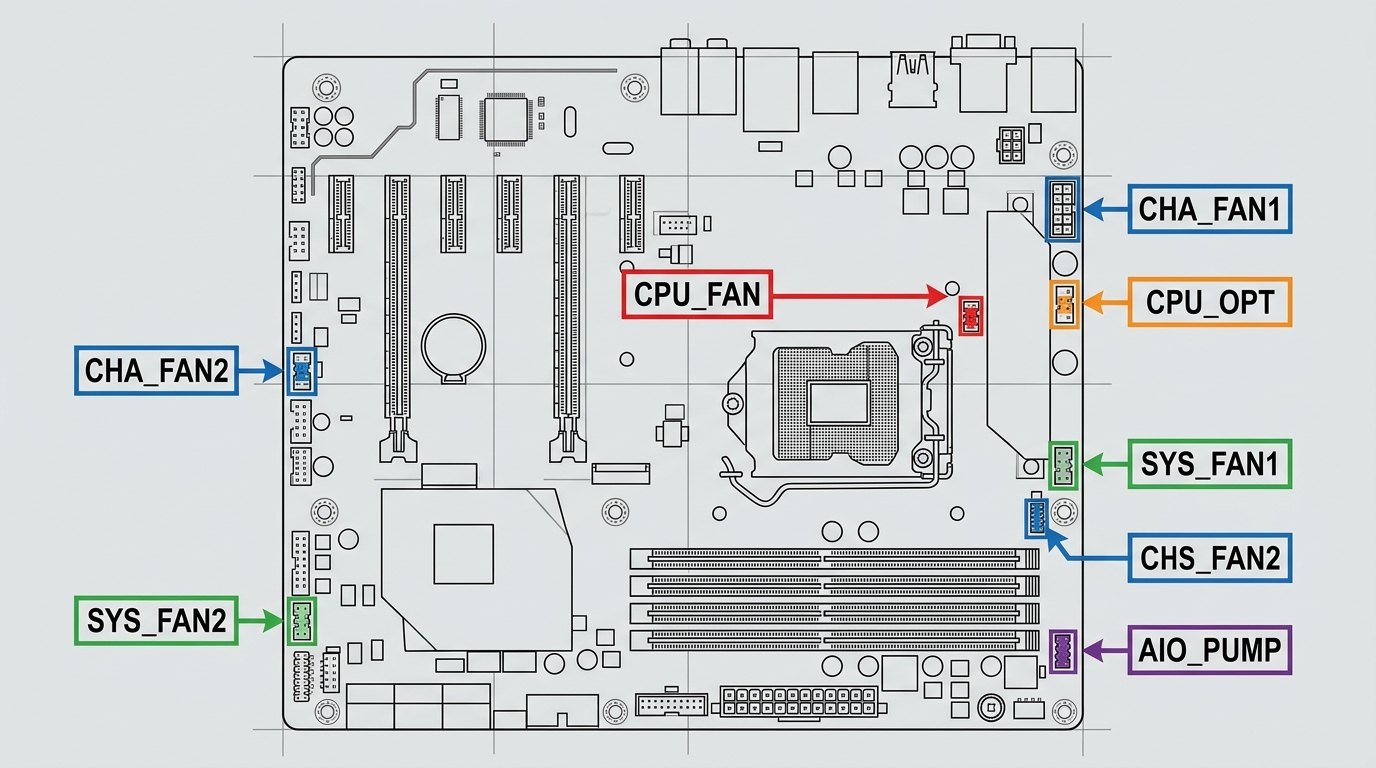

Every Fan Header Type on a Motherboard Explained

CPU_FAN Header: The Most Important Header on Your Board

This is the one header you absolutely cannot leave empty. The CPU_FAN header is dedicated to the primary CPU cooler, whether that’s a tower air cooler, a low-profile cooler, or the pump head of an AIO liquid cooler. What makes it different from every other fan header motherboard label is that the BIOS actively monitors it for a live fan signal. If the board detects no RPM feedback here during POST, most boards stop cold with a “CPU Fan Error” and refuse to boot.

Typical current rating is 1A at 12V, giving you 12W to work with. That covers every mainstream air cooler on the market for Intel’s current Arrow Lake (Core Ultra 200 series) and AMD’s Zen 5 (Ryzen 9000 series) platforms. On modern boards it’s always a 4-pin PWM header and sits physically close to the CPU socket, usually at the top-right of the board.

If you’re running a custom water loop with a pump controlled separately, you can configure most UEFI/BIOS setups to ignore the CPU_FAN monitoring threshold. Check your board manual for the exact setting. For most builders though, just connect your cooler here and move on.

For a full breakdown of where to find this header and how to configure it, the guide on CPU fan header location and usage covers it in detail.

CPU_OPT Header: Built for AIO Radiator Fans

CPU_OPT (CPU Optional) is a secondary 4-pin PWM header that mirrors the behavior of CPU_FAN in most BIOS implementations. Its intended use is the radiator fans on an AIO liquid cooler, so they ramp up and down in sync with CPU temperature rather than following a general system curve. Unlike CPU_FAN, it isn’t monitored for a system-halt error. If nothing’s plugged in, the board won’t complain.

Some builders also use CPU_OPT for a secondary tower cooler fan or a rear exhaust fan they want tied directly to CPU thermals. That’s a valid approach. Just understand that whatever goes into CPU_OPT follows the same temperature source as CPU_FAN, which is the CPU itself, not the chipset or VRM zones.

If you’re trying to decide which header should get the pump versus the radiator fans on your AIO, the comparison of CPU OPT vs CPU FAN covers exactly that decision.

SYS_FAN / System Fan Header: General Case Airflow

The system fan header handles everything that isn’t the CPU cooler. Case intake fans, exhaust fans, and any auxiliary cooling inside the chassis all go here. On mid-to-high-end boards you’ll see multiple numbered variants: SYS_FAN1, SYS_FAN2, SYS_FAN3, sometimes up to five or six on enthusiast X870E or Z890 boards designed for dense fan configurations.

Current limits on system fan headers are typically lower than CPU_FAN. Most land at 0.5A to 1A per header (6W to 12W). That’s plenty for a single 120mm or 140mm case fan, which typically draws 1.8W to 4W depending on the model. The BIOS monitors these headers for RPM as well, but a missing fan here usually triggers a warning rather than a full POST halt.

Best practice is to assign intake fans to lower-numbered SYS headers and exhaust fans to higher-numbered ones. This lets you set independent fan curves in BIOS for intake versus exhaust if your board supports thermal zone assignments, which most boards from Gigabyte’s current Z890 and X870E lineup do.

CHA_FAN Header: Chassis Fan, Different Label, Same Job

CHA_FAN (chassis fan header) is exactly the same electrical connector as SYS_FAN. The difference is purely manufacturer naming. ASUS uses CHA_FAN across its ROG, TUF, and Prime lines. Gigabyte calls them SYS_FAN. MSI labels them SYS_FAN as well. ASRock splits between CHA_FAN and SYS_FAN depending on the board tier.

If you’re building on an ASUS board and see CHA_FAN1, CHA_FAN2, CHA_FAN3, treat them exactly like you’d treat SYS_FAN1 through SYS_FAN3 on a Gigabyte board. Same pinout. Same voltage. Same control method. No functional difference.

Header Function	ASUS	Gigabyte	MSI	ASRock
CPU Cooler	CPU_FAN	CPU_FAN	CPU_FAN1	CPU_FAN1
AIO Pump / Extra CPU	CPU_OPT	CPU_OPT	CPU_FAN2	CPU_OPT
Case Fans	CHA_FAN1-4	SYS_FAN1-5	SYS_FAN1-2	CHA_FAN1-3
Pump / Auxiliary	AIO_PUMP	SYS_FAN (dedicated)	PUMP_FAN	W_PUMP+

AUX_FAN Header: The Aux Fan Header on Motherboard Explained

AUX_FAN is less common and shows up mainly on higher-end HEDT boards and enthusiast-tier platforms. It functions as an overflow header for additional fans or supplemental pump controllers. On some ASUS Maximus and ProArt boards, the aux fan header can be repurposed via BIOS for specific temperature zones or set to a fixed duty cycle independent of any thermal input.

Some boards label what’s functionally an aux header as W_PUMP+ or AIO_PUMP, and these often carry a higher amperage rating, up to 1.5A or even 3A in some implementations. That extra headroom is specifically designed for pump motors, which draw significantly more current than a case fan at startup. Always check your board’s manual for the maximum current spec on these headers before connecting a pump. Exceeding the rating can damage the header traces on the PCB.

Does It Matter Which Fan Header You Use?

Yes, though not every header choice carries the same consequences. CPU_FAN is the one that actually enforces a rule. Every other header is much more forgiving.

If you plug your CPU cooler into a SYS_FAN header instead of CPU_FAN, the fan will spin and the cooler will function, but the BIOS may still throw a CPU Fan Error at POST because it detects nothing on the CPU_FAN pins. Some boards will let you dismiss the error and continue booting. Others won’t. It’s an unnecessary complication with an easy fix: plug the cooler into CPU_FAN.

If you swap case fans between SYS/CHA headers, the fan still spins. The thermal curve it follows might not be ideal if your BIOS assigns different temperature sources to different headers, but nothing breaks. The bigger practical issue is that each header has its own fan curve settings in BIOS, so fans on the wrong zone might ramp up or stay quiet at the wrong times. Worth getting right.

Here’s the recommended connection map for a typical build:

• CPU cooler fan: CPU_FAN
• AIO radiator fans: CPU_OPT
• Case intake fans (front, bottom): SYS_FAN / CHA_FAN 1 and 2
• Case exhaust fans (rear, top): SYS_FAN / CHA_FAN 3 and 4
• AIO or custom loop pump: AIO_PUMP or W_PUMP+

Once fans are connected to the right headers, head into BIOS and assign each header’s fan curve to the temperature sensor that makes sense for that zone. Intake fans tied to CPU temp is reasonable. Exhaust fans can also follow chipset or PCH temp on boards that expose those sensors. In practice, connecting case fans to the headers monitoring your board’s hottest zones tends to give the best real-world thermal response across a full build.

If you want to dial in your airflow setup properly, understanding intake and exhaust fan placement before assigning fan curves makes the BIOS configuration much more logical.

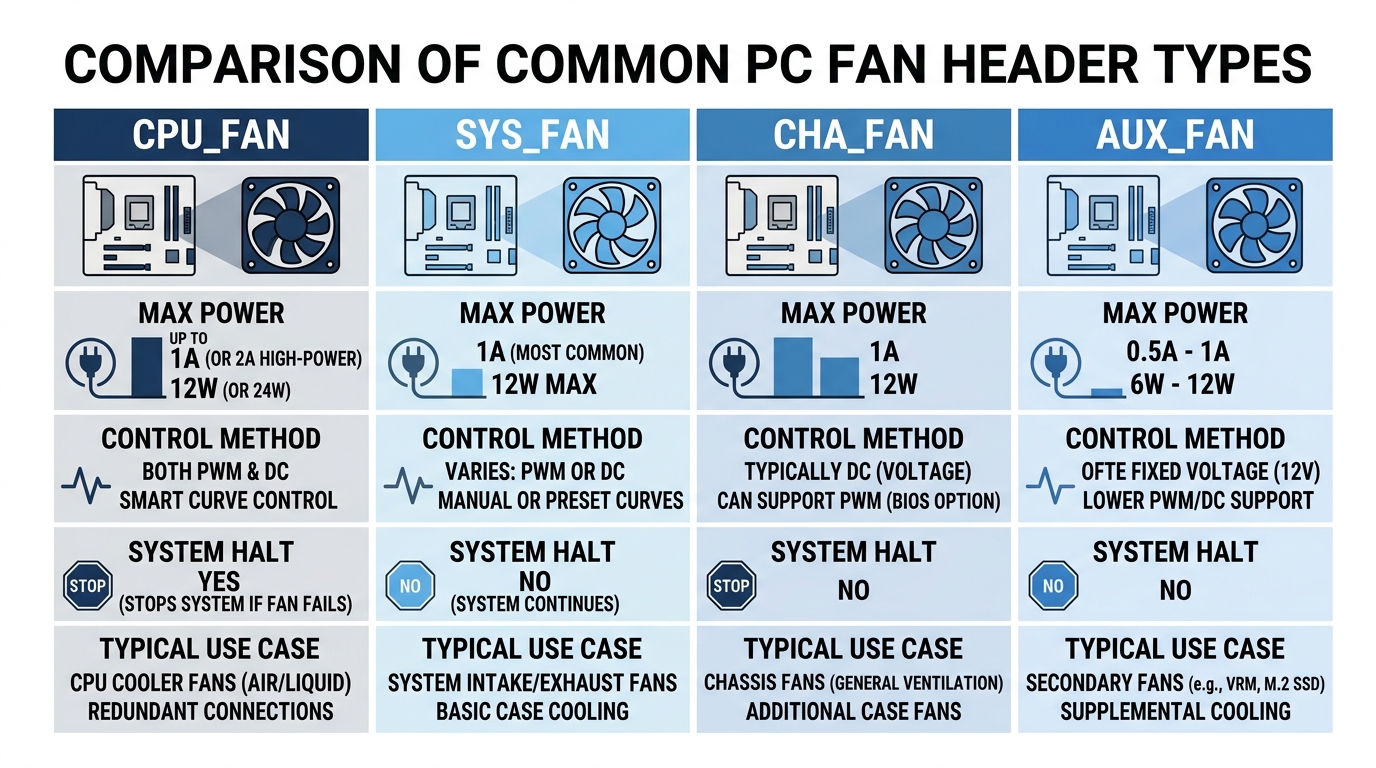

How Much Power Can a Motherboard Fan Header Provide?

This is where most builders get into trouble, especially when running four or more fans from two headers with cheap splitters. The numbers matter.

Standard CPU_FAN headers are rated at 1A at 12V, which is 12W maximum. SYS and CHA headers typically fall between 0.5A and 1A per header (6W to 12W), varying by board manufacturer and tier. Pump-specific headers like AIO_PUMP and W_PUMP+ go considerably higher, sometimes reaching 2A to 3A (24W to 36W), because pump motors draw significantly more current than fan blades, especially at startup.

Exceed a header’s current rating and you risk voltage sag on that rail, gradual damage to the PCB traces, and eventually a dead header or worse. Not a hypothetical risk. A powered fan hub connected via SATA bypasses this entirely and is the right call for any build running more than two fans per header zone.

A Y-splitter running two fans from a single SYS header is fine as long as combined draw stays under the header’s limit. A 120mm fan at full speed draws roughly 0.15A to 0.35A, so two fans on a 0.5A header is technically within spec at normal operating speeds. Three or more fans on one header with a passive splitter is where you’re pushing limits and should switch to a powered hub instead. For a full comparison of your options, the PC fan hub and splitter guide covers the tradeoffs in detail.

Fan Header Pinout: What Each Pin Does

The pin assignments on a 4-pin PWM fan header are standardized across manufacturers, which is why cross-brand compatibility works reliably. Here’s the full breakdown:

Pin Number	Wire Color (Standard)	Signal	Description
1	Black	GND	Ground return path
2	Yellow	+12V	Power supply to fan motor
3	Green	Sense / Tach	RPM feedback signal to motherboard
4	Blue	PWM Control	Speed control signal at 25 kHz

A 3-pin header uses pins 1 through 3 only. Pin 4 is physically absent. When you seat a 3-pin fan connector into a 4-pin header, it aligns to pins 1-3 and the PWM pin is simply unused.

One warning that catches a lot of first-time builders: the 5V ARGB headers on your motherboard are not fan headers. They share a similar physical footprint but operate at 5V on a completely different data protocol. Plugging a fan into an ARGB header, or an ARGB device into a fan header, won’t work and could damage the component. For more on how ARGB connectors actually work, the guide on how ARGB fans connect and sync explains the difference clearly.

Connecting Multiple Fans: Splitters, Hubs, and Headers

A mid-tower build with four to six case fans will almost always exceed the number of available SYS or CHA headers, especially on budget and mid-range boards like AMD’s B650 and B850 or Intel’s B860, which tend to include fewer headers than higher-tier boards (AMD’s X670/X870/X870E, Intel’s Z890). You have two real solutions: passive splitters or powered hubs.

A passive Y-splitter divides one header signal into two or three fan connections. The header’s power budget is shared across all connected fans. Most importantly, RPM reporting gets messy. Some boards average the combined signal. Others only read one fan’s tachometer and display a confused or flatlined RPM reading. Fine for two low-draw fans. Unreliable for three or more.

A powered fan hub takes a single PWM signal from one motherboard header and mirrors it to multiple fan outputs, while drawing actual power from a SATA cable rather than the motherboard header. Each fan port on a quality hub reports RPM individually. All fans follow the same thermal curve as the source header. This is the correct solution for builds running four or more case fans.

• 2 fans, one header: Y-splitter is acceptable
• 3 or more fans, limited headers: Use a powered fan hub
• Mixed fan types with different curves needed: Use separate headers if available

If you’re figuring out how many fans your build actually needs before deciding on hubs and headers, the breakdown of how many case fans you need is a useful starting point.

FAQ: Motherboard Fan Header Questions Answered

What is a fan header on a motherboard?

A fan header on a motherboard is a set of 3 or 4 pins that supplies 12V power to a cooling fan while receiving RPM feedback. The BIOS uses that feedback to monitor fan speed and adjust it automatically based on system temperatures. Without a header connection, fans either run at fixed full speed from PSU power or don’t spin at all.

Does it matter which fan header I use?

For case fans, the choice between SYS_FAN and CHA_FAN headers doesn’t matter much since they’re electrically identical. What does matter is CPU_FAN: your CPU cooler must connect here, or most boards will throw a POST error. Beyond that, connecting fans to headers governed by the closest temperature sensor gives you the most responsive fan curves in real-world use.

What do I plug into the CPU fan header?

The CPU fan header should receive the fan cable from your CPU air cooler heatsink, or if you’re using an AIO liquid cooler, connect the pump head cable here. Don’t leave it empty. The BIOS monitors this header specifically and will often refuse to complete the boot process if it detects no fan signal on CPU_FAN.

How much power can a motherboard fan header provide?

Most CPU_FAN headers provide up to 12W (12V at 1A). SYS and CHA fan headers typically supply between 6W and 12W (12V at 0.5-1A depending on the board). Pump-specific headers like AIO_PUMP and W_PUMP+ can deliver 18W to 36W (12V at 1.5-3A). Exceeding the rated current for any header risks damaging the PCB traces, so use a powered hub or dedicated pump header when the load demands it.

Can I plug a 3-pin fan into a 4-pin header, or vice versa?

Yes to both. A 3-pin fan plugged into a 4-pin header aligns to pins 1-3 and operates in DC voltage-control mode without PWM. A 4-pin PWM fan plugged into a 3-pin header will run at full speed or follow DC speed control, without the precision of PWM. Neither connection damages the fan or the motherboard. You just lose some speed control accuracy in the 3-pin-into-4-pin scenario.

What You Should Do

Plug your CPU cooler or AIO pump head into CPU_FAN, no exceptions. Route AIO radiator fans to CPU_OPT. Distribute your case intake and exhaust fans across the SYS or CHA headers your board provides, and if you’re running more fans than available headers, pick up a SATA-powered fan hub rather than overloading a single header with a stack of splitters. Then open BIOS, assign each header to the right temperature zone, and set fan curves that match what each zone actually does. Do those four things and your cooling setup will run quiet, controlled, and without any mystery errors at POST.
