120mm Case Fans: Airflow, Specs, and What to Buy

A 120mm case fan is a standardized PC cooling component measuring 120 × 120 × 25mm that mounts to a case panel, radiator, or heatsink to move air through a system.

Last updated: July 2026

Quick Answer: What Is a 120mm Case Fan?

A 120mm case fan moves air through your PC to prevent heat buildup on your CPU, GPU, RAM, and storage. It mounts to intake and exhaust positions in your case, or directly to a radiator or CPU heatsink. At 120 × 120 × 25mm, it’s the most common fan size in consumer PC building. It balances airflow, noise, and compatibility across nearly every mid-tower and full-tower case on the market.

You just finished slotting your last component into a fresh build and you’re wondering which fans to grab, or maybe your existing rig is running hot and you want to understand what actually matters before throwing money at new hardware. Either way, the specs on a fan box can feel like alphabet soup: CFM, mmH₂O, dBA, PWM. This guide cuts through all of it.

What Is a 120mm Case Fan?

The 120mm case fan has been the industry default for over two decades, and that’s not an accident. At exactly 120 × 120 × 25mm, these fans fit a mounting hole pattern that’s standardized at 105mm center-to-center on all four corners, using M4 screws. That consistency means a fan from any brand drops into any compatible case or radiator without guesswork.

Most fans stick to the standard 25mm depth, but thicker 38mm variants exist for high-performance applications. The Corsair RS120 MAX and Phanteks T30-120 are both 38mm thick, and that extra depth allows for more blade surface area and higher static pressure without increasing the footprint.

The reason 120mm beat out other sizes as the default comes down to three things: near-universal case support, radiator compatibility (120mm fans stack onto 240mm and 360mm radiators natively), and manufacturing volume that keeps prices low. The main alternative is the 140mm fan, which moves more air per revolution at lower RPM for better silence. That tradeoff is worth understanding before you commit to a fan configuration.

Key Specs You Need to Understand Before You Buy

Most sites just list products. Here’s what the numbers actually mean so you don’t end up with the wrong fan for your setup.

Airflow (CFM)

CFM stands for Cubic Feet per Minute. It measures how much air volume a fan moves, and it’s the primary metric for open, unrestricted positions like front intake and rear exhaust slots. Typical 120mm fans land between 30 and 80 CFM. Budget fans sit around 35-45 CFM. Mid-range options hit 50-65 CFM. High-performance fans like the Thermalright TL-B12 push around 68 CFM at 2150 RPM. Raw CFM matters most when the fan doesn’t have to push through a filter, fins, or a radiator. When it does, static pressure takes over.

Static Pressure (mmH₂O)

Static pressure measures a fan’s ability to move air against resistance. The unit is mmH₂O, or millimeters of water. When you’re mounting a fan onto a radiator, pushing through a dense mesh front panel, or blowing through a CPU heatsink, you need this number to be high. Most 120mm fans fall between 0.5 and 3.5 mmH₂O. The Noctua NF-F12 PWM hits 2.61 mmH₂O, which is the benchmark reference for quality radiator fans. For demanding industrial applications, Noctua’s NF-F12 industrialPPC 3000 PWM reaches 5.08 mmH₂O (see the Noctua product specification page for full details). A good rule: anything under 2.0 mmH₂O is a gamble on a radiator.

Noise Level (dBA)

Noise is measured in dBA (A-weighted decibels). At normal desk distance, anything at or below 25 dBA is effectively inaudible. The Noctua NF-F12 PWM manages 22.4 dBA. The be quiet! Pure Wings 3 hits an impressive 25.5 dBA. Mid-range fans land in the 25-32 dBA range, which you can hear but won’t be bothered by. High-RPM industrial fans like the NF-F12 industrialPPC 3000 hit 44.3 dBA. That’s clearly audible in any room. Noise and RPM are directly linked: faster spin, louder fan. PWM control exists precisely to let you dial down RPM when full performance isn’t needed.

RPM and PWM Control

RPM ranges split roughly into three tiers. Low-noise fans run 800-1200 RPM. General-purpose fans operate 1200-1800 RPM. High-performance options spin 1800-3000+ RPM. The connector type determines how that speed gets controlled. A 3-pin (DC) fan runs at full voltage by default; the only way to reduce speed is to reduce voltage, which is less precise. A 4-pin PWM fan receives a dedicated pulse-width modulation signal that modulates speed independently of voltage, giving your motherboard or fan controller much finer control. Always buy 4-pin PWM fans when you can. Most modern boards support them, and the dynamic speed curves pay off in both noise and longevity.

Bearing Type

Bearing type determines lifespan and noise behavior over time. Here’s how they stack up:

• Sleeve bearing: cheapest option, rated around 15,000-20,000 hours, noise tends to worsen with age
• Ball bearing: louder at low RPM but durable at around 50,000 hours, works well in high-RPM environments
• Fluid Dynamic Bearing (FDB): quiet, long-lived at roughly 150,000 hours, found in the Corsair AF120 Elite and Noctua NF-F12
• Magnetic levitation (Maglev): no contact between moving parts, near-silent, over 100,000 hours rated, used in premium fans like the Phanteks T30

For most builds, FDB is the sweet spot. It lasts long, runs quietly, and doesn’t cost a premium over standard ball bearing options.

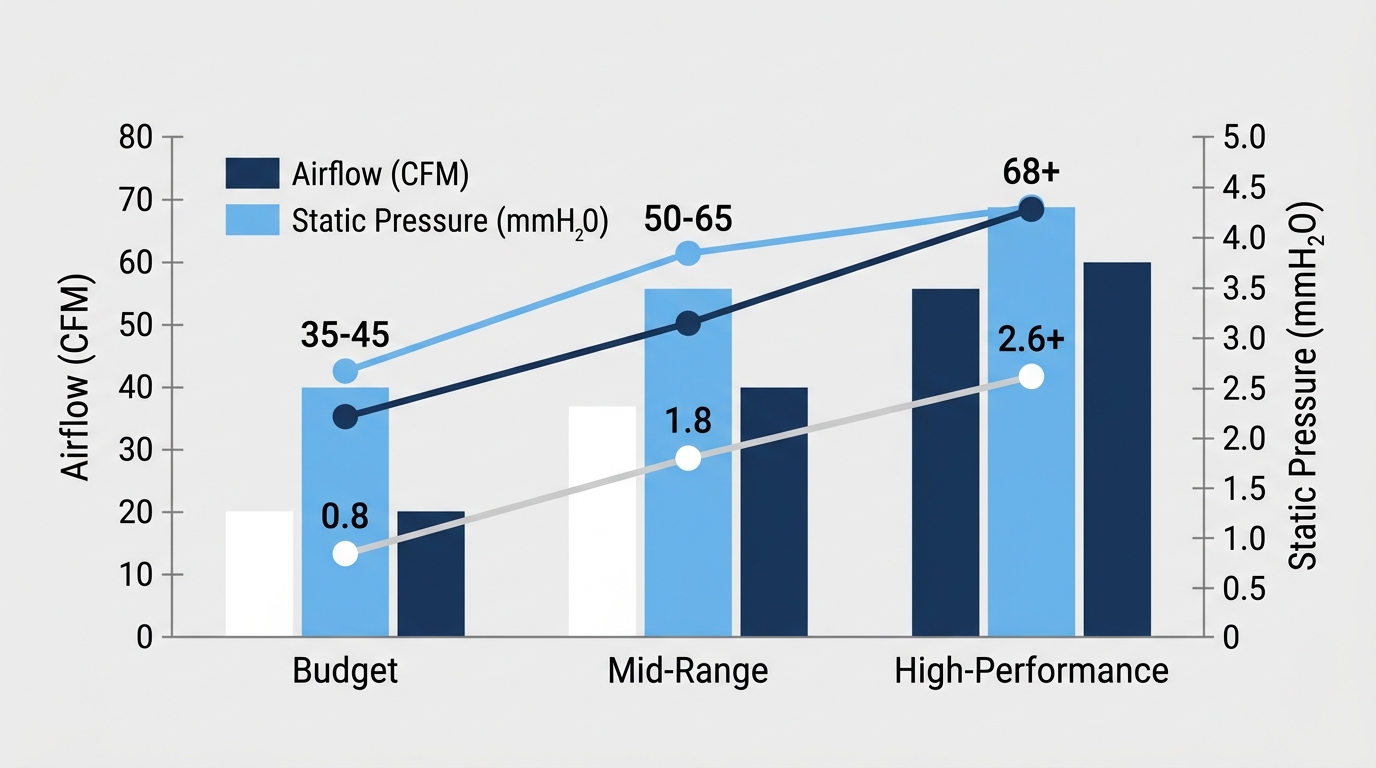

Airflow Fan vs. Static Pressure Fan, Which Do You Need?

Not all 120mm fans are built the same way. An airflow-optimized fan uses an open blade design with wide spacing between fins. It moves a high volume of air efficiently in unobstructed positions. A static pressure fan has tighter blade pitch, often a closed frame ring, and is built to force air through something with resistance. Put an airflow fan on a dense radiator and you’ll leave performance on the table. Put a static pressure fan in an open rear exhaust slot and you’re wasting money on a design feature you don’t need.

Use Case	Recommended Type	Example Fan
Open case intake	Airflow	Corsair AF120 Elite
Radiator (AIO or custom loop)	Static Pressure	Noctua NF-F12 PWM
CPU tower heatsink	Static Pressure	Noctua NF-F12 industrialPPC
Rear exhaust	Airflow	be quiet! Pure Wings 3
Dense mesh front panel	Static Pressure	Arctic P12 PWM PST

The Arctic P12 is interesting because it bridges both categories reasonably well. Its pressure-optimized blades perform well on radiators, but its 56.3 CFM rating also makes it respectable on open intake positions. That’s part of why it’s become such a popular budget pick.

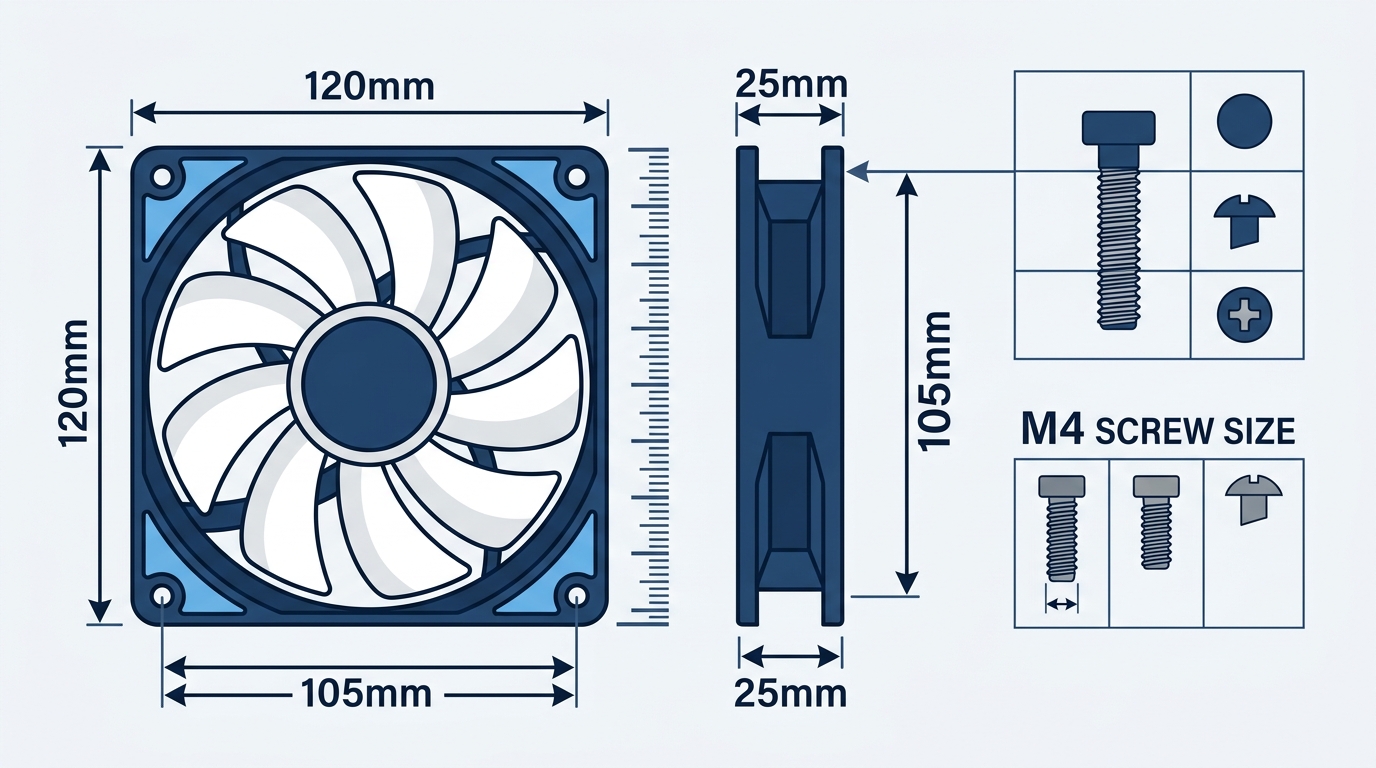

120mm Case Fan Dimensions and Mounting, What You Need to Know

The standard 120mm fan measures exactly 120 × 120 × 25mm. Thick variants measure 120 × 120 × 38mm. The Corsair RS120 MAX and Phanteks T30-120 both use this deeper frame, which allows more aggressive blade geometry and, according to Tom’s Hardware’s testing of top PC case fans, the Phanteks T30’s 30mm frame and LCP impeller design push its performance above most standard 120mm designs. You can find their full breakdown at the Tom’s Hardware best PC fans guide.

Mounting uses M4 screws at a 105mm diagonal spacing. Most fans include rubber anti-vibration pads at the screw holes, and better fans include rubber corner mounts to isolate the fan frame from the case panel. That isolation matters more than people realize. A fan running at 1500 RPM with hard-mounted metal-to-metal contact will buzz your entire case. The same fan with rubber mounts is nearly silent at desk distance.

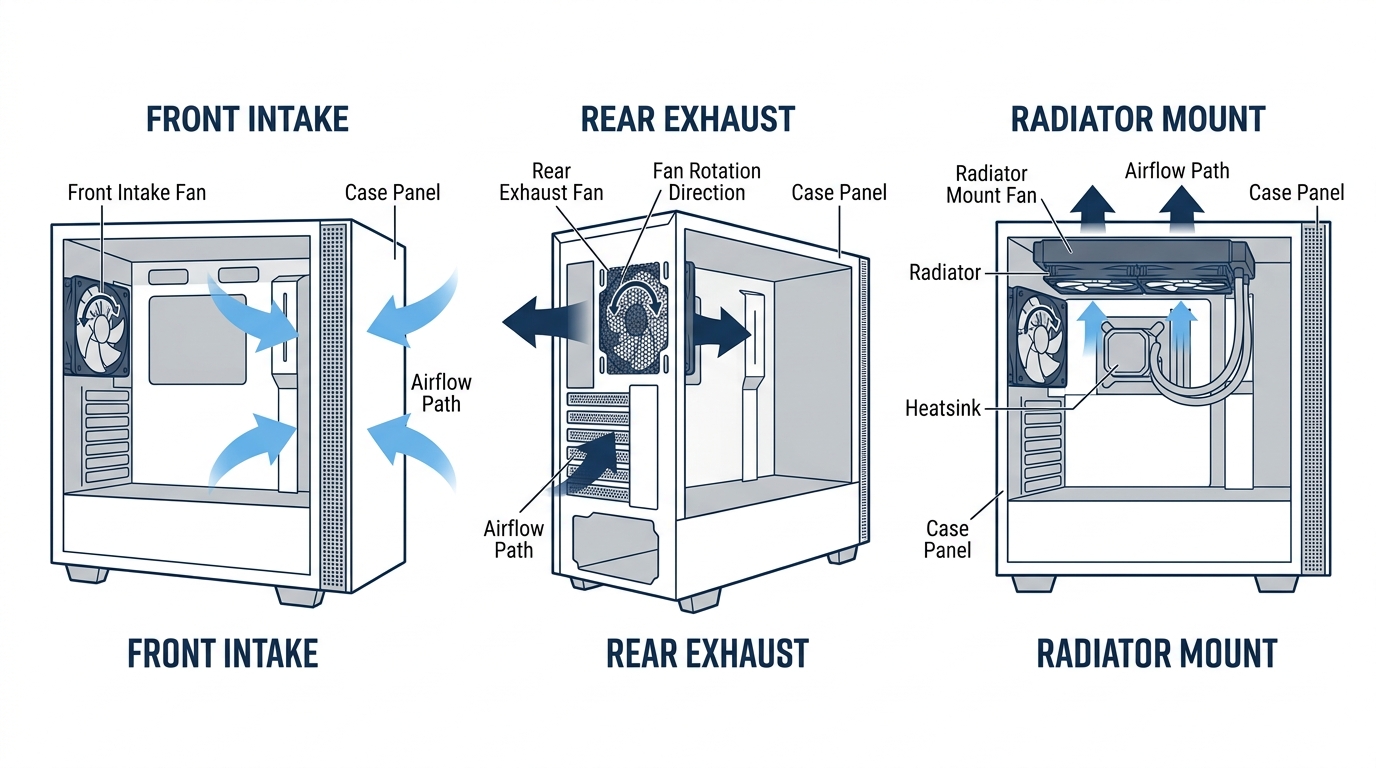

In terms of case compatibility, most mid-tower cases support:

• Front: 1 to 3 × 120mm fans (intake)
• Rear: 1 × 120mm fan (exhaust)
• Top: 1 to 3 × 120mm fans (exhaust)
• Bottom: 1 to 2 × 120mm fans (intake, PSU shroud dependent)

Radiator compatibility follows a simple formula: one 120mm fan per 120mm of radiator length. A 240mm AIO takes 2 × 120mm fans. A 360mm AIO takes 3 × 120mm fans. Make sure you’re matching fan type to position on every radiator mount.

Best 120mm Case Fans, Our Top Picks for 2025

Every pick below includes real spec data, not just product names. Match the specs to your use case before buying.

Best Overall, Noctua NF-F12 PWM

The NF-F12 PWM remains the benchmark that other 120mm fans get measured against. At 1500 RPM max, it delivers 54.97 CFM, 2.61 mmH₂O of static pressure, and only 22.4 dBA of noise. The SSO2 bearing (Noctua’s self-stabilizing oil-pressure bearing, a refined FDB variant) is rated for extreme longevity, and the fan ships with a 6-year warranty. At around $22, it’s not the cheapest option, but it’s the noise-to-performance ratio leader in its class. No RGB. Brown and beige color scheme. Doesn’t matter. It just works, quietly, for years. Best for radiators, CPU coolers, and any position where noise matters. You can check Noctua’s full specification sheet on the official Noctua NF-F12 PWM product page.

Best Budget, Arctic P12 PWM PST

At around $8 per fan, and often available in a 5-pack for roughly $30, the Arctic P12 PWM PST is the best value per fan on the market. Full stop. It hits 56.3 CFM, 2.20 mmH₂O static pressure, and 22.5 dBA noise at 1800 RPM max, using a fluid dynamic bearing. The PST variant includes daisy-chain connectors so multiple fans share one header. For budget builds, front intake triple-fan setups, or radiator duty where you don’t want to spend Noctua money, this is the answer. Plain aesthetics. No RGB. Worth every dollar.

Best for High Airflow, Thermalright TL-B12

The TL-B12 has become a community favorite on r/buildapc and r/mffpc for a reason: it pushes roughly 68 CFM at 2150 RPM for around $10-15 per fan depending on sales. That’s more raw airflow than both the Noctua and the Arctic P12. The tradeoff is noise, coming in around 30 dBA at full tilt, which is audible but not unreasonable. If you have a mesh front panel, a beefy GPU that runs hot, and you want maximum airflow without spending premium money, the TL-B12 is hard to argue against. It’s also got a 2.72 mmH₂O static pressure rating, making it a capable radiator option for budget builds.

Best RGB, Corsair RS120 ARGB (Triple Pack)

If your build is going behind glass and lighting matters, the Corsair RS120 ARGB triple pack at around $40 (roughly $13 per fan) is the go-to. It features eight individually addressable LEDs per fan, integrates with Corsair’s iCUE software, and uses Corsair’s Magnetic Dome bearing. The specs are actually strong: 2100 RPM max, 72.8 CFM, 4.15 mmH₂O, and up to 36 dBA at full speed, making it the highest-airflow fan in this lineup. That performance comes at the cost of noise at max RPM, but the PWM curve keeps it quiet at normal operating speeds. If you’re building a showcase rig inside the Corsair ecosystem, the lighting quality and synchronization are hard to beat. When you’re also connecting RGB strips and headers, understanding the difference between ARGB and standard RGB headers will help you avoid compatibility headaches.

Best Premium / Enthusiast, Corsair iCUE LINK QX120 RGB

The QX120 is for builders who want to eliminate cable clutter entirely. It runs 480-2400 RPM, pushes 62.9 CFM, and hits 3.8 mmH₂O static pressure. At max RPM it reaches 37 dBA, which is louder than the NF-F12 but the PWM curve keeps it reasonable at normal operating speeds. The real selling point is the daisy-chain iCUE LINK connector system, which means all your fans connect through a single hub rather than individual headers for each fan. Pricey at around $55 per single fan or $100 for the starter kit. But for clean-build enthusiasts running full Corsair setups, the cable reduction is genuinely impressive.

Best Quiet/Silent, be quiet! Pure Wings 3 120mm PWM

25.5 dBA at full speed. The Pure Wings 3 is one of the quieter 120mm fans at stock speeds, running 300-1600 RPM with around 50 CFM at max. At around $15, it’s aimed at HTPC builders, home office machines, and anyone who wants a gaming rig that doesn’t announce itself. Mid-tier airflow means it won’t carry a high-heat system alone, but paired with 2-3 units in an intake setup it handles light to medium gaming loads without issue.

120mm Case Fan Comparison Table

Here’s every pick side-by-side so you can compare at a glance before buying.

Fan	RPM (max)	CFM	Static Pressure	Noise (dBA)	Bearing	Price	Best For
Noctua NF-F12 PWM	1500	54.97	2.61 mmH₂O	22.4	SSO2 (FDB)	~$22	Overall / Radiator
Arctic P12 PWM PST	1800	56.3	2.20 mmH₂O	22.5	FDB	~$8	Budget
Thermalright TL-B12	2150	~68	2.72 mmH₂O	~30	FDB	~$10	Max Airflow / Value
Corsair RS120 ARGB	2100	72.8	4.15 mmH₂O	36.0	Magnetic Dome	~$13	RGB / 3-Pack
Corsair iCUE LINK QX120 RGB	2400	62.9	3.8 mmH₂O	37.0	Magnetic Dome	~$55	Premium Enthusiast
be quiet! Pure Wings 3	1600	~50	1.45 mmH₂O	25.5	Rifle	~$15	Silent Builds

How Many 120mm Case Fans Does Your PC Actually Need?

More fans don’t automatically mean better cooling. What matters is direction, placement, and balance. Hardware Canucks’ testing showed that a typical mid-range gaming setup with a reasonable fan configuration lands around 74°C GPU and 78°C CPU under load. Adding fans without thinking about airflow path direction can actually push temperatures up by disrupting the pressure balance inside the case.

The concept worth knowing is air pressure. Positive pressure (more intake than exhaust) means air exits through gaps and filters, keeping dust out. Negative pressure (more exhaust than intake) pulls air in from every crack, which brings dust with it. Neutral is balanced. For most home builds, slightly positive pressure is the practical choice.

For a full breakdown by build type, the guide on how many case fans you actually need covers configurations in depth. In short, here’s the practical breakdown:

Build Type	Recommended Fan Count	Configuration
Budget / Basic	2	1 front intake, 1 rear exhaust
Mid-range Gaming	3-4	2 front, 1 rear, 1 top
High-end Gaming	5-6	3 front, 1 rear, 2 top
Workstation / Server	6-8	Dense airflow, all positions filled

AIO liquid coolers replace some of that fan count. A 240mm radiator already has 2 × 120mm fans, so you’re not starting from zero even with a budget AIO. A 360mm radiator covers all three front slots in many cases, meaning your case exhaust fans are the remaining variable.

120mm Case Fan Buying Tips, Avoid These Common Mistakes

Most buying mistakes come from looking at one spec in isolation. Here’s what actually trips people up.

• Buying by RPM alone: high RPM doesn’t mean high airflow if the blade design is poor. A well-engineered 1500 RPM fan can outflow a poorly designed 2200 RPM fan. Check the CFM number.
• Using airflow fans on radiators: an airflow fan on a 240mm radiator leaves significant cooling performance on the table. Match static pressure fans to restricted-flow positions.
• Ignoring connector type: a 3-pin fan on a 4-pin header still works, but you lose PWM speed control. Your board can only use voltage reduction, which is less precise and less effective at low RPM.
• Buying singles when packs save money: the Arctic P12 5-pack at ~$30 is $6 per fan. The same fan individually runs $8-9. That’s 25-35% savings for filling a front intake triple-fan slot.
• Reading max dBA instead of operating dBA: a fan rated 35 dBA at 2000 RPM will be audible all day. That same fan at 900 RPM via PWM control might be running at 22 dBA. Check operating noise at realistic RPM ranges, not just the spec sheet maximum.

On that last point, it’s worth setting up a custom fan curve in your BIOS. Tools like Fan Control by Rem0o let you map fan speed to temperature sensors with fine-grained control, keeping fans below 30 dBA during idle and light workloads while ramping up only when the system actually needs it.

FAQ, 120mm Case Fan Questions Answered

What is a 120mm case fan used for?

A 120mm case fan moves air through your PC to cool components including the CPU, GPU, RAM, and storage drives. It mounts in intake positions (pulling cooler outside air into the case) or exhaust positions (pushing hot air out). It also mounts directly onto CPU tower heatsinks and AIO or custom loop radiators, where its job is to force air through dense fin arrays under static pressure.

What is the difference between a 3-pin and 4-pin 120mm case fan?

A 3-pin fan has ground, 12V power, and tachometer wires. Speed control happens by reducing voltage, which is less precise and less effective at very low speeds. A 4-pin PWM fan adds a dedicated pulse-width modulation signal wire that lets the motherboard or controller vary speed independently of voltage. That means smoother, more precise control from near-silent low speeds all the way to full RPM. Both connector types are cross-compatible on modern boards, but you lose PWM functionality when running a 4-pin fan on a 3-pin header and vice versa. Always go 4-pin PWM for new builds.

Are 120mm fans good for radiators?

Yes, with the right type. You want static pressure-optimized 120mm fans for any radiator application. Look for a static pressure rating above 2.0 mmH₂O. The Noctua NF-F12 PWM at 2.61 mmH₂O and the Arctic P12 PWM PST at 2.20 mmH₂O are both proven radiator performers. The Corsair RS120 MAX (38mm thick variant) also handles radiator duty well. For sizing: a 240mm radiator needs 2 × 120mm fans; a 360mm radiator needs 3 × 120mm fans.

How loud is a 120mm case fan?

It depends heavily on RPM and design quality. At the quiet end, the be quiet! Pure Wings 3 runs at 25.5 dBA at full speed, which is on the quieter side of the field even though the Noctua and Arctic picks edge it out. Below 25 dBA is essentially inaudible at a normal desk distance. The 25-32 dBA range is audible but unobtrusive for most people. Above 35 dBA gets clearly noticeable, and industrial-tier fans like the Noctua NF-F12 industrialPPC 3000 at full speed hit 44.3 dBA. Most users running PWM curves never approach those highs in normal desktop use.

Should I buy 120mm fans in a 3-pack?

In almost every case, yes. Multi-packs cost 20-40% less per fan than singles. The Arctic P12 PWM PST 5-pack runs about $30 total, or $6 per fan versus $8-9 individually. The Corsair RS120 ARGB 3-pack is around $40, which works out to roughly $13 per fan. Beyond cost savings, matching fans in your front intake positions looks cleaner and ensures RGB lighting is synchronized without extra software work. For filling two or three front intake slots, there’s almost no reason to buy individual fans when packs exist.

What You Should Do

If you just want the best all-around option, grab the Noctua NF-F12 PWM. For the tightest budget, the Arctic P12 PWM PST 5-pack is unbeatable value. Need maximum airflow per dollar? Thermalright TL-B12. Building a showcase rig? Corsair RS120 ARGB 3-pack or iCUE LINK QX120 RGB. Prioritizing silence above everything else? be quiet! Pure Wings 3. The most important step before buying is matching fan type to position: airflow fans for open intake and exhaust slots, static pressure fans for radiators, heatsinks, and dense mesh panels. Get that right and you’re well ahead of most builders.
