DDC Pumps and Reservoirs: Choosing the Right Water Cooling Hardware

A DDC pump is a compact, high-head-pressure 12V centrifugal pump used in custom PC water cooling loops, available in standard and PWM-controlled variants.

Last updated: June 2026

Quick Answer: What Is a DDC Pump?

A DDC pump is the smaller, higher-pressure of the two dominant custom loop pump platforms (DDC and D5). Originally developed by Laing (now Xylem), it uses a magnetically driven impeller in a roughly 60x60x38mm housing. It runs on 12V DC, draws 8–18W depending on the model, and is the go-to choice for compact builds and high-restriction loops where head pressure matters more than raw volume flow.

Picking the wrong pump is one of the most common mistakes first-time custom loop builders make. Buy a D5 for an ITX case and it physically won’t fit. Run a DDC at full tilt in an open-loop setup and you’ll hear it from the next room. This guide covers everything: DDC specs, DDC vs D5, pump tops, reservoir combos, quiet configurations, and which model to actually buy.

What Is a DDC Pump? Core Definition and History

Origins of the DDC Platform

The DDC pump traces back to Laing (now Xylem), which developed one of the first 12V compact centrifugal pumps designed specifically for electronics cooling. It was among the first pumps used in mass-produced water-cooled workstations, and that heritage matters, the core engineering has been refined over multiple generations rather than reinvented.

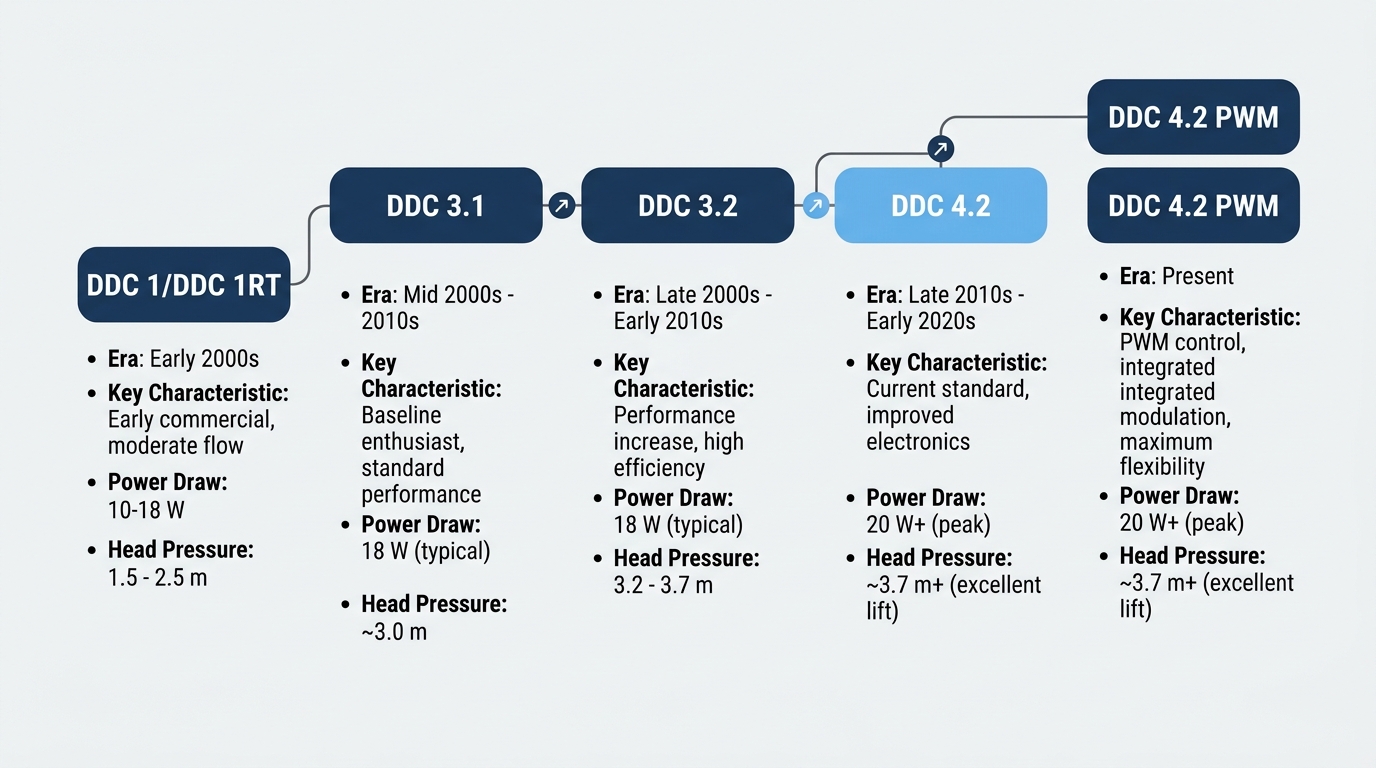

The platform evolved through several generations worth knowing:

• DDC 1 / DDC 1RT: early commercial versions, limited aftermarket support today
• DDC 3.1: the widespread enthusiast baseline, lower power (~8W), solid reliability
• DDC 3.2: minor refinement, broader pump top compatibility
• DDC 4.2: the current standard workhorse, higher pressure, ~18W max draw
• DDC 4.2 PWM: same pump body with 4-pin PWM speed control added

“DDC” was Xylem’s internal product line designation, not an acronym for a technical specification. You’ll see it written as both “DDC pump” and “Laing DDC pump”, they refer to the same platform family.

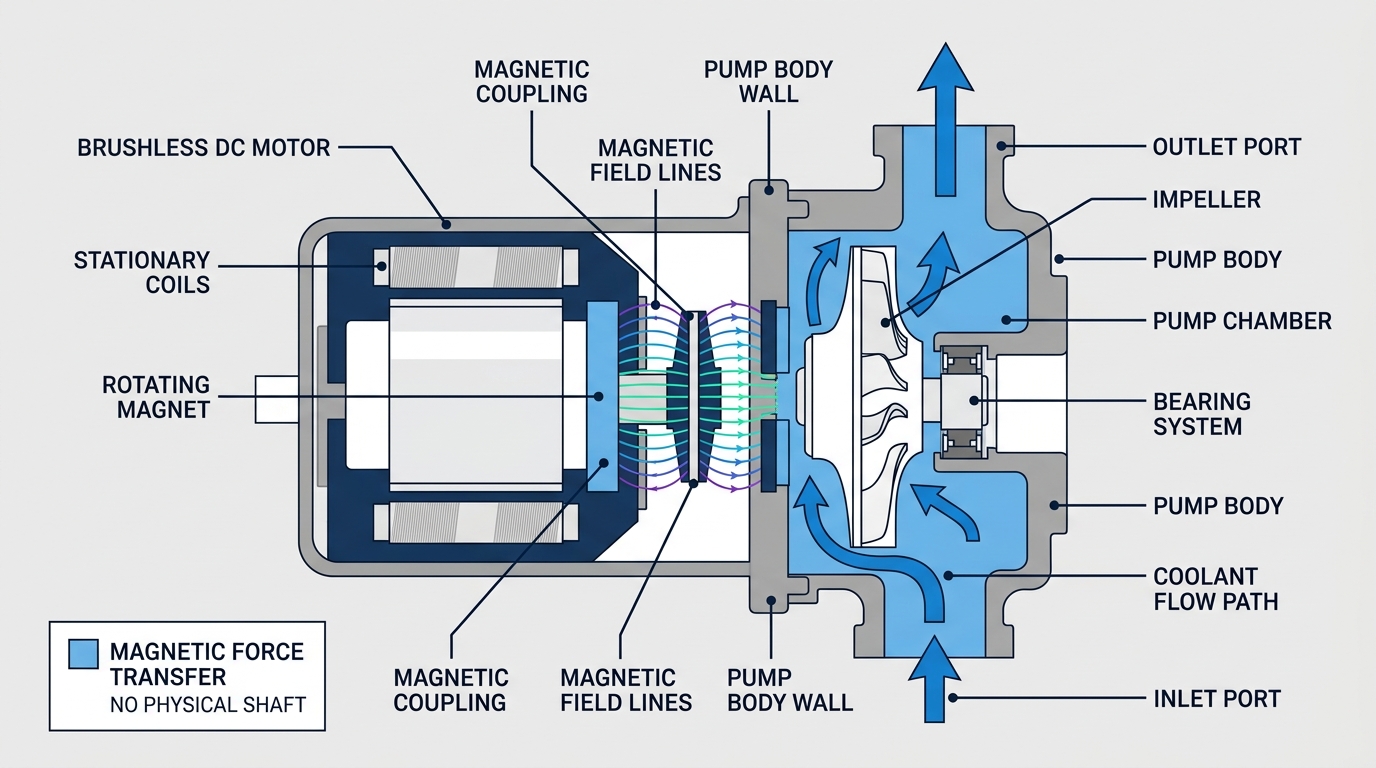

How a DDC Pump Works

The DDC uses a centrifugal impeller design. A brushless DC motor spins the impeller at high RPM, flinging coolant outward via centrifugal force and pushing it through your loop. The key engineering detail is the magnetic drive coupling, there’s no physical shaft connecting motor to impeller. Instead, magnetic force transfers rotation through the pump body wall.

No shaft seal. That means one fewer failure point and significantly lower leak risk compared to older mechanical shaft designs. Good for longevity. Worth understanding before you worry about running your pump 24/7.

The head pressure vs. flow rate trade-off works like this: head pressure is the pump’s ability to push coolant against resistance (bends, small waterblock channels, long tubing runs). Flow rate is total volume moved per hour in an open system with no resistance. A DDC produces high head pressure but moderate maximum flow. That’s exactly what you want in a tight loop with multiple blocks and lots of fittings. It’s less optimal when restriction is minimal and you just need volume.

Model	Voltage	Max Flow	Max Head	Power Draw	PWM
Laing DDC 3.1	12V	~400 L/hr	~3.4m	~8W	No
Laing DDC 4.2	12V	~450 L/hr	~3.9m	~18W	No
Laing DDC 4.2 PWM	12V	~450 L/hr	~3.9m	~18W	Yes
EK-DDC 3.2 PWM Elite	12V	~480 L/hr	~4.5m	~17W	Yes
Alphacool DDC310	12V	~400 L/hr	~3.4m	~8W	No

DDC vs D5 Pump: Which Should You Choose?

This is the question that comes up in every custom loop forum thread. Both pumps work. Neither is universally better. The right answer depends on your case, your loop complexity, and how much noise you’re willing to tolerate.

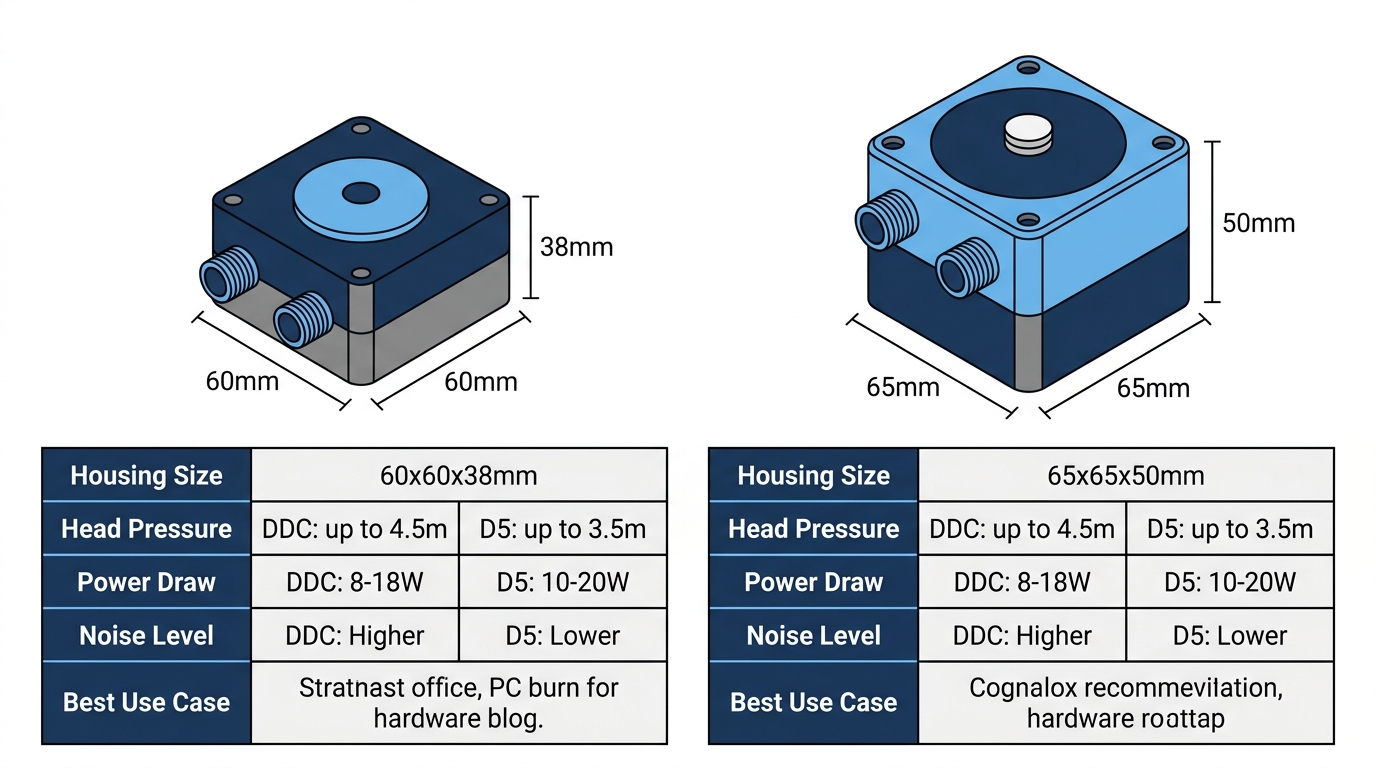

Key Differences at a Glance

Feature	DDC Pump	D5 Pump
Form Factor	~60x60x38mm, compact	~75x75x57mm, larger
Max Head Pressure	~3.4–4.5m	~2.5–3.5m
Max Flow Rate	~400–480 L/hr	~500–1,500 L/hr
Noise Level	Moderate–High at stock speed	Lower, D5 is generally quieter
Power Draw	8–18W	18–23W
PWM Available	Yes (DDC 4.2 PWM)	Yes
Price Range	$40–$90	$50–$100
Best For	SFF builds, high-restriction loops	Large loops, silence-focused builds

When the DDC Wins

Tight spaces are where the DDC earns its keep. In ITX and SFF cases like the NCASE M1, Dan Cases A4, or Sliger SM550, the D5 physically doesn’t fit, the DDC is your only option in a practical pump category. Beyond size, the DDC’s higher head pressure makes it better suited for complex loops. If you’re running CPU block + GPU block + multiple 90-degree fittings + a long tubing run, the DDC will maintain flow where a D5 might struggle against that accumulated restriction. Budget-conscious builders also benefit, the Laing DDC 4.2 typically runs $10–$20 cheaper than a comparable D5 setup.

When the D5 Wins

Let’s be honest about this: the D5 pump is quieter than DDC in most real-world comparisons. That’s not a knock on the DDC, it’s physics. The D5’s larger motor and impeller move the same volume at lower RPM, which translates directly to lower noise output at equivalent performance. If you’re building a quiet workstation in a mid-tower or full-tower with an open, low-restriction loop and two radiators, the D5 is the better call. Silence-first builds should default to D5 unless case constraints force otherwise.

Can You Use Both? Dual Pump Configurations

Dual pump setups are less common but worth knowing about. In a serial configuration (pump A feeds into pump B), you stack head pressure, useful for extreme multi-block loops or very long tubing runs. In parallel, you split flow paths, which only makes sense in specific branched loop designs. Dual DDC in series is a community-proven approach for multi-GPU setups where restriction is genuinely severe. For most single or dual-block builds, one well-chosen pump is enough. If you’re building that kind of loop, you’ll want to read our guide to PC water cooling for beginners before committing to a dual-pump configuration.

DDC Pump Models: Breakdown by Generation

Laing DDC 4.2: The Standard Workhorse

The DDC 4.2 is the baseline most builders should start with. Running at 12V with ~450 L/hr max flow and ~3.9m max head, it has the performance ceiling for all but the most extreme loops. No PWM, it runs at full voltage whenever it’s on. That’s a limitation for noise management but not a functional problem. If you want proven hardware with a long reliability record and don’t need speed control, this is the one to buy. Widely stocked, parts are easy to find, and replacement impellers are available separately if you ever need one.

Laing DDC 4.2 PWM: The Flexible Upgrade

Same pump body as the 4.2. Same performance ceiling. What you’re buying is the 4-pin PWM connector, and that matters more than it sounds. At 100% PWM duty, the DDC 4.2 PWM hits ~2,600 RPM and full noise output. Drop it to 30–50% duty cycle and it runs at ~900–1,200 RPM, audibly quieter. You can tie it into a motherboard pump header or fan controller and set automated speed curves. During light workloads or desktop use, the pump barely registers on noise floor. Under gaming loads, it ramps up only as needed. Worth the extra ~$15–$20 over the standard 4.2 for any build where noise is a consideration.

DDC PWM Pump Replacement Notes

A few things to know before swapping DDC pumps. All DDC series pumps use standard G1/4 threaded fittings, fully universal across loop components from any manufacturer. Pump tops, however, are not universal between DDC and D5. A D5 top won’t fit a DDC body. Within the DDC family, verify your specific pump generation against the top manufacturer’s compatibility list, EK, Alphacool, and Bykski tops all have model-specific fitment requirements. On lifespan: Laing rates DDC 4.2 series at 50,000+ hours MTBF. That’s over five years of continuous 24/7 operation at rated spec.

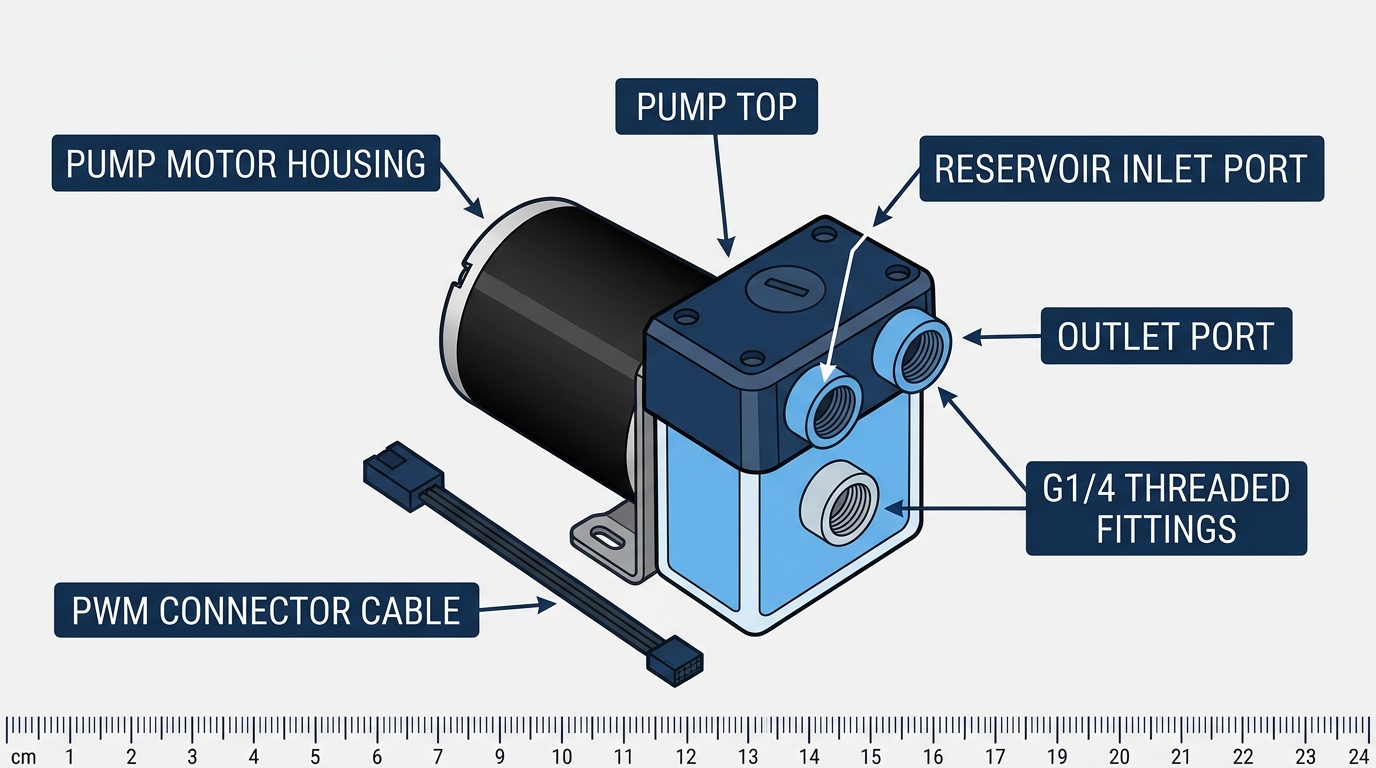

DDC Pump Tops: What They Are and Why They Matter

What Is a DDC Pump Top?

The stock DDC housing is functional plastic. It works. But aftermarket pump tops, machined from acetal or acrylic, replace that stock housing and do several things the original doesn’t. They optimize the internal flow path (reducing turbulence at the inlet), add G1/4 ports in better-positioned locations, and dramatically improve aesthetics for visible builds. More importantly for longevity, quality pump tops add integrated heatsink fins that address one of the DDC’s main weaknesses: motor heat retention.

According to EK Water Blocks at TechPowerUp Forums, EK has also developed their VTX pump line as a DDC-compatible alternative, featuring DDC-standard mounting, high head pressure, and efficient flow rates, worth monitoring as a potential replacement platform if you’re buying into the DDC form factor for the long term.

EK DDC Pump Tops (EK-DDC / EKWB DDC)

EK Water Blocks makes the most widely used aftermarket DDC tops in the market. The EK-DDC 3.2 PWM Elite includes both pump and top as a combo unit, available in Acetal (opaque, better heat dissipation) and Plexi (transparent for RGB loops). The Elite line’s heatsink fins reduce pump motor temps by approximately 10–15°C under sustained load, a real difference for longevity in 24/7 systems. If you’re pairing an EK top with a GPU block in the same loop, see our GPU liquid cooling guide for block selection guidance that works alongside your pump choice.

Alphacool DDC Pump Tops

Alphacool’s Eisdecke DDC top is the go-to budget-friendly option. Compatible with Laing DDC 3.1, 3.2, and 4.2 series. Available in acetal and plexi versions. No integrated heatsink on the base model, but the Alphacool DDC310 Low Noise Edition addresses motor thermals through redesigned housing geometry. Solid value for builders who want an upgrade over stock without EK pricing.

Brand / Model	Material	Ports	Heatsink Included	Approx. Price
EK-DDC 3.2 PWM Elite (top only)	Acetal/Plexi	2x G1/4	Yes (fins)	~$30–$45
Alphacool Eisdecke DDC	Acetal/Plexi	2x G1/4	No	~$25–$35
Bykski DDC Pump Top	Acetal	2x G1/4	No	~$20–$30
Aquacomputer DDC Top	Acetal	2x G1/4	Optional	~$35–$50

DDC Pump Reservoir Combos: Integrated Solutions

Why Use a DDC Pump and Reservoir Combo?

The most practical reason: footprint. A standalone DDC pump plus a separate reservoir connected by tubing takes up real estate that compact builds don’t have. An integrated res-pump combo puts everything in one unit, eliminates the pump-to-reservoir tubing segment, and simplifies bleeding. When you fill the reservoir, coolant drops directly into the pump inlet, air purges more easily and faster than in separated configurations.

There’s also a flow path efficiency argument. Manufacturer-matched combos are designed so the reservoir feeds the pump inlet at the optimal angle and with minimal turbulence. It’s not a massive performance gain, but it’s cleaner than cobbled-together standalone setups.

Types of DDC Reservoir Configurations

1. Standalone DDC + Separate Reservoir: maximum layout flexibility, requires additional tubing between res and pump, highest space requirement but lets you position components independently
2. DDC Pump Top + Tube/Column Reservoir: most common setup; a cylindrical tube reservoir threads directly onto the pump top via G1/4 adapter, creating a compact vertical stack
3. Integrated DDC Res-Pump Combo Units: single manufactured unit (e.g., EK-XRES 100 DDC, Alphacool Eisstation) with smallest total footprint and simplest installation

Recommended DDC Res-Pump Combos

Product	Reservoir Volume	Pump Base	Best For	Approx. Price
EK-XRES 100 DDC 3.2 PWM MX	100mL	EK-DDC 3.2	ITX / compact builds	~$90–$110
Alphacool Eisstation 150 DDC	150mL	Laing DDC 4.2	Mid-tower builds	~$80–$100
Bykski 200mL DDC Res-Pump	200mL	DDC 3.2 compatible	Budget mid-size builds	~$60–$80

Sizing Your Reservoir

Minimum for a simple single-block loop: 100mL. That’s enough coolant volume to prime the pump and allow air bleeding. For dual-block loops (CPU plus GPU), 150–250mL is the practical sweet spot, more coolant volume means easier initial fills and more thermal mass in the loop. Beyond 300mL, you’re adding weight and space without meaningful performance return for typical custom loops. Larger reservoirs look impressive in full-tower showcases. For compact builds, stick to what fits.

Best DDC Pumps: Top Picks by Use Case

Best Overall: EK-DDC 3.2 PWM Elite

The EK-DDC 3.2 PWM Elite is the easiest recommendation for builders who want a single purchase covering pump, top, and heatsink. Rated at ~480 L/hr max flow and ~4.5m max head, the best specs in the DDC category. PWM-controlled. Integrated heatsink fins on the acetal top. Compatible with the full EK ecosystem of reservoirs and tube res adapters. Price range: ~$70–$90. Not cheap. Worth it for builds where you want EK’s fit-and-finish and don’t want to source pump body and top separately.

Best Budget DDC Pump: Laing DDC 4.2

Proven hardware. No frills. The Laing DDC 4.2 has been in builders’ loops for years with a track record that speaks for itself. No PWM, so noise management depends on your loop’s natural restriction damping it. Price range: ~$40–$55. Ideal for first custom loops where budget is tight and you want to spend more on radiators and blocks than on the pump. Pair it with an aftermarket pump top when budget allows.

Best for Quiet Builds: Laing DDC 4.2 PWM

Same performance as the standard 4.2 with speed control added. At 30–50% PWM duty cycle, it runs at roughly 900–1,200 RPM with noise output dropping to approximately 25–32 dB(A). Connect it to your motherboard’s pump header, set a custom curve in BIOS, and it stays quiet during non-gaming use. Under load, it ramps up as needed. Price range: ~$55–$75. The extra cost over the standard 4.2 is one of the better value upgrades in a custom loop budget.

Best Compact Combo: EK-XRES 100 DDC 3.2 PWM MX

The tightest footprint in the category. 100mL integrated reservoir, EK-DDC 3.2 pump, PWM-controlled, in a single unit designed for ITX and SFF cases. If you’re building in a Dan A4, NCASE M1, or any case where space is measured in millimeters, this is the unit to buy. Price range: ~$90–$110. Not the cheapest option, but replacing the pump + top + res separately would cost more and take up more space. Simple win.

Are DDC Pumps Reliable? Longevity, Noise, and Troubleshooting

DDC Pump Lifespan and Failure Rates

The Laing DDC 4.2 series carries a manufacturer-rated MTBF of 50,000+ hours. Run 24/7, that’s roughly 5.7 years before the statistical midpoint of failure. In typical gaming PC use (8–12 hours per day), you’re looking at a decade or more of reliable operation. Most common failure mode is bearing wear after years of continuous operation. Second most common: impeller contamination from debris or algae in loops without biocide additive. Use a quality biocide coolant (Mayhems, Alphacool Eiswasser, or similar), and an inline filter at the pump inlet, and you’ll sidestep most of those issues cleanly.

The magnetic impeller on many DDC models is user-replaceable at ~$10–$20, so even if contamination damages the impeller, you don’t necessarily need a full pump replacement.

Noise: What to Expect and How to Reduce It

A stock DDC running at full speed produces roughly 35–45 dB(A). That’s noticeable in a quiet room. Not great. With the DDC 4.2 PWM dialed back to 50% duty, noise drops to approximately 25–32 dB(A), tolerable in most environments. The D5 pump is generally quieter than DDC at equivalent speeds, and that’s worth being honest about rather than glossing over. If silence is genuinely your primary metric, the D5 wins on this point.

Practical DDC noise reduction steps that actually work:

• Anti-vibration pump mounts: silicone isolators decouple pump vibration from case panels
• Silicone pad under pump base: cheap and effective at absorbing transmitted vibration
• Soft tubing at pump connections: hard tubing transmits vibration directly to the loop; soft tubing absorbs it
• PWM speed control: the single biggest noise reducer, can’t overstate this

Common DDC Troubleshooting

Three issues come up repeatedly in water cooling communities:

• Pump humming or vibrating excessively: an air bubble is lodged in the impeller chamber. Tilt the case side-to-side and front-to-back while the pump runs to coax air up to the reservoir. Often resolves within a few minutes.
• Pump not starting: check your PWM signal. Some DDC PWM units require a minimum of 20% duty cycle to initiate spin. If you’ve set a fan curve that bottoms out below that threshold, the pump won’t start until the signal rises. Set minimum PWM to 25–30% to prevent this.
• Reduced flow over time: clean the impeller. Remove the pump top, extract the impeller, flush with distilled water. Mineral deposits and biofilm accumulate on impeller blades over time and cut into flow performance.

DDC Pumps in Small Form Factor and ITX Builds

SFF water cooling is its own discipline, and the DDC is its foundation pump. The DDC body measures approximately 60x60x38mm. The D5 is approximately 75x75x57mm. That 19mm height difference and 15mm footprint difference doesn’t sound huge on paper, but inside a 4L ITX case like the Dan A4-SFX or Louqe Ghost, it’s the difference between fitting and not fitting at all.

Cases where DDC is often the only viable water-cooled pump option:

• NCASE M1: 12.6L volume, DDC with slim reservoir fits in dedicated pump cavity
• Dan Cases A4-SFX: 7.2L, DDC res-pump combo is the only practical choice
• Sliger SM550: narrow layout, DDC with horizontal pump mounting via bracket

DDC res-pump combos offer orientation flexibility that standalone configurations don’t. Most units can mount vertically or horizontally, and some support angled positions, useful when case mounting points are determined by screw patterns rather than what’s convenient for coolant flow. DDC pump tops with integrated tube reservoir support from Alphacool and EK include multiple bracket options specifically designed for SFF case mounting patterns.

DDC Pump Speed Tuning and PWM Configuration

Getting pump speed right for your specific loop complexity is worth the five minutes it takes to configure properly. Running any DDC at full speed in a simple single-block loop wastes noise budget and accelerates wear. Running it too slow in a high-restriction multi-block loop risks inadequate flow and pump thermal shutdown.

Recommended RPM ranges by loop complexity:

• Single block (CPU only): 800–1,200 RPM, more than sufficient for typical single-block restriction
• Dual block (CPU + GPU): 1,400–1,800 RPM, maintains flow through two waterblocks and associated fittings
• Multi-radiator / multi-block: 2,000–2,400 RPM, high restriction needs the extra head pressure

To configure via BIOS: plug your DDC PWM into the CPU pump header (usually labeled CPU_PUMP or AIO_PUMP on your motherboard). Set that header to DC or PWM mode matching your pump type, and configure a flat or gently ramping curve rather than a temperature-reactive one. Pump flow doesn’t need to chase CPU temp, set it to a consistent speed appropriate for your loop and leave it there.

For non-PWM DDC 4.2 owners who want quieter operation: a 7V mod via Molex adapter reduces pump voltage from 12V to 7V, dropping RPM and noise meaningfully. It works. Caveat: verify your specific loop’s restriction against the reduced head pressure before relying on this in a high-restriction setup. Never drop DDC voltage below approximately 7V, motor thermal protection may not activate correctly below minimum flow spec.

DDC Pump Heatsink Upgrades and Thermal Management

This is the part most guides skip, and it directly affects how long your pump lasts. DDC pump motors are self-heated, the brushless motor windings generate heat during operation, and the stock plastic housing is a poor thermal conductor. According to testing documented at Martin’s Liquid Lab, DDC 3.2 series pumps (particularly the higher-power 18W variants) get measurably hot at their bases under operation. Stock housing can reach 55–70°C under sustained load. That’s within operating spec, but it’s warm enough to accelerate winding insulation degradation over years of continuous use.

Aftermarket DDC pump heatsinks, aluminum fin arrays integrated into pump tops, reduce motor operating temps to approximately 35–50°C under the same conditions. That 15–25°C reduction meaningfully extends expected bearing and winding lifespan. Not hypothetically. Cooler motors last longer. It’s straightforward thermodynamics.

The EK Elite and Alphacool Low Noise Edition pump tops both address this directly through their machined heatsink fin designs. A community-proven DIY approach also exists: attach a thin aluminum heatsink block to the pump base with a quality thermal pad. Not as effective as an integrated top-mounted fin array, but measurably better than bare stock plastic. If you already own a DDC 4.2 without a heatsink top, this is the single most cost-effective upgrade you can add.

Frequently Asked Questions

What is a DDC pump?

A DDC pump is a compact, high-head-pressure water pump used in custom PC liquid cooling loops. It runs on 12V DC power, uses a magnetically driven impeller with no shaft seal, and is available in standard and PWM speed-controlled versions. The platform originated with Laing (now Xylem) and remains the dominant choice for small form factor and high-restriction water cooling builds. Body dimensions of approximately 60x60x38mm make it the smallest viable pump for ITX case water cooling.

Are DDC pumps reliable?

Yes, with appropriate maintenance. Laing DDC series pumps carry a manufacturer-rated MTBF of 50,000+ hours. Most units last 5–8 years in typical gaming PC use, and longer in systems running 8–12 hours daily rather than 24/7. Reliability is meaningfully improved by using filtered coolant with biocide additives to prevent algae growth, and by adding an aftermarket heatsink pump top to reduce motor operating temperatures. The magnetic impeller design eliminates shaft seal failure as a failure mode, which is a genuine reliability advantage over older pump architectures.

What is the quietest DDC pump?

The Laing DDC 4.2 PWM paired with an aftermarket low-noise pump top (such as the Alphacool DDC310 Low Noise Edition or EK Elite acetal top) is the quietest DDC configuration available. At 30–50% PWM duty cycle, noise output drops to approximately 25–32 dB(A). For comparison, a stock DDC at full speed produces roughly 35–45 dB(A). That said, the D5 pump is generally quieter than a DDC pump at equivalent speeds, for large-loop applications where silence is the top priority, D5 remains the better choice regardless of DDC speed tuning.

What is the difference between a DDC pump and a D5 pump?

DDC pumps offer higher head pressure in a smaller physical footprint, making them ideal for compact ITX/SFF builds and high-restriction loops with multiple water blocks and fittings. D5 pumps offer higher maximum flow rates and quieter operation at the cost of a larger physical size (~75x75x57mm vs DDC’s ~60x60x38mm). For mid-tower or full-tower builds where silence is the priority, D5 is preferred. For ITX/SFF builds or loops with high component count and restriction, DDC is the better choice. Price ranges overlap significantly, the decision is almost entirely about case space and noise priority.

Do I need a separate reservoir with a DDC pump?

No. DDC res-pump combos like the EK-XRES 100 DDC 3.2 PWM MX or Alphacool Eisstation DDC integrate a reservoir directly onto the pump body in a single unit, saving space and simplifying installation. Standalone tube reservoirs can also mount directly to DDC pump tops via G1/4 threaded adapters if you prefer to source components separately. For ITX builds in particular, integrated res-pump combos are strongly recommended, they’re purpose-designed for tight spaces and simpler to bleed than configurations requiring an additional tubing segment between reservoir and pump.

The Bottom Line

The decision framework is straightforward once you know the variables. DDC for compact cases, high-restriction loops, and budget-sensitive builds. D5 for large open loops and silence-first priorities. For most builders stepping into custom water cooling, the Laing DDC 4.2 PWM with an aftermarket heatsink top is the best all-around starting point, controllable noise, proven reliability, and compatibility with every major pump top and reservoir in the ecosystem. Premium builds get more value from the EK-DDC 3.2 PWM Elite. ITX builds should go straight to the EK-XRES 100 combo and not look back.

Match your pump to your case size and loop complexity before you buy anything else. Getting that right makes the rest of the build significantly easier.
