Best 140mm Case Fans: Top Picks for Airflow and Silence

A 140mm case fan is a PC cooling fan measuring 140×140mm that moves more air per revolution than a 120mm fan, making it ideal for airflow-focused builds and radiators.

Last updated: June 2026

Quick Answer: What Are the Best 140mm Case Fans?

The best overall 140mm fan in 2026 is the Noctua NF-A14x25 G2 PWM, with the be quiet! Silent Wings 4 140mm PWM taking the top spot for silence. For budget builds, the Arctic P14 PWM PST is nearly unbeatable at its price. If you need RGB, the Corsair iCUE AF140 RGB Elite or Lian Li Uni Fan SL-Infinity 140mm are the cleanest options available right now.

You just picked up a mid-tower with dual 140mm front mounts and you’re staring at a wall of options with no idea where to start. Sound familiar? The 140mm fan market has genuinely good products at every price tier, but the differences between them matter depending on whether you’re chasing max airflow, near-silent operation, or RGB aesthetics. This guide covers all of it.

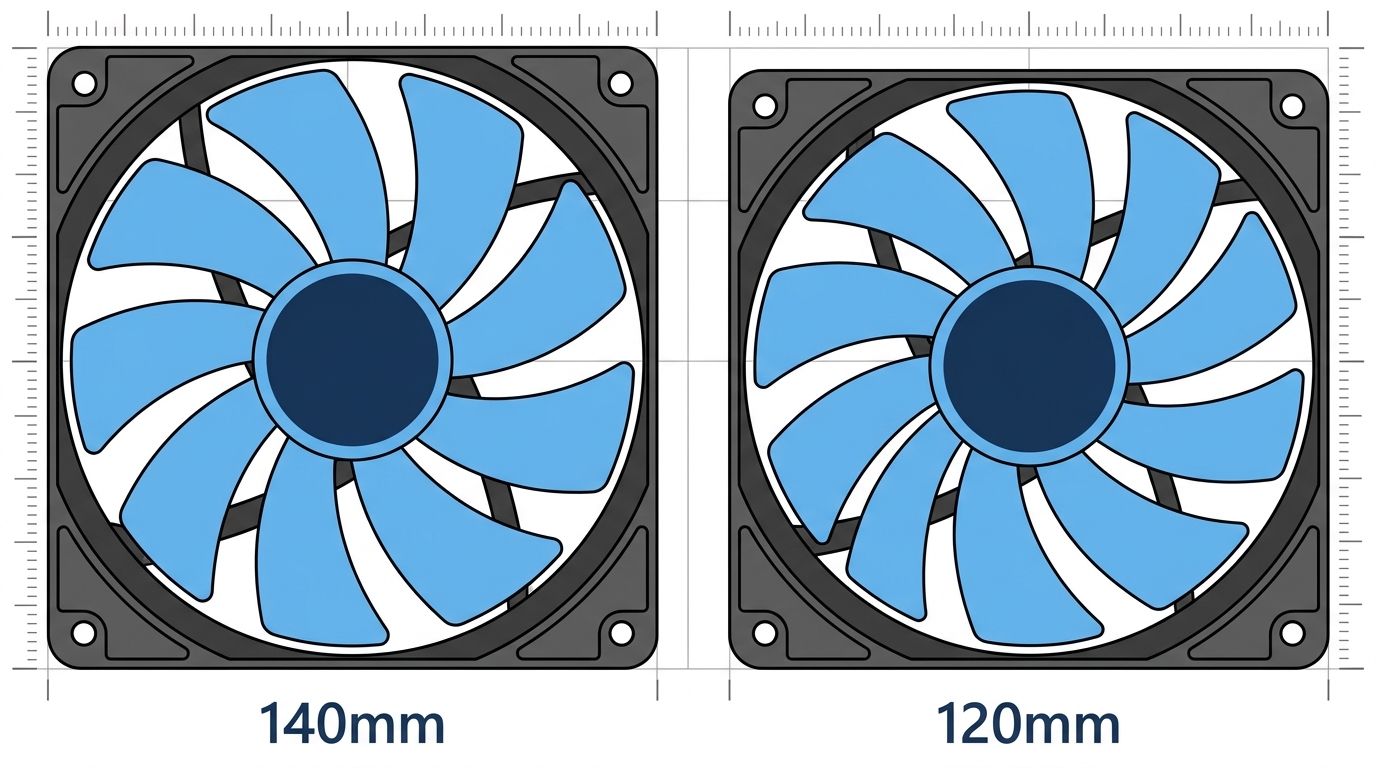

120mm vs 140mm Fans: Which Should You Choose?

The short answer is that 140mm fans move more air at lower RPM. That means quieter operation for the same cooling output, which is exactly why people choose them. But there’s a bit more to it. This makes them especially effective on radiators, where the larger blade surface can cover more fin area and run at slower, quieter speeds while still maintaining solid thermal performance. On a heatsink with tight fin spacing though, a 120mm fan’s higher static pressure can outperform a 140mm at the same noise level.

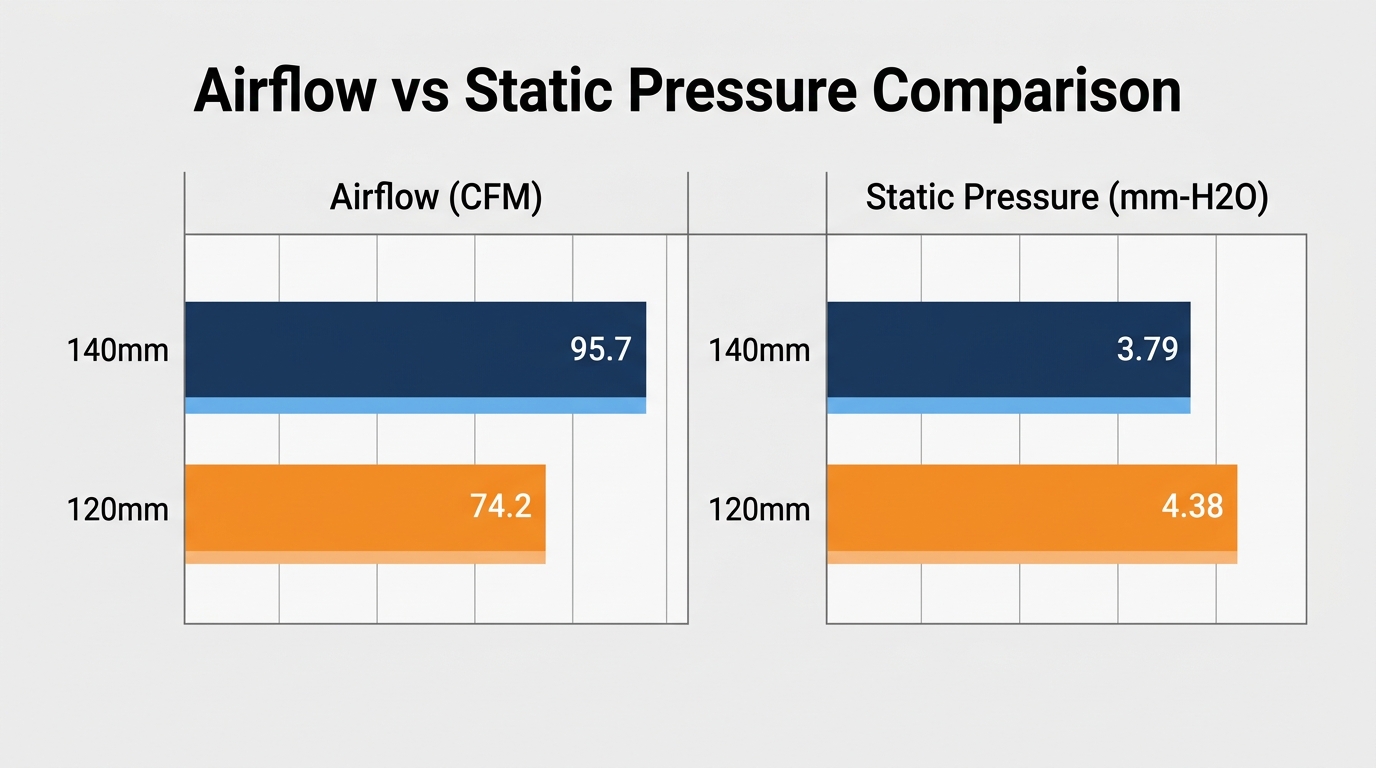

Corsair’s own published data comparing the iCUE LINK RX140 vs RX120 shows the 140mm version producing 95.7 CFM versus 74.2 CFM for the 120mm. But flip to static pressure and the 120mm wins: 4.38 mm-H2O versus 3.79 mm-H2O. Same fan family, same design. Size alone drives that gap.

Practical takeaway:

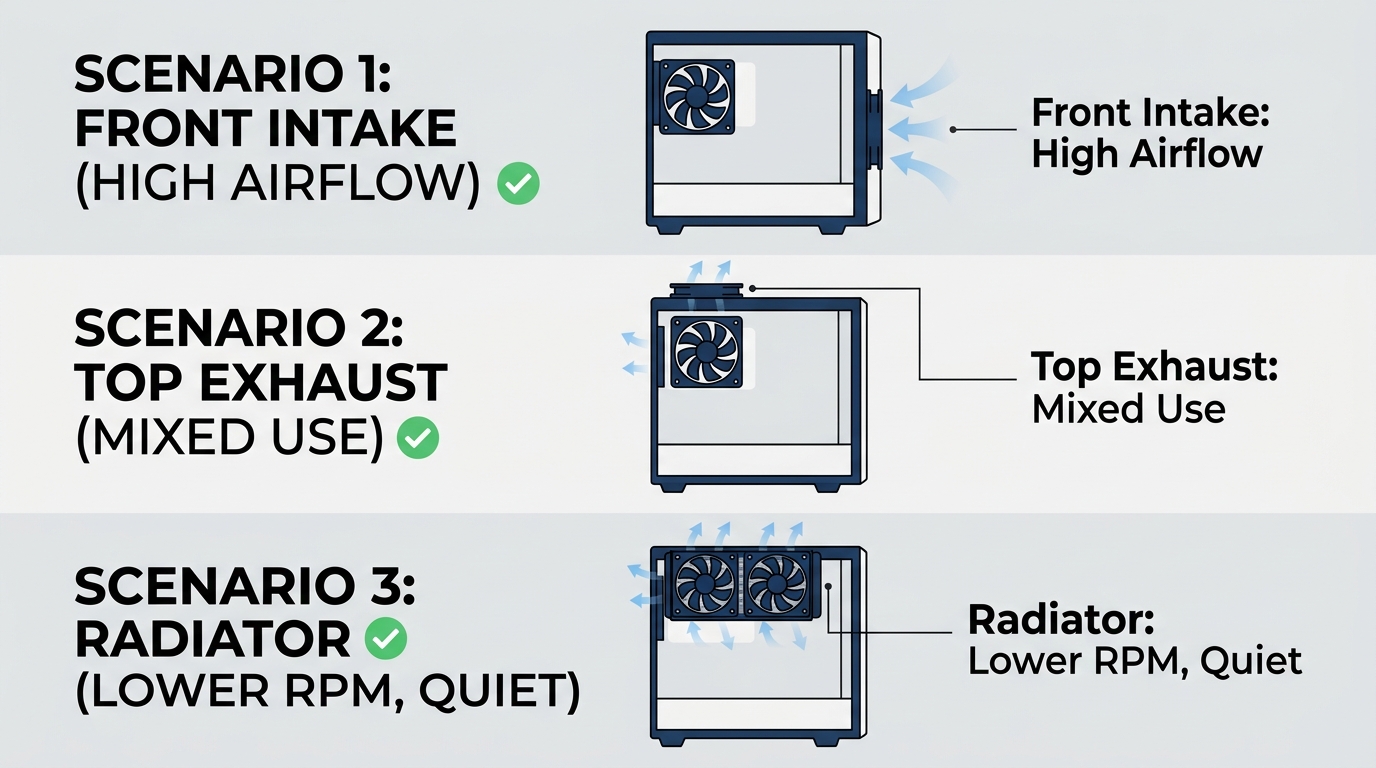

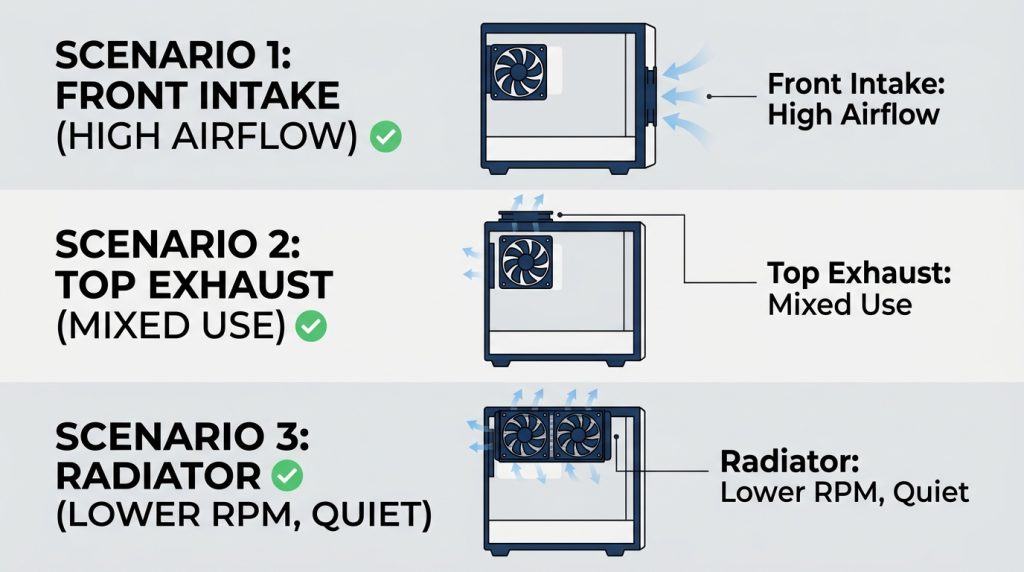

• Open intake positions (front, bottom): 140mm wins. More airflow with less noise.
• Tight radiator fins or dense heatsinks: 120mm can compete or win on static pressure.
• 240mm or 280mm AIO radiators: 140mm is the natural fit for 280mm configs.
• Mixed setups: Common and effective. 140mm intake up front, 120mm exhaust on top.

If your case supports 140mm up front, use 140mm there. Don’t overthink it. To figure out how many fans your build actually needs, the guide on how many case fans you need breaks it down by case type and build purpose.

Top 140mm Fans: Our Picks by Category

Best Overall: Noctua NF-A14x25 G2 PWM

Noctua’s second-generation NF-A14x25 G2 is a significant upgrade over the already excellent original. The G2 uses Noctua’s etaPERF™ motor with Smooth Commutation Drive 2 technology, which reduces tonal noise and vibration. Max speed is 1500 RPM with a noise output of 24.8 dB(A) at full tilt. At lower RPM settings via PWM, you’ll hear essentially nothing.

Airflow peaks at 91.58 CFM. Static pressure sits at 2.34 mm-H2O. Not the highest static pressure in the class, but more than adequate for most radiators and case positions. The 6-year warranty and Noctua’s included Low-Noise Adapter (LNA) cables seal the deal. It’s the easiest recommendation for someone who wants to buy once and stop thinking about fans.

Worth the price premium. Every time.

Best for Silence: be quiet! Silent Wings 4 140mm PWM

If silence is your primary goal, the Silent Wings 4 140mm is the fan to beat. It runs at a maximum of 1100 RPM with a noise level of 13.6 dB(A) at max, and at typical workloads in the 600-900 RPM range, it’s virtually inaudible. The fluid dynamic bearing (FDB) keeps noise smooth and consistent over years of operation.

Be quiet! publishes full specs for the Silent Wings 4 140mm on their product page, showing 68.87 CFM airflow and 2.59 mm-H2O static pressure. Those numbers aren’t the highest in class, but the real-world noise signature is genuinely one of the best you’ll find. The Silent Wings Pro 4 140mm (high-speed variant) bumps RPM to 1900 if you want more headroom while keeping noise well-managed.

Best Budget: Arctic P14 PWM PST

Cheap. Quiet. Effective. The Arctic P14 PWM PST consistently tops budget fan roundups for good reason. At around $8-10 per fan, you get a pressure-optimized blade design that performs well both as an intake fan and on radiators, a fluid dynamic bearing, and Arctic’s PST (PWM Sharing Technology) daisy-chain feature that lets you control multiple fans with one header.

Max airflow is 72.8 CFM with 2.40 mm-H2O static pressure at 1700 RPM. Not the most powerful option, but at this price, the value is absurd. Buy a three-pack and you’ll still pay less than a single premium fan.

Best RGB: Corsair iCUE AF140 RGB Elite

Corsair’s iCUE AF140 RGB Elite packs eight individually addressable RGB LEDs with a translucent blade design that produces even, bleed-free lighting. iCUE software control is polished and syncs easily with other Corsair components. Airflow sits at 89 CFM with 2.0 mm-H2O static pressure, which makes it better suited for unrestricted intake positions than radiator duty.

If you’re building around a Corsair ecosystem with other iCUE-compatible devices, it’s the natural choice. Standalone, the software overhead isn’t worth it unless you genuinely care about lighting sync.

Best Ecosystem RGB: Lian Li Uni Fan SL-Infinity 140mm

Lian Li’s infinity-mirror blade effect is genuinely striking. The SL-Infinity 140mm daisy-chains up to four fans per cable, dramatically reducing cable clutter in the case. L-Connect 3 software is among the cleanest lighting control tools available. Airflow is around 73 CFM at 1900 RPM max. Not silent, but the noise profile is smooth.

The reverse-blade version is worth checking out if your case mounts fans where the blade side faces a panel. Clean installs on both.

Best for Radiators: Noctua NF-A14x25 G2 PWM or be quiet! Silent Wings Pro 4

For AIO and custom loop radiators, you want a balance of reasonable static pressure and quiet operation at mid-RPM. Both the Noctua NF-A14x25 G2 and Silent Wings Pro 4 140mm work excellently here. The Pro 4’s higher RPM ceiling (1900 RPM) gives more thermal headroom if you’re cooling a hot chip like a Ryzen 9 9950X3D or Core Ultra 9 285K under sustained AVX loads. For detailed GPU liquid cooling configurations, the GPU liquid cooling guide covers how to size and position radiator fans properly.

Specs Comparison Table

Fan	Max RPM	Airflow (CFM)	Static Pressure (mm-H2O)	Noise (dB-A)	Bearing	Approx. Price
Noctua NF-A14x25 G2 PWM	1500	91.58	2.34	24.8	SSO2 (FDB-type)	~$30
be quiet! Silent Wings 4 140mm PWM	1100	68.87	2.59	13.6	FDB	~$25
be quiet! Silent Wings Pro 4 140mm	1900	81.74	3.14	28.6 (max)	FDB	~$30
Arctic P14 PWM PST	1700	72.8	2.40	22.5	FDB	~$9
Corsair iCUE AF140 RGB Elite	1700	89.0	2.0	25.4	Hydraulic	~$30
Lian Li Uni Fan SL-Infinity 140mm	1900	~73.0	~2.10	~28.0	FDB	~$35
NZXT F140 RGB / Aer RGB 2 140mm	1500	~61.0	~1.71	~21.0	FLB	~$25
be quiet! Pure Wings 3 140mm PWM	1000	50.5	1.08	15.4	FDB	~$14

140mm Fan Dimensions and Mounting

Standard 140mm fans use a 140×140×25mm frame. Mounting hole spacing is 124.5mm center-to-center on both axes. This is important when you’re checking case fan mounts or ordering replacement grills. Slim 140mm fans (like the Noctua NF-A15 in 140mm mounting config) measure 140×150×25mm but mount on the same 140mm standard.

A few things to verify before buying:

• Screw hole spacing: 124.5mm is universal for 140mm standard fans
• Thickness: Most are 25mm. Slim variants are typically 15mm, useful in cramped SFF cases
• Connector type: 4-pin PWM is strongly preferred over 3-pin DC for quiet operation at low loads
• ARGB vs RGB headers: ARGB uses 3-pin 5V, RGB uses 4-pin 12V. They are not interchangeable

If you’re building in a compact enclosure and weight is tight on every millimeter, a slim 140mm fan like the Noctua NF-A14 FLX (25mm) or a 15mm slim variant opens up install options that a full-thickness fan won’t fit.

2x 140mm vs 3x 120mm: Which Configuration Is Better?

This is one of the most common questions when planning a build, and the answer depends on your case. In terms of raw airflow, 2x 140mm fans are generally comparable to 3x 120mm fans in total volume moved, but the 140mm pair will usually do it quieter. That’s the main argument for 140mm configurations.

Where 3x 120mm wins is static pressure uniformity across a full 360mm or 360mm radiator. Evenly spaced 120mm fans cover a triple radiator cleanly. Three 140mm fans on a 420mm radiator is the premium configuration, but most mid-towers top out at 280mm for 140mm radiator support.

If your case front supports three 120mm or two 140mm fans, and you’re doing airflow-only (no radiator), go with two 140mm. Quieter, more airflow, fewer cables. If you’re running a 240mm or 280mm AIO, two 140mm fans in push or push-pull on a 280mm rad is genuinely hard to beat for the quiet-to-cooling ratio.

Best 140mm Fans by Use Case

Best for Silent Builds

If your priority is a build you can barely hear, the hierarchy is clear. The be quiet! Silent Wings 4 140mm PWM at low RPM curves is the quietest 140mm fan you can buy for general use. Pair it with a motherboard that runs conservative PWM curves and you’ll have a system that’s essentially inaudible during everyday tasks. The Pure Wings 3 140mm maxes out at only 1000 RPM, making it an interesting budget silent option if your case has good passive airflow at rest.

Best for High Airflow Builds

If you’re cooling a beefy GPU like the RTX 5090 or RX 9070 XT in a case with restricted airflow, you need fans that move serious volume. The Noctua NF-A14x25 G2 at 91.58 CFM tops the chart, followed by the be quiet! Silent Wings Pro 4 at 81.74 CFM. Both can hit higher CFM if you push their PWM curves past 80%, but they’ll get audible. Run them at 60-70% during gaming and you’ll have good airflow without the noise.

Best for AIO Radiators

Radiator duty demands static pressure more than raw CFM. The Silent Wings Pro 4 leads here at 3.14 mm-H2O. The Arctic P14 PWM PST is the best budget option for radiator use, punching above its weight class for the price. Avoid primarily airflow-optimized fans like the Corsair AF140 for radiator duty since their blade design doesn’t optimize for pressure.

Best White 140mm Fans

White builds are more popular than ever and most top-tier fans have white variants now. The Arctic P14 PWM PST White is the budget king. The be quiet! Light Wings 140mm White and the Noctua NF-A14x25 G2 PWM in Chromax.White are the premium picks. The Lian Li SL-Infinity 140mm White looks spectacular if you want the infinity mirror effect in a white build.

What to Look for When Buying 140mm Fans

Bearing Type

Fluid Dynamic Bearings (FDB) are the standard for quality fans now. They last longer than sleeve bearings, run quieter, and don’t develop the high-pitched whine that cheap sleeve-bearing fans often develop after a year or two. All the fans in our top picks use FDB or equivalent. Avoid any fan that doesn’t specify the bearing type or lists “sleeve bearing” at a premium price point.

PWM vs DC Control

4-pin PWM is strongly preferred. It lets the motherboard control fan speed more precisely at low RPM, which is where the noise savings actually happen. DC control through 3-pin headers works, but it’s less accurate at low speeds. If your motherboard has limited 4-pin headers, check whether it supports DC control on those headers as a fallback, and consider using a hub. Understanding which header to use matters: the guide on CPU OPT vs CPU FAN headers explains how to assign your cooler and supplementary fans correctly.

ARGB Connectivity

If you want addressable RGB, confirm your motherboard has a 3-pin 5V ARGB header. Standard 4-pin 12V RGB headers won’t work with ARGB fans without an adapter. Many mid-range and high-end motherboards on B650, X670E, Z790, and Z890 platforms include both header types, but budget boards sometimes omit the ARGB headers entirely. Check your spec sheet before buying.

140mm Fan FAQ

Are 140mm fans always quieter than 120mm fans?

Generally, yes, for the same airflow output. A 140mm fan moving 70 CFM runs at lower RPM than a 120mm fan moving the same 70 CFM, which translates directly to less noise. However, a premium 120mm fan at low RPM can match or beat a cheap 140mm fan for noise. Fan quality matters as much as size.

Can I use 140mm fans on a 120mm mount?

No, not without an adapter. The mounting hole spacing is different: 120mm fans use 105mm spacing, while 140mm fans use 124.5mm spacing. Adapters exist but are uncommon and add vibration risk. Design your build around the fan size your case supports natively.

What’s the difference between the Arctic P14 and P14 PWM PST?

The standard P14 PWM is a single fan with a 4-pin PWM connector. The PST (PWM Sharing Technology) version adds daisy-chain capability, letting you connect multiple fans in series and control them all from one motherboard header. If you’re running three or four fans on limited headers, the PST version saves you from needing a hub.

How many 140mm fans do I actually need?

For a typical mid-tower gaming build, two 140mm front intake fans and one rear exhaust fan (120mm or 140mm depending on the case) is the baseline. If you’re running a 280mm AIO on the front or top, those radiator fans count as your intake. More fans don’t always mean more cooling if they’re fighting each other for pressure. Balanced positive pressure (more intake than exhaust) works well for dusty environments.

Is the Noctua NF-A14x25 G2 worth the upgrade over the original NF-A14 PWM?

If you’re buying new, get the G2. The updated motor design reduces the tonal resonance that the original NF-A14 was sometimes criticized for at mid-RPM ranges. The airflow improvement is modest (about 5-8% more CFM), but the noise improvement is noticeable. If you already own original NF-A14 PWMs in good condition, the upgrade isn’t urgent.

What You Should Do

Start by checking what mounting positions your case actually has and what sizes they accept. Two 140mm front intakes with a 120mm rear exhaust is the most common and effective baseline for a mid-tower. From there, your choice comes down to budget and priorities: grab the Arctic P14 PWM PST if you want maximum value, the Noctua NF-A14x25 G2 if you want best-in-class performance for years, or the be quiet! Silent Wings 4 if silence is non-negotiable. Pick your fans, set a sensible PWM curve in BIOS, and move on to the next part of your build.
