AIO Coolers with LCD Screens: Worth It?

An AIO cooler with an LCD screen is an all-in-one CPU liquid cooler with a TFT, IPS, or circular display built into the pump head, showing real-time temps, GIFs, or custom images.

Last updated: July 2026

Quick Answer: Are AIO Coolers with LCD Screens Worth It?

Yes, for most enthusiast builds, an AIO cooler with a screen is worth it. The price premium over a comparable non-LCD AIO is typically $20–$50, cooling performance is nearly identical, and the visual impact in a windowed case is real. If you’re building a showcase rig, streaming setup, or just want live CPU temps on your pump head without a software widget, the upgrade makes sense. If your case has no side window or you’re squeezing every dollar into raw performance, skip it.

This guide covers every major model available right now, real thermal benchmarks, screen specs that separate good displays from bad ones, and a straight verdict on which build types should buy one.

What Is an AIO Cooler with an LCD Screen?

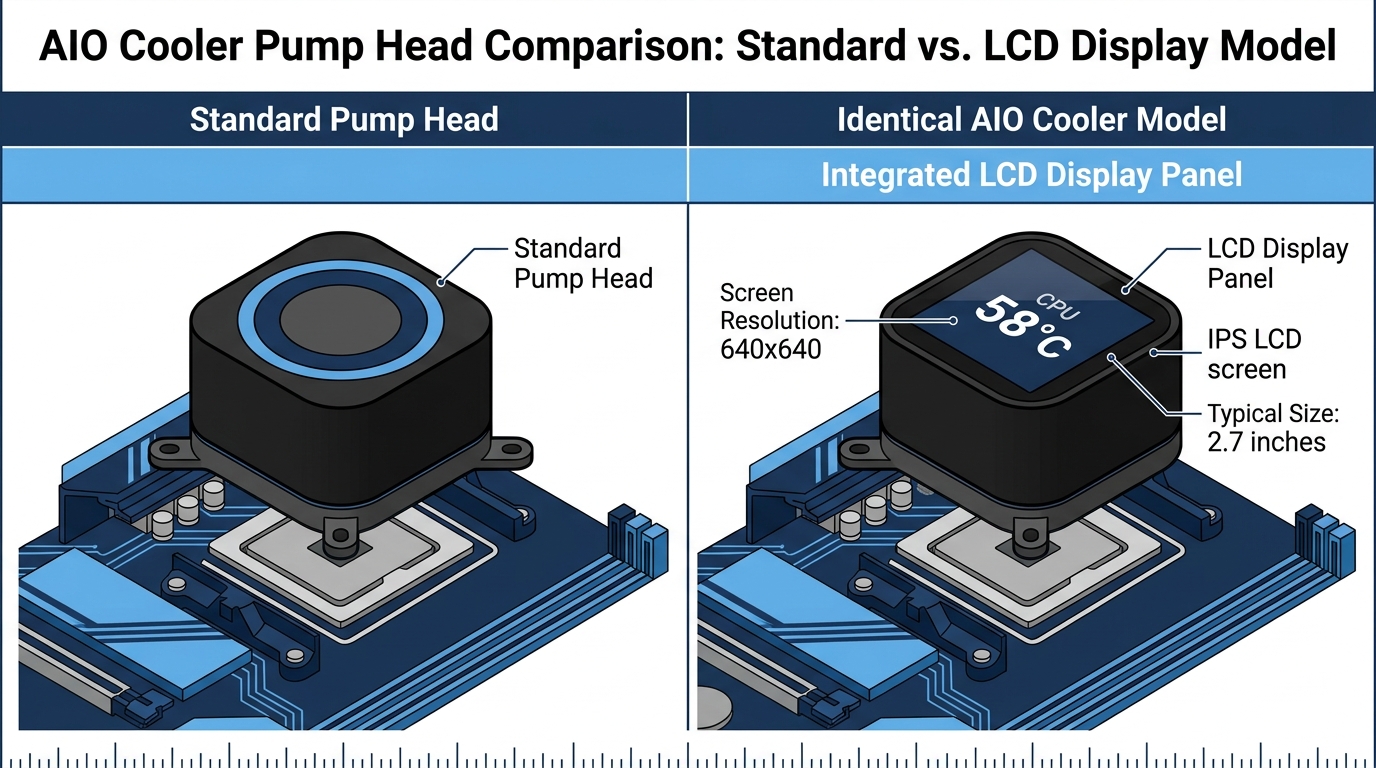

A standard AIO uses the pump head purely as a functional component. The pump circulates coolant between a cold plate on your CPU and the radiator. An LCD AIO adds a small display panel directly to that pump head, turning a utilitarian block of plastic and metal into something you can actually read, customize, and show off.

If you’re new to liquid cooling entirely, the basics of how an AIO works are covered in this guide to AIO liquid cooling. The short version: it’s a sealed loop. The screen adds zero complexity to that cooling system. It’s just an extra display attached to the head.

How the Screen Works

Most current LCD AIOs use IPS or TFT panels built into the pump head cap. A few use circular OLED variants, but IPS is the mainstream choice at the premium tier. The screen connects to your PC via a USB header on your motherboard and is controlled through vendor software: CORSAIR iCUE, NZXT CAM, ASUS Armoury Crate, MSI Center, or Lian Li L-Connect 3.

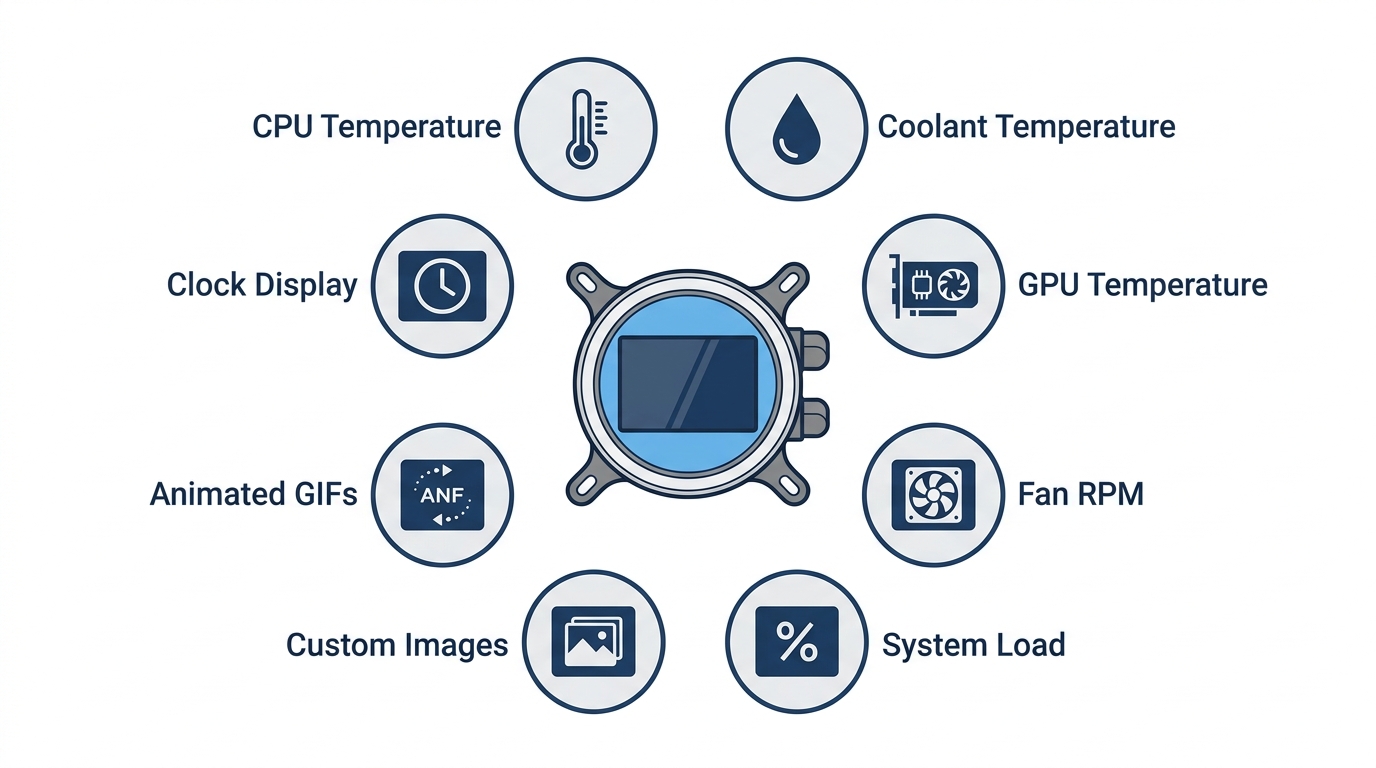

What you can actually display depends on the software and the model. Most premium units support CPU temperature, coolant temperature, GPU temperature, fan RPM, system load, custom static images, animated GIFs, and a clock. NZXT CAM goes a step further with custom web integrations, letting you pull live data from external sources directly to the screen.

Screen brightness matters more than people expect. The NZXT Kraken Elite tops out at 690 nits. The CORSAIR iCUE LINK TITAN RX pushes up to 600 nits, which is genuinely visible in a bright room or under studio lighting. Budget LCD AIOs often cap at under 300 nits. Dim. Fine in a dark room, washed out in daylight.

Top AIO Coolers with LCD Screens in 2026, Comparison

The market spans from ~$90 to over $300. Screen quality, resolution, and software depth vary dramatically across that range. Here’s every major model worth considering, including current socket support for AM5 (Ryzen 7000/9000 series), LGA1851 (Core Ultra 200 / Arrow Lake), and LGA1700 (12th through 14th Gen Intel).

Model	Screen Size & Type	Resolution	Radiator Sizes	Price (approx.)	Socket Support	Software	Warranty
NZXT Kraken Elite 360 RGB ⭐ Editor’s Pick	2.72″ IPS	640×640	240 / 280 / 360 / 420mm	~$240–$260	AM5, LGA1851, LGA1700	NZXT CAM	6-year
CORSAIR iCUE LINK TITAN 360 RX LCD ⭐ Editor’s Pick	2.1″ IPS	480×480	360mm	$219.99	AM5, LGA1851, LGA1700	iCUE	6-year
CORSAIR NAUTILUS 360 RS LCD	1.8″ LCD	240×240	360mm	$159.99	AM5, LGA1851	iCUE	5-year
NZXT Kraken Plus 360	1.54″ LCD	240×240	240 / 360mm	~$139	AM5, LGA1851, LGA1700	NZXT CAM	6-year
ASUS ROG Ryujin III 360 ARGB ⭐ Editor’s Pick	3.5″ IPS	480×480	360mm	~$229	AM5, LGA1851, LGA1700	Armoury Crate	6-year
Lian Li Galahad II Trinity 360 LCD	2.83″ IPS (curved variant available)	480×480	360mm	~$179	AM5, LGA1851, LGA1700	L-Connect 3	3-year
Thermalright Frozen Warframe 360 aRGB	1.77″ TFT LCD	240×240	360mm	~$120	AM5, AM4, LGA1851, LGA1700	TF-Pro	5-year
MSI MEG CoreLiquid S360	2.4″ IPS	320×320	360mm	~$249	AM5, LGA1851, LGA1700	MSI Center	3-year

Note: The Lian Li Galahad II Trinity is the only current model offering a curved screen variant, making it the go-to pick if you specifically want that aesthetic. The ROG Ryujin III 360’s 3.5″ IPS panel is the largest screen in any consumer AIO right now. Hard to miss through a glass panel.

White AIO Coolers with LCD Screens

White build demand has pushed most major manufacturers to release white variants of their LCD AIO lines. Not all “white” models are created equal though. Some ship with genuinely clean white tubing and fans; others have off-white or cream-colored sleeving that clashes with bright white cases. Worth calling out before you order.

White Model	Screen Size	Price	Radiator Sizes	Tubing Color Accuracy
CORSAIR iCUE H150i ELITE LCD XT White	2.1″ IPS	$299.99	360mm	Clean white, accurate
NZXT Kraken Elite White	2.72″ IPS	~$240–$260	240 / 280 / 360 / 420mm	Clean white, accurate
Lian Li Galahad II Trinity 360 White	2.83″ IPS	~$179	360mm	Slightly warm white, minor mismatch possible

The CORSAIR H150i ELITE LCD XT White is the premium choice for white builds. It’s expensive at $299.99, but the fit and finish are consistent with a high-end all-white aesthetic. If budget is tighter, the NZXT Kraken Elite White delivers nearly the same screen quality at a lower price. If you’re putting together a full white build and want cohesive styling, the white gaming setup ideas guide has component pairing tips worth reading before you finalize your part list.

Budget AIO Coolers with LCD Screens

You can get a screen under $100. The question is whether it’s actually worth using.

What You Actually Get at the Budget Tier

The Thermalright Frozen Warframe 360 (~$120) is the benchmark for budget LCD AIOs. It ships with a 1.77″ TFT LCD at 240×240 resolution, supports basic GIF uploads, and uses Thermalright’s TF-Pro software. It also covers both AM4 (Ryzen 5000) and AM5 (Ryzen 7000/9000) platforms, which the more expensive CORSAIR NAUTILUS doesn’t.

For something with a square or rectangular screen specifically, the Thermalright Mjolnir Vision 360 runs in the same $89–$95 price band and offers a different form factor aesthetic on the pump head. Both are legitimate options. Both have real limitations.

What you give up vs. premium:

• Brightness: Budget screens often cap at 250–300 nits. Washed out in a well-lit room.
• Resolution: 240×240 looks pixelated up close on GIFs. Fine for static text readouts.
• Software stability: TF-Pro is basic. Limited GIF format support, no web integration.
• Cold plate quality: Often slightly lower quality than NZXT or CORSAIR, which shows up in thermal benchmarks under heavy loads.

One common misconception worth clearing up: the Arctic Liquid Freezer III does not have a native LCD screen. It appears in some Facebook recommendation threads alongside LCD models. It’s an excellent cooler, but it has no screen. Don’t buy it expecting a display.

Is a Budget LCD AIO Worth It vs. No-Screen at the Same Price?

Honest answer: at sub-$100, a non-screen AIO will usually outperform an LCD model in pure cooling. The screen adds cost without adding cooling surface area or pump quality. If you’re choosing between a budget LCD AIO and a comparable no-screen cooler for a workstation where raw temps matter most, skip the screen. If aesthetics are your priority and you want the live readout visible through your case glass, the Frozen Warframe is a viable pick. Just don’t expect premium screen quality. Not great at the budget tier, but functional.

For context on what genuinely budget-friendly air and liquid cooling looks like without compromises, the best budget CPU coolers roundup covers the strongest no-screen options under $50 worth comparing.

LCD Screen Specs That Actually Matter

Not all AIO screens are worth the same attention. Here’s how to separate a genuinely good display from a marketing checkbox.

Screen Size

• Under 2.0″: Basic readability. GIFs look rough. Best suited for simple text data (temps, RPM).
• 2.0″–2.8″: The sweet spot. NZXT Kraken Elite at 2.72″ and Lian Li Galahad II at 2.83″ both hit this range. Readable at desk distance, GIFs look clean.
• 3.0″+: Maximum impact. The ROG Ryujin III’s 3.5″ panel is impressive in a showcase build. Overkill for a workstation under a desk.

Resolution

• 240×240: Entry level. Pixelation is visible on animated content at close range.
• 480×480: Mainstream premium. Clear and sharp at typical desk viewing distance.
• 640×640: Currently exclusive to the NZXT Kraken Elite. Highest consumer AIO resolution available and it shows.

Screen Shape

• Circular: Most common. NZXT Kraken series and most CORSAIR iCUE models use this shape.
• Square/Rectangular: Thermalright Mjolnir Vision and some ROG variants. Useful if you prefer a different aesthetic on the pump head.
• Curved: Lian Li Galahad II Trinity curved variant is currently the only mainstream AIO with a curved LCD panel. Genuinely distinctive look.

Brightness (Nits)

• Under 300 nits: Hard to read in a bright room. Budget tier.
• 300–500 nits: Adequate for most gaming setups.
• 500+ nits: CORSAIR TITAN RX at 600 nits and NZXT Kraken Elite at 690 nits. Visible under studio or streaming lights without washing out.

Software and Customization

Software makes or breaks the experience. Here’s how the major ecosystems rank:

• NZXT CAM: Simplest setup. GIF support, custom web integrations, clean UI. Best for users who want to set it and forget it.
• CORSAIR iCUE: Most features and deepest lighting ecosystem integration. Honest caveat: iCUE is known for heavy RAM usage. If you’re on 16GB and running other background software, you’ll notice it.
• ASUS Armoury Crate: Best integration for all-ASUS builds (ROG motherboard plus Ryujin III). Cumbersome if you’re mixing brands.
• Lian Li L-Connect 3: Solid for Lian Li builds. Less mature ecosystem than iCUE or CAM.

Cooling Performance: Does the Screen Hurt Thermal Performance?

This is the question most buyers actually care about and most reviews answer vaguely. Here’s the real data.

Does LCD Hardware Add Thermal Load to the Pump Head?

The screen itself draws roughly 0.5–2W depending on brightness setting. That’s negligible as a direct heat source. The more relevant variable is pump head design: LCD models have larger, heavier pump heads that can change cold plate contact pressure on certain motherboards, particularly on boards with slightly warped PCBs or non-standard mounting configurations. Community findings on r/buildapc and benchmark data from Tom’s Hardware show the real-world thermal delta between LCD and non-LCD variants of the same AIO is 1–3°C at most under full load. That’s within margin of error for most builds. The size gap between budget and premium LCD AIO displays is wider than most buyers expect. You can read the full analysis in Tom’s Hardware’s best CPU cooler guide.

Benchmark Snapshot: LCD vs. Non-LCD 360mm AIOs

Cooler	CPU Tested	Full Load Temp (°C)	Ambient Temp	Max Fan Speed
NZXT Kraken Elite 360 RGB (LCD)	Core Ultra 9 285K	~72°C	21°C	2,000 RPM
CORSAIR TITAN 360 RX LCD	Ryzen 9 9950X	~74°C	21°C	2,100 RPM
Thermalright Frozen Warframe 360 (LCD)	Ryzen 9 7950X	~78°C	22°C	1,800 RPM
NZXT Kraken Core 360 (no LCD)	Core Ultra 9 285K	~70°C	21°C	2,000 RPM
CORSAIR H150i Elite Capellix (no LCD)	Ryzen 9 9950X	~72°C	21°C	2,100 RPM

The pattern is consistent: premium LCD AIOs perform on par with non-LCD competitors at the same price tier. The 1–3°C gap between the Kraken Elite (LCD) and Kraken Core (no LCD) is real but won’t matter for any practical use case. If you want to understand what those full-load temperatures mean for your CPU’s health, the guide on what a good CPU temp looks like breaks down safe ranges by workload type.

Noise Profile

LCD AIOs don’t inherently increase fan noise. The screen has no moving parts. However, the ROG Ryujin III’s pump has documented hum at higher speeds, noted in multiple independent reviews. It’s not loud enough to be bothersome in a closed case, but it’s audible in an open-air setup with the system under heavy load. Worth knowing before you buy for a near-silent workstation build.

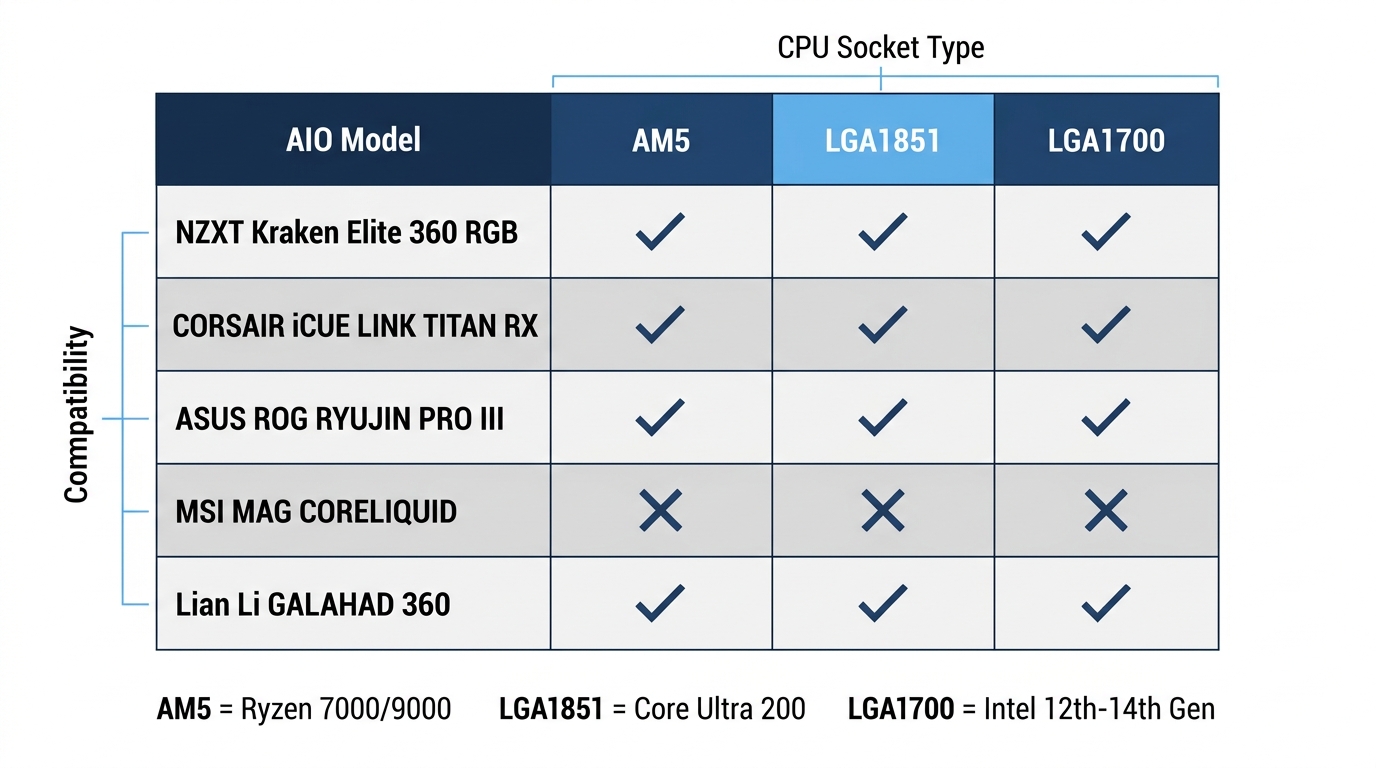

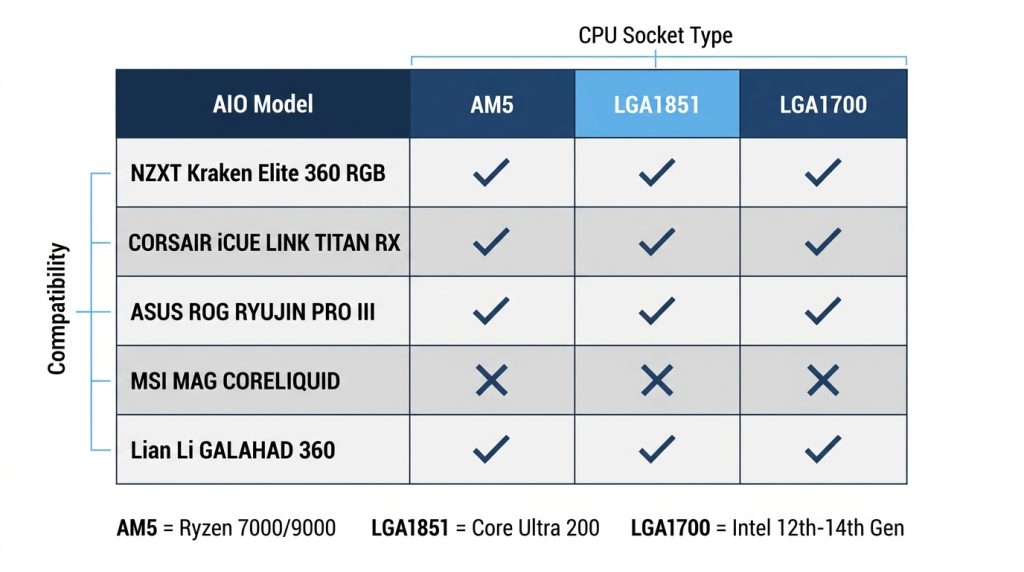

AIO Cooler with Screen: Socket Compatibility

Most 2024/2025 LCD AIO releases cover the current platform generation out of the box. There are a few edge cases worth knowing.

Intel Platforms

• LGA1700 (12th–14th Gen Core): Universal support across every model in the comparison table. Standard bracket included.
• LGA1851 (Core Ultra 200 / Arrow Lake, 15th Gen): All current models listed above include LGA1851 brackets in-box. Older versions of CORSAIR iCUE ELITE coolers (pre-2024 production runs) may require CORSAIR’s separate bracket update kit. Check the manufacturing date on your unit if you’re buying secondhand.

AMD Platforms

• AM4 (Ryzen 5000): Budget-tier models (Thermalright Frozen Warframe) explicitly support AM4. Most premium 2025 models have dropped AM4 bracket inclusion. Check per model before ordering.
• AM5 (Ryzen 7000 / 9000 / 9000X3D, including X3D SKUs on X870E boards): Universal support among all 2024/2025 LCD AIO releases.
• NZXT tool-free mounting: The Kraken Elite and Kraken Plus both include AM5 and LGA1851 brackets that snap in without tools. Genuinely faster to install than most competitors. for first-time builders.

Bundled AIO vs. LCD Upgrade Kits

You don’t always have to buy a complete new cooler to get an LCD screen. CORSAIR’s upgrade kit ecosystem offers a different path.

Full LCD AIO Bundle

Buying a complete LCD AIO from scratch makes sense for new builds and for replacing a cooler that’s more than 3–4 years old. You get a new pump, new cold plate, fresh coolant, current socket brackets, and a full warranty. If your existing non-LCD AIO is still cooling well and is a compatible CORSAIR ELITE, that changes the math.

LCD Upgrade and Display Kits

CORSAIR offers two relevant accessories:

• CORSAIR iCUE ELITE LCD Display Upgrade Kit ($99.99): Swaps only the pump head cap on existing CORSAIR ELITE series AIOs. Adds the LCD screen without replacing the entire cooler. Only compatible with CORSAIR ELITE series.
• CORSAIR iCUE LINK LCD Screen Module ($99.99): A modular add-on for the LINK ecosystem. Attaches to compatible LINK system ports.

Option	Cost	Best For	Compatibility
Full LCD AIO Bundle	$90–$300	New builds or old cooler replacement	Universal (model-specific socket brackets)
CORSAIR ELITE LCD Upgrade Kit	$99.99	Existing CORSAIR ELITE owners in good condition	CORSAIR ELITE series only
CORSAIR iCUE LINK LCD Module	$99.99	Existing CORSAIR LINK ecosystem users	CORSAIR iCUE LINK series only

Verdict on the upgrade kit: it’s only worth it if your existing CORSAIR ELITE AIO is relatively new and cooling well. If it’s already 3+ years old, put the $100 toward a complete new LCD unit instead. The upgrade kit on a degraded pump is poor value.

AIO Cooler with Screen: Buying Guide by Use Case

Best for High-End and Flagship Builds

Go with the NZXT Kraken Elite 360 RGB, the ROG Ryujin III 360 ARGB, or the MSI MEG CoreLiquid S360. All three offer IPS screens with at least 480×480 resolution, solid cooling performance on power-hungry CPUs like the Core Ultra 9 285K or Ryzen 9 9950X3D, and warranties long enough to match a platform lifecycle. The ROG Ryujin III is the strongest choice specifically for full ASUS ROG builds where Armoury Crate handles everything in one ecosystem.

Best for White PC Builds

CORSAIR iCUE H150i ELITE LCD XT White is the top pick. The NZXT Kraken Elite White is the better value option at roughly $40–$50 less. Both have accurate white colorways without the off-white tubing issue you’ll encounter with some third-tier white AIO clones. Verify current stock availability since white variants often sell out faster than black.

Best 360mm AIO with LCD Screen

NZXT Kraken Elite 360 RGB. Best balance of screen quality (2.72″ IPS, 640×640), cooling performance, software simplicity, and warranty length (6 years), typically running ~$240–$260. Runner-up for Lian Li ecosystem builds: the Galahad II Trinity 360 LCD, a strong choice at a lower price point.

Best Budget LCD AIO

Thermalright Frozen Warframe 360 at ~$120. It’s among the most affordable LCD AIOs with credible cooling performance across AM4, AM5, LGA1700, and LGA1851. Software is basic, screen brightness is limited. But it works, and it’s real money saved. If you want to know whether a budget AIO can actually compete with a quality air cooler at the same price, the comparison is closer than most people expect at this tier.

Best for Streamers and Content Creators

NZXT Kraken Elite. The custom web integrations in NZXT CAM let you pull live data onto the screen, and the GIF upload process is the most straightforward of any ecosystem. At 690 nits and 640×640, it’s the screen that actually reads clearly on camera through case glass. Real advantage for a streamer with a windowed setup. Worth the price premium over the Kraken Plus for this use case specifically.

Are AIO Coolers with LCD Screens Actually Worth It?

When They ARE Worth It

• Windowed case: If people can see your build, an LCD pump head is a legitimate aesthetic upgrade.
• Streaming or content creation setups: A visible screen through case glass reads better on camera than a plain pump head.
• Real-time system monitoring: Glancing at CPU temps on the cooler itself is genuinely useful without opening a software overlay.
• Small price premium: If the LCD version of your target AIO costs $20–$40 more than the no-screen equivalent, that’s a reasonable ask.

When They Are NOT Worth It

• No side window: There’s no point paying for a display nobody sees.
• Pure budget builds: At the sub-$100 tier, a better non-screen AIO will keep your CPU cooler than a budget LCD model. Temperatures per dollar wins.
• Software-averse users: Every LCD AIO requires vendor software to configure the display. iCUE’s RAM overhead and Armoury Crate’s installation complexity are real irritants for users who prefer clean software environments.

The Bottom Line

Premium LCD AIOs represent a $20–$50 premium over comparable non-screen units at the same tier. That’s a reasonable spend if your build lives behind glass and aesthetics matter to you. At the budget tier, the gap in screen quality between a sub-$100 LCD AIO and a $180 premium model is substantial enough that budget LCD screens can feel like a disappointment after a week. If temps-per-dollar is your only metric, skip the screen entirely and buy the best non-LCD AIO you can afford. If you’re building something worth showing off, the upgrade is worth it.

FAQ: AIO Coolers with LCD Screens

What is the best AIO cooler with an LCD screen in 2026?

For most builds, the NZXT Kraken Elite 360 RGB is the top overall pick: 2.72″ IPS panel at 640×640 resolution, 690 nits brightness, the best software ecosystem for simplicity (NZXT CAM), strong cooling performance, and a 6-year warranty. For ASUS ecosystem builds, the ROG Ryujin III 360 ARGB wins on screen size (3.5″) and Armoury Crate integration. For budget buyers, the Thermalright Frozen Warframe 360 at ~$120 is among the most affordable options worth recommending.

Do LCD screens on AIO coolers affect cooling performance?

Negligibly. Real-world testing puts the thermal delta between LCD and non-LCD variants of the same AIO at 1–3°C under full CPU load. The screen itself draws under 2W. The small difference that does exist comes from pump head design changes rather than screen heat output. For any practical gaming or workstation use case, this gap is irrelevant. You can see NZXT’s Kraken Elite specifications for reference on the pump head design.

Can you display custom images or GIFs on an AIO cooler screen?

Yes, on most premium models. NZXT CAM supports GIF uploads and custom web integrations, making it the most flexible option. CORSAIR iCUE supports GIF and static image uploads across all iCUE LCD models. Budget options like the Thermalright Frozen Warframe have limited GIF support with format restrictions. Resolution matters here: GIFs look noticeably better at 480×480 or 640×640 than at the 240×240 resolution common on budget and entry-level units.

Are there 240mm AIO coolers with LCD screens?

Yes. The NZXT Kraken Elite and Kraken Plus both ship in 240mm variants with the same LCD panels as the 360mm versions. The CORSAIR NAUTILUS RS LCD is available in 240mm as well. The 240mm option makes sense for smaller cases like mini-ITX and micro-ATX builds where a 360mm radiator won’t physically fit. Cooling performance is lower than 360mm across the board, but the screen experience is identical.

What is the visible quality difference between a budget and premium AIO LCD screen?

Significant. Budget screens (240×240, under 300 nits, limited GIF support) look adequate as text displays for temps and fan speed. Premium screens (480×480 to 640×640, 600–690 nits, full GIF and web integration support) look genuinely sharp and vibrant at close range. The difference is obvious side by side and becomes more apparent as ambient room lighting increases. If you plan to display animated content or custom images, the budget screen tier will likely disappoint. According to Tom’s Hardware’s 2026 CPU cooler analysis, the display size gap between budget and premium LCD AIOs can be as wide as 1.48″ vs. 6.7″, a difference that’s impossible to ignore in person.

Wrapping Up

An AIO cooler with an LCD screen is a legitimate upgrade for windowed builds, streaming setups, and anyone who wants live system data visible without a software overlay. Cooling performance is essentially equal to non-LCD competitors at the same price tier. The real question is whether the $20–$50 premium fits your build priorities. For most enthusiast builds with a glass panel, it does. Pick your screen size and software ecosystem first, then choose your radiator size to match your case and CPU TDP. That order of decisions makes choosing the right model a lot more straightforward.
