AIO Radiator Sizes: 240mm vs 360mm Explained
A 360mm AIO cooler is an all-in-one liquid cooler with a 360mm × 120mm radiator and three 120mm fans that removes CPU heat through a sealed water cooling loop.
Last updated: July 2026
Table of Contents
- Quick Answer: What Is a 360mm AIO Cooler and Do You Need One?
- What Is a 360mm AIO Cooler? (Quick Anatomy)
- Core Components Explained
- 360mm AIO Dimensions, What “360mm” Actually Means
- 240mm vs 360mm AIO, Key Differences at a Glance
- Thermal Performance: What the Tests Show
- Performance by CPU Power Draw
- Ambient Temperature Impact on Radiator Size Choice
- Noise-Normalized Performance
- Case Compatibility, Will a 360mm AIO Fit Your Build?
- Where Can a 360mm Radiator Mount?
- Minimum Case Requirements Checklist
- Is a 360mm AIO Cooler Worth It? (Who Should Buy Which)
- Buy a 360mm AIO Cooler If…
- Stick with a 240mm AIO Cooler If…
- When Neither Makes Sense
- Top 360mm AIO Coolers Worth Considering in 2025
- Installation Tips for 360mm AIO Liquid Coolers
- Frequently Asked Questions
- Is a 360mm AIO worth it?
- Is 360mm cooling better than 240mm?
- Is an AIO overkill for my CPU?
- What CPU sockets do 360mm AIOs support?
- Can I use a 360mm AIO in a mid-tower case?
- The Bottom Line
Quick Answer: What Is a 360mm AIO Cooler and Do You Need One?
A 360mm AIO liquid cooler moves more heat than a 240mm AIO at the same noise, and the gap grows with the power your CPU draws. For processors pulling 125W or more, think Intel Core i9-14900K, AMD Ryzen 9 7950X, or Core Ultra 9 285K, the 360mm is the right call. Below that threshold, a 240mm AIO handles the job without the extra cost or the case real estate requirement.
The real question isn’t which is “better.” It’s which is appropriate for your CPU, your case, and your noise tolerance. This article gives you exact temperature numbers by TDP bracket, a case compatibility matrix, a noise-normalized comparison nobody else talks about, and a direct verdict on which size to buy.
⚡ Quick Reference: 360mm vs 240mm AIO
- 🟢 360mm AIO: Best for CPUs 125W+, overclocking, workstation use, warm ambient rooms
- 🟢 240mm AIO: Best for CPUs 65–125W at stock, budget builds, mATX/ITX cases
- 🟡 360mm in mid-tower: Compatible in many ATX mid-towers, but always verify radiator support specs first
- 🟡 360mm for mid-TDP CPUs: Still works, just not cost-effective if you don’t overclock
- 🔴 360mm in mATX/ITX cases: Almost never fits, 240mm is the practical maximum
- 🔴 240mm AIO on 200W+ CPUs: Thermal throttling risk under sustained all-core load

What Is a 360mm AIO Cooler? (Quick Anatomy)
Before comparing sizes, it helps to understand what’s actually inside the loop. If you want a deeper primer, our guide on what an AIO cooler is and how liquid cooling works covers the fundamentals in full.

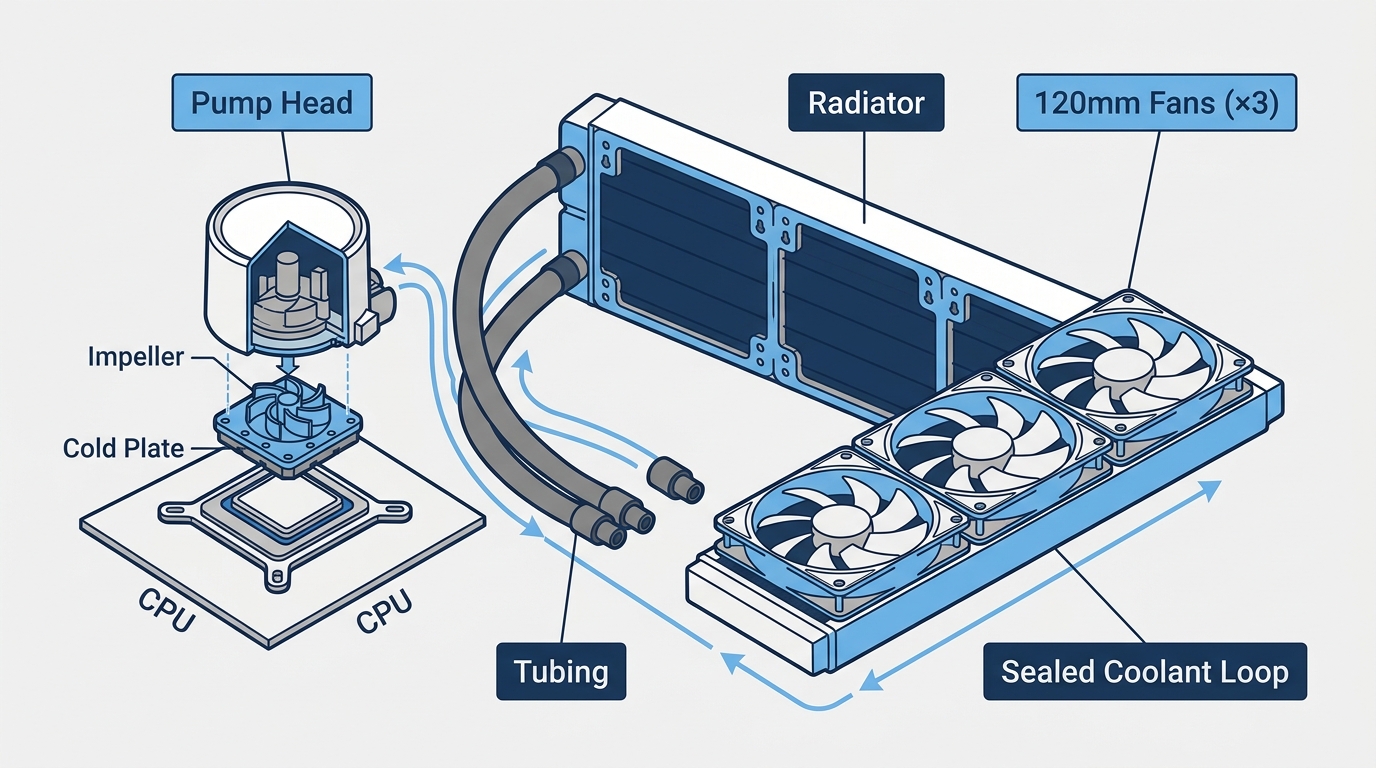

Core Components Explained
A 360mm AIO liquid cooler is made up of five core parts working together as a closed system:
- Pump head: Mounts directly on the CPU. Contains the impeller that circulates coolant and, on modern units, an integrated cold plate that contacts the CPU’s heat spreader.
- Radiator: The actual heat exchanger. At 360mm, the radiator body measures approximately 394mm × 121mm × 27mm (varies ±5mm by brand), with three 120mm fan mounting positions.
- Tubing: Typically 300–400mm of rubber or sleeved braided tubing connecting the pump head to the radiator. Longer tubing gives more routing flexibility inside the case.
- Three 120mm fans: Usually rated 500–2,000 RPM. Noise output ranges from around 15 dBA at low speed to 35+ dBA at full spin. Fan quality varies significantly between budget and premium units.
- Sealed coolant loop: Factory-filled with distilled water and a corrosion inhibitor. You don’t refill or maintain it, it’s designed to last the product’s rated lifespan.

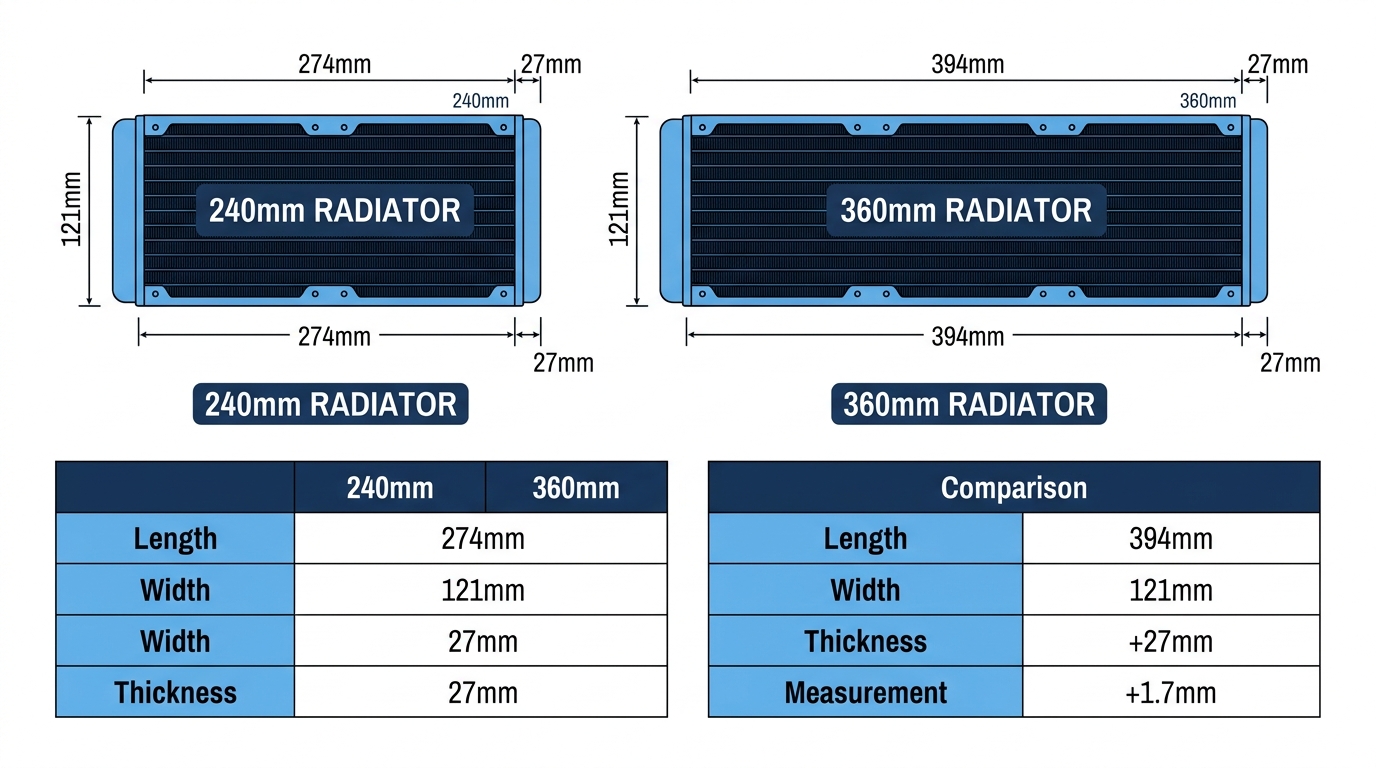

360mm AIO Dimensions, What “360mm” Actually Means
“360mm” refers to the radiator’s length, not the total size of the cooler. The actual radiator body runs slightly longer at around 394mm because of end tanks and mounting flanges. The width is standardized at ~120mm, and the thickness (without fans) is typically 27mm. Add 25mm per fan layer, so a radiator with fans attached sits about 52mm deep total.
That physical footprint is the key constraint. You need a case with a dedicated 360mm radiator mounting position, either front or top, and enough clearance to actually mount it without fouling RAM, VRMs, or case crossbars.
240mm vs 360mm AIO, Key Differences at a Glance
The difference between a 240mm AIO cooler and a 360mm AIO liquid cooler comes down to one thing: radiator surface area. More surface area means more heat dissipated per unit of time, which translates directly to lower CPU temperatures at any given fan speed. Here’s how the two compare on paper.
| Feature | 240mm AIO Cooler | 360mm AIO Liquid Cooler |
|---|---|---|
| Radiator Dimensions | ~275mm × 120mm × 27mm | ~394mm × 120mm × 27mm |
| Fan Count | 2 × 120mm | 3 × 120mm |
| Total Radiator Surface Area | ~330 cm² | ~473 cm² (~43% more) |
| Average Idle Noise | 18–24 dBA | 20–26 dBA |
| Average Full-Load Noise | 28–36 dBA | 28–38 dBA |
| Price Range | $60–$180 | $90–$280+ |
| Case Compatibility | Very broad | Requires 360mm mount |
Temperatures vary based on ambient temp, case airflow, and thermal paste application.
🌡️ Celsius to Fahrenheit Conversion
- 55°C = 131°F
- 60°C = 140°F
- 65°C = 149°F
- 70°C = 158°F
- 75°C = 167°F
- 80°C = 176°F
- 85°C = 185°F
- 90°C = 194°F
- 95°C = 203°F
- 100°C = 212°F
Formula: °F = (°C × 1.8) + 32.
Thermal Performance: What the Tests Show
Generic statements like “360mm is cooler” aren’t useful when you’re deciding whether to spend the extra money. Two tests of the same cooler family in different sizes show where the gap is:
- Ryzen 9 9950X, Arctic Liquid Freezer III in four sizes. At low fan speeds the 240mm ran 92.1°C in Cinebench 2024 at 30.6 dB. Turning its fans up to about 1,200 RPM and its pump to about 2,500 RPM brought it down to 84.6°C, on par with the 280mm, but noise rose to 38.2 dB. The 420mm ran 77.5°C at 30.4 dB. With an all-core overclock to 5.3 GHz, the 240mm and 280mm went past 100°C, while the 360mm and 420mm stayed within limits (Club386).
- Core i7-13700K, Liquid Freezer III 240 vs 360. The 360mm version handled about 234W, the 240mm version about 219W (Tom’s Hardware).
The pattern: at the same noise, the bigger radiator runs cooler. On a chip that pulls a lot of power, a 240mm only keeps up by spinning its fans and pump faster, and that’s louder.

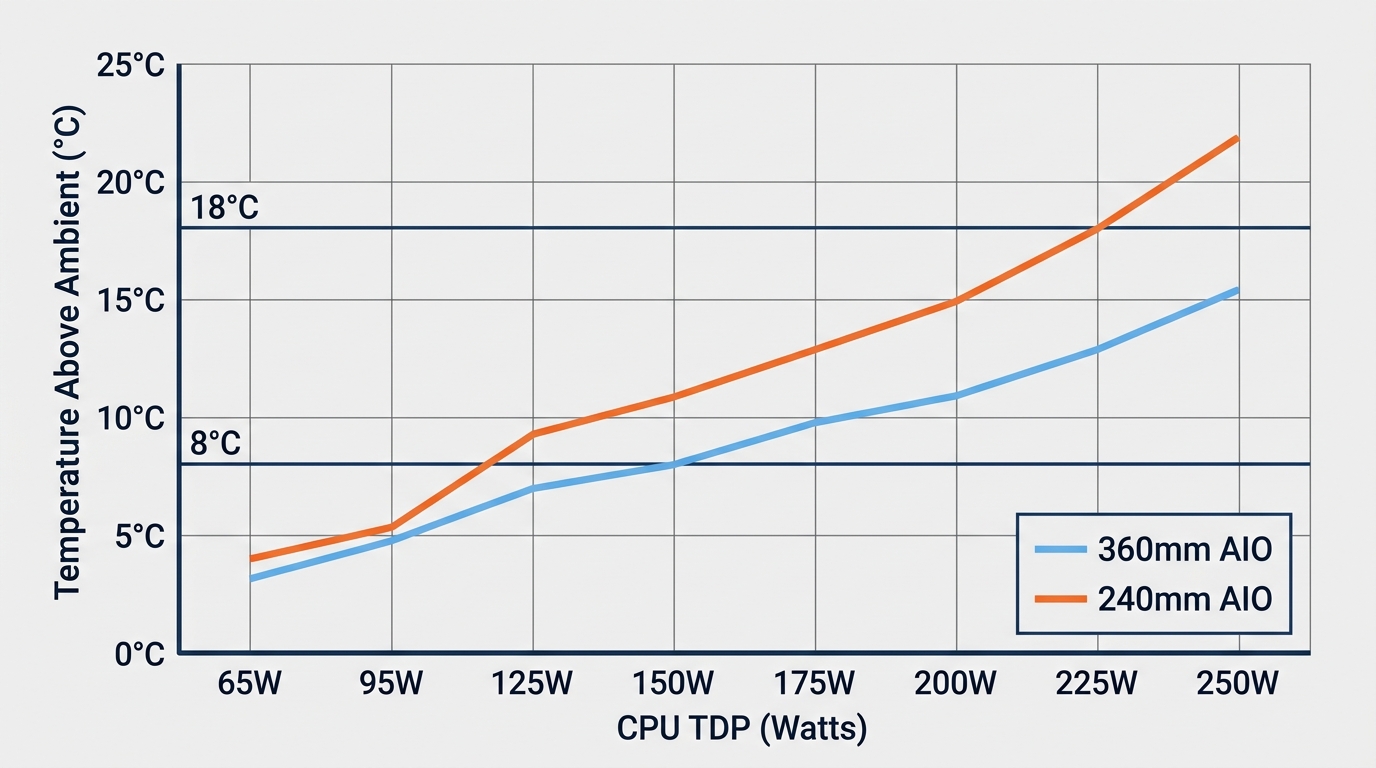

Performance by CPU Power Draw
Low-power CPUs (65W class): Intel Core i5-12400F, AMD Ryzen 5 7600
The 360mm is overkill here. You’re paying more and giving up case space for a gap you won’t notice in daily use. A quality 240mm AIO or even a solid air cooler handles these chips with headroom to spare.
Mid-power CPUs: AMD Ryzen 7 7700X and similar
This is where the gap starts to matter. A 240mm copes, but under long all-core loads it has to run its fans faster than a 360mm would. If you care about noise, or you run long renders or any power limit tuning, the 360mm starts to justify itself.
High-power CPUs (200W and up): Intel Core i9-14900K, AMD Ryzen 9 9950X, Threadripper
Take the 360mm, or larger if your case allows it. In the 9950X test above, the 240mm needed its fans and pump turned up just to match the 280mm, and with an overclock the 240mm and 280mm both ran past 100°C while the 360mm coped.
Ambient Temperature Impact on Radiator Size Choice
Room temperature matters more than most builders realize. A cooler holds the CPU a certain number of degrees above the air it pulls in, so a warmer room means a warmer CPU, roughly degree for degree. If your room runs above 25°C in summer, common in warmer climates or poorly ventilated home offices, a 360mm becomes the safer pick even for mid-power CPUs. A 240mm that’s borderline comfortable at 20°C ambient has less margin at 30°C.
Noise-Normalized Performance
Many comparisons run both coolers at full fan speed and declare the 360mm the winner. The fairer question is which size cools better at the same noise. The 9950X test above answers it: at about 30 dB the 240mm ran 92.1°C and the 420mm 77.5°C, and getting the 240mm down to 84.6°C meant turning up the fans and pump until the noise reached 38.2 dB.
Which is actually quieter, 240mm or 360mm?
For the same CPU temperature, the bigger radiator. It gets there with slower fans, while a 240mm on a high-power CPU only keeps up by spinning faster.
This is the argument that often gets missed. Silent PC builders are often better served by a 360mm than a 240mm, not despite the extra fan, but because the larger radiator means the fans never need to spin fast in the first place.

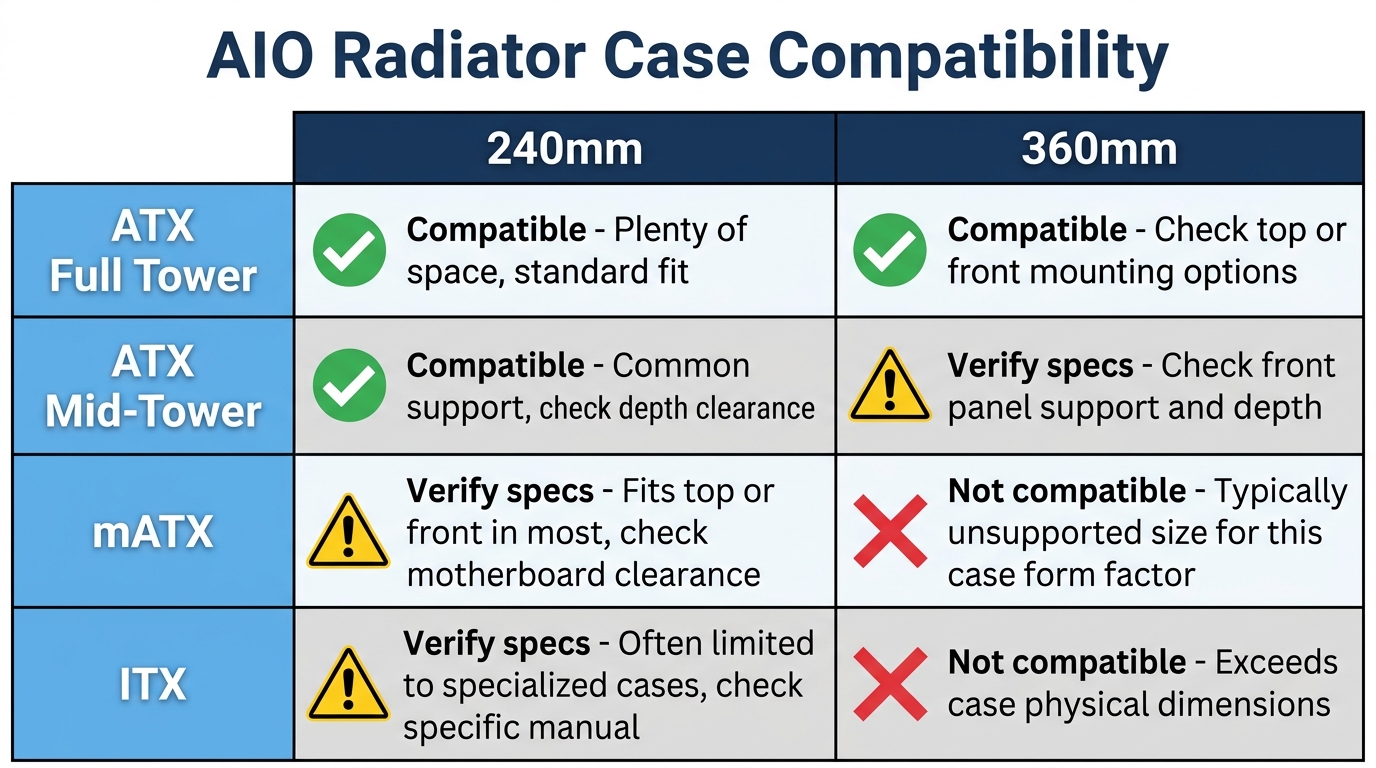

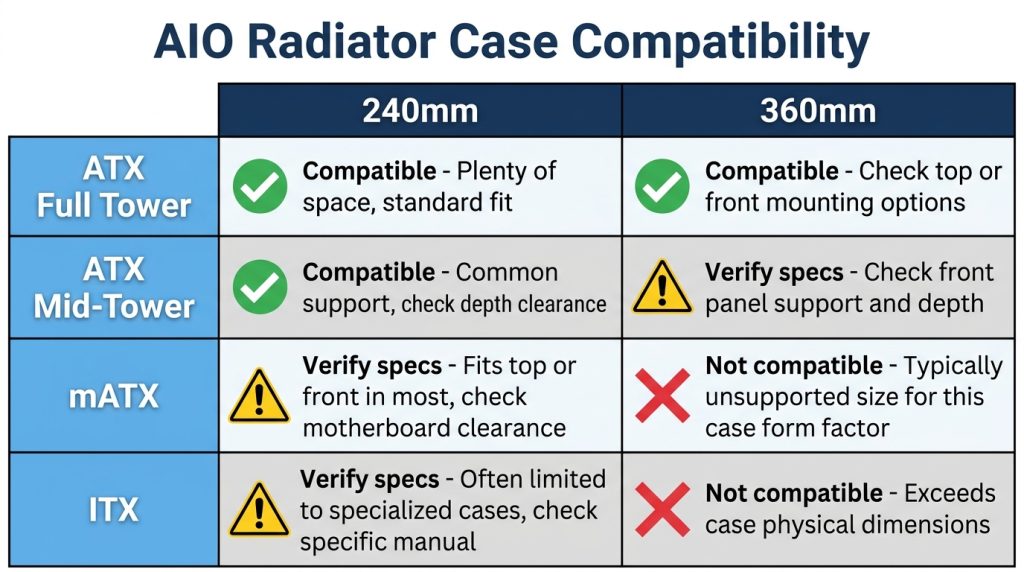

Case Compatibility, Will a 360mm AIO Fit Your Build?

This is where builds go wrong. You order a 360mm AIO, get excited, start mounting it, and discover the radiator either doesn’t fit or blocks your RAM. Always check before you buy.
Where Can a 360mm Radiator Mount?
- Front mount: The most common and generally best option. The radiator pulls fresh ambient air through the fins and exhausts it into the case. Keeps the radiator at lowest point in the loop, avoiding air bubble issues in the pump head.
- Top mount: Works well in cases with sufficient CPU-to-top-panel clearance. You need a minimum of 35–40mm between the top of your CPU cooler socket area and the case’s top interior surface. Check your case specs and your RAM height before assuming it’ll fit.
- Rear mount: Not compatible with 360mm. Rear fan positions are single 120mm only. Full stop.
Minimum Case Requirements Checklist
- Full-tower ATX: Almost always compatible. Cases like the Fractal Torrent and Lian Li O11 Dynamic EVO were designed with large radiators in mind.
- Mid-tower ATX: Varies significantly. Check the spec sheet for “360mm radiator support” explicitly, don’t assume. The Lian Li Lancool III, NZXT H7 Flow, and Corsair 4000D Airflow all work. The NZXT H5 Flow is tight at the front and needs clearance verification.
- Micro-ATX / Mini-ITX: Almost never compatible. 240mm is the practical maximum in most mATX cases, and many ITX builds are limited to 240mm or even 120mm single-fan configurations.
| Case | Form Factor | 360mm Support | Mount Location |
|---|---|---|---|
| Lian Li O11 Dynamic EVO | ATX Full | ✅ Yes | Front / Top |
| Fractal Torrent | ATX Full | ✅ Yes | Front |
| NZXT H7 Flow | ATX Mid | ✅ Yes | Front / Top |
| Corsair 4000D Airflow | ATX Mid | ✅ Yes | Front only |
| be quiet! Silent Base 802 | ATX Full | ✅ Yes | Front / Top |
| Fractal North | ATX Mid | ✅ Yes | Front |
| NZXT H5 Flow | ATX Mid | ⚠️ Front only (check clearance) | Front |
| Corsair 3500X | ATX Mid | ✅ Yes | Front |
| Cooler Master NR400 | mATX | ❌ No | 240mm max |
Always verify radiator clearance dimensions in your case’s manual before purchasing a 360mm AIO liquid cooler. Manufacturer spec pages list exact radiator support dimensions.

Is a 360mm AIO Cooler Worth It? (Who Should Buy Which)
Buy a 360mm AIO Cooler If…
- Your CPU TDP is 125W or higher: Intel Core i9 series, Core Ultra 9, AMD Ryzen 9, or Threadripper. These chips generate heat that genuinely overwhelms a 240mm under sustained load.
- You plan to overclock: Overclocking pushes power draw well above rated TDP. The thermal headroom a 360mm provides directly translates to sustained boost clock stability.
- You run sustained all-core workloads: Video encoding, 3D rendering, AI/ML inference, large code compilation. These loads don’t spike and recover, they hold maximum power for minutes or hours.
- You want a silent system: Counter-intuitive, but accurate. Lower fan speeds on a 360mm achieve the same cooling as high fan speeds on a 240mm. Quieter at equivalent thermal output.
- Ambient temps in your space regularly exceed 25°C: The thermal buffer a 360mm provides compensates for warm room conditions that shrink a 240mm’s margin.
- You’re future-proofing: Planning to upgrade to a higher-TDP CPU in a year or two? The 360mm AIO stays relevant longer.
Stick with a 240mm AIO Cooler If…
- Your CPU is in the 65–125W range at stock: Core i5/i7 non-K, Ryzen 5/7 without aggressive PBO tuning. A 240mm handles these comfortably without breaking a sweat.
- Your case doesn’t support 360mm: No point forcing it. A properly installed 240mm beats a poorly fitted 360mm every time.
- Budget is the constraint: Quality 240mm AIOs start at $60–$80 and do the job well for mid-tier builds.
- You’re building mATX or ITX: Form factor usually makes the decision for you.
When Neither Makes Sense
Not great for AIO coolers at all? If your CPU is sub-65W, an i5-12400F at stock, a Ryzen 5 7600 in an efficiency-focused build, a quality air tower often matches or beats both AIO sizes in noise-normalized performance for under $100. Our roundup of best budget CPU coolers covers the top air options that genuinely compete with entry-level AIOs.
Top 360mm AIO Coolers Worth Considering in 2025
These four units represent the current field well across different price points. All support modern AMD AM4/AM5 and Intel LGA 1700/1851 sockets as verified in their manufacturer spec documentation.
| Model | Price | Pump Speed | Fan RPM Range | Noise (max) | Socket Support | Best For |
|---|---|---|---|---|---|---|
| Arctic Liquid Freezer III Pro 360 | ~$90–$110 | 800–2,800 RPM | 200–2,100 RPM | 37.6 dBA | AM4/AM5/LGA1700/1851 | Best value |
| Corsair iCUE LINK TITAN 360 RX LCD | ~$220 | 900–2,800 RPM | 300–2,100 RPM | 36 dBA | AM4/AM5/LGA1700/1851 | Feature/RGB builds |
| NZXT Kraken 360 | ~$150 | 800–2,800 RPM | 500–1,800 RPM | 33 dBA | AM4/AM5/LGA1700/1851 | Clean aesthetics |
| Lian Li Galahad II Trinity 360 | ~$130 | 800–3,200 RPM | 800–2,000 RPM | 35.2 dBA | AM4/AM5/LGA1700/1851 | Mid-range performance |
The Arctic Liquid Freezer III Pro 360 is consistently the benchmark leader at its price point, with thermal results that outperform many coolers at twice the price. It’s the one to buy if you want maximum performance-per-dollar. The NZXT Kraken 360 trades some peak performance for a simpler software stack and cleaner pump head design, good pick for builders who hate RGB software bloat. The Corsair TITAN 360 RX LCD sits at the premium end, but the iCUE software ecosystem is mature and the LCD display on the pump head is genuinely useful for monitoring. The Lian Li Galahad II Trinity 360 splits the difference between cost and performance with a solid build quality and decent fan curve behavior out of the box.
Installation Tips for 360mm AIO Liquid Coolers
A few things that actually matter when you’re mounting the cooler:
- Radiator fan orientation: Front-mounted radiators should pull fresh air into the case (intake). Top-mounted radiators should push hot air out (exhaust). Getting this backwards costs you 3–5°C and increases case temperatures for your other components too.
- Pump head position: Most AIO manufacturers specify that the pump head should NOT sit at the highest point of the loop. Air bubbles rise. If the pump is highest, air collects there and causes gurgling noise and reduced cooling efficiency. Route tubing so the radiator is the high point.
- Thermal paste: Most AIOs ship with pre-applied paste on the cold plate. It’s fine. Re-apply only if temps seem 5–8°C higher than expected after the break-in period. If you do re-apply, our guide on how to apply thermal paste correctly covers the right method for cold plate contact surfaces.
- Mounting pressure: CPU block screws should be finger-tight, then a quarter turn with a screwdriver. No more. Overtightening warps the cold plate and creates an uneven contact surface that actively worsens temps.
- Break-in period: Worth knowing. Some AIOs run 2–5°C higher for the first 48–72 hours as the coolant degasses. Don’t panic if first-boot temps seem slightly elevated. Run a few stress tests and check again after a couple of days.
Frequently Asked Questions
Is a 360mm AIO worth it?
A 360mm AIO cooler is worth it if your CPU has a TDP of 125W or higher, if you plan to overclock, or if you run sustained workloads like rendering or streaming. For CPUs below 125W in stock configuration, a quality 240mm AIO or a premium air cooler delivers similar temperatures at lower cost. The performance gain is real, but it only justifies the price at the right TDP bracket.
Is 360mm cooling better than 240mm?
Yes, a 360mm AIO liquid cooler provides better thermal performance than a 240mm AIO in virtually all scenarios. How big the gap is depends on the CPU and fan speed: on a Ryzen 9 9950X at low fan speed, the 240mm Arctic Liquid Freezer III ran 92.1°C, and the larger versions of the same cooler ran clearly cooler at that noise level. The 43% larger radiator surface area and additional 120mm fan allow the 360mm to dissipate significantly more heat at equivalent noise levels, giving it a real edge both in peak cooling and in noise-normalized performance at identical fan RPM.
Is an AIO overkill for my CPU?
A 360mm AIO may be overkill for CPUs with a TDP under 65W, such as the Intel Core i5-12400F or AMD Ryzen 5 7600 at stock settings. For these chips, a 240mm AIO or a mid-range air cooler achieves near-identical temperatures for less money. Where overkill stops being overkill: any CPU pulling above 125W consistently, any overclocking scenario, or any workstation running sustained all-core loads for extended periods.
What CPU sockets do 360mm AIOs support?
Most modern 360mm AIO liquid coolers support Intel LGA 1700, LGA 1851, LGA 1200, and LGA 115X sockets, along with AMD AM4 and AM5. High-end models also support AMD sTR4 and sTRX4 (Threadripper). Always verify socket compatibility in the product spec sheet before purchasing, especially for AMD Threadripper or Intel LGA 2066 platforms. Socket support can vary by revision, so check the exact SKU, not just the brand line.
Can I use a 360mm AIO in a mid-tower case?
Many ATX mid-tower cases support a 360mm AIO, but not all of them. Cases like the Lian Li Lancool III, NZXT H7 Flow, and Corsair 4000D Airflow support front-mounted 360mm radiators without issue. Others are limited to 280mm or 240mm maximum. Always check your case’s specifications page for explicit 360mm radiator support and verify clearance dimensions if mounting at the top, where RAM height and VRM heatsinks can cause fitment problems.
The Bottom Line
For CPUs under 125W at stock, a quality 240mm AIO does the job well and saves you money. Spend the difference on better fans or a cleaner case. But if you’re running a Core i9, Ryzen 9, Core Ultra 9, or anything in the Threadripper family, or you’re pushing clocks beyond stock, the choice is straightforward. You need a 360mm liquid cooler to keep temps stable, performance sustained, and fans quiet under load. The thermal headroom it provides isn’t marketing. It shows up in every benchmark, and more importantly, it shows up in your system’s long-term stability. Verify case compatibility first, pick a model with a proven pump history like the Arctic Liquid Freezer III Pro, and mount it right, intake at the front, pump head below the radiator, and finger-tight only on the cold plate screws.
