What Is PBO? Precision Boost Overdrive Explained Simply

PBO (Precision Boost Overdrive) is AMD’s automatic framework that lets Ryzen CPUs exceed default power and current limits when cooling and VRM headroom allow.

Last updated: June 2026

Quick Answer: What Is PBO?

PBO, or Precision Boost Overdrive, is AMD’s built-in system for letting Ryzen processors draw more power than their default limits permit. When your cooler and motherboard VRM have spare capacity, PBO lets the CPU use that headroom to maintain higher boost clocks for longer. It’s disabled by default in BIOS and works on both AM4 (Ryzen 2000 through 5000) and AM5 (Ryzen 7000 and 9000 series) platforms.

According to AMD’s documentation, as referenced in technical breakdowns on GamersNexus, PBO is an automatic overclocking feature that boosts multi-core performance by raising the power and current ceilings the CPU operates within, all while staying within safe thermal limits your cooling system can handle.

PBO vs. Precision Boost vs. Precision Boost 2, What’s the Difference?

This is where most people get confused. “Precision Boost” and “Precision Boost Overdrive” are not the same thing. They’re related, but distinct technologies. AMD has built up a whole family of boost mechanisms over several generations, and conflating them leads to wrong expectations.

Here’s the full family tree:

• Precision Boost (Ryzen 1000): AMD’s original single/dual-core frequency boost system, working off temperature and voltage data to push a limited number of cores higher.
• XFR (Extended Frequency Range): Introduced alongside Precision Boost for Ryzen 1000 and 2000. Gave extra frequency headroom to binned chips with better-than-average thermal results.
• Precision Boost 2 (Ryzen 2000 and later): The current “always-on” stock boost algorithm. It’s multi-core aware, monitors PPT, TDC, and EDC limits continuously, and decides in real time how many cores can boost and how high. This is what your CPU uses right now at stock settings.
• Precision Boost Overdrive: Raises the PPT, TDC, and EDC ceilings that Precision Boost 2 operates within. It doesn’t replace PB2, it expands the sandbox PB2 is allowed to play in.

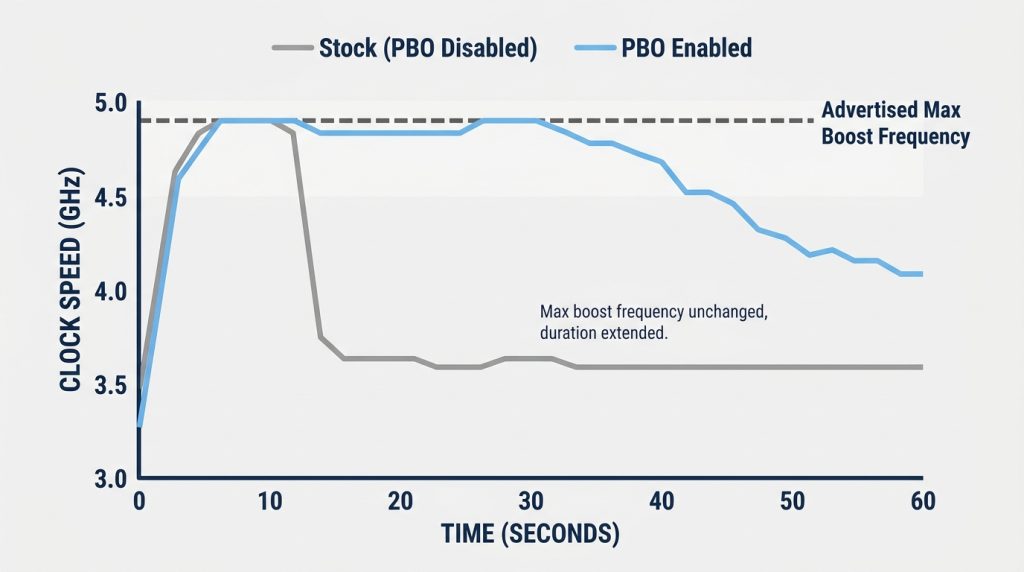

The critical point: PBO does NOT allow your CPU to exceed its advertised maximum boost clock. A Ryzen 9 5900X advertised at 4.8 GHz will not clock to 5.0 GHz with PBO enabled. For that, you need Curve Optimizer or AutoOC, which are separate tools layered on top of PBO.

GamersNexus confirmed this in their original PBO deep-dive, noting that PBO specifically increases the power available to the CPU, not the frequency ceiling itself. The confusion is understandable because more power headroom often results in longer-sustained boosts, which people interpret as higher clocks.

Feature	Precision Boost 2	PBO	AutoOC + Curve Optimizer
Active at stock?	Yes	No (must enable)	No (must enable)
Raises power limits?	No	Yes	Yes
Exceeds advertised boost?	No	No	Yes (per-core)
Risk level	None	Low	Low to Medium
Best for	All users	Most users	Enthusiasts

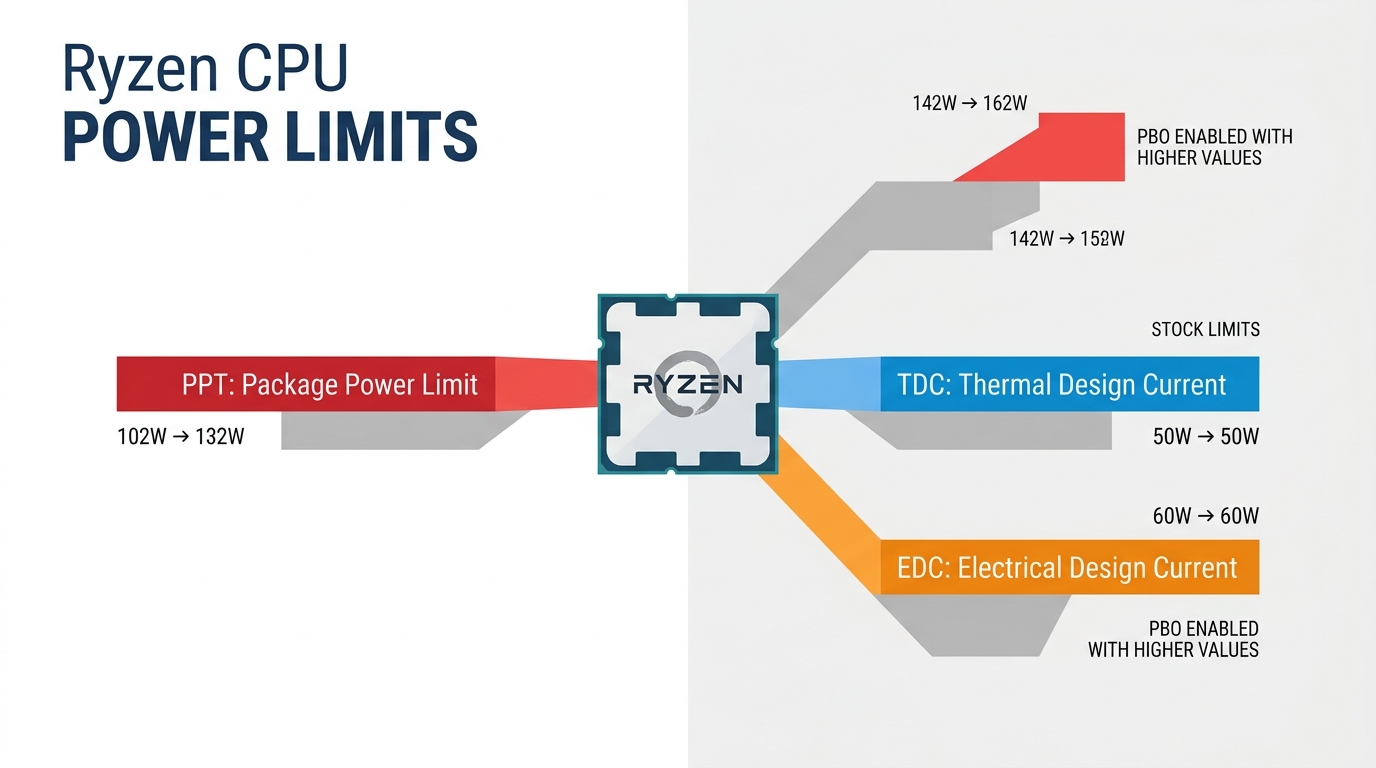

The Three Numbers PBO Controls, PPT, TDC, and EDC Explained

PBO works by adjusting three specific power and current limits. Understanding these makes the whole system click. Think of them as three separate governors on your engine, PBO raises each one so the CPU can push harder without hitting artificial walls.

PPT (Package Power Tracking)

PPT is the maximum total power the CPU socket is allowed to draw across all voltage rails. It’s the broadest limit. AMD’s defaults:

• AM4 (105W TDP boards): 142W default
• AM4 (65W TDP boards): 88W default
• AM5 (170W TDP, e.g. Ryzen 9 7950X): 230W default
• AM5 (65W TDP, e.g. Ryzen 5 7600): 88W default

With PBO enabled, this ceiling is raised or removed entirely (depending on your setting). A Ryzen 9 5950X that was hitting 142W and pulling back its clocks can now draw 200W+ if the VRM can support it.

TDC (Thermal Design Current)

TDC is the maximum sustained current in amps that the motherboard’s VRM can deliver under thermally stressed conditions. Not the peak burst, the sustained delivery. AMD’s defaults:

• AM4 (105W boards): 95A default
• AM4 (65W boards): 60A default

With PBO enabled, TDC is raised so the VRM can sustain higher current draw over longer periods. This directly benefits multi-threaded workloads that run hot for extended time.

EDC (Electrical Design Current)

EDC is the peak instantaneous current limit. Short bursts, not sustained. Think of it as the sprint limit vs. TDC’s marathon limit. AMD’s defaults:

• AM4 (105W boards): 140A default
• AM4 (65W boards): 90A default

Raising EDC too aggressively on a budget B-series board with weak VRM hardware is where instability can creep in. Not dangerous to the CPU. Potentially problematic for the motherboard under extreme loads.

A quick analogy: PPT is how much fuel the engine can burn total, TDC is the sustained fuel flow rate, and EDC is the maximum momentary fuel surge. PBO widens all three pipes. The CPU’s Precision Boost 2 algorithm then decides how much to actually use based on real-time conditions.

What Is PBO Enhancement?

PBO Enhancement is a separate but related control that targets something different from the PPT/TDC/EDC limits. Where standard PBO adjusts the power and current ceilings, PBO Enhancement adjusts how aggressively the CPU’s algorithm pursues those ceilings.

Specifically, it controls AMD’s Precision Boost scalar, a multiplier that influences how hard the boost algorithm pushes toward maximum frequency. The scalar ranges from 1x (conservative, close to default behavior) to 10x (very aggressive frequency chasing).

ASUS exposes this through both the BIOS and Armoury Crate software. In Armoury Crate, you’ll find a PBO Enhancement slider under the performance settings. Setting it higher tells your Ryzen CPU to be more persistent about hitting and holding peak clocks. Other manufacturers expose similar controls through their own software (MSI Center, Gigabyte Control Center) or directly in BIOS.

Feature	PBO	PBO Enhancement
What it changes	Power/current ceilings (PPT, TDC, EDC)	Boost frequency scalar aggressiveness
Where to set it	BIOS or AMD software	BIOS, ASUS Armoury Crate, AMD software
Effect	Higher sustained power draw allowed	More consistent max clock pursuit
Temperature impact	Moderate increase	Mild to moderate increase

On AM5 with Ryzen 7000 and 9000 series processors, AMD streamlined the interface. The main tuning levers are PBO (with power limit controls), Curve Optimizer (per-core voltage offset), and EXPO for DDR5 memory overclocking. They work together, not in isolation.

What Is PBO Scalar?

The PBO scalar is a multiplier, nothing more complicated than that. It runs from 1x to 10x and controls how persistently the CPU’s boost algorithm pushes for its frequency ceiling.

At 1x, the behavior is close to stock Precision Boost 2. At 10x, the CPU is aggressively chasing peak clocks whenever power and thermal headroom exist. Not dangerous at reasonable settings. Potentially thermal at extremes.

Practical starting point: 3x to 5x. That range gives you most of the frequency benefit without cooking a mid-range air cooler. At 10x with a stock AMD cooler, you’ll see temperatures climb noticeably. The scalar amplifies what PBO’s power limits allow, so it works best when the PPT/TDC/EDC ceilings are also raised. On their own, neither lever does as much as both together.

How to Enable PBO in BIOS

This works on any AMD platform running a Ryzen 2000 series processor or newer. The menu locations vary by manufacturer but the steps are consistent.

1. Enter BIOS: Restart your PC and press DEL or F2 during POST (before Windows loads).
2. Switch to Advanced mode: Most BIOSes boot to EZ Mode. Press F7 or the equivalent to get to Advanced mode where CPU settings live.
3. Find the CPU overclocking section:
   • ASUS: AI Tweaker, then CPU Power Management
   • MSI: OC tab, then CPU Features
   • Gigabyte: Tweaker, then Advanced CPU Settings
   • ASRock: OC Tweaker, then CPU Configuration
4. Locate Precision Boost Overdrive: It’ll be listed as “Precision Boost Overdrive,” “PBO,” or sometimes “AMD Overclocking.”
5. Choose your setting:
   • Auto/Enabled: AMD raises limits moderately. Safe, simple, recommended for most users.
   • Advanced: You manually set PPT, TDC, and EDC values. More control, more responsibility.
6. Save and reboot: F10 on most BIOSes. Done.

If you’d rather stay in Windows, AMD Ryzen Master gives you access to PBO settings without touching BIOS at all. Changes made in Ryzen Master apply immediately and reset on reboot unless saved as a profile. Useful for testing different settings before committing them to BIOS.

Is PBO Safe? Will It Damage Your CPU?

Short answer: yes, it’s safe. AMD designed and supports PBO as an official feature. It doesn’t void your CPU warranty in the same way that manually raising core voltage does, which is a meaningful distinction.

The longer answer requires some nuance. Safe doesn’t mean zero tradeoff.

PBO increases the power your CPU draws and, consequently, the heat it generates. Here are realistic temperature increases you can expect with PBO enabled versus stock settings:

• Ryzen 5 5600X stock: approximately 70-72°C peak under sustained load. With PBO: 76-82°C.
• Ryzen 9 5900X stock: approximately 75-80°C. With PBO: 84-90°C.
• Ryzen 9 7950X stock: approximately 85°C. With PBO: 90-95°C.
• Ryzen 9 9950X stock: approximately 85-88°C. With PBO: 90-95°C.

AMD’s thermal threshold for modern Ryzen CPUs is 95°C (TjMax). Running close to that threshold for extended periods can, over years of use, marginally affect chip longevity. Marginally. This isn’t a “your CPU will die” scenario. It’s a “treat your cooling seriously” scenario.

If your CPU is already hitting thermal limits at stock (which some high-end chips do with inadequate cooling), enabling PBO without upgrading your cooler isn’t smart. If you’re running a 240mm AIO or a quality tower cooler with headroom to spare, PBO is a reasonable choice. If you notice signs of CPU overheating under load, address the cooling before enabling PBO, our guide on CPU overheating signs and causes covers what to watch for.

Budget VRM boards are the other risk factor. Raising EDC limits to 200A on a B550 board with a 4-phase VRM is asking for instability. Not CPU damage, but crashes and throttling. Use PBO Advanced settings aggressively only if your motherboard’s VRM can actually handle the load.

PBO by Platform, AM4 vs. AM5

PBO has evolved significantly across platforms. What it can do on a Ryzen 9000 series chip is considerably more refined than what it offered on Ryzen 2000.

AM4 (Ryzen 2000 through 5000)

PBO first appeared on desktop Ryzen with the Ryzen 3000 series, having debuted earlier on Threadripper. The Ryzen 2000 series had a limited version of PBO without the AutoOC or Curve Optimizer features that came later.

Ryzen 5000 (Zen 3) represents the most refined AM4 PBO implementation, with per-core Curve Optimizer offsets that let you fine-tune each core’s voltage curve independently. This is where PBO went from a power tool to a proper optimization framework.

AM5 (Ryzen 7000, 9000 series)

AM5 raises the baseline TDP significantly. Flagship chips like the Ryzen 9 9950X operate at 170W TDP by default, with a 230W PPT ceiling. PBO on AM5 works with these higher baselines and combines with per-core Curve Optimizer tuning that allows up to 30-point negative voltage offsets per core.

The Ryzen 9000 series (Zen 5) benefits particularly well from Curve Optimizer because Zen 5 cores show more variation between individual core quality than earlier generations. If you’re on an X870 or X870E board, those higher-tier VRMs handle elevated PBO limits cleanly. The differences between those platforms matter if you’re planning aggressive PBO settings, our breakdown of X870 vs X870E chipset differences covers VRM and power delivery distinctions in detail.

Platform	Introduced	Max Default PPT	Curve Optimizer?	AutoOC?
AM4 Ryzen 2000	2018	142W (105W boards)	No	No
AM4 Ryzen 3000	2019	142W	No (AutoOC only)	Yes
AM4 Ryzen 5000	2020	142W	Yes	Yes
AM5 Ryzen 7000	2022	230W (170W TDP)	Yes (30-point per core)	Yes
AM5 Ryzen 9000	2024	230W (170W TDP)	Yes (30-point per core)	Yes

Real-World Performance Gains, What to Expect from PBO

Honest expectations matter here. PBO is not a free 15% performance boost. It’s closer to a “let your CPU be what it was already capable of being” feature. Gains vary based on workload, cooler quality, and how much your chip was already thermally or power-limited at stock.

GamersNexus benchmarked PBO on a Ryzen 9 3900X and measured Cinebench R20 results of 514/7078 (single/multi) with PBO off, versus 520/7235 with PBO and AutoOC enabled. A real gain, but not transformative. That’s consistent with what most users see.

Typical gains by workload type:

• Lightly-threaded gaming: 1-3% average improvement. Most games don’t push high enough core counts to hit PPT limits at stock.
• Cinebench R23 multi-core: 3-8% improvement. Multi-threaded loads are exactly where PPT limits bite at stock.
• Blender/3D rendering: 2-5% improvement. Benefits appear early in the render, may taper as thermals rise over long sessions.
• Lightly-threaded single-core tasks: Minimal improvement. The chip was likely already boosting as high as it can on those cores.

A 240mm AIO sees meaningfully more benefit than a stock AMD cooler because thermal headroom is what lets the CPU sustain its boosted state. If your cooler is barely keeping up at stock, PBO’s power headroom gains are absorbed as heat before they translate to sustained clocks.

One more honest note: community reports from users with Ryzen 5950X systems have shown that PBO gains are sometimes small, occasionally as large as 10%, and sometimes slightly negative due to thermal variance. Binned CPUs that already hit their advertised boost clocks easily have less room to benefit. Not every chip responds the same way.

PBO in Other Contexts, What PBO Means Outside of AMD CPUs

A lot of people land on PBO searches looking for something completely different. Here’s a quick reference for the other meanings so you know if you’re in the right place.

PBO in Chemistry

PBO in chemistry is the formula for lead(II) oxide, or lead monoxide. The systematic IUPAC name is lead(II) oxide. You’ll see it referenced as PbO in chemical notation. When you see “24% PBO lead crystal,” that refers to 24% lead oxide content by weight in the glass composition. No connection to AMD.

PBO in Accounting

In finance and accounting, PBO stands for Projected Benefit Obligation. It’s a pension accounting term representing the present value of all future pension payments a company is obligated to make. Appears regularly in corporate balance sheet disclosures. Completely separate usage.

PBO in Semiconductor Manufacturing

In 3D IC and advanced packaging, PBO refers to polybenzoxazole, a polymer dielectric material used in wafer-level chip-scale packaging. It’s a fabrication material used in the semiconductor manufacturing process, not something end users interact with.

PBO File Format

A .PBO file is a Packed Binary Object, an archive format used extensively in the ArmA series and DayZ modding communities. Mods are distributed as .PBO files. If you’re trying to open one of these, you need a tool like PBO Manager or Mikero’s Depbo tools, not AMD software.

The Systematic Name of PBO

If you searched “what is the systematic name of PBO,” the answer is lead(II) oxide (PbO). IUPAC name: lead(II) oxide. Alternate: lead monoxide. Nothing to do with Ryzen processors.

PBO vs. Manual Overclocking, Which Should You Choose?

This is a question that trips up a lot of people coming from Intel overclocking backgrounds. On Intel platforms, manual all-core overclocking is often the fastest way to extract performance. On Ryzen, it’s frequently counterproductive.

Here’s why: AMD’s Precision Boost 2 algorithm is smart. It knows which cores on your specific chip are the best performers (these are called “preferred cores” or “golden cores”) and boosts them the highest. A manual all-core overclock destroys that intelligence. You lock every core to the same fixed frequency, which means your best cores are now clocked lower than they’d run under PBO, and your weaker cores are pushed harder than they’d naturally run, generating extra heat that throttles everything.

Not great for most workloads.

PBO preserves the per-core boost algorithm. The CPU still makes real-time decisions about which cores to prioritize. That’s why PBO often outperforms manual all-core OC on Ryzen, even at similar or lower peak frequencies.

User Type	Recommended Approach
Casual gamer	Enable PBO (Auto) + modest scalar (3x)
Performance enthusiast	PBO Advanced + Curve Optimizer per-core tuning
Content creator / renderer	PBO + Curve Optimizer + EXPO memory OC
No-touch user	Leave stock (Precision Boost 2 handles it)
Competitive overclocker	Manual voltage tuning + Curve Optimizer

Manual overclocking still wins in specific scenarios: exotic cooling setups like LN2, single-threaded workloads where all-core consistency matters more than peak, or situations where a specific application benefits from predictable flat frequency behavior. For 95% of users, PBO plus Curve Optimizer is the better path.

PBO in K-Pop?

Some people land here searching for what PBO means in K-pop fandom context. It doesn’t have a widely standardized meaning in K-pop communities, it appears to be a loosely used abbreviation that varies by fandom. If you found this page looking for that, this isn’t the right place. But now you know what PBO means in PC hardware, which might come in handy.

Frequently Asked Questions About PBO

What does PBO stand for?

PBO stands for Precision Boost Overdrive. It’s AMD’s official framework for allowing Ryzen processors to automatically exceed their factory default power and current limits (PPT, TDC, EDC) when the system’s VRM and cooling have enough headroom to support it. It’s been available on AMD desktop CPUs since the Ryzen 3000 series and is supported on all current AM4 and AM5 platforms.

Should I enable PBO on my Ryzen CPU?

For most users with a quality cooler, at minimum a 120mm AIO or a solid tower cooler like the Noctua NH-D15, and a mid-range or higher motherboard, enabling PBO is worth doing. It’s AMD-supported, low risk, and delivers genuine (if modest) performance gains with no manual tuning required. If you’re on a budget B-series board with a 65W CPU and a stock cooler, the gains will be small and the risk remains low, but don’t expect dramatic results.

Does PBO void my AMD warranty?

AMD’s official position has consistently been that PBO is a supported, designed feature and does not void the standard processor warranty the same way manually overriding core voltage does. That said, AMD’s warranty terms can change, so check AMD’s current processor warranty documentation directly before making assumptions. The general community understanding has long been that AMD-provided overclocking tools carry different warranty implications than third-party voltage manipulation.

What’s the difference between PBO and Curve Optimizer?

PBO raises the power and current ceilings (PPT, TDC, EDC) that determine how much energy the CPU can use during boost. Curve Optimizer operates at a lower level: it adjusts the voltage-to-frequency curve on a per-core basis, letting individual cores achieve higher frequencies at lower or equivalent voltages. They target different aspects of performance and are designed to work together. Most enthusiasts enable both, using PBO to open up power headroom and Curve Optimizer to squeeze more frequency out of each core within that headroom.

What is PBO Enhancement in ASUS Armoury Crate?

ASUS Armoury Crate’s PBO Enhancement feature is a software-exposed version of AMD’s Precision Boost scalar control. The slider typically runs from 1x to 10x and controls how aggressively the boost algorithm pursues maximum frequency. A higher setting means the CPU chases its peak clock more persistently, which translates to better sustained boost performance at the cost of slightly higher temperatures. It works alongside standard PBO power limit settings, not instead of them. For most users, setting it between 3x and 5x is a reasonable balance between performance and thermals.

Wrapping Up

PBO is the most practical performance tool available to Ryzen CPU owners. Enable it, set a modest scalar, and let AMD’s boost algorithm do the rest. If you’re an enthusiast, stack Curve Optimizer on top for per-core refinement. If you’re happy leaving it stock, Precision Boost 2 is already doing solid work without your intervention. The decision comes down to how much time you want to invest in tuning versus the performance gain you’re after. For most builds, enabling PBO in BIOS and leaving it on Auto is the highest return-on-effort option you have.
