PC Airflow Direction: Intake and Exhaust Setup

PC fan airflow direction is the orientation in which a case fan pulls cool air in (intake) or pushes hot air out (exhaust) relative to the PC case.

Last updated: July 2026

Quick Answer: Which Direction Should PC Fans Face?

Front and bottom fans should face inward as intake, pulling cool air into the case. Rear and top fans should face outward as exhaust, pushing hot air out. Getting this wrong, even by a single reversed fan, can raise CPU temps by 4–8°C and GPU temps by up to 15°C. The label/sticker on the fan hub always faces the direction air is moving toward, making it the fastest way to verify orientation before you screw anything in.

You just finished installing your new case fans and now you’re staring at them wondering if they’re actually pointing the right way. Or maybe your temps are higher than expected and you’re starting to suspect one of your fans is working against you. Either way, you’re in the right place. This guide covers every method to identify fan direction, the best intake/exhaust layout for any case type, and the pressure balance concepts that most build guides skip entirely.

How to Tell Which Direction a PC Fan Blows (3 Foolproof Methods)

There’s no single method that works for every fan, so knowing all three means you’ll never be guessing. Start with Method 1 if your fans are new. Fall back to Method 3 if you’re dealing with unlabeled OEM fans.

Method 1: Read the Airflow Arrows on the Fan Frame

Most major fan brands stamp two arrows directly onto the side of the fan frame. Corsair, Noctua, be quiet!, and Arctic all do this. The horizontal arrow shows which direction the blades spin. The vertical arrow shows which direction the air travels. Air exits from the side the vertical arrow points toward.

The exact location of these arrows varies by brand and even by product line. On Corsair’s iCUE LINK QX series they sit on the side spine of the frame. On Noctua fans they appear on the side of the frame near the corners. On be quiet! Silent Wings fans there’s a single combined arrow at one corner. If you’re scanning the frame and not finding them immediately, check every edge before assuming they’re absent.

One practical tip: once you find the vertical arrow, mentally confirm it makes sense with where the fan is mounted. If the arrow points away from the case interior, that fan is exhausting. If it points into the case interior, it’s intaking. Simple.

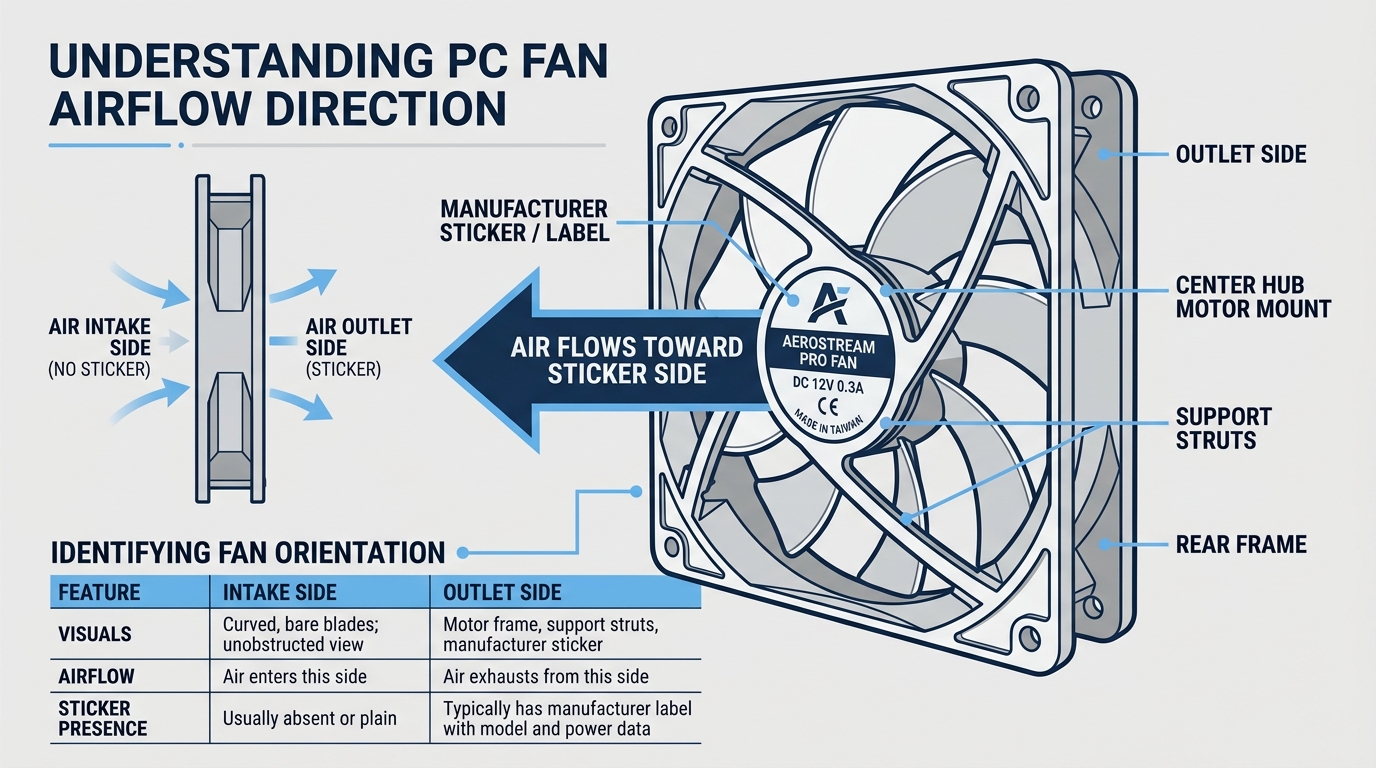

Method 2: The Sticker/Label Side Rule

This is the fastest method when the fan is already in your hands. The manufacturer label on the center hub always faces the direction air is being pushed toward. Air flows away from the sticker side, toward the sticker side. Noctua’s official support FAQ confirms this explicitly: the label side is the air outlet side.

In practice:

• Intake fans: mount with the label facing the inside of the case, so it’s visible when you look in through the front
• Exhaust fans: mount with the label facing outside, visible through the rear or top vents

This rule holds across virtually every brand: Noctua, Corsair, Arctic, NZXT, Phanteks, be quiet!. It works because the motor windings and bearing sit on the back of the fan, which is the intake side, and the sticker covers the center of the front face where air exits.

Method 3: Visual Blade Shape (Backup Method)

No arrows, no sticker? Look at the blade geometry. Fan blades curve like a propeller. The concave (scooped) side of each blade faces the direction air is coming from. The convex (curved-back) side faces where air is heading. This is the method most people on r/buildapc default to when dealing with old OEM fans or aftermarket fans with minimal markings. It works, but it takes a trained eye. If you’re not confident reading blade curvature, use Method 2 first.

Brand-by-Brand Arrow and Label Reference

Brand	Arrow Location	Label Rule Works?	Notes
Corsair iCUE LINK QX/LL/HD	Side spine of frame	Yes	Two-arrow system (spin + airflow)
Noctua NF-A/P/S Series	Side of frame + hub sticker	Yes	Officially documented in Noctua FAQ
be quiet! Silent Wings	Corner of frame	Yes	Single combined arrow
Arctic P/F Series	Side of frame	Yes	P = pressure (intake), F = flow (exhaust)
NZXT F Series	Side of frame	Yes	Color ring side faces exhaust direction
Generic OEM Fans	Sometimes none	Sometimes	Use blade shape method as fallback

PC Case Airflow Basics: Intake vs. Exhaust Explained

An intake fan pulls cool ambient air from outside the case into the interior. An exhaust fan pushes the hot air that components generate out through case vents. Think of it like breathing: intake is the inhale, exhaust is the exhale. You need both. Without sufficient intake, exhaust fans starve for fresh air and end up moving the same warm air in circles. Without exhaust, heat accumulates and recirculates across your components.

Fan type matters here too, not just direction. Static pressure fans (Arctic P-series, Noctua NF-P) push air through resistance, making them ideal behind mesh panels, dust filters, and radiators. High-airflow fans (Arctic F-series, Noctua NF-A) move large volumes of air in open spaces, making them better suited for exhaust positions with clear paths to outside vents. Putting a high-airflow fan behind a dense mesh filter reduces its effectiveness significantly. Matching the fan type to the position matters almost as much as matching the direction.

According to Tom’s Hardware’s PC airflow setup guide, fans should be positioned to create a channeled airflow path from the front of the case to the upper rear, with direction confirmed by looking for rotation and airflow arrows on the fan housing. If the arrows aren’t visible, you can also power the fan briefly and observe which side air blows from.

If you’re still deciding how many fans your build actually needs, the guide on how many case fans you need breaks down minimum requirements by build type and case size.

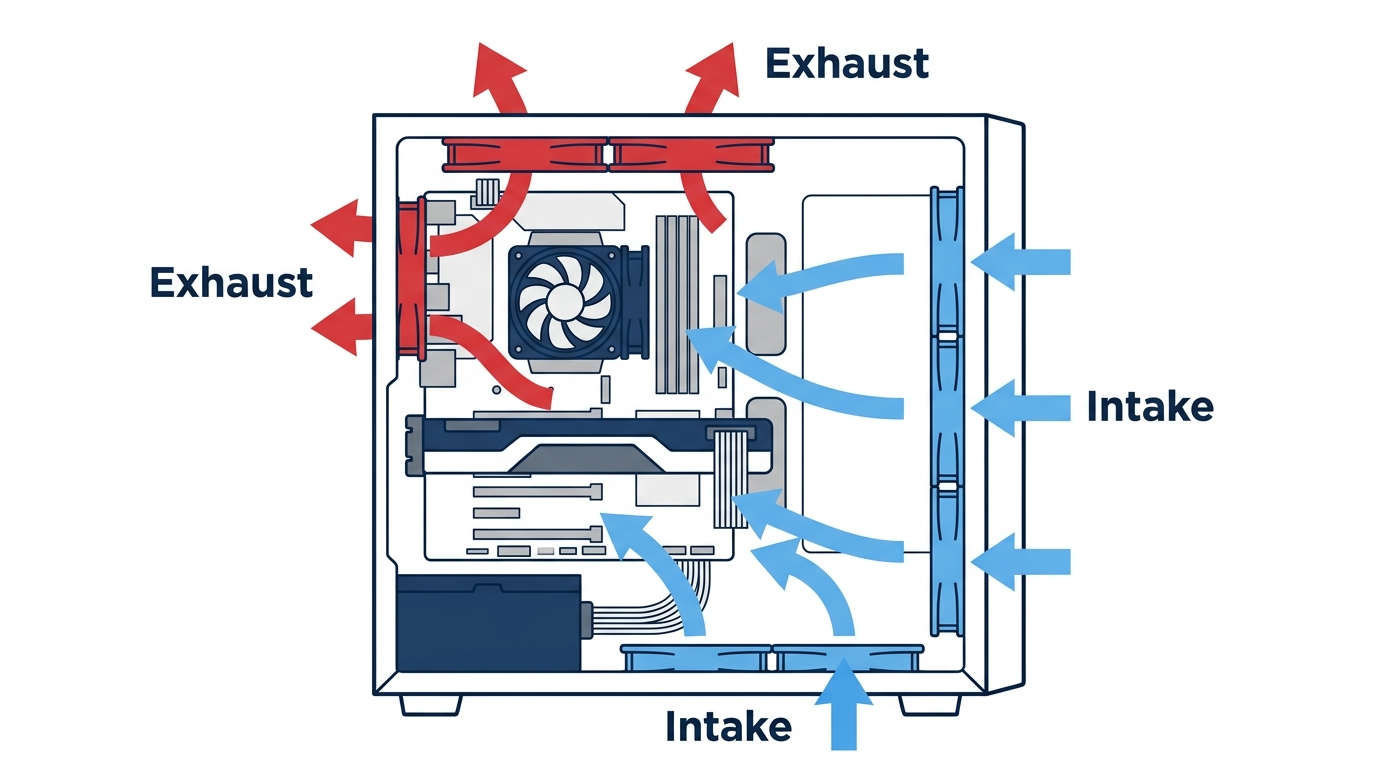

The Standard PC Case Airflow Setup (Best Practice Configuration)

The Golden Rule of PC Airflow

Front + bottom = intake. Rear + top = exhaust. This isn’t arbitrary. Heat rises naturally, so top exhaust fans work with physics instead of against it. Front intake fans pull cool air across the GPU and CPU in a clean front-to-back path. The vast majority of mid-tower and full-tower cases are physically designed around this convention, with vented front panels and mesh top panels for exactly this reason.

Optimal Fan Placement by Case Position

Fan Position	Recommended Role	Why	Ideal Fan Type
Front panel (1–3 fans)	Intake	Draws cool ambient air across GPU and CPU path	High-airflow (Arctic F, Noctua NF-A)
Top panel (1–3 fans)	Exhaust	Hot air rises naturally, assisted by thermal draft	High-airflow
Rear panel (1 fan)	Exhaust	Direct exhaust path from CPU cooler output	Either type works
Bottom panel (0–2 fans)	Intake	Feeds GPU directly; requires mesh bottom panel	Static pressure (dust filter present)
Side panel (rare)	Intake	Supplemental GPU cooling in specific layouts	High-airflow

Real Temperature Data: Does Fan Direction Actually Matter?

Yes, significantly, though most published figures come from community testing rather than one standardized benchmark. Delta-T results (temperature above ambient) tend to show similar patterns:

• Single reversed exhaust fan: CPU temps increase 4–8°C on average
• All-exhaust configuration (no dedicated intake): GPU temps rise 10–15°C from recirculated hot air and negative pressure pulling unfiltered air through gaps
• Intake-heavy setup vs. balanced: 3–5°C improvement in average component temps

In a typical mid-tower running 3 front intake fans plus 1 rear exhaust and 1 top exhaust, average idle CPU delta-T (temp above ambient) sits around 8–12°C. Flip two of those front fans to exhaust by mistake and that delta-T jumps to 18–25°C. Same fans, same speed. Wrong direction.

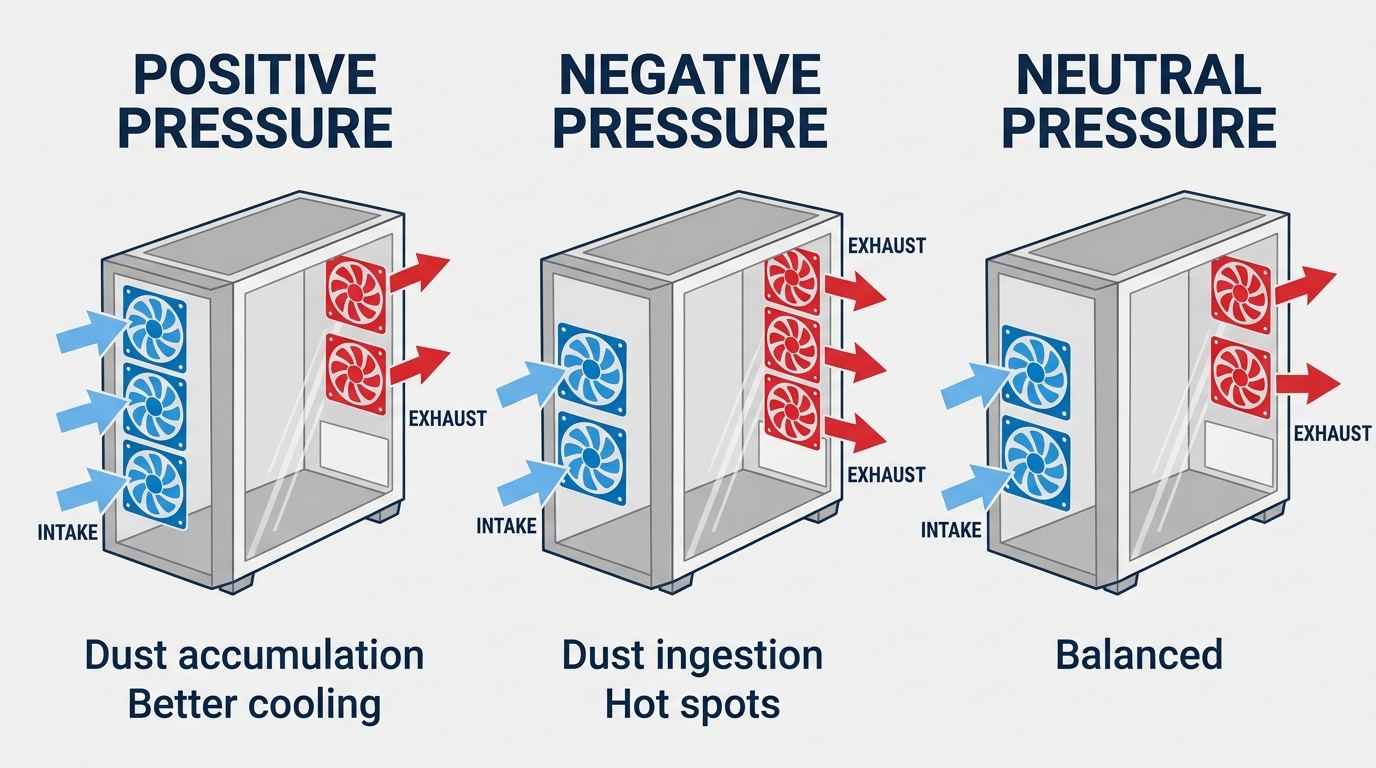

Positive vs. Negative vs. Neutral Pressure: Which Is Best for PC Airflow?

Most airflow guides tell you where to put fans but skip the reason the ratio matters. The balance between total intake airflow (measured in CFM) and total exhaust airflow determines your case’s internal pressure, which affects both temperatures and dust buildup in ways that compound over time.

What Is Positive Pressure?

Positive pressure means your intake fans are moving more air into the case than your exhaust fans are removing. The excess air finds its way out through case gaps, panel seams, and unfiltered openings. Because air is pushing outward through every gap, dust has a harder time getting pulled in through unfiltered paths. Dust accumulates primarily at your intake filters, where it’s easy to clean. This is the best configuration for most home environments. Slightly warmer than neutral in theory, but the dust reduction benefit is worth it for almost everyone.

What Is Negative Pressure?

Negative pressure means exhaust CFM exceeds intake CFM. The case actively pulls air in through every available gap and crack to compensate, since fans create a partial vacuum. Hot air evacuation is aggressive. But every unsealed gap becomes an unfiltered intake point. In real-world testing, negative pressure cases accumulate visible dust on internal components within 30–60 days in a typical home environment. Hard pass for most builds.

What Is Neutral Pressure?

Balanced intake and exhaust. Theoretically optimal because air enters and exits only through intentional paths. In practice, perfectly neutral pressure is hard to achieve because fans of the same rated CFM don’t always deliver identical real-world airflow when mounted in different positions with different panel obstructions. The practical target for most builds is slightly positive pressure, which is easy to achieve and forgiving to maintain.

Pressure Type	Intake CFM vs. Exhaust CFM	Dust Buildup	Temps	Best For
Positive	Intake > Exhaust	Low	Good	Most home builds
Neutral	Intake = Exhaust	Medium	Best	Clean, controlled environments
Negative	Intake < Exhaust	High	Good short-term	Rarely recommended

PC Fan Airflow Direction by Case Type

Mid-Tower ATX Cases (Most Common)

The standard front-to-back, bottom-to-top airflow model applies here without modification. Most mid-towers ship with front and top fan mounts designed for exactly this configuration. A solid starting point is 2–3 front intake fans plus 1 rear exhaust and 1–2 top exhaust fans. This gives you slightly positive pressure and a clean airflow channel from fresh intake to hot exhaust. Target temps with a decent air cooler: CPU under 80°C at full load, GPU under 85°C at full load gaming.

Mini-ITX and Compact Cases

Limited fan positions force priority decisions. In SFF cases, GPU heat is harder to remove because there’s less space for a directed airflow path. Prioritize GPU exhaust above everything else. A common functional configuration is 1 front or bottom intake feeding 1 rear exhaust. Some SFF cases use vertical airflow entirely, where the top exhaust becomes the primary hot air exit point. Cases like the NZXT H1 and Sliger SM580 fall into this category. Check your case manual for the intended airflow path before installing fans, since SFF cases vary more than mid-towers.

Full-Tower Cases

More fan slots give you more cooling potential and more ways to mess it up. The main mistake in full towers is inconsistent panel direction. Never mix intake and exhaust fans on the same panel. An intake fan and an exhaust fan mounted next to each other on the top panel don’t average out to neutral pressure; they create turbulence that reduces effective airflow by up to 30% in that area. A proven full-tower configuration: 3 front intake + 2 bottom intake + 2 top exhaust + 1 rear exhaust. Scale up from that baseline if your component TDPs demand it.

How to Reverse a PC Fan Direction (And When You Should)

Can You Physically Reverse a Fan?

Yes. Flip it 180 degrees in its mount. The screw holes are symmetrical, so the fan mounts the same way regardless of orientation. Before you tighten the screws, use the sticker rule or arrow method to confirm the new direction is what you intend. Takes about 90 seconds per fan.

When Reversing a Fan Makes Sense

The most common reason is a backwards installation during the original build. Easy to do when you’re rushing. It also makes sense when you’re repurposing a case with non-standard venting, or when you’ve added a component that changed your airflow requirements. A 240mm AIO mounted on the front, for example, occupies two intake fan slots and converts them to exhaust (since radiator fans typically push air through the radiator and out through the front panel). If that happens, you may need to add bottom intake fans to compensate and maintain positive pressure. If you’re installing an AIO for the first time, the guide on what an AIO cooler is and how liquid cooling works covers mounting orientation in detail.

When NOT to Reverse Fans

Don’t reverse CPU cooler fans unless the manufacturer’s documentation specifies a push/pull configuration. Don’t reverse AIO radiator fans without understanding push vs. pull implications for your specific radiator and mount location. And don’t reverse fans as a casual experiment without benchmarking temps before and after. “Let’s try it” builds that skip the before/after comparison are how people end up not knowing whether they made things better or worse.

Common PC Airflow Direction Mistakes (And How to Fix Them)

These are the five errors that show up most often in build troubleshooting threads. Most are easy to fix once identified.

• All fans set to intake: Hot air has no exit path. GPU temps spike 15–20°C above what they’d be with proper exhaust. Fix: flip rear and top fans to exhaust.
• Forgetting to check direction after AIO install: Radiator fans often ship oriented as intake but get mounted in positions that require exhaust orientation without adjusting the fan. Fix: verify with the sticker rule after every reinstall.
• Mixing intake and exhaust on the same panel: One top fan blowing in, one blowing out. Creates turbulence and reduces effective airflow by up to 30% in that zone. Fix: pick one role per panel and commit.
• Cable management blocking intake fans: A loose bundle of cables sitting directly in front of a front intake fan can reduce airflow volume by 15–25% regardless of correct fan direction. Fix: route cables behind the motherboard tray before evaluating temps.
• Wrong fan type at filtered intake positions: High-airflow fans behind dust filters lose significant efficiency because they’re not designed to push air through resistance. Fix: use static pressure fans at any filtered intake position.

Not great to discover after a full build. But all five are fixable without buying new hardware.

FAQ: PC Fan Airflow Direction Questions Answered

How do I tell which direction my PC fan blows without arrows?

Use the label rule: the sticker on the fan hub faces the direction air is being pushed toward. If there’s no visible sticker, examine the blade curvature. The concave (scooped) side of each blade faces the air source, and the convex side faces where air exits. Both methods work on any fan, regardless of brand or age.

Should PC intake fans be on the front or bottom?

Ideally both, if your case supports it. Front intake fans draw cool air across the GPU and toward the CPU cooler in a clean horizontal path. Bottom intake fans feed the GPU directly from below. Front is the higher priority if you can only choose one, since it covers the full front-to-back airflow channel. Bottom fans are best treated as supplemental GPU cooling when your case has a mesh bottom panel.

What happens if you put a fan in the wrong direction?

The fan actively works against your airflow path, pushing hot air back toward components instead of away from them. A single reversed exhaust fan raises CPU temps by 4–8°C. A reversed intake fan on the front can raise GPU temps by 10–15°C by disrupting the primary cool air supply. Fix it by pulling the fan out and flipping it 180 degrees before reinstalling.

Does fan direction matter more than fan speed?

Yes, for most mid-range builds. A correctly oriented fan running at 1,000 RPM outperforms a reversed fan running at 1,400 RPM in real-world case airflow scenarios. Direction determines whether airflow helps or hurts. Speed only matters once direction is correct. Get the orientation right first, then tune RPM curves for noise and temperature balance.

How many intake fans should I have compared to exhaust fans?

A 2:1 or 3:2 intake-to-exhaust ratio is the most widely recommended configuration for slightly positive pressure. Practical examples: 2 front intake + 1 rear exhaust, or 3 front intake + 1 rear exhaust + 1 top exhaust. This keeps dust accumulation low by pushing air out through unfiltered gaps rather than pulling it in, while still evacuating hot air efficiently through intentional exhaust paths.

What You Should Do

Pull out your fans before the next install and check them with the sticker rule. Takes 30 seconds per fan and eliminates the most common reason builds run hotter than they should. Set front and bottom fans as intake, rear and top fans as exhaust, and aim for slightly more intake CFM than exhaust. If you’re picking up new fans for the build, the best 140mm case fan options cover both high-airflow and static pressure choices across budget ranges. Check your temps before and after any fan change. The data will tell you immediately whether the configuration is working. That’s the whole job: get the direction right, verify with temps, and move on.
