PC Airflow Diagrams: Positive vs Negative Pressure

A PC airflow diagram is a visual map showing the direction air moves through a computer case, identifying which fans act as intake and which act as exhaust.

Last updated: July 2026

Quick Answer: What Is a PC Airflow Diagram?

A PC case airflow diagram uses colored arrows (blue for intake, red for exhaust) to show how air enters, travels through, and exits your case. The goal is to create a controlled path from cool air sources (front, bottom) through hot components (GPU, CPU) and out through exhaust points (rear, top). Getting this right keeps temperatures low, reduces dust buildup, and can meaningfully extend component life.

Most builds would benefit from a concrete plan before a single fan gets mounted. This guide covers airflow diagrams for mid-tower, SFF, and full-tower cases, breaks down the real numbers behind positive and negative pressure, and addresses AIO radiator placement, an area most guides skip entirely.

What Is a PC Airflow Diagram? (And Why You Need One)

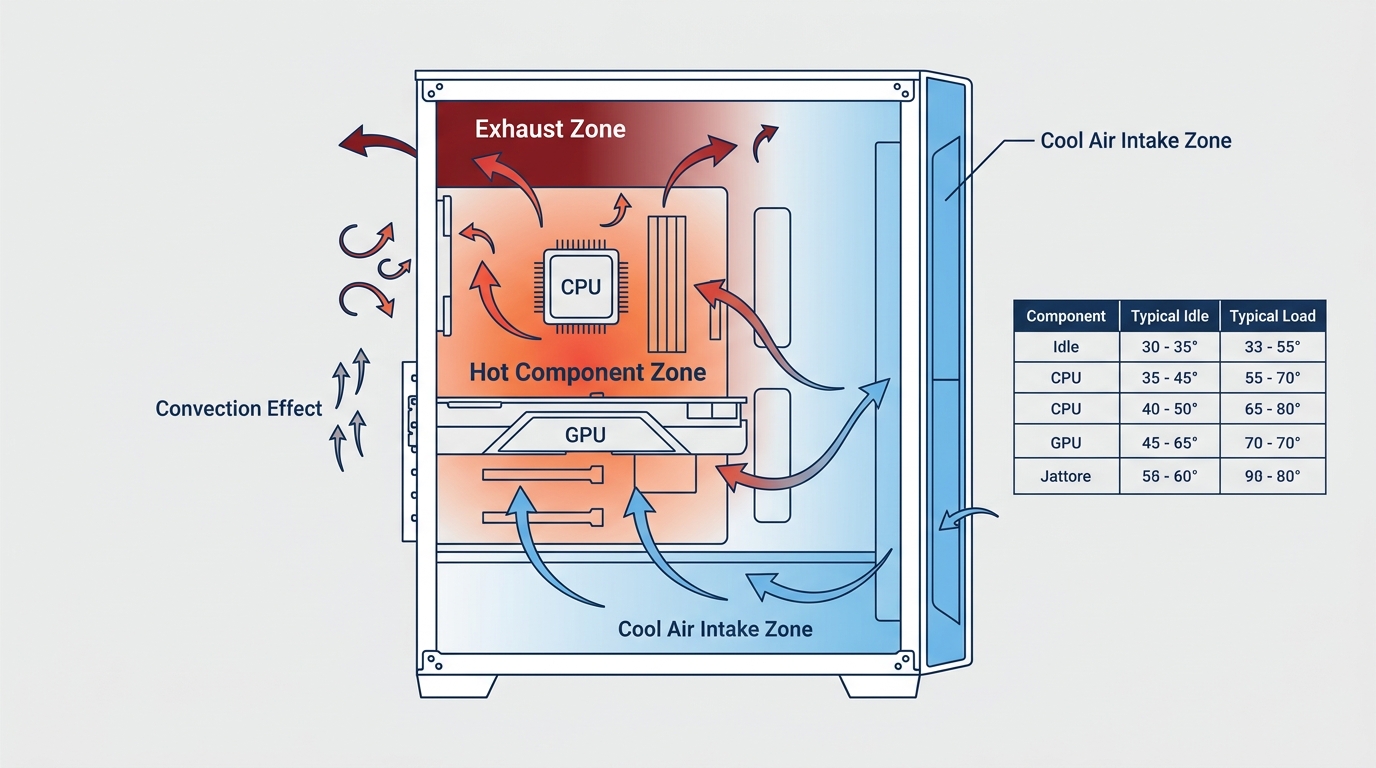

The Basic Principle: Air In, Air Out

A PC case is essentially a controlled wind tunnel. Cool air enters through intake points, picks up heat from your components, and exits through exhaust points. Hot air rises naturally due to convection, which is why rear and top exhaust fans work with physics rather than against it. Front and bottom fans work as intake because they pull cool ambient air in at low points before it has heated up.

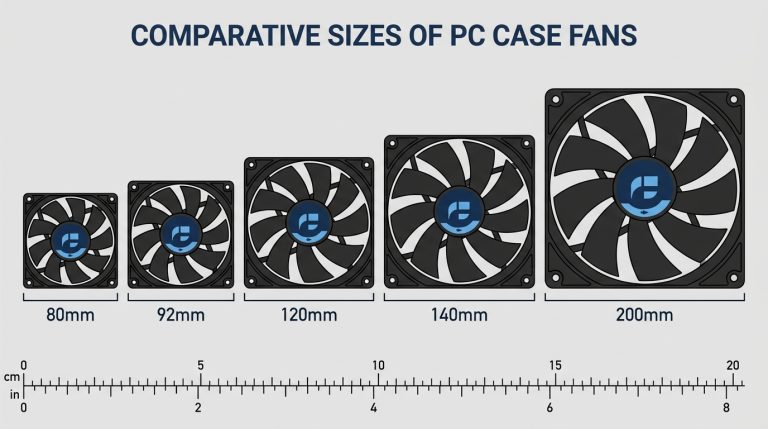

The two variables that determine everything are intake volume (CFM) and exhaust volume (CFM). CFM, cubic feet per minute, measures how much air a fan moves per minute. A typical 120mm case fan moves 40–80 CFM depending on its speed and blade design. A 140mm fan moves 55–110 CFM, which is why 140mm fans are often worth the upgrade when your case supports them: more air per revolution, less noise.

One more thing before mounting any fan: check the arrow printed on the fan frame. That arrow points in the direction air travels. Ignore it and you’ll have a rear fan blowing into the case instead of out. Happens more than you’d think.

Reading a PC Case Airflow Diagram

Standard PC airflow diagrams use a simple color convention: blue arrows indicate intake (cool air flowing in) and red arrows indicate exhaust (hot air flowing out). This convention came from community resources like the widely-shared Facebook custom PC builder diagrams and has become the de facto standard across forums and YouTube tutorials.

When reading a cross-section diagram, you’re looking at the case from the side with the panel removed. Blue arrows entering from the front and bottom are intake fans pulling cool air in. Red arrows leaving from the rear and top are exhaust fans pushing hot air out. A front-facing diagram shows the same information from a different angle, the front grille with two blue arrows means two intake fans behind that panel.

Arrows pointing toward components show airflow direction. A longer arrow typically represents higher CFM. If an arrow is thinner near a component, it usually indicates restricted or partially deflected airflow, relevant when GPU heatsinks or cable runs block the path.

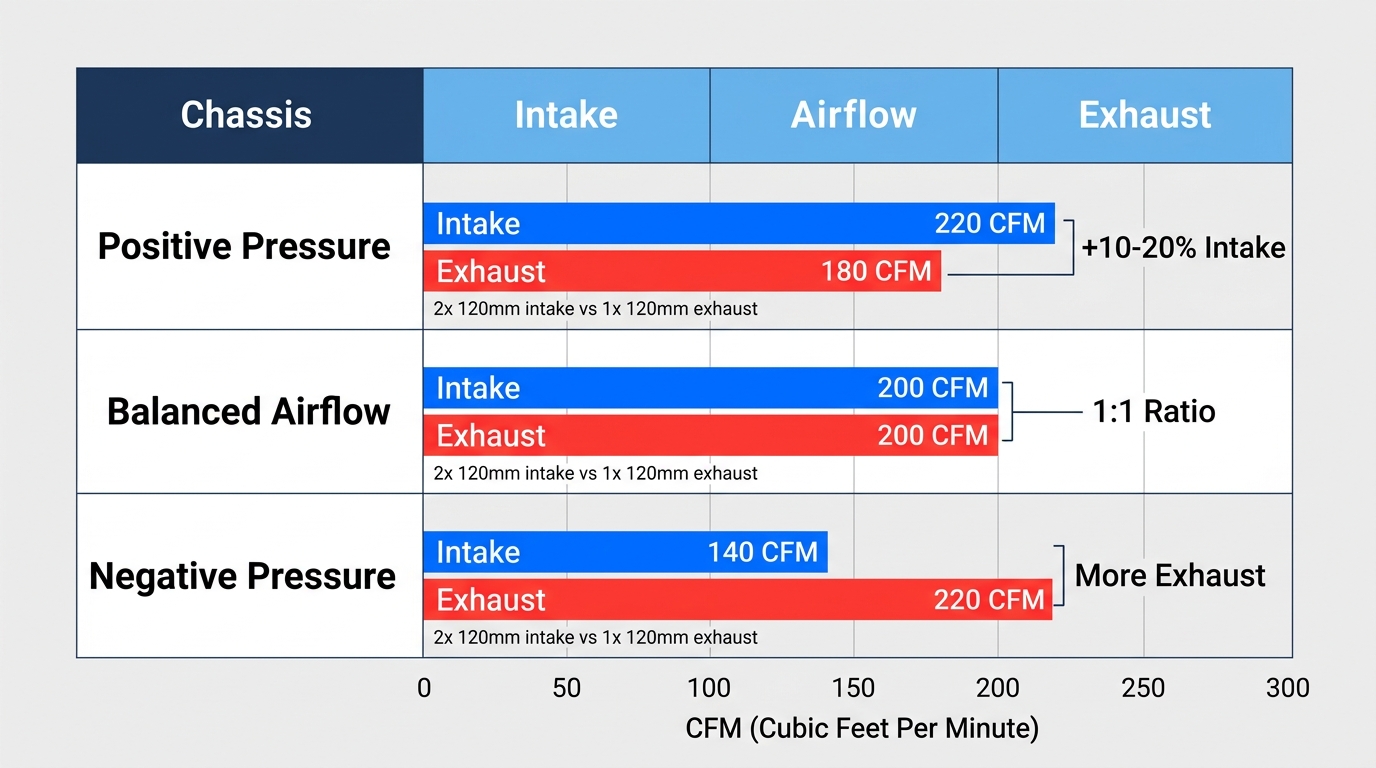

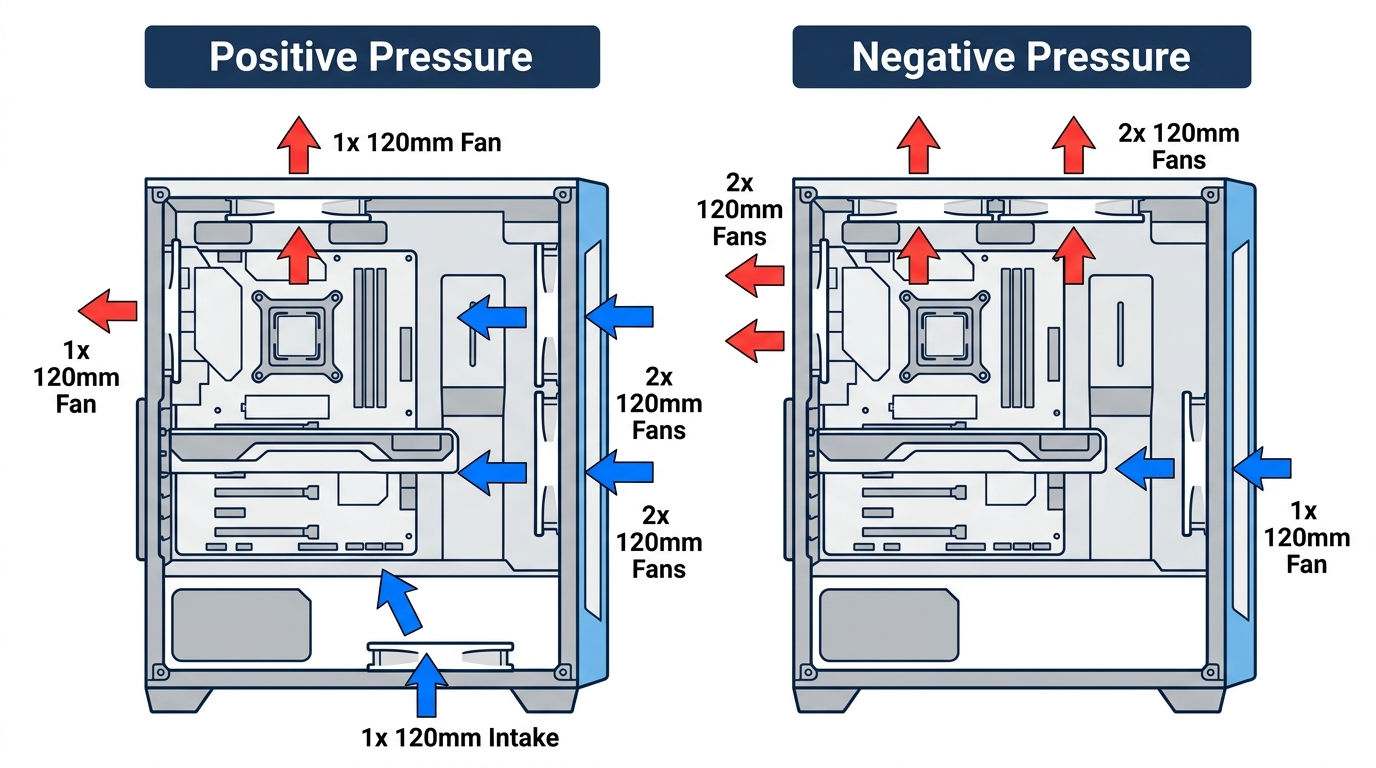

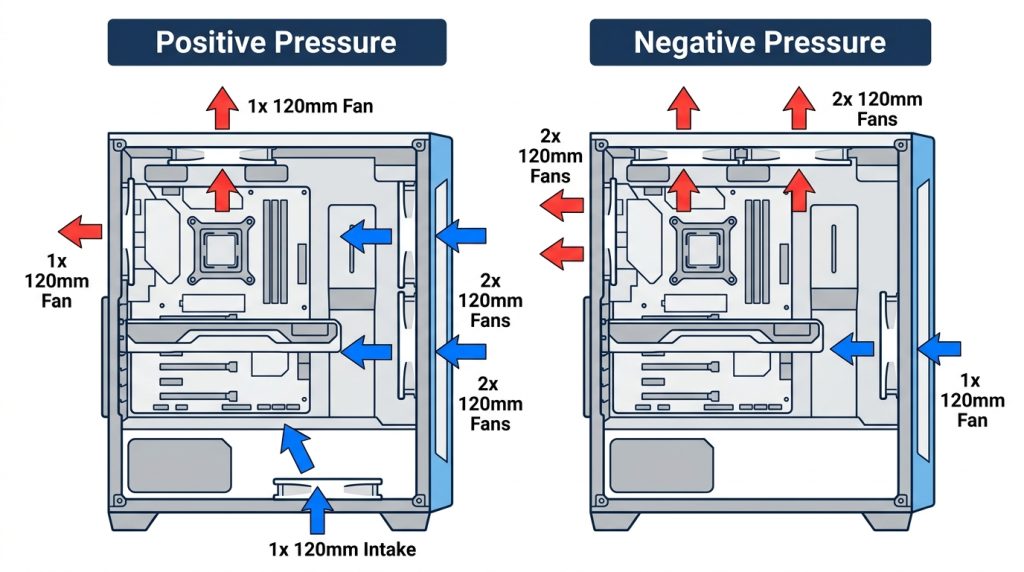

Positive vs. Negative Pressure, The Core Decision

Positive Pressure Airflow Explained

Positive pressure means your intake fans push more CFM into the case than your exhaust fans pull out. The result: case interior air pressure is slightly higher than ambient, so air exits through designed exhaust points rather than being sucked in through unfiltered gaps.

A typical positive pressure setup in a mid-tower: two front 120mm fans plus one bottom 120mm fan running at 60 CFM each (180 CFM total intake) against one rear 120mm and one top 120mm fan running at 50 CFM each (100 CFM total exhaust). That’s 1.8:1 intake-to-exhaust, aggressively positive. A more practical target is 10–20% more intake CFM than exhaust CFM. For example, 180 CFM intake vs. 150 CFM exhaust (1.2:1 ratio) is ideal.

The dust benefit is real: filtered positive-pressure intakes keep large airborne particles out of the case rather than letting them settle on components, and independent testing has shown measurably less dust buildup on positive-pressure builds versus negative-pressure ones. Exact reduction percentages vary by test methodology and case, so treat any single number here as a ballpark rather than a guarantee.

Worth the extra attention during setup.

Negative Pressure Airflow Explained

Negative pressure reverses the balance: more CFM exits than enters. Example: two front 120mm intakes at 60 CFM each (120 CFM total intake) against two top 120mm exhausts and one rear 120mm exhaust at 50 CFM each (150 CFM total exhaust). The interior pressure drops below ambient, and air gets drawn in through every available gap, PCIe slot covers, PSU vents, cable pass-through holes, side panel seams.

Those gaps have no dust filters. Your components become a magnet for every dust particle the case can inhale. Not great.

The temperature picture is also mixed. Negative pressure can improve localized hot-spot cooling if exhaust fans are aimed directly at GPU and VRM zones, but in restricted airflow cases, negative pressure setups can see 3–8°C higher GPU temperatures compared to balanced setups because fresh air isn’t reaching the GPU efficiently. That variation depends heavily on the specific case design.

Balanced/Neutral Airflow, The Compromise

Balanced airflow means equal CFM in and out. In practice, it’s hard to hit exactly due to manufacturing variance between fans and the fact that most cases have more fan slots in some positions than others. Balanced setups make the most sense in two scenarios: open-mesh cases where natural convection supplements the fans, and silence-focused builds where running fewer fans at low RPM is the priority.

Airflow Type	CFM Ratio (In:Out)	Avg Temp Impact	Dust Accumulation	Best For
Positive Pressure	1.1:1 to 1.2:1	Neutral to +2°C	Low (filtered intake)	Long-term clean builds, general use
Negative Pressure	1:1.2 to 1:1.5	-1°C to +8°C (varies)	High (unfiltered gaps)	Short-term performance, open benches
Balanced	~1:1	Neutral baseline	Medium	Quiet builds, open-mesh cases

PC Airflow Diagrams by Case Form Factor

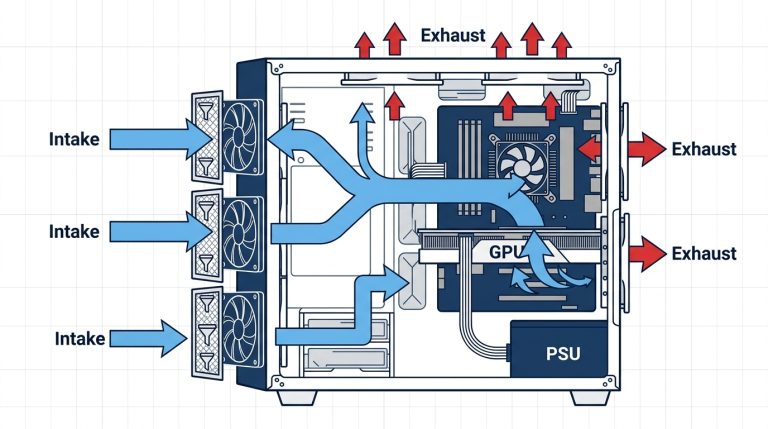

Mid-Tower ATX Airflow Diagram (Most Common Setup)

Mid-tower ATX cases are the default for a reason: they offer enough fan slots to build an efficient, directional airflow path without the complexity of a full tower. Standard fan positions include the front (2–3 fans), top (1–2 fans), rear (1 fan), and sometimes bottom (1–2 fans).

The recommended baseline configuration: front x2 intake + bottom x1 intake, exhausting via rear x1 + top x1–2. This puts the GPU in a positive pressure zone fed by cool air from the front and bottom. The CPU cooler exhausts toward the rear and top, where exhaust fans are positioned to pull that heat out.

Hot air rises, so top-as-exhaust is the simplest and most reliable default: it works with convection instead of against it, and it’s the right call for the vast majority of builds. It isn’t an absolute rule, though. Noctua’s own airflow testing found that a mixed top configuration, one top fan run as intake (paired with a turbulence-reducing inlet spacer) alongside a second top fan as exhaust, can outperform an all-exhaust top on both cooling and noise in some cases. That’s an advanced, spacer-dependent setup rather than the default: without the spacer and testing to back it up, a top intake fan is more likely to just trap heat at the highest point in the case.

Noctua’s own airflow guides walk through graduated configurations, from a basic three-fan setup (two front intake, one rear exhaust) up to a six-fan setup for higher-heat builds, scaling fan count to the case and thermal load rather than prescribing one universal layout for every ATX case. The consistent thread across their guides is that front-mounted intake, paired with adequate exhaust, is the reliable foundation to build from.

Mini-ITX / Small Form Factor (SFF) Airflow Diagram

SFF cases are where airflow planning gets genuinely difficult. You’re often working with 1–2 fan slots total, no room for a conventional tower CPU cooler, and components packed tight enough that airflow paths are short and turbulent.

Priority order in an SFF build: GPU exhaust first, CPU exhaust second, intake third. The GPU in a small case dumps a massive amount of heat into a tiny space. If that heat can’t exit, everything thermal suffers. Many SFF case designs rely on a single fan handling intake for the entire system, cases like the Louqe Ghost S1 and NCASE M1 depend heavily on the GPU’s own fans and strategic case fan placement.

Sandwich-layout cases (like the Dan A4-SFX) split into two distinct zones: the GPU occupies one side, the CPU the other, each with their own airflow channel separated by the motherboard. This design partially compensates for the size penalty. Even so, expect SFF components to run noticeably hotter, often several degrees C, than identical components in a mid-tower with proper airflow. That’s just physics. You can manage it, but you can’t eliminate it.

Full-Tower ATX / E-ATX Airflow Diagram

More space doesn’t automatically mean better cooling. In fact, full towers introduce a risk that smaller cases don’t have: dead spots. A large interior with insufficient fan coverage creates pockets of stagnant warm air that settle around components and never get flushed out.

Full towers can support distinct airflow zones, a lower front zone dedicated to GPU cooling (fed by the bottom 2–3 intake fans) and an upper zone for the CPU and memory (fed by upper front intake fans exhausting toward the top). Minimum fan configuration for a full tower to function properly: 3 intake fans plus 2 exhaust fans. Under that, you’re likely running with dead spots regardless of placement.

Cable management matters more in a full tower than in any other form factor. A thick cable bundle crossing the front intake path measurably reduces effective airflow and can raise component temperatures a few degrees just by blocking the lane. Route cables behind the motherboard tray and use tie-down points to keep the main chamber clear.

PC Airflow Diagrams With an AIO Radiator

Front-Mounted Radiator Airflow Diagram (Recommended)

A front-mounted AIO radiator changes your intake configuration significantly. The radiator fans pull cool ambient air from outside the case through the radiator fins, absorb CPU heat into the liquid loop, and push the now-slightly-warmer air into the case interior. The radiator itself acts as your intake.

This is the most thermally efficient AIO placement for CPU temperatures. The CPU liquid block is fed the coolest possible air, ambient temperature, not pre-heated case air. The tradeoff: that air warms by 2–5°C passing through the radiator before reaching the GPU. For most builds, that’s an acceptable exchange.

For a 360mm front radiator, you have three fan positions on the radiator acting as intake. Pair them with a rear exhaust fan and one or two top exhaust fans to maintain positive pressure overall. Use a push configuration for front-mounted rads: fans on the outside face of the radiator, pulling cool air through from outside the case into the fins. Pull setups (fans on the inside of the rad) work but underperform push in most thermal tests by a small margin.

If you’re deciding between an AIO and air cooling, the liquid cooling explainer breaks down how AIO loops work before you commit to a radiator placement plan.

Top-Mounted Radiator Airflow Diagram

A top-mounted AIO radiator works as an exhaust: case fans pull hot air from the interior upward through the radiator and out the top. It works with convection, which is a genuine advantage. Hot air is already rising toward the top, so the rad fans are assisting a natural process.

The risk is recirculation. In positive pressure setups with warm case air, a top-mounted rad can pull pre-heated air through the radiator rather than ambient-temperature air. That’s especially noticeable in hot rooms (above 30°C ambient). CPU temps with a top-exhaust AIO typically run 3–7°C higher than the same AIO mounted at the front as intake, though this varies by case design and ambient conditions.

Top mounting is a solid choice for mid-towers where the front slots are blocked, already occupied by a beefy mesh panel with intake fans, or where aesthetic routing is a constraint. It’s not the optimal thermal choice, but it’s not a bad one either.

Rear-Mounted Radiator (120mm / 240mm), When It Makes Sense

A rear-mounted radiator replaces the single rear exhaust fan with a radiator-plus-fan stack that serves as the primary exhaust point. This works well in cases with limited top or front radiator mounting options, common in compact mid-towers and some ITX designs.

The limitation is surface area. A 120mm rad is built around a single fan’s worth of radiator core, so it has a fraction of the heat-dissipating fin surface of a 240mm or 360mm rad. That’s adequate for mainstream CPUs (65–125W TDP) at moderate ambient temperatures. Push a 280W CPU through a 120mm rear rad and you’ll be thermally limited fast. For high-TDP CPUs (Intel Core i9-14900K, AMD Ryzen 9 9950X), rear-mounted single-rad AIOs don’t have the surface area to keep up under sustained load.

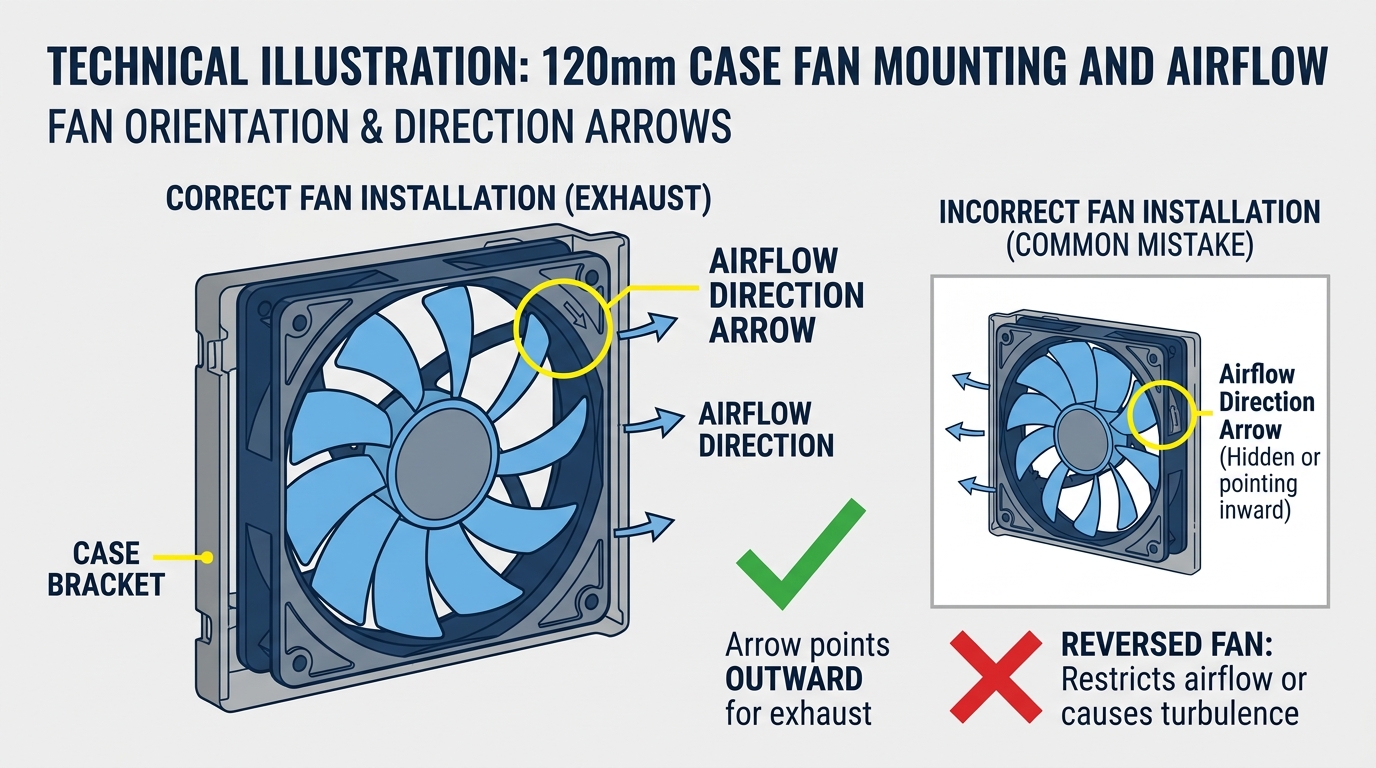

PC Fan Airflow Direction: How to Tell Which Way a Fan Blows

The Three Ways to Check Fan Direction

You have three reliable methods, and you should use at least two of them before mounting a fan permanently.

• Method 1 (Arrow on frame): Most modern fans have a direction arrow molded or printed on the outer frame. The arrow points in the direction air travels, toward the arrow means that’s the exhaust face.
• Method 2 (Blade curvature): Look at the fan blades. The concave (scooped) face of the blades pulls air from that side. The convex face pushes air away. Air is pulled from the concave side and pushed out the convex side.
• Method 3 (Power test): Plug the fan in, run it briefly, and hold your hand near each face. The warm-moving-air side is the exhaust. Clear and definitive.

The most common mistake: builders install rear fans from inside the case, mounting them correctly mechanically but reversing the airflow direction because they didn’t check the arrow before threading the screws. The fan sits in the right slot but blows into the case instead of out. Costs you several degrees C on the CPU for no reason.

Common Fan Placement Mistakes (With Fixes)

Mistake	Why It’s Wrong	Fix
All top fans set to intake	Hot air rises and collects at the top, intake fans push it back down, trapping heat	Set top fans to exhaust as the default; a mixed top setup (one intake, one exhaust) can work but needs a turbulence-reducing spacer and testing to get right
Front fans set to exhaust	Pushes warm internal air out the front, pulls nothing cool in from the bottom/rear	Reverse front fans to intake orientation
Bottom fans set to exhaust in sealed cases	Creates turbulence with no clean intake path, warm air circulates instead of flowing	Use bottom fans as intake only if case has bottom vents/filter
Mismatched CFM ratings across fan positions	Large CFM imbalance creates pressure inefficiency and turbulence between zones	Match fan models per zone or use CFM math to balance

How to Plan Your PC Case Airflow Before You Build

Paper Planning: The CFM Math

Before buying a single fan, run the math. Look up the CFM rating on the manufacturer’s spec page for each fan model at its rated RPM. Add up total intake CFM. Add up total exhaust CFM. Then apply this formula:

Pressure Balance % = (Total Intake CFM / Total Exhaust CFM) × 100

A result above 100% is positive pressure. Below 100% is negative. Right at 100% is balanced.

Example: Three 140mm fans at 68 CFM each (204 CFM intake) against two 120mm fans at 50 CFM each (100 CFM exhaust). That gives 204%. Way too aggressively positive, that level of pressure imbalance can cause turbulence as air struggles to exit fast enough. Dial it back toward 110–120% for real-world positive pressure benefits without the turbulence penalty.

For a practical target: aim for 180 CFM intake vs. 150 CFM exhaust. You hit positive pressure at 1.2:1 without overshooting. Knowing how many case fans your build actually needs before purchasing helps avoid both over-spending and under-performing configurations.

Online PC Airflow Simulation Tools

The BuildCores 3D fan simulator is the most practical free visual planning tool available. It lets you place fans in supported case models, flip intake/exhaust direction, and see airflow arrow overlays in a 3D view. It’s not a computational fluid dynamics (CFD) tool, it won’t model turbulence or pressure gradients. But for visualizing which slot goes which direction before parts arrive, it’s genuinely useful.

Major case manufacturers also publish recommended configurations. Fractal Design’s support documentation includes airflow guides for their Define and Meshify lines with specific fan placement recommendations per case model. Corsair and Lian Li do the same for their flagship cases. If your case is from one of these brands, check the manufacturer’s resources before treating generic diagrams as gospel, case-specific guidance always beats generic advice.

Best PC Airflow Setup: Our Recommended Configurations by Use Case

Build Type	Recommended Config	Fan Count	Pressure Type	Priority
Budget Gaming	2 front intake + 1 rear exhaust	3 fans	Positive	Cost efficiency
Mid-Range Gaming	3 front intake + 1 rear + 1 top exhaust	5 fans	Positive	Thermal performance
High-End Gaming with AIO	360mm front rad intake + 1 rear + 2 top exhaust	6 fans	Positive	CPU + GPU thermal balance
Workstation / Content Creation	3 front + 1 bottom intake + 2 top + 1 rear exhaust	7 fans	Slightly positive	Sustained load thermals
SFF / Mini-ITX	Case-specific (1–2 fan slots max)	1–2 fans	Neutral/Negative	Physical fit constraints

FAQ, PC Airflow Questions Answered

How should my airflow be in my PC?

For most mid-tower builds, run positive pressure: 10–20% more intake CFM than exhaust CFM. The baseline setup is two or three front fans as intake, one rear fan as exhaust, and one or two top fans as exhaust. This configuration applies to roughly 90% of mid-tower ATX builds and delivers a solid balance of cooling performance, dust management, and noise levels without requiring any custom tuning.

Is positive or negative pressure better for PC cooling?

Positive pressure is better for most users. It keeps dust accumulation low through filtered intake fans, maintains consistent component temperatures, and is easier to maintain long-term. Negative pressure can marginally improve localized cooling in specific component zones, but the dust ingress through unfiltered gaps adds up over months and can become a bigger temperature problem than the airflow benefit it provided. Unless you’re on an open test bench and cleaning regularly, positive pressure wins.

Do top case fans always need to be exhaust?

For most builds, yes, top exhaust is the simpler and more reliable default since it works with convection instead of against it. There are two exceptions: a top-mounted AIO radiator in a push configuration, and Noctua’s own tested mixed-top setup, one top fan as intake (with a turbulence-reducing spacer) paired with one top fan as exhaust, which improved both cooling and noise in their reference case. Both require careful implementation; for a standard fan-only setup without that extra hardware, top exhaust remains the safer default.

How many fans does a PC need for good airflow?

The functional minimum for a gaming PC is 3 fans: two front intake and one rear exhaust. That covers the baseline airflow path. Optimal performance in a mid-tower high-end build lands at 5–7 fans depending on whether you’re running an AIO. More fans don’t always mean better cooling, two well-placed 140mm fans can outperform five poorly placed 120mm fans. CFM, placement, and pressure balance matter more than raw fan count. Monitoring your CPU temperatures under load is the most direct way to confirm your airflow setup is working.

Can bad PC airflow cause permanent damage?

Yes, over time. Sustained CPU temperatures above 90–100°C under load accelerate electromigration in the CPU die, gradually degrading the silicon at the atomic level. GPU sustained above 90°C shows similar long-term wear. NVMe SSDs without heatsinks in poor-airflow cases can throttle above 70°C (158°F) and degrade NAND write endurance faster at high sustained temperatures. The damage is cumulative and slow, a few hot gaming sessions won’t kill your hardware, but years of consistently running hot absolutely can shorten component life meaningfully.

Final Thoughts

Airflow is one of the few things in PC building you can fully plan before anything runs hot. Front and bottom intake, rear and top exhaust, 10–20% more intake CFM than exhaust, that’s the formula for 90% of builds. AIO at the front as intake is the most thermally efficient radiator placement in a mid-tower. Check the arrow on your fan frame before you mount it. And if you’re working in a SFF case, accept the thermal trade-off and manage it through fan selection and component TDP awareness, not by fighting the laws of physics. Map your airflow before the build starts and you won’t need to troubleshoot it after.
