ARGB Fans: How They Connect and Sync

ARGB fans are PC case fans with individually addressable LEDs controlled by an onboard IC chip receiving data through a 3-pin 5V header, enabling per-LED color programming.

Last updated: July 2026

Quick Answer: What Are ARGB Fans and How Do They Connect?

ARGB fans connect via a 3-pin 5V header on your motherboard, typically labeled ADD_HEADER, ARGB, or AURA. Each fan has two separate cables: one for lighting (the 3-pin ARGB connector) and one for power and speed control (a 4-pin PWM or 3-pin DC connector). If your motherboard has a 5V 3-pin ARGB header, you can connect fans directly and control them through your motherboard’s RGB software. No standalone controller required.

Most first-time builders think RGB and ARGB are the same thing with a different name. They’re not. Plugging an ARGB fan into the wrong header can permanently kill the LEDs. Here’s everything you need to know to connect, sync, and troubleshoot ARGB fans without making that expensive mistake.

What Are ARGB Fans?

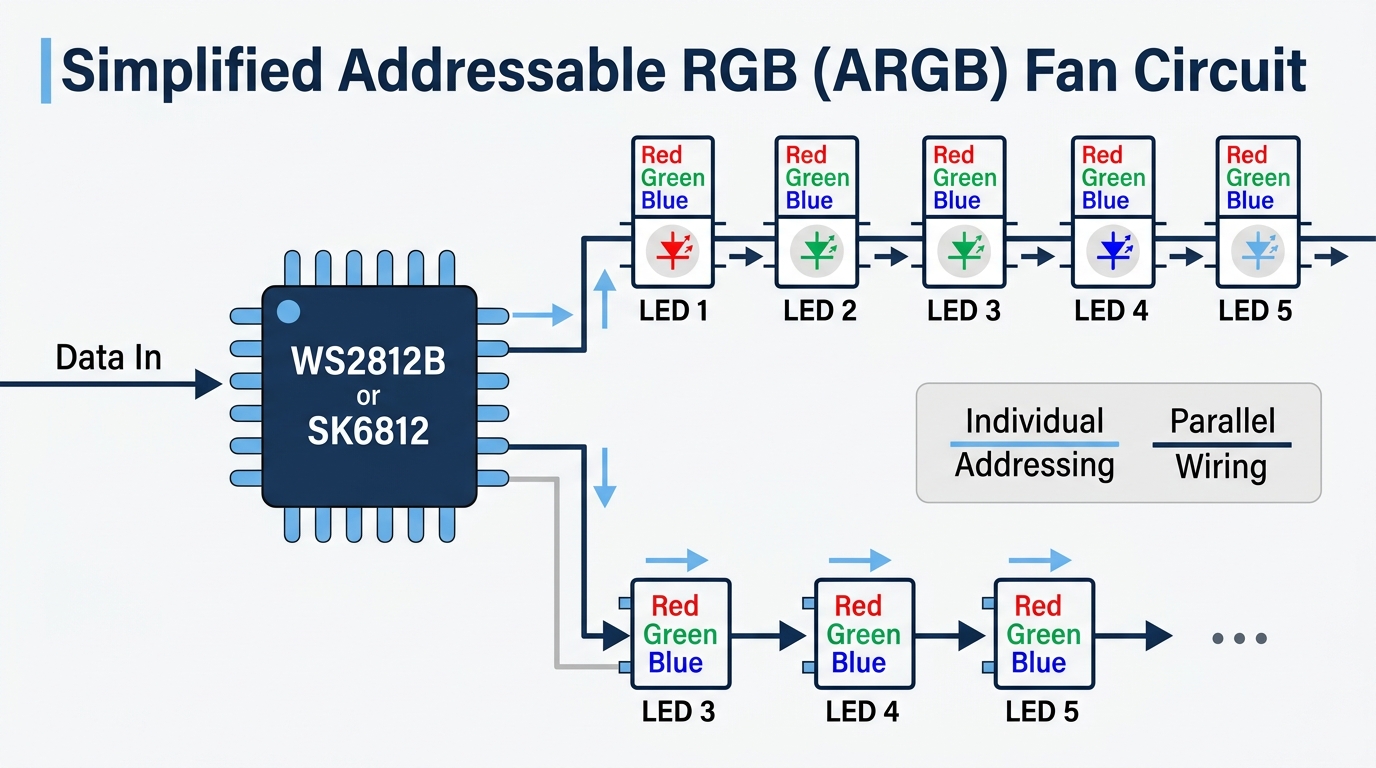

The Technology Behind ARGB

Every LED in an ARGB fan is wired to a microcontroller IC, commonly a WS2812B or SK6812 variant. That IC receives a single serial data line, which is what allows thousands of LEDs to be individually addressed over a single wire. The result is per-LED color control at any point in a lighting chain. You can run a color wave, have one side of the fan glow red while the other pulses blue, or match temperatures in real time.

Standard RGB fans work completely differently. They use parallel wiring where all LEDs receive the same signal simultaneously, meaning every LED shows the same color. No IC chip, no individual addressing. That’s the core distinction, and it’s why ARGB costs a bit more.

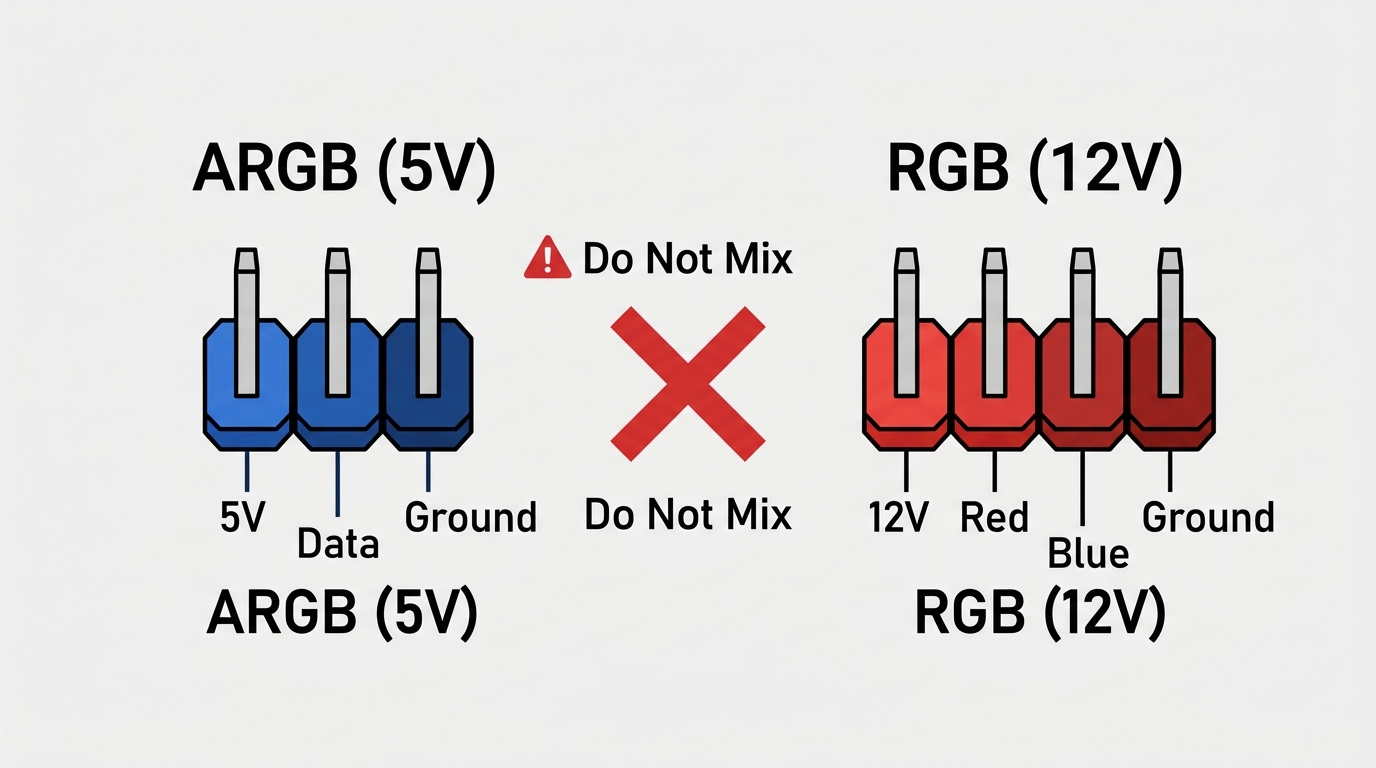

ARGB vs RGB: Key Spec Differences

The voltage difference is the one that matters most in practice. A 5V ARGB fan plugged into a 12V RGB header will burn out the LED IC instantly. The connectors look similar enough to create confusion, which is why this section exists.

Feature	ARGB	RGB
Header type	3-pin, 5V	4-pin, 12V
Voltage	5V	12V
LED control	Per-LED (addressable)	All LEDs same color
Lighting effects	Unlimited dynamic effects	Pre-set patterns or static
IC chip required	Yes (WS2812B / SK6812)	No
Price premium	15-35% over RGB	Baseline
Motherboard header	5V 3-pin ARGB	12V 4-pin RGB
Connector keying	Notched 3-pin (missing pin 3)	Standard 4-pin

For a deeper look at how these connectors and headers are laid out physically on your motherboard, the RGB header types, pinouts, and connection guide covers every variant you’re likely to encounter.

How ARGB Fans Connect: Step by Step

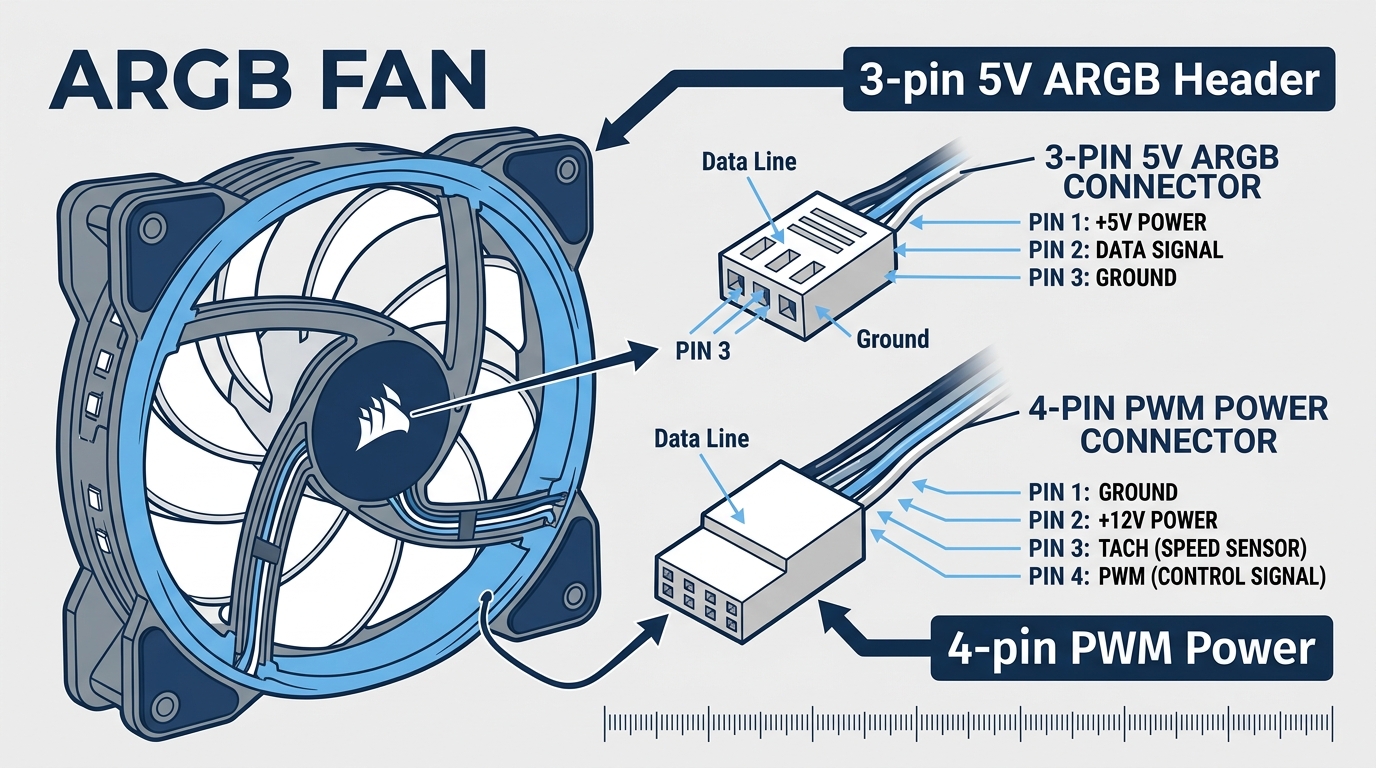

The 3-Pin 5V ARGB Header

The ARGB header on your motherboard is a 4-position connector with only three pins actually populated, leaving a deliberate gap where pin 3 would be. That gap is a physical key that prevents wrong-way insertion. Here’s what each pin does:

• Pin 1: +5V power
• Pin 2: Data signal (DI)
• Pin 3: absent (keyed gap)
• Pin 4: Ground

This standard was popularized by ASUS with their AURA ecosystem and is now universally adopted across motherboard manufacturers. On most boards you’ll find it labeled ADD_HEADER, ARGB, AURA, or 5V_3PIN, usually printed on the silkscreen near the bottom-right area of the board. Most modern ATX motherboards include 2-3 ARGB headers. Budget boards sometimes only have one, which is where hubs become necessary.

The PWM Fan Power Connector

This trips up a lot of first-time builders. ARGB fans have two separate connectors coming out of them, not one. The ARGB connector handles lighting only. It carries no power for the fan motor. The second connector is a standard 4-pin PWM (pulse-width modulation) or 3-pin DC cable that actually spins the fan.

• 4-pin PWM: controls fan RPM via duty cycle modulation, more precise, preferred on modern boards
• 3-pin DC: controls RPM by varying voltage, older method, less precise at low speeds

Both cables from an ARGB fan need to be connected. Miss the PWM cable and the fan won’t spin. Miss the ARGB cable and it won’t light up. Neither will cause hardware damage if left unplugged, but you obviously want both working.

Connecting Directly to a Motherboard Header

1. Power off the system completely and unplug from the wall.
2. Locate the 5V 3-pin ARGB header on your motherboard. Consult the manual if you can’t find it immediately; the header diagram is typically on the first few pages of the component layout section.
3. Orient the ARGB connector so the keyed gap aligns with the plastic guide on the header.
4. Press in with gentle, even pressure. It should seat with a light click. Never force it.
5. Connect the PWM cable to any available CHA_FAN or SYS_FAN header.
6. Boot into Windows, open your motherboard’s RGB software, and the fans should appear automatically.

One spec worth knowing: most motherboard ARGB headers are rated for a maximum of 3A at 5V, which equals 15W total. A single ARGB fan draws roughly 0.3-0.5A for lighting, so you can safely run 3-4 fans on one header before approaching that limit. Beyond that, use a hub.

Using a Fan Hub or ARGB Controller

If you’re running more than 3-4 ARGB fans, a hub isn’t optional. It’s necessary. A hub connects to one motherboard ARGB header, then distributes the data signal to multiple fans simultaneously via either daisy-chain or star topology. Two types exist, and they’re not equal:

Hub Type	Max Fans	Signal Amplification	Software Control	Price Range
Passive splitter	3-4	No	Via motherboard	$5-$15
Active fan hub (SATA powered)	6-12	Yes	Via motherboard	$15-$35
Standalone ARGB controller	6-16	Yes	Controller or app	$20-$60
Brand-specific hub (e.g., Lian Li UNI HUB)	Up to 16 (brand fans only)	Yes	Proprietary software	$30-$70

For a detailed breakdown of how ARGB controllers and headers work together, including how to wire a hub correctly, the ARGB controllers and headers explained guide goes through every connection scenario.

Do ARGB Fans Need a Controller?

No. If your motherboard has a 5V 3-pin ARGB header, the board itself acts as the controller. You manage everything through software like ASUS AURA Sync, MSI Mystic Light, or Gigabyte RGB Fusion.

A standalone controller becomes useful in three situations:

• Older motherboard: boards from before 2018 often have no ARGB header at all; a standalone controller with USB connectivity fills that gap
• Advanced effects: some standalone controllers offer effects that go beyond what motherboard software provides, especially for reactive audio sync
• Six or more fans: you’ll hit header current limits and need a powered hub regardless

Budget B450 and B550 boards from 2019 onward almost universally include at least one ARGB header. Check your manual before spending $20-$30 on a controller you don’t need. The header is there far more often than people assume.

Standalone controller options range from basic RF remote units ($10-$20) with limited preset effects to brand-specific controllers like the Corsair Lighting Node Core and Lian Li UNI HUB that offer full software integration. Universal ARGB controllers with USB micro-B connections work with most third-party software and sit in the middle at $20-$40.

How to Sync ARGB Fans: Software Ecosystems Explained

Motherboard Brand Software

Your motherboard’s RGB software is the primary control method for ARGB fans connected to its headers. Each major brand has its own suite:

Motherboard Brand	RGB Software	ARGB Support	Supported Effects	Cross-Brand Sync
ASUS	AURA Sync	Yes	17+ effects	iCUE, Razer (limited)
MSI	Mystic Light	Yes	15+ effects	Limited
Gigabyte	RGB Fusion 2.0	Yes	9+ effects	Limited
ASRock	Polychrome Sync	Yes	12+ effects	Limited
AMD (platform)	No native software	Via board software	Depends on board brand	Depends on board brand

Cross-Brand Sync: What Actually Works

Here’s the honest reality that fan marketing glosses over: cross-brand sync is unreliable and frequently requires workarounds. Corsair iCUE does not natively sync with ASUS AURA. MSI Mystic Light doesn’t talk to Gigabyte RGB Fusion. Each ecosystem is designed to keep you buying within that brand.

For mixed-brand builds, two third-party tools actually solve this:

• OpenRGB: open-source, free, supports 300+ devices across brands, runs on Windows and Linux. The 1.0 release-candidate series (1.0rc3 as of mid-2026) is the current stable build and the one to use.
• SignalRGB: freemium, more polished interface, 500+ device support, includes game integration and reactive effects. Version 2.x is stable and widely supported.

Both tools bypass proprietary software entirely and control your devices directly through USB or SMBus. Not perfect. But far better than running four different RGB applications simultaneously.

Daisy-Chain Limits by Brand

Daisy-chaining means connecting fans in series: Fan 1 data out feeds Fan 2 data in, which feeds Fan 3, and so on. It’s convenient for cable management, but signal integrity degrades over long chains without active amplification. Here are real-world limits before you see visual artifacts like flicker or color shift:

• Lian Li UNI FAN system: up to 16 fans total (4 fans per channel across 4 channels) with the active UNI HUB
• Generic ARGB daisy-chain (passive): 3-4 fans maximum
• Corsair daisy-chain (proprietary): up to 6 fans per Lighting Node
• DeepCool FD12 ARGB V2: uses an 8-pin daisy-chain connector with 9 ARGB LEDs per fan, with active hub support

Rule of thumb: if you’re chaining more than 3 fans without an active hub in the loop, expect problems. Budget an extra $15-$25 for a powered hub when building out a 4+ fan setup.

Common ARGB Fan Connection Mistakes

Mistake 1: Plugging Into a 12V RGB Header Instead of 5V ARGB

This one is irreversible. Feeding 12V into an IC designed for 5V operation burns the chip out immediately. The fix is always prevention: verify the header voltage before connecting. Check your motherboard manual, look for the “5V” silkscreen label on the board, and remember that the ARGB connector has a keyed gap. If it seats into a 4-pin RGB header without resistance because you forced it, stop before powering on.

Mistake 2: Fans Light Up But Won’t Sync

This usually means the fan is connected to a SATA-powered hub for motor power, but the hub’s ARGB data cable isn’t connected to the motherboard header. The fans get power from SATA and default to a rainbow cycle. Connect the hub’s ARGB output cable to the motherboard’s 5V 3-pin header and reopen the RGB software. They’ll appear instantly.

Mistake 3: Colors Look Wrong or LEDs Flicker

Classic passive splitter overload. Too many fans on one passive split causes the signal to weaken, and downstream fans start showing incorrect colors or flickering between frames. Replace the passive splitter with a powered ARGB hub. If the issue persists on a long daisy-chain, add a signal repeater between chains.

Mistake 4: RGB Software Doesn’t Detect the Fans

Some motherboards have both a 3-pin 5V ARGB header and a 3-pin 12V RGB header side by side. They look nearly identical. If the software can’t find the fans, you’ve likely used the 12V header (assuming the LEDs didn’t burn out, which happens when the board has polarity protection). Consult the manual, confirm the header is labeled 5V or ARGB, and move the connector.

ARGB Fan Specifications: What the Numbers Mean

When you’re shopping for ARGB fans, the spec sheet matters as much as the lighting. A good reference point is the Arctic P12 PWM PST A-RGB, which runs 200-2000 RPM PWM controlled, delivers 48.80 CFM of airflow, hits 1.85 mmH2O of static pressure, and generates only 0.3 Sone of noise. That’s a solid benchmark for a 120mm ARGB fan.

The standard Arctic P12 ARGB without the PWM PST variant runs 600-1500 RPM and delivers up to 60.63 CFM with a noise level of 18.8-26.5 dB(A) according to Arctic’s official specifications. That’s a reasonable reference point for what a well-made 120mm ARGB fan can do.

• Fan size: 120mm is most common; 140mm moves more air at lower RPM for quieter operation; 80mm and 92mm suit tight cases
• RPM range: 500-2000 RPM for quality PWM fans; fixed-speed budget fans typically run around 1300 RPM
• Airflow (CFM): 30-75 CFM depending on blade design; target 50+ CFM for effective case cooling
• Static pressure (mmH2O): 0.5-3.5 mmH2O; higher values matter for radiators and dense mesh fronts
• Noise level (dBA): 20-35 dBA at full speed; under 25 dBA is the target for quiet builds
• Bearing type: sleeve bearings are cheap but degrade faster; FDB (fluid dynamic) bearings run quieter and last longer; double ball bearings are loud but rated for the longest lifespan
• LED count: 8-16 LEDs per 120mm fan is typical; higher LED count produces smoother gradient transitions

The ASUS TUF Gaming TR120 ARGB, as noted in ASUS’s product documentation, pushes 3.3 mmH2O of static pressure and 77.4 CFM airflow thanks to its extra-thick 28mm frame. That’s toward the top end of what you’ll find in retail ARGB fans.

FAQ: ARGB Fans

Do ARGB fans need a controller?

No, not if your motherboard has a 5V 3-pin ARGB header. The motherboard acts as the controller through its RGB software. A standalone controller is only necessary for older boards without ARGB headers, for setups with 6+ fans that exceed header current limits, or when you want effects beyond what the motherboard software offers.

Can I mix ARGB fans from different brands?

Electrically, yes. Any 5V 3-pin ARGB fan will connect to any compatible header regardless of brand. Lighting sync across brands is where it breaks down. Proprietary ecosystems like Corsair iCUE, ASUS AURA, and MSI Mystic Light don’t natively communicate with each other. For mixed-brand builds, use OpenRGB (free, open-source) or SignalRGB (freemium) to control everything from one interface.

What is the difference between ARGB and RGB fans?

RGB fans use a 4-pin 12V connector, and all LEDs display the same color at the same time. No individual control. ARGB fans use a 3-pin 5V connector with an onboard IC chip (typically WS2812B or SK6812) that allows each LED to be controlled independently. The result is dynamic, programmable lighting effects that RGB simply can’t produce. For a full side-by-side breakdown, the ARGB vs RGB comparison guide covers every technical and practical difference.

How many ARGB fans can I connect to one header?

Directly to a motherboard ARGB header via a passive splitter: 3-4 fans maximum before signal degradation causes flickering or incorrect colors. With an active powered hub connected to that same header, you can run 6-16 fans per channel depending on the hub model. Brand-specific systems like the Lian Li UNI HUB support up to 16 fans total (4 per channel) with active signal management.

Will ARGB fans work without software?

Yes. Without RGB software, most ARGB fans default to a rainbow cycle effect stored in the IC’s onboard memory. Some fans ship with a physical button or included RF remote for basic color selection. You’ll lose per-LED control and sync features, but the fans will light up and spin normally without any software installed.

The Short Version

ARGB fans connect via a 3-pin 5V header for lighting and a separate 4-pin PWM connector for motor power. Don’t mix that up with the 12V RGB header. If your board has an ARGB header, you don’t need a standalone controller. For 4+ fans, step up to an active powered hub. Cross-brand sync needs OpenRGB or SignalRGB rather than relying on proprietary software ecosystems. Check your specs before buying: airflow, static pressure, and bearing type matter as much as how many LEDs the fan has. Pick your fans, connect them correctly, and the rest is just software configuration.
