GPU Support Bracket: Do You Need One? Best Options in 2026

A GPU support bracket is a metal brace that prevents heavy graphics cards from sagging and damaging motherboard PCIe slots.

Last updated: September 2026

A GPU support bracket is a mechanical arm or brace mounted inside a PC case to counteract graphics card sag, the downward bend caused by the weight of heavy modern GPUs on the PCIe slot. These are passive accessories that require no power and are compatible with most ATX, mATX, and ITX cases.

You just spent $800 on a flagship GPU, slotted it into your new build, and closed the side panel. Two weeks later you pop it open and notice the back end of the card is visibly drooping. That’s GPU sag, and with modern cards like the RTX 5090 and RX 9070 XT tipping the scales at well over 1,500 grams, it’s more common than ever. This guide covers exactly what a GPU support bracket does, whether your build actually needs one, the best options available right now, and how to install one without making things worse.

What Is a GPU Support Bracket?

A GPU support bracket is a secondary mounting accessory that takes vertical load off your graphics card’s PCIe x16 slot. That slot is the only physical anchor point holding your GPU to the motherboard. When a card weighs 1,500 grams or more and extends 330mm or longer, all that mass is cantilevering off a single connector. Physics takes over from there.

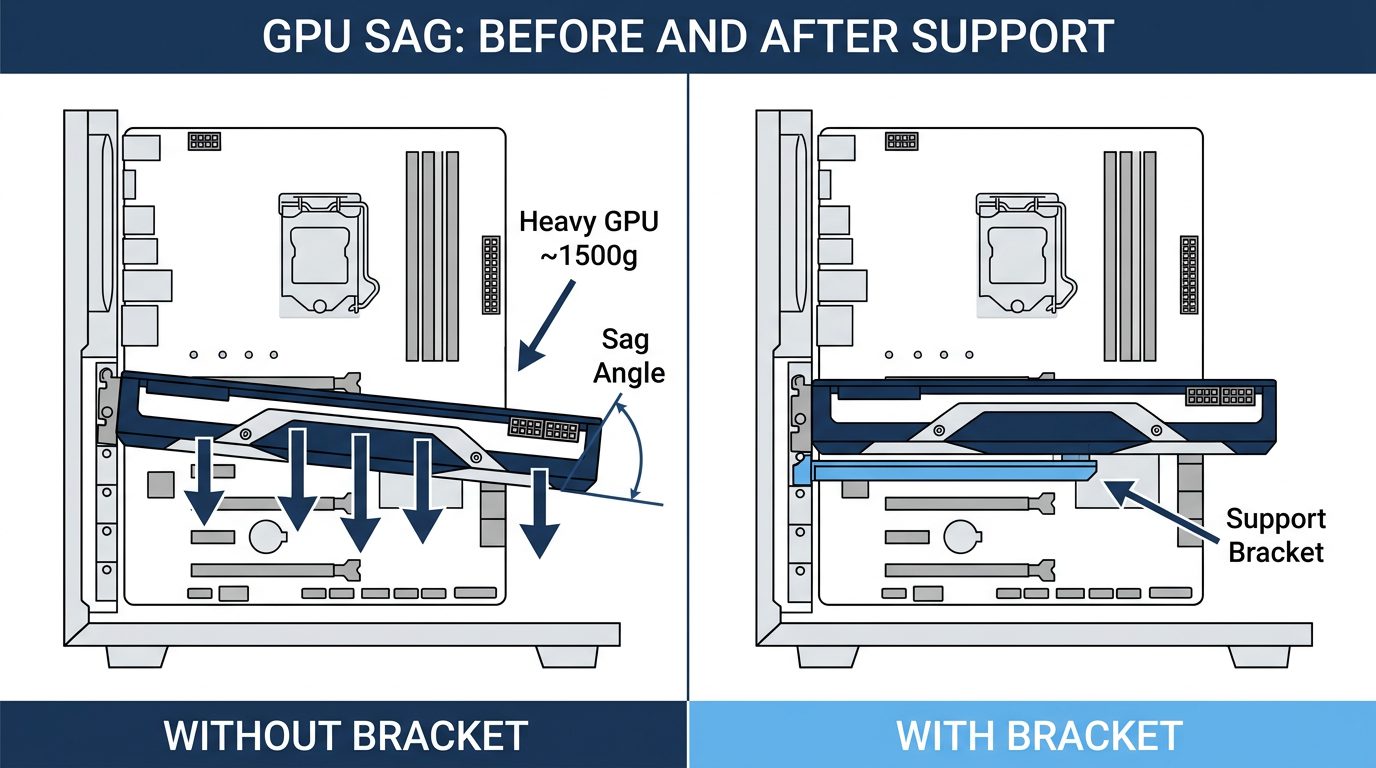

How GPU Sag Happens

The PCIe x16 slot was never designed to bear significant long-term mechanical load. Its job is electrical. The slot secures the card with a locking tab at the rear, but that’s it. No secondary support. Dual-slot cards from 2015 to 2018 rarely weighed more than 900 grams, so this wasn’t much of a problem. Modern triple-slot and quad-slot cards have changed that completely.

The weight distribution makes it worse. Most of the thermal mass sits at the far end of the card, opposite the IO bracket. That creates a lever arm. The longer and heavier the card, the more torque it applies to the PCIe slot.

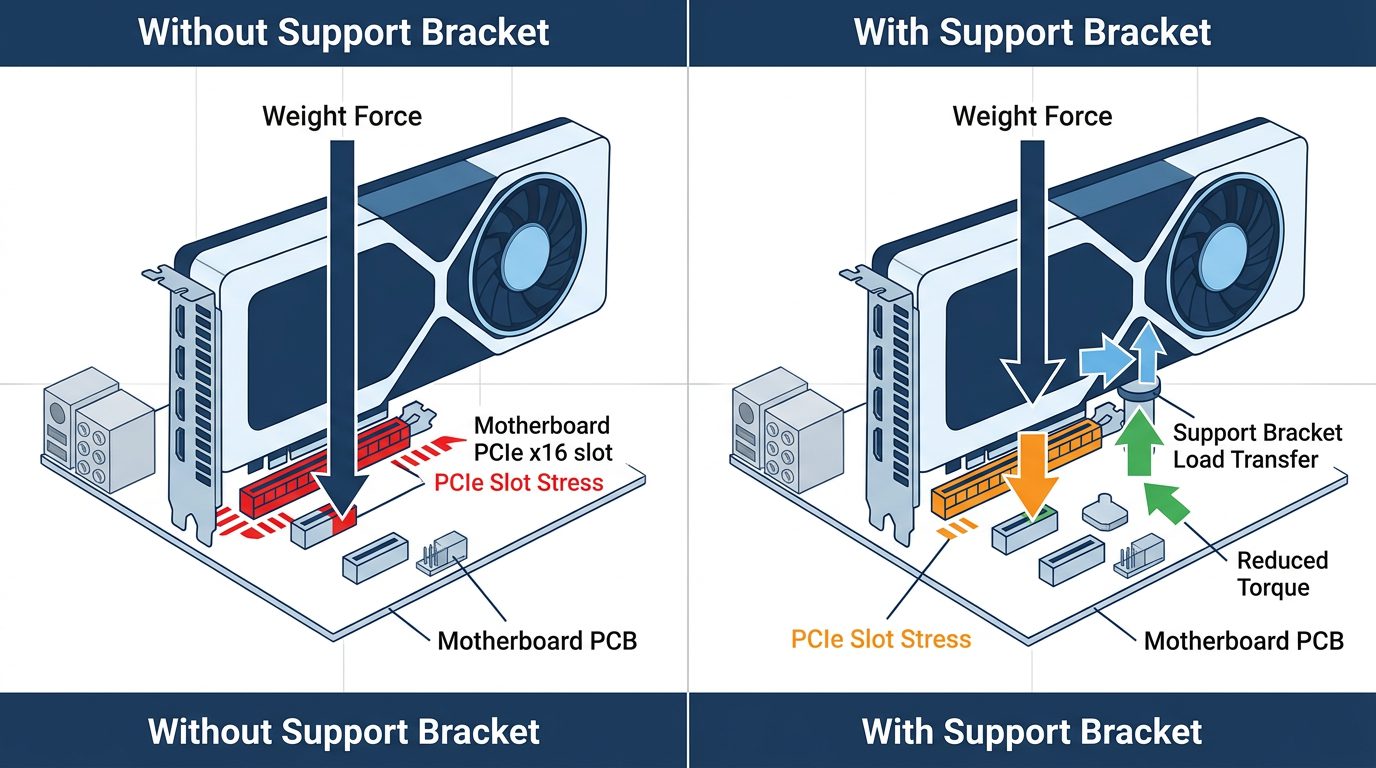

What a GPU Support Bracket Actually Does

Simple physics. The bracket transfers vertical load from the PCIe slot to the case floor or a secondary mounting point, reducing the torque applied to the slot and the motherboard PCB beneath it. No power required. No configuration. You set it, lock it, and forget it.

Brackets come in several types:

• Adjustable post or arm: Most common. A vertical post that sits beneath the GPU PCB end, height-adjustable via screw or ratchet mechanism.
• Case-integrated support rail: Built into some premium cases. No aftermarket part needed.
• Magnetic base bracket: Uses a magnet to anchor to the steel case floor. No screws, no drilling.
• 3D-printed bracket: Custom-fit, cheap to make, surprisingly effective up to around 1,500 grams.

GPU Model	Release Year	Weight (grams)	Sag Risk Level
RTX 3070 FE	2020	1,038g	Low
RTX 3080 FE	2020	1,352g	Moderate
RTX 3090 Ti FE	2022	2,212g	High
RTX 4080 FE	2022	2,132g	High
RTX 4090 FE	2022	2,186g	High
RTX 5090	2025	1,826g	High
RX 6800 XT Reference	2020	1250g	Moderate
RX 7900 XTX Reference	2022	1530g	High
RX 9070 XT (est.)	2025	~1450g	Moderate

Founders Edition weights are the figures NVIDIA publishes for its own cards and are exact. The AMD reference figures are approximate: AMD does not publish card weights the way NVIDIA does, and the RX 9070 XT has no reference design at all, so that row is an estimate across partner cards. Whatever the table says, weigh your own card or check its partner spec sheet — AIB models with heavier coolers routinely run 200 to 400g above the reference or Founders figure for the same GPU.

Should You Get a GPU Support Bracket?

Short answer: if your GPU weighs over 1,200 grams, yes. Full stop. The longer answer depends on your specific build, how long you plan to keep it running, and how much you care about what it looks like through that tempered glass panel.

Signs Your GPU Is Sagging

Some sag is obvious. Some isn’t. Here’s what to look for:

• Visible droop at the IO end: The slot bracket at the rear of the card angles downward relative to the case’s expansion slots.
• Gap forming between GPU and slot cover: Run your eye along the bottom edge of the GPU. A consistent gap that widens toward the far end confirms sag.
• Audible creak when moving the case: That’s the card flexing against the PCIe slot. Not great.
• String-line test: Stretch a piece of fishing line or thread from the IO bracket to the far end of the card. Any daylight between the string and the PCB top edge confirms downward deflection. Three to five degrees is moderate. Eight degrees or more is severe and needs addressing immediately.

When a GPU Support Bracket Is Definitely Worth It

Any GPU over 1,200 grams benefits from a bracket. That covers the RTX 3080 and above, RX 6800 XT and above, and essentially every flagship card released since 2020. AIB partner cards with beefier coolers often weigh more than the Founders Edition equivalents, so check your specific card’s spec sheet, not just the reference design.

You should also pick one up if:

• Your case has no integrated GPU support rail. Most mid-range and budget cases don’t.
• You’ve got a tempered glass side panel. Sag is visible and it looks bad.
• You’re building something you intend to run for three or more years. Cumulative mechanical fatigue is a real consideration.
• You’re in a full-tower or mid-tower ATX case, where longer cards have more unsupported span.

When You Probably Don’t Need One

Not every build needs one. ITX builds with compact dual-slot cards under 900 grams don’t have a meaningful sag problem. If you’re running a case with integrated GPU support, like the Lian Li O11 Dynamic series or certain Phanteks Enthoo and Eclipse models that include a built-in support rail, you’re already covered. Cards under 900 grams rarely produce visible sag in normal horizontal mounting. And if you’ve already vertically mounted your GPU, gravity is working differently and sag isn’t really the issue anymore (though airflow becomes one, which we’ll cover below).

How to Measure GPU Sag (and How Much Is Too Much)

“It looks like it’s drooping” is not a measurement, and it’s why people either panic over a card that’s fine or ignore one that isn’t. Before you buy anything, spend five minutes establishing how far the card has actually moved.

The Five-Minute Check

1. Power down, unplug, and stand the case upright on a flat, level surface. Measuring a case lying on its side tells you nothing useful.
2. Lay a straightedge along the top edge of the card, from the IO bracket to the far tip. A ruler, a spirit level, even the edge of a credit card works.
3. Check the rear IO bracket where it meets the expansion slot opening. It should sit flush. A gap here means the rear of the card has lifted while the front droops, which is worse than it looks.
4. Measure the vertical drop at the card’s far tip relative to the straightedge. That number is your deflection.
5. Inspect the PCIe slot housing for cracking, whitening, or deformation at the edges near the card’s contacts.
6. If you’ve had crashes or black screens, open Device Manager and check the display adapter for a Code 43 error after a ten-minute load test with GPU-Z or FurMark. Intermittent PCIe contact from severe sag shows up this way.

What the Number Means

Deflection at the card tip	What it means	What to do
Under 2mm	Cosmetic. You’d need a ruler to see it.	Nothing.
2–5mm	Stress accumulating on the PCIe fingers and slot housing.	Monitor it. Fit a bracket now if the card is over 1,200g.
Over 5mm	Real mechanical load on the slot and the PCB.	Fit support. Don’t leave it another year.
Rear bracket no longer flush, or visible slot damage	The card is partially unseated, not just bent.	Reseat the card, then support it before further use.

The string-line test described above gives you the same answer in angular terms: roughly three to five degrees of deflection lands in the “monitor it” band, and eight degrees or more is firmly in “fix it now” territory.

Sag is also cumulative. Heat cycling, fan vibration and the card’s own weight working at the slot housing turn a 3mm droop today into a 6mm droop a year from now. The number you measure is a starting point, not a steady state.

Where these thresholds come from. Neither PCI-SIG nor any GPU manufacturer publishes a maximum permissible sag figure. The PCIe specification governs the slot electrically and dimensionally; it does not rate the connector housing for bending load, and there is no official figure for how much weight a slot may carry. The bands above are practical rules of thumb drawn from builder practice, not a standard. Treat them as guidance on when to act, not as a pass/fail limit.

Does GPU Sag Actually Cause Damage?

This is where a lot of misinformation floats around. Let’s be specific.

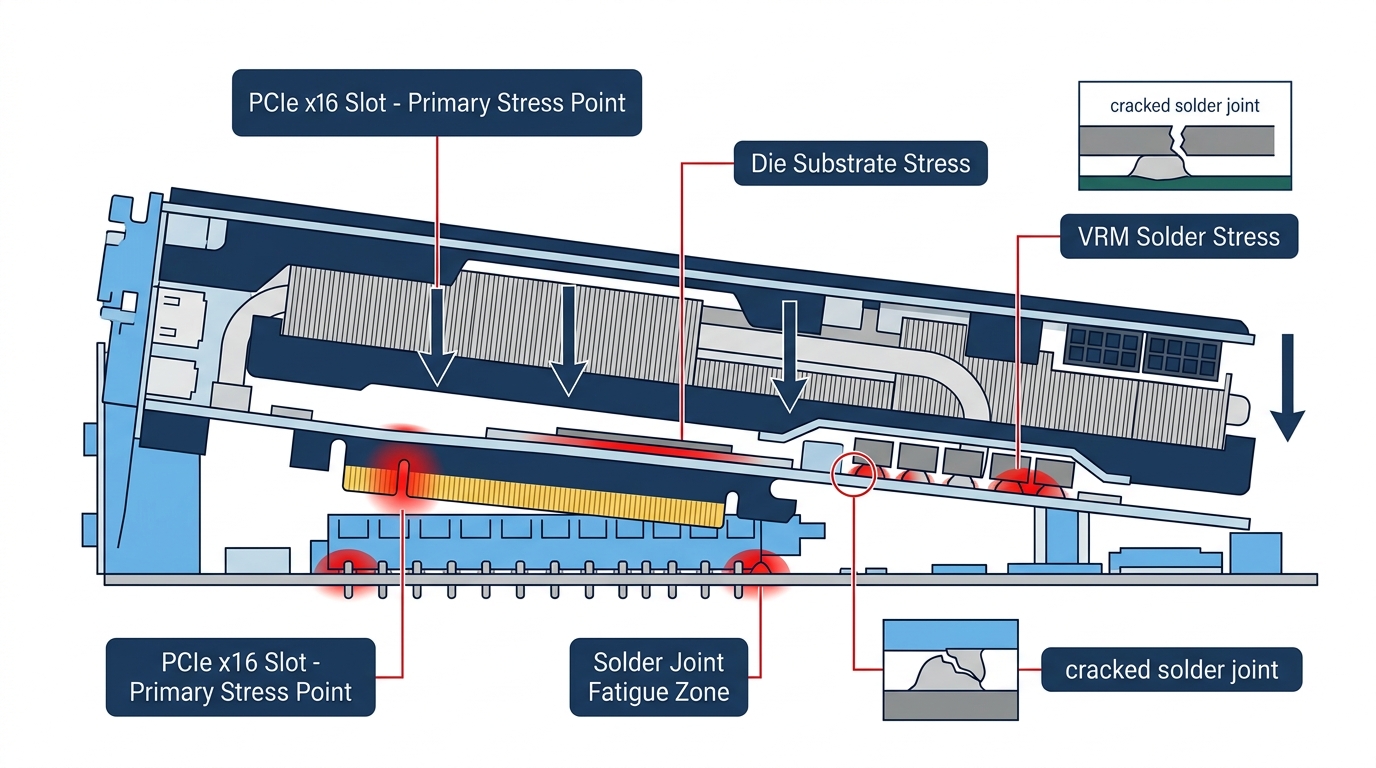

PCIe Slot Stress and Long-Term Risk

GPU sag does not kill cards overnight. It’s a slow, cumulative problem. The real risk isn’t to the GPU itself. It’s to the motherboard. The PCIe slot is soldered to the motherboard PCB, and sustained downward torque on that slot over months and years can cause micro-stress fractures in the solder joints and PCB laminate around the slot. Budget motherboards with thinner PCBs are significantly more vulnerable to this than high-end boards with reinforced slots, like ASUS’s STRIX series “SafeSlot” or MSI’s Steel Armor reinforcement.

How often this actually ends in a dead slot is not something anyone has measured properly. There’s no dataset, no failure-rate study, and the reports that circulate on hardware forums are self-selecting by nature — people post when something breaks, not when it doesn’t. What can be said without overstating it: the failure mode is real and physically plausible, it takes years rather than months, and when it does happen it means a new motherboard. That’s enough to justify a $15 bracket without pretending the risk is quantified.

Performance Impact of GPU Sag

Direct answer: sag does not affect performance or temperatures. The GPU doesn’t know it’s sagging. Clock speeds, thermals and memory bandwidth are not affected by a few millimetres of droop. There is no mechanism by which a bent PCB runs slower, and nobody has demonstrated one.

There is a theoretical edge case where extreme sag on some cooler designs could reduce contact pressure on the GPU die, but this would require truly severe deflection and isn’t documented as a real-world problem in any measurable testing. Don’t lose sleep over it.

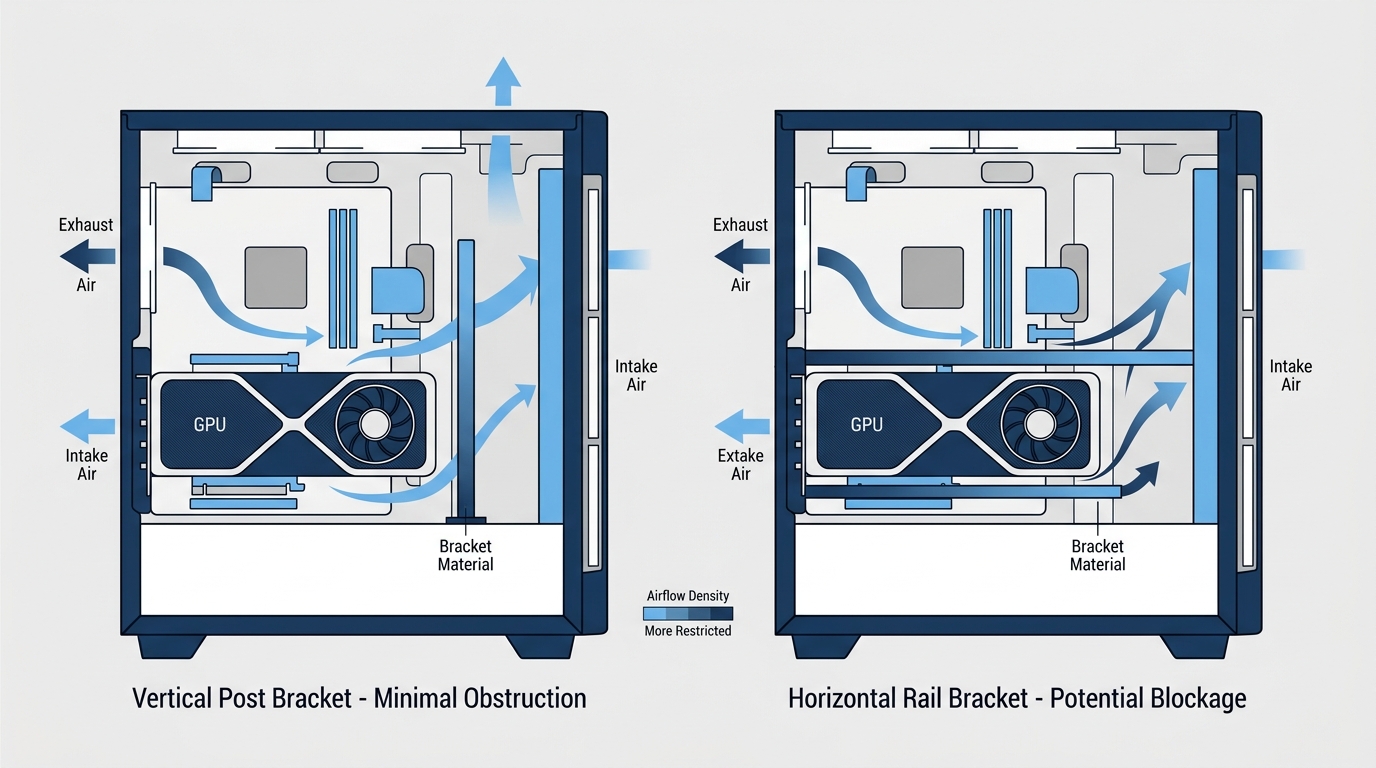

Do GPU Sag Brackets Affect Airflow?

It depends on the bracket type and where you position it. Most well-designed vertical post or arm brackets have a minimal footprint beneath the GPU and have negligible impact on airflow. A single post at the far end of the card, away from the fan array, doesn’t meaningfully restrict intake.

The brackets to avoid are cheap horizontal shelf-style designs that run the full length beneath the GPU fans. If the shelf sits close to the fan intakes, it restricts the air column feeding those fans and you’ll see GPU temperatures rise by a few degrees. Not catastrophic, but pointless self-inflicted thermal penalty.

Best practice: position any support bracket at the far end of the card, as far from the fan intakes as possible. A single adjustable post there provides all the support you need without touching the airflow path.

The more significant airflow concern is vertical mounting. Rotating the card to face the side panel cuts its intake clearance, and how much that costs you depends almost entirely on how much gap is left. With roughly 40mm or more between the card face and the glass, reported temperature differences are small. Squeeze that to 20mm or less — which is what happens in a lot of mid-towers with a thick card — and double-digit increases are common. Treat it as a clearance question rather than a fixed penalty: measure the gap your case and card actually leave before deciding.

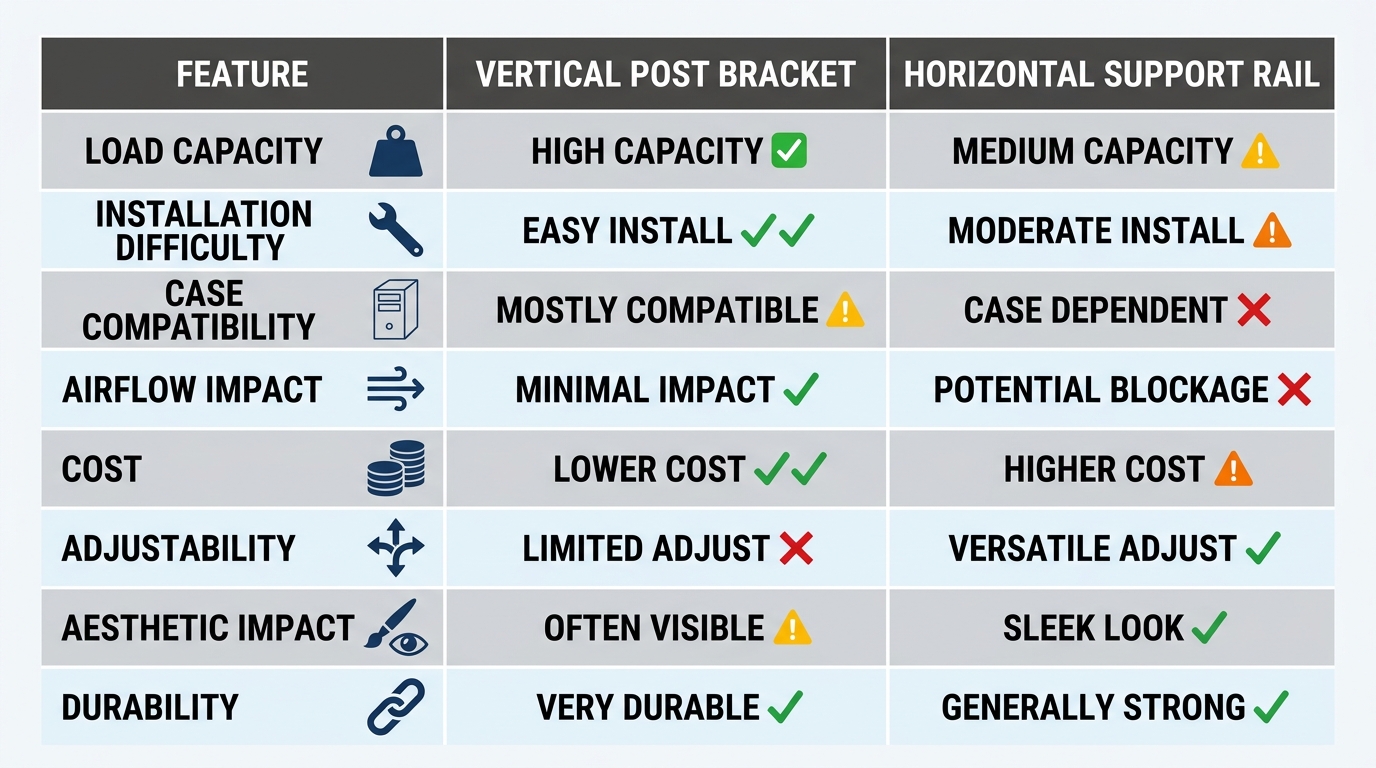

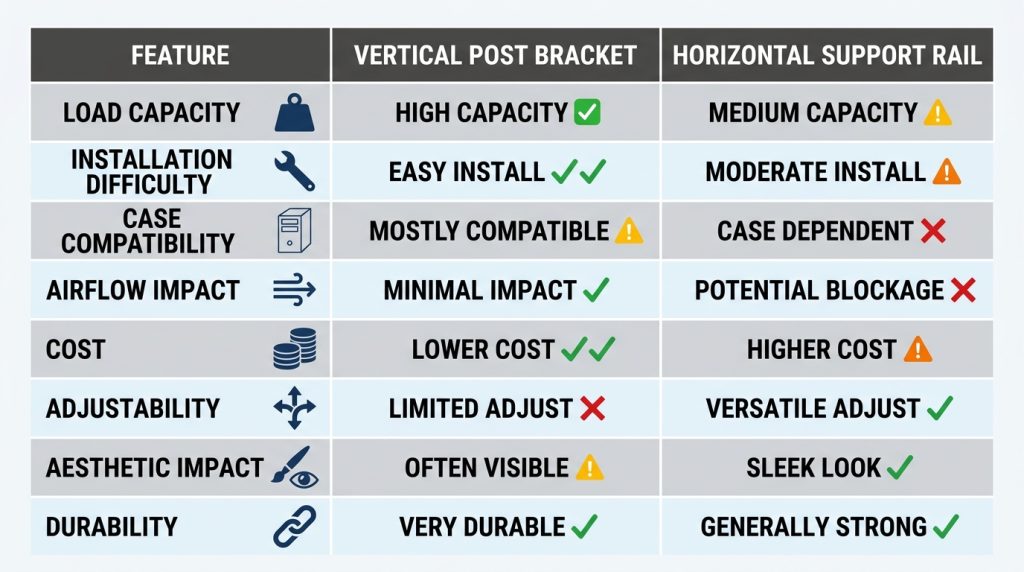

Is a Vertical or Horizontal GPU Support Bracket Better?

These solve the same problem in different ways and suit different builds. Neither is universally better.

Horizontal (Standard) Bracket

A horizontal-mount setup keeps your GPU in the standard PCIe orientation, parallel to the motherboard. A support bracket props up the far end of the card. This is the simpler approach by a wide margin. Better airflow, easier installation, works in virtually every case regardless of form factor. No additional hardware needed beyond the bracket itself. For most builders, this is the right call.

Vertical GPU Mount Bracket

Vertical mounting rotates the GPU 90 degrees so it faces the tempered glass side panel. Sag is eliminated by design because gravity now acts along the card’s length rather than across it. The card looks spectacular through a glass panel. That’s the genuine appeal.

The trade-offs are real though. You need a PCIe riser cable to connect the rotated GPU to the motherboard slot. There used to be legitimate concern about latency and bandwidth loss through riser cables, but modern PCIe 4.0 and 5.0 risers show less than one percent performance impact in controlled testing. That concern is essentially resolved at this point.

The thermal question isn’t resolved, though, and it comes down to clearance rather than the mount itself. A vertical card with plenty of room to the glass behaves much like a horizontal one; a vertical card breathing against a panel 15mm away does not. If you’re pushing a hot card hard in a case without generous side-panel space, vertical mounting moves you toward the throttle point.

Factor	Horizontal + Support Bracket	Vertical Mount Bracket
Ease of Install	Simple	Moderate (requires riser cable)
Airflow Impact	Minimal (bracket positioned correctly)	Depends on side-panel clearance; large with a tight gap
Sag Prevention	Effective with correct adjustment	Complete (gravity axis changes)
Cost	$10–$30 for bracket	$30–$80+ (bracket kit + riser cable)
Case Compatibility	Universal	Requires vertical mount support cutout
Aesthetics	Standard look	GPU visible through glass panel
PCIe Riser Required	No	Yes

Best GPU Support Brackets in 2026, Top Picks

These are picked on four things we can check against the manufacturers’ own published specifications: adjustment range, what the bracket is actually made of, how it mounts, and price relative to what it does. Where a maker publishes a figure we’ve used it; where nobody publishes one — maximum supported card weight being the obvious gap across this entire product category — we say so rather than inventing a number.

Prices are indicative retail ranges and move around by region and retailer. SunbeamTech runs no affiliate programme, so nothing below is a paid placement.

Best Overall: Cooler Master MasterAccessory ARGB GPU Support Bracket

Sold as the MasterAccessory ARGB GPU Support Bracket (model MCA-U000R-GSBTG-00), this is the one that looks like it belongs in a build rather than propping one up. The support arm adjusts from 41mm to 171mm, which covers effectively every ATX mid-tower and card combination you’re likely to own, and it ships with two supports in different orientations so you can sit it at the tail of the card or along the side nearest the panel. Installation is tool-less; the base holds position with a magnet. The edge-lit ARGB can be switched off entirely if you want the support without the light show.

Price range: $25–$35

Material: ABS plastic and tempered glass (no aluminium in the arm, despite what a lot of listings imply)

• Pros: Very broad 41–171mm adjustment, tool-less magnetic base, ARGB is switchable, two mounting orientations
• Cons: Overkill for non-windowed builds, higher price than basic posts, plastic-and-glass rather than metal

Best for: Showcase builds with tempered glass panels and ARGB lighting setups.

Best Budget Pick: upHere GPU Brace Support

The upHere brace is the no-nonsense option: a simple adjustable post that does one job properly. It’s sold under a spread of model numbers (G195BK, G205, GL05 and an ARGB version, GL28ARGB) that differ mainly in finish and lighting rather than function, so buy on price and colour and check the listed card clearance. upHere builds these from anodised aluminium rather than plastic, and the base carries a hidden magnet so it stands on a steel case floor or PSU shroud without screws. Sliding rubber pads let you position the contact point between the GPU’s fans.

Price range: $8–$14

Material: Anodised aluminium, magnetic base

• Pros: Very affordable, all-metal rather than plastic, compact footprint, several finishes
• Cons: Plain looking, no fan mount, model numbering is confusing and clearance varies between them

Best for: Functional builds where you just need the sag fixed without spending money on aesthetics.

Best Low-Profile Pick: Lian Li GB-002

Lian Li’s anti-sag brackets are the GB-001 and the newer GB-002, and both take a different approach to everything else here: instead of standing on the case floor, they mount to the motherboard standoffs and reach across to the card. That makes them close to invisible in a windowed build and independent of how much room you have underneath the GPU. The GB-002 adds both vertical and horizontal adjustment and fits ATX and E-ATX boards.

Worth knowing before you buy: because it mounts off the board rather than the floor, fit is less forgiving. Owners of the older GB-001 have reported the arm fouling fan blades on some card designs, and misalignment putting tension on the PCIe slot — the opposite of what you want. Dry-fit it before you tighten anything down.

Price range: $20–$28

Material: Aluminium

• Pros: Nearly invisible, doesn’t need case-floor clearance, GB-002 adjusts on two axes
• Cons: Fit is fussier than a floor-standing post, can foul fans or misalign if set up carelessly

Best for: Clean-looking builds, and cases where there’s nothing solid beneath the card to stand a post on.

If you’re after a white build, note that Lian Li’s white option in this area is the VG4v4 vertical GPU kit rather than a white version of the GB brackets. That’s a vertical mount with an anti-sag arm, not a drop-in replacement for a support post.

Best Magnetic Pick: EZDIY-FAB GPU Support Bracket

Magnetic base brackets solve one specific problem: cases where there’s no usable screw point under the card, or where you’d rather not commit to one. The hidden magnet in the base holds it on a steel case floor or PSU shroud, and the post adjusts from 67mm to 106mm from there. Aluminium alloy, sold in plain and ARGB versions.

The obvious limitation: magnets need ferrous metal. On an aluminium case floor or shroud it simply won’t stay put, so check what your case is actually made of before ordering. EZDIY-FAB publishes no maximum card weight, and neither does anyone else in this category — if you’re supporting a 2kg flagship, a bracket that screws down is the safer bet.

Price range: $12–$18

Material: Aluminium alloy, magnetic base

• Pros: No drilling or screw points needed, repositionable, clean installation, verified 67–106mm range
• Cons: Needs a ferrous surface, no published load rating, limited height range compared to the Cooler Master

Best for: Builds in steel-floor cases where you want a tool-free, reversible installation.

Best for MSI GPUs: Redragon GCP03 ARGB GPU Support Bracket

MSI’s SUPRIM X and GAMING X TRIO series cards are among the widest and heaviest AIB designs available, often running 340mm or longer with a substantial three-slot cooler stack. The Redragon GCP03 features an adjustable length arm in addition to height adjustment, which means it can reach the far end of a long MSI card without awkward positioning. The 5V 3-pin ARGB header integrates with MSI’s Mystic Light ecosystem cleanly. Durable aluminum and ABS construction handles the load without issue.

Price range: $18–$25

Material: Aluminum and ABS

• Pros: Adjustable length and height, ARGB with 5V 3-pin header, solid build quality
• Cons: ARGB cable routing can be fiddly in tight cases

Best for: MSI SUPRIM, GAMING X TRIO, and other oversized AIB cards with ARGB builds.

A Category Worth Knowing: Brackets With a Fan Mount

A subset of support brackets doubles as a fan mount, holding a 120mm or 140mm fan under the card to push air up into its intakes. In a case with poor bottom-to-GPU circulation that’s a genuine two-for-one, and they’re widely available — but almost entirely from unbranded and house-brand sellers rather than the names above. Phanteks, for instance, makes vertical GPU brackets and riser kits, not a fan-mount support bracket, so don’t go looking for one under that name.

Because this corner of the market is unbranded, buy on the measurements rather than the badge: check the fan size it accepts, the height range, and whether the fan sits clear of your card’s own intakes rather than blowing into the back of them. Treat any thermal figure in the listing as marketing until you’ve measured it yourself.

Best for: Builds where GPU temperatures are a concern and the case moves little air past the bottom of the card.

Product	Price	Material	How it mounts	Adjustment range	Best For
Cooler Master MasterAccessory ARGB	$25–$35	ABS + tempered glass	Magnetic base, tool-less	41–171mm	Showcase and ARGB builds
upHere GPU Brace (G195 / G205 / GL05)	$8–$14	Anodised aluminium	Magnetic base	Varies by model	Budget builds
Lian Li GB-002	$20–$28	Aluminium	Motherboard standoffs	Vertical + horizontal	Clean look, no floor clearance
EZDIY-FAB GPU Support	$12–$18	Aluminium alloy	Magnetic base	67–106mm	Tool-free installs
Redragon GCP03 ARGB	$18–$25	Aluminium alloy + ABS	Needs a free PCI slot, 50mm mount height	Sliding length + height	Long AIB cards, ARGB

Free and DIY GPU Sag Fixes, Ranked

A commercial bracket is the tidy answer, but you don’t have to wait for a delivery to take load off the slot. These methods all work. They differ in how permanent and how presentable they are.

1. Fishing Line or Braided Cord (best free fix)

The most popular zero-cost fix, and nearly invisible in a dark case interior.

1. Cut roughly 30cm of 10–20lb monofilament fishing line or thin braided cord.
2. Loop one end around the GPU’s heatsink shroud near the far end of the card, away from the IO bracket.
3. Run the line upward and anchor it to the top fan grill, a top-panel mounting hole, or a zip tie around the cable management bar.
4. Tension it gradually until the card sits level. Don’t overtighten — you’re removing the droop, not lifting the card above horizontal.
5. Tie off and trim. Avoid routing the cord over sharp metal edges where it can fray.

2. 3D-Printed Bracket (best DIY overall)

If you have access to a printer, this is the DIY option that genuinely matches a bought bracket. Full print settings and file sources are in the next section.

3. Closed-Cell Foam Block

Measure the gap from the underside of the GPU cooler to the surface below it — PSU shroud, drive cage, or case floor — and cut closed-cell foam to that exact height. Closed-cell matters: open-cell foam compresses over months and quietly stops doing its job. Five minutes, effectively free, not pretty.

4. Dowel, Pen Barrel, or Chopstick

Cut a rigid tube or rod to the measured gap height and stand it under the outer end of the card. It should make light contact, not push upward. Fine for cards under about 1kg and perfect while a proper bracket is in the post. It will shift if the case gets bumped, so add a rubber cap or a wrap of tape to protect the shroud.

5. Stiff Wire Cradle

Bend 14-gauge wire or a coat hanger into a U or L shape matched to the clearance under your card, then hook it to case fan mount points or thread it through an unused expansion slot. Wrap every contact point in heat-shrink or electrical tape first. It works. It looks like exactly what it is.

One safety rule applies to all of these: nothing conductive touches the PCB or any exposed component. Bare wire, foil and metal rods belong against the plastic or metal shroud, never against the board itself. Tape or sleeve any contact point you’re unsure about.

Method	Holds up over time	Looks acceptable	Cost	Time
Fishing line	Good	Yes, nearly invisible	$0–3	10 min
3D-printed bracket	Excellent	Yes	$1–5 filament	2–4 hr print
Closed-cell foam block	Fair	No	$0–2	5 min
Dowel or pen barrel	Fair, shifts if moved	No	$0	2 min
Wire cradle	Good	No	$0	5 min

How to 3D Print Your Own GPU Support Bracket

If you’ve got access to a 3D printer, this is a genuinely viable option. Fully functional for GPUs up to around 1,500 grams with the right material and print settings. Not great for anything heavier, but for a mid-range card it works perfectly well.

Files are freely available on Printables.com and Thingiverse. Search “GPU support bracket” or “GPU sag bracket” and filter by most downloaded. You’ll find designs for both post-style and shelf-style brackets, some of which include case floor screw mounts specific to popular cases like the NZXT H510 or Phanteks P400A.

Recommended print settings:

• Infill: 30–40 percent minimum
• Wall perimeters: 3–4
• Material: PETG strongly preferred over PLA for heat resistance

PLA can soften near hot components over time, especially in cases where ambient temps regularly exceed 45 degrees Celsius. PETG handles heat significantly better and is still easy to print. ABS is also fine but warps during printing and isn’t worth the hassle unless you have an enclosure.

The real advantage of printing your own is custom fit. You can measure the exact distance from your case floor to the underside of your GPU and print a bracket that fits with zero adjustment required. The filament cost is roughly $1 to $3 for a typical bracket, versus $10 to $30 for a commercial option. If you’re already printing other case accessories, it’s an obvious call.

How to Install a GPU Support Bracket

This takes about five minutes and you only have one chance to get the height adjustment wrong in a way that matters. Follow these steps in order.

Step-by-Step Installation

1. Power down and open the case. Unplug the system fully. You don’t need to remove the GPU for most bracket installs.
2. Identify your case floor mounting points. Most ATX cases have pre-tapped holes or a flat steel surface near the center-front of the case floor, roughly beneath where a GPU’s far end sits. Magnetic brackets skip this step.
3. Make sure your GPU is fully seated. Press the PCIe slot locking tab until it clicks. The bracket should support the card in its correct seated position, not compensate for a partially inserted card.
4. Measure the gap between the case floor and the GPU’s underside. A quick eyeball is fine for adjustable brackets. Set the bracket height so the top just contacts the card’s PCB edge or underside.
5. Adjust to light contact only. The bracket should touch the GPU, not lift it. Pushing the card upward creates reverse stress on the PCIe slot in the opposite direction. You’re not trying to overcorrect the sag. You’re preventing it from getting worse.
6. Lock the adjustment mechanism. Tighten the set screw or snap the ratchet into position depending on the bracket design.
7. Check cable routing. PCIe power cables connecting to the GPU should clear the bracket cleanly. Reroute if needed before closing the case.

Pro tip: If your bracket has a soft rubber or silicone tip where it contacts the GPU, use it. It prevents any chance of abrading the PCB edge or cooler shroud over time.

Preventing GPU Sag in a New Build

The cheapest fix is the one you never have to install. If you’re still choosing parts, two decisions remove the problem before it starts.

Pick a case that carries the card for you. What to look for, in order of usefulness:

• A built-in GPU support ledge or rail — a horizontal shelf the card rests on. Completely passive, nothing to buy, nothing to adjust.
• Native vertical mount support — some cases include the bracket and riser, which removes sag as a category rather than managing it.
• Generous GPU length clearance — a card crammed against a front radiator leaves no room to fit a bracket later, even if you decide you want one.

Support hardware has been migrating into the case itself, and an included bracket or support rail is increasingly common further up the range. Check the spec sheet for the specific revision you’re buying rather than trusting a review of an older one, because manufacturers add and drop this feature between revisions without renaming the case.

Fit the support before you do cable management. Positioning and adjusting a bracket on a bare build takes a minute; threading one past finished cable runs is a genuine annoyance. If you already know the card is over 1,200g, buy the bracket alongside the GPU rather than after you notice the droop.

Reinforced PCIe slots — ASUS SafeSlot, MSI Steel Armor and equivalents — add a stamped metal shell around the slot housing. They improve resistance to the card being pulled sideways out of the slot, which mostly matters during transport. They do not meaningfully counteract the downward moment from a 2kg card. A reinforced slot is better than none; it is not a substitute for support.

GPU Support Bracket vs. CPU Holder: Understanding Your Build’s Support Needs

These two accessories solve the same category of problem in different parts of the build. A CPU holder (also called a CPU cooler support bracket or cooler retention bracket) addresses the weight and torque of heavy tower coolers on the motherboard. A 1.5 kilogram tower cooler like a Noctua NH-D15 or Be Quiet! Dark Rock Pro 4 applies significant lateral stress to the CPU socket and surrounding motherboard area. Over time, on thinner motherboard PCBs, this can cause warping or socket contact issues.

The mechanics are analogous. Heavy component, single mounting system, cumulative stress on the PCB. Same logic applies to both.

In high-end builds with both a massive tower cooler and a flagship GPU, running both a GPU support bracket and a CPU cooler retention bracket makes sense. This is especially true on mid-range motherboards that don’t have reinforced PCBs. Budget and mid-range boards from brands like ASRock and Gigabyte at the entry level are more susceptible to both types of stress than their premium counterparts.

CPU cooler retention brackets typically screw into the motherboard mounting holes and add a secondary support post that braces the cooler against the chassis. They’re sold by cooler manufacturers directly as well as third parties, and most cost between $10 and $20.

If you’re weighing up a tower cooler at the same time, the budget CPU cooler guide covers weights and mounting hardware for the models most likely to need a retention bracket.

FAQ, GPU Support Bracket Questions Answered

Should you get a GPU support bracket?

Yes, if your GPU weighs over approximately 1,200 grams or you can see visible sag with your own eyes. The cost is $10 to $25, which is trivial relative to the value of the hardware it’s protecting. Any flagship GPU released since 2022 qualifies. RTX 3080, RTX 4090, RTX 5090, RX 6800 XT, RX 7900 XTX, and similar cards all meet that threshold.

Do GPU sag brackets affect airflow?

Minimally, if positioned correctly. Place the bracket at the far end of the card, away from the GPU fans. A single post there has negligible impact on intake airflow. Avoid shelf-style brackets that run beneath the entire card, as these can restrict the fan intake column and add a few degrees to GPU temps.

Is a vertical or horizontal GPU support bracket better?

Horizontal brackets paired with a support post are better for the vast majority of builds. Better airflow, simpler installation, works in every case, no riser cable required. Vertical mounting eliminates sag entirely, but it needs a PCIe riser cable and its thermal cost depends on how much gap is left between the card and the side panel — small with generous clearance, substantial when the card nearly touches the glass. Choose vertical only if aesthetics are the priority and your case has good side-panel airflow clearance.

Can GPU sag damage my motherboard?

It can, given enough time. Prolonged severe sag on heavy cards can fatigue the PCIe slot retention mechanism and cause micro-stress fractures in the PCB laminate around the slot. The GPU itself is rarely damaged. Short-term risk is low. At the three to five year mark with a heavy unsupported card, the risk becomes measurable. Worth preventing with a $15 bracket.

How much GPU sag is too much?

Under 2mm of deflection at the card’s tip is cosmetic. Between 2 and 5mm, monitor it and fit a bracket if the card weighs more than 1,200g. Over 5mm, add support now. If the rear IO bracket no longer sits flush against the expansion slot opening, reseat the card before doing anything else. The measuring section above covers how to take the reading properly. Note that these are practical thresholds drawn from builder practice, not a published manufacturer or PCI-SIG limit.

Will a DIY GPU sag fix void my warranty?

No, provided you don’t modify the card itself. External supports — fishing line, foam, a bracket, a printed cradle — contact the outside of the cooler and leave the product untouched. What does put a warranty at risk is opening the card, removing the cooler, drilling into the PCB, or bonding anything to the housing with adhesive. Keep every fix external and non-invasive and you’re fine.

Where can I find a GPU support bracket nearby?

Micro Center is the best in-person option for variety and stock. Most Best Buy locations carry basic GPU support brackets in the PC accessories section. Amazon and Newegg offer same-day or next-day delivery in most US metro areas if you need one quickly. Search “GPU support bracket” or “GPU sag bracket” on either platform for the full range of options.

What You Should Do

If your GPU weighs over 1,200 grams, pick up a support bracket. It costs less than a decent lunch and protects hardware worth hundreds or thousands of dollars from years of cumulative mechanical stress. A basic adjustable post like the upHere brace handles the job for under $15. If you want something that looks intentional in a windowed build, the Cooler Master ARGB holder or the Redragon GCP03 are both solid choices. Got a 3D printer? Print one. It works, it costs basically nothing, and you can size it perfectly.

GPU sag won’t kill your card this week. But over a three to five year lifespan on a motherboard running a 1,500 gram GPU with no support, the PCIe slot fatigue data is consistent enough that a simple bracket is obvious insurance. Use the comparison table above to find the right fit for your build, check our full GPU accessories guide for related recommendations, and spend the $15.
