DisplayPort vs HDMI for Gaming: Refresh Rate and VRR

DisplayPort is generally the better choice for PC gaming due to higher bandwidth, broader adaptive sync support, and superior refresh rate headroom at 1440p and above.

Last updated: July 2026

Quick Answer: Is DisplayPort or HDMI Better for Gaming?

For PC gaming, DisplayPort wins at 1440p and above, especially if your monitor only has HDMI 2.0. HDMI 2.1 closes the gap at 4K/144Hz and is the only option for PS5 and Xbox Series X, which have no DisplayPort output. The honest answer depends on your version numbers. According to Tom’s Hardware, DP 1.4 beats HDMI 2.0, HDMI 2.1 beats DP 1.4, and DP 2.1 beats HDMI 2.1, so the connector type matters less than the version stamped on it.

What Is DisplayPort (And Why Was It Built for PCs)?

A Quick History and Design Philosophy

VESA introduced DisplayPort in 2006 as a royalty-free replacement for DVI and VGA. That “royalty-free” part matters, because it means manufacturers don’t pay per port, which is one reason you see it on nearly every discrete GPU. DisplayPort transmits data in packets, similar to how USB moves data, rather than using the TMDS (Transition Minimized Differential Signaling) method that HDMI relies on. That packet-based architecture is exactly why DisplayPort scales to higher bandwidths more efficiently, and why it consistently gets there first with each new generation.

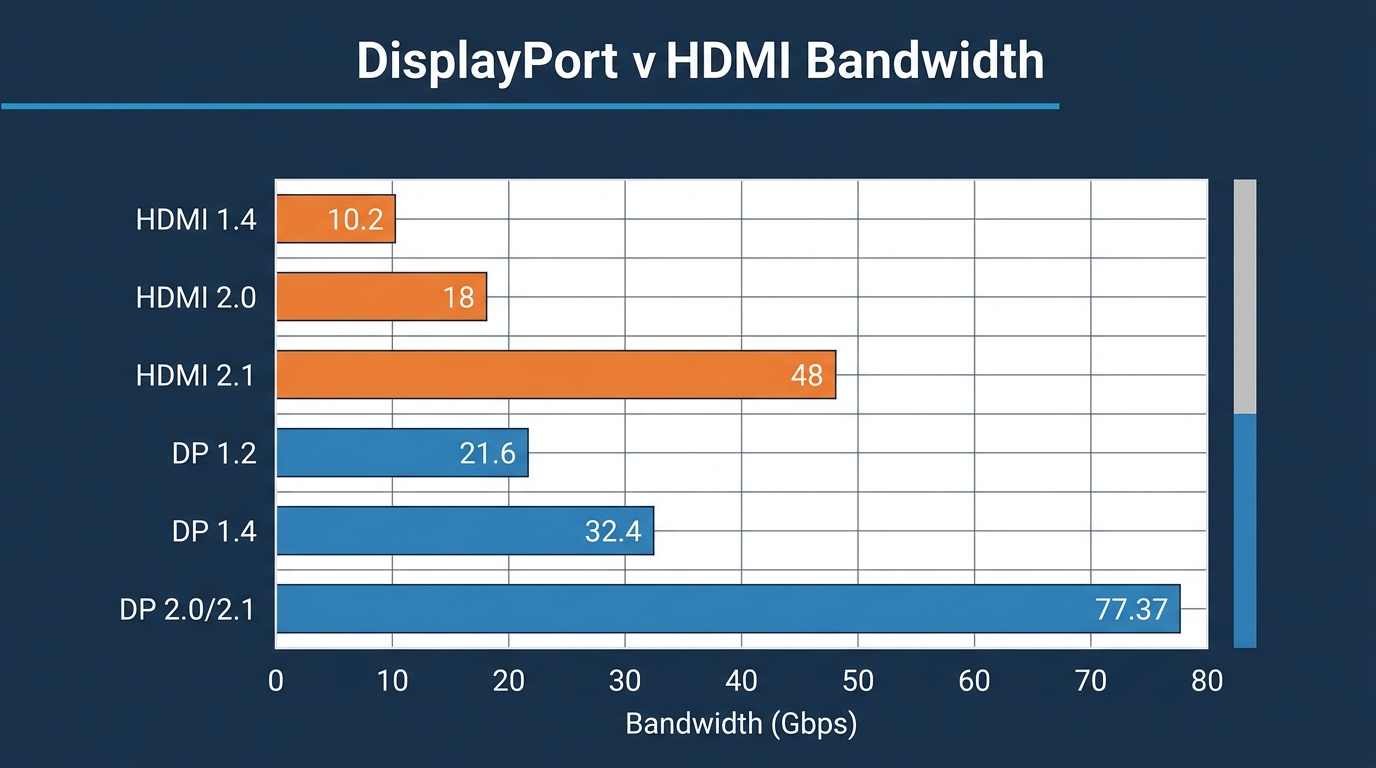

DisplayPort Versions and Their Specs

Not all DisplayPort outputs are equal. The version your GPU and monitor both support determines your actual ceiling.

• DP 1.2: 21.6 Gbps bandwidth; 4K at 60Hz; 1440p at 144Hz; introduced Multi-Stream Transport for daisy-chaining
• DP 1.4: 32.4 Gbps; 4K at 120Hz with Display Stream Compression (DSC); 1440p at 165Hz without DSC; HDR10 support; this is the most common version on monitors sold 2019 to present
• DP 2.0/2.1: Up to 77.37 Gbps (UHBR20); 4K at 240Hz; 8K at 60Hz; 16K at 60Hz with DSC; available on RTX 40 series and RX 7000 series GPUs

If you’re not sure which version your monitor supports, check the spec sheet on the manufacturer’s product page, not the box. Most monitors sold today ship with DP 1.4, which covers everything short of 4K at 240Hz. You can also reference the official VESA DisplayPort specifications to verify version capabilities.

What Is HDMI (And When Does It Win)?

Origin and Use Case

HDMI launched in 2002, developed by a consortium of consumer electronics companies including Sony, Panasonic, and Philips. Manufacturers pay licensing fees per port, which is part of why budget monitors sometimes only include one HDMI port while adding DisplayPort as the higher-spec option. HDMI was built for home theater setups, so it carries extras like Ethernet data and CEC (Consumer Electronics Control) for controlling TVs with one remote. Neither feature matters much for PC gaming, but they’re genuinely useful if you’re connecting a console to a TV.

HDMI Versions and Their Specs

HDMI versions vary wildly, and budget monitors frequently mislabel or mix port versions. A monitor might have two HDMI ports where one is 2.0 and the other is still 1.4. Always verify the specific port.

• HDMI 1.4: 10.2 Gbps; 1080p at 120Hz; 4K at 30Hz; skip this for gaming
• HDMI 2.0/2.0b: 18 Gbps; 4K at 60Hz; HDR 10-bit; 1080p at 240Hz; the dominant standard on monitors from 2016 to 2021
• HDMI 2.1: 48 Gbps; 4K at 144Hz; 8K at 30Hz; includes Forum VRR, ALLM (Auto Low Latency Mode), and eARC; standard on PS5, Xbox Series X, and most RTX 30/40 and RX 6000/7000 series GPUs
• HDMI 2.1a: Adds SBTM (Source-Based Tone Mapping) for more accurate HDR rendering

One common trap worth flagging: monitors listed as “HDMI 2.0 compatible” on budget listings sometimes have physically limited bandwidth at the port level. Always check the official spec sheet from the manufacturer, not third-party retailer listings.

DisplayPort vs HDMI, Full Spec Comparison Table

Here’s how the versions stack up head-to-head on every spec that matters for gaming. For a deeper breakdown of the HDMI 2.1 and DisplayPort 1.4/2.1 specifications, the HDMI 2.1 vs DisplayPort 1.4/2.1 version comparison covers the bandwidth numbers in granular detail.

Here’s which port version ships with each GPU and console generation, so you know exactly what you’re working with:

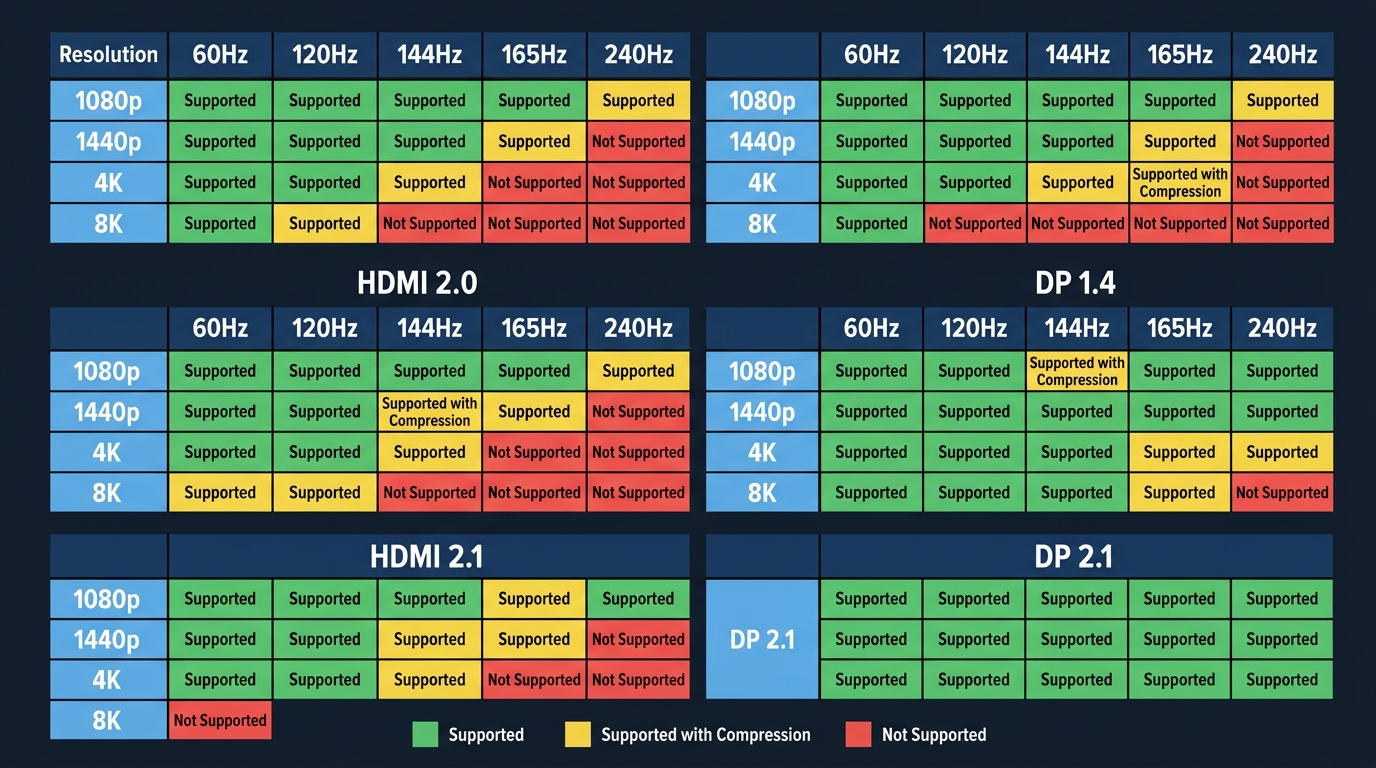

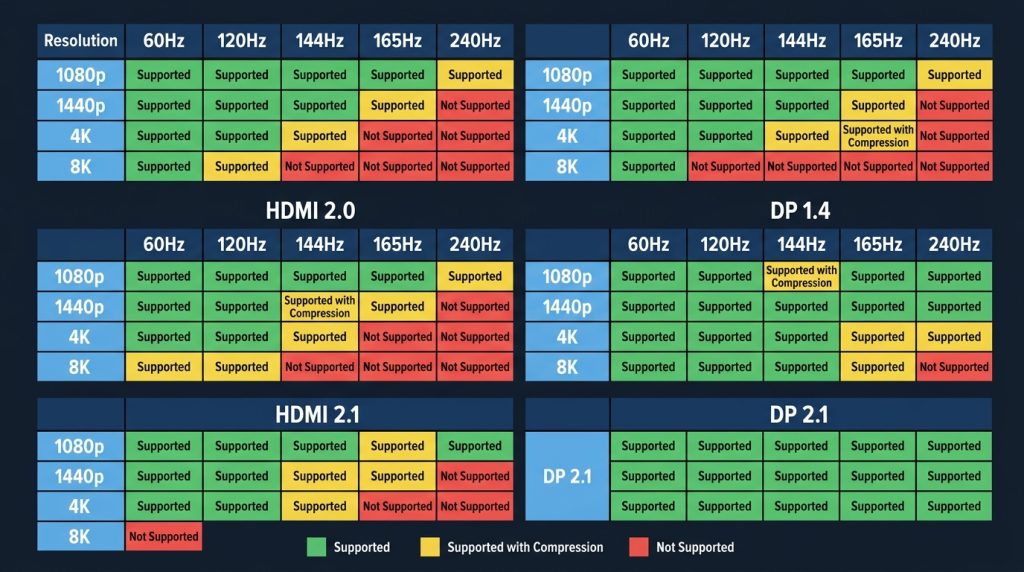

Refresh Rate Showdown, 144Hz, 240Hz, and 4K Gaming

1080p Gaming (1920×1080)

At 1080p, both HDMI 2.0 and DP 1.4 handle 240Hz without breaking a sweat. The split only happens at 360Hz, where monitors like the ASUS ROG Swift 360Hz require DisplayPort to hit that ceiling. HDMI 2.0 tops out at 240Hz for 1080p, so if you’re gaming at 360Hz on an esports title, DP is your only path. Below that threshold, it’s a genuine tie.

1080p verdict: Tie at 144Hz and 240Hz. DisplayPort wins at 360Hz.

1440p Gaming (2560×1440), The PC Sweet Spot

This is where the cable choice actually bites people. DP 1.4 runs 1440p at 165Hz natively and pushes 240Hz with DSC active. HDMI 2.0? It caps 1440p at 75Hz. That catches a lot of builders off guard, especially anyone who bought a 144Hz 1440p monitor thinking HDMI 2.0 would cover it. It won’t.

HDMI 2.1 fixes this entirely, running 1440p at 240Hz. But many mid-range monitors still ship with HDMI 2.0, not 2.1. Always check before you buy.

1440p verdict: DP 1.4 clearly beats HDMI 2.0. Tie vs. HDMI 2.1.

4K Gaming (3840×2160)

At 4K, HDMI 2.1 earns its place. It runs 4K at 144Hz natively, which matches or beats DP 1.4 (which needs DSC for 4K at 120Hz and can’t get to 144Hz without it). HDMI 2.0 is stuck at 4K/60Hz, the same as older DP 1.2. DP 2.1 is the current ceiling at 4K/240Hz, but monitors that support it are still expensive and limited in number.

4K verdict: HDMI 2.1 matches DP 1.4. DP 2.1 wins outright but requires a recent RX 7000 GPU and a compatible monitor.

VRR, G-Sync, FreeSync, and HDMI Forum VRR Explained

What Is VRR and Why It Matters for Gaming

VRR (Variable Refresh Rate) syncs your GPU’s frame output to your monitor’s refresh rate in real time. Without it, you get screen tearing when frames don’t align with the display cycle, or input lag if you force V-Sync to compensate. VRR eliminates both problems. Three competing standards handle this: NVIDIA G-Sync, AMD FreeSync, and HDMI Forum VRR.

DisplayPort’s Adaptive Sync Advantage

DisplayPort has supported VESA Adaptive Sync since DP 1.2a back in 2014. That’s the open standard that AMD’s FreeSync is built on. G-Sync is NVIDIA’s proprietary VRR implementation, and it requires DisplayPort. Full stop. G-Sync certified monitors use NVIDIA’s dedicated hardware module, and that module only communicates over DP.

G-Sync Compatible monitors (the tier below full G-Sync certification) work over both DisplayPort and HDMI, but the validated VRR range is typically wider when you’re running DP. A G-Sync Compatible monitor may show tearing at the edges of its range over HDMI that doesn’t appear over DP.

HDMI Forum VRR, The Console Game-Changer

HDMI 2.1 introduced HDMI Forum VRR, and this is the feature that makes HDMI non-negotiable for console gamers. The Xbox Series X supports VRR from 40 to 120Hz over HDMI 2.1. The PS5 added VRR support in an April 2022 firmware update, covering a 48 to 120Hz range. Neither console has a DisplayPort output. There’s no adapter that gives you G-Sync or FreeSync from a console. HDMI 2.1 VRR is the only option, and it works well.

G-Sync vs. FreeSync vs. HDMI Forum VRR, At a Glance

One flag worth knowing: G-Sync Ultimate monitors require DisplayPort for full certification. HDMI will carry a signal and may trigger some VRR behavior, but you won’t get the validated, full-range G-Sync experience the monitor is rated for.

Console vs. PC, Different Answers to the Same Question

PC Gaming, DisplayPort Is the Default Choice

Most PC monitors in the 24 to 32 inch range ship with DP 1.4 and HDMI 2.0 as the two main inputs. For 1440p gaming, always reach for DisplayPort first. Your RTX 4000 series GPU outputs DP 1.4 and HDMI 2.1. An RX 7000 series card gives you DP 2.1, which is meaningfully future-proof. If your monitor only has HDMI 2.1 inputs, HDMI is completely fine at 4K/144Hz. But if the monitor has both, DP covers the wider range of scenarios.

Console Gaming (PS5 / Xbox Series X), HDMI Only

No DisplayPort. Neither console has one. That’s it. To unlock 4K at 120Hz with VRR on a PS5 or Xbox Series X, you need HDMI 2.1 on both the console side and the TV or monitor side. A budget monitor with only HDMI 2.0 limits you to 4K at 60Hz or 1080p at 120Hz on console. Not great. If you’re building a console gaming setup, the monitor spec that matters most is HDMI 2.1.

Dual-Use Setups (PC + Console on One Monitor)

This is where a well-chosen monitor earns its cost. Many high-end displays now ship with both DP 1.4 (for PC) and HDMI 2.1 (for console), letting you run each device at its native best. The setup that makes sense: connect your GPU via DisplayPort for 1440p at 165Hz or higher, then plug your PS5 into the HDMI 2.1 port for 4K at 120Hz with VRR. You switch inputs, not cables, and each device runs at its actual capability. Worth the extra investment in a monitor that has both port versions.

Real-World Scenarios, What Should You Use?

Version numbers are great in theory. Here’s what they mean for actual setups:

3 Things Competitors Don’t Tell You About DisplayPort vs HDMI

1. Cable Quality Actually Matters at High Refresh Rates

A generic unbranded cable can drop bandwidth mid-session, causing flickering, signal dropout, or the monitor quietly falling back to a lower refresh rate without telling you. This happens more than people expect at 144Hz and above.

For DisplayPort 2.1, look for VESA UHBR-certified cables. For HDMI 2.1, you specifically need “Ultra High Speed” certified cables rated for 48 Gbps. A cable listing itself as “HDMI 2.1” on a budget marketplace page may not actually pass 48 Gbps of bandwidth. The HDMI Forum’s cable certification database lets you verify whether a specific cable model is legitimately rated. Don’t skip this step on a high-refresh setup.

2. DisplayPort Multi-Stream Transport (MST), The Daisy-Chain Advantage

Since DP 1.2, DisplayPort has supported MST (Multi-Stream Transport), which lets you run two or more monitors from a single DisplayPort output by daisy-chaining them together. HDMI has no equivalent. Zero. If you want to drive two 1080p monitors from one GPU output without using a second port, DisplayPort is your only option. For productivity setups where you’re short on GPU outputs, this is a meaningful practical advantage that doesn’t come up often enough in cable comparisons.

3. Latency, Is There Actually a Difference?

No. Not in any way you’ll perceive. Both DisplayPort and HDMI operate at effectively zero perceptible input lag difference at equal refresh rates. The real latency in your system comes from your refresh rate, your monitor’s panel response time, and your GPU’s render time. The signal processing overhead between HDMI’s TMDS architecture and DisplayPort’s packet model is measured in microseconds. Well below human perception. Anyone telling you to use DisplayPort because it “feels more responsive” is chasing a myth. Pick the right version for your resolution and refresh rate. That’s what actually matters.

Quick Decision Guide, DisplayPort or HDMI for Your Setup?

Use DisplayPort if:

• ✅ You game at 1440p and your monitor has HDMI 2.0, not 2.1
• ✅ You want G-Sync or the widest FreeSync VRR range
• ✅ You’re gaming at 240Hz or higher at any resolution
• ✅ You need to daisy-chain two monitors from one GPU output
• ✅ You have a DP 2.1 GPU (RX 7000 series) and want to future-proof

Use HDMI if:

• ✅ You’re connecting a PS5 or Xbox Series X (it’s the only option)
• ✅ Your monitor only has HDMI inputs
• ✅ You’re gaming at 4K @ 120Hz+ with an HDMI 2.1 monitor and GPU
• ✅ You’re connecting to a TV (DisplayPort on TVs is rare)
• ✅ You need HDMI ARC or eARC for TV audio routing through a soundbar or receiver

If you’re still deciding between connector types for your specific monitor, the DisplayPort vs HDMI guide covers additional edge cases including ultrawide and curved displays.

Frequently Asked Questions

Is DisplayPort better than HDMI for 144Hz gaming?

At 1080p and 144Hz, both HDMI 2.0 and DP 1.4 work fine with no difference in quality or performance. At 1440p and 144Hz, DisplayPort 1.4 is required if your monitor only has HDMI 2.0, because HDMI 2.0 caps 1440p at 75Hz. So the answer is: it depends on your resolution. At 1080p, no. At 1440p with an older monitor, yes.

Is DisplayPort better than HDMI for 240Hz gaming?

At 1080p and 240Hz, HDMI 2.0 and DP 1.4 both handle it. At 1440p and 240Hz, you need either DP 1.4 with DSC enabled or HDMI 2.1. DP 1.4 is the safer bet across resolutions at 240Hz, since many monitors that target 240Hz still ship with HDMI 2.0 as the secondary input. Always confirm the specific port version on your monitor.

Does DisplayPort reduce input lag compared to HDMI?

No. There is no measurable real-world input lag difference between DisplayPort and HDMI at the same refresh rate. Input lag is determined by your refresh rate, the monitor’s panel response time, and GPU render time. The cable itself contributes nothing perceivable. This is a persistent myth in gaming communities that doesn’t hold up to testing.

Can I use DisplayPort for PS5 or Xbox Series X?

No. Neither the PS5 nor the Xbox Series X has a DisplayPort output. Both consoles output exclusively via HDMI 2.1. To unlock 4K at 120Hz with VRR on either console, you need an HDMI 2.1 port on your TV or monitor. There is no adapter or workaround that gives you DisplayPort or G-Sync from a current-generation console.

What’s the difference between HDMI 2.1 and DisplayPort 2.1?

HDMI 2.1 offers 48 Gbps of bandwidth, supporting 4K at 144Hz and 8K at 30Hz. DisplayPort 2.1 reaches up to 77.37 Gbps, supporting 4K at 240Hz and 8K at 60Hz. DP 2.1 leads in raw bandwidth and is available on RX 7000 series GPUs. HDMI 2.1 is more widely available on current monitors and is universal across consoles, TVs, and new PC GPUs. For most buyers right now, the difference matters only above 4K/144Hz.

The Bottom Line

For PC gaming, especially at 1440p, reaching for the DisplayPort cable is almost always the right call. It handles higher refresh rates across more monitor generations, supports G-Sync properly, and gives you daisy-chaining that HDMI simply can’t match. HDMI 2.1 has genuinely closed the gap at 4K and is the only connection that works for console gaming. The most important number isn’t the connector shape on the end of the cable. It’s the version number. Check both your GPU output and your monitor input before you assume anything, and you’ll make the right choice for your specific setup.
