How to Install an AIO Liquid CPU Cooler

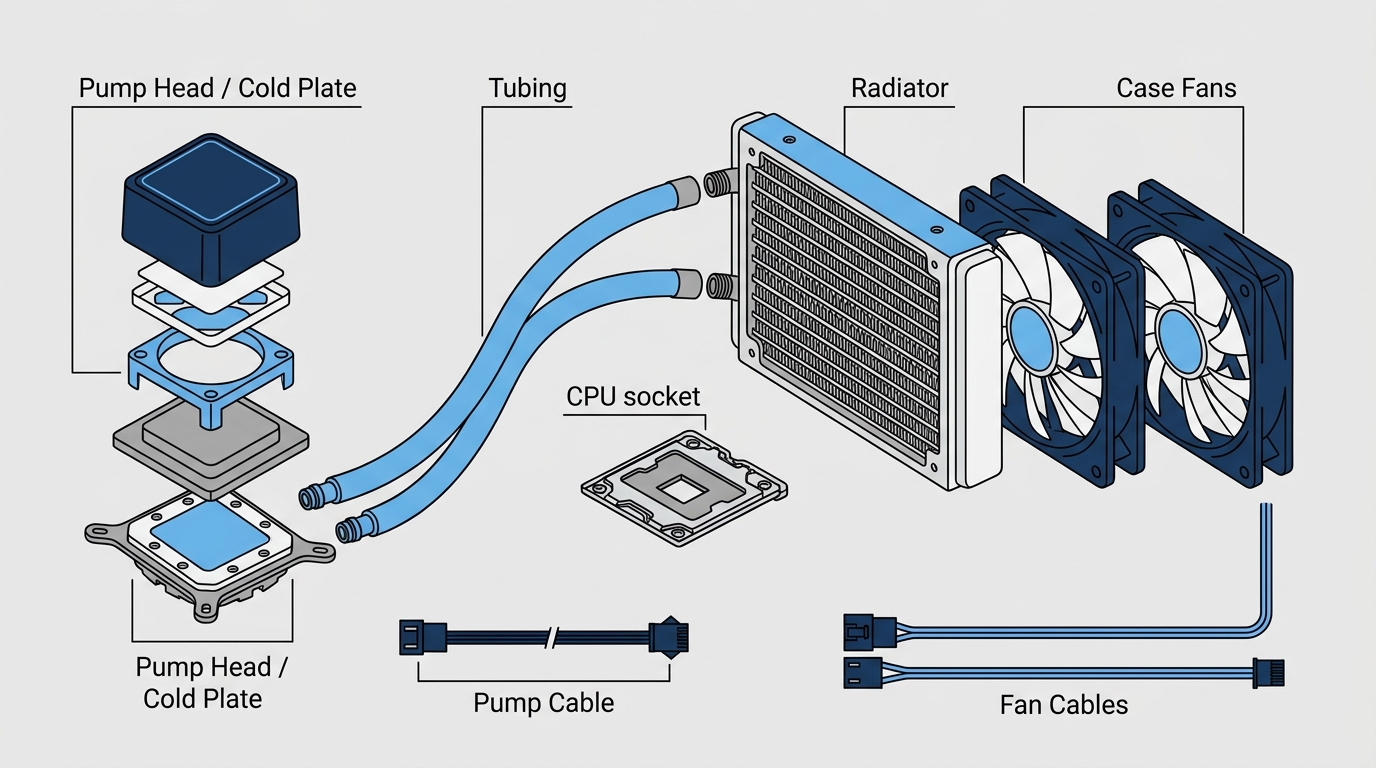

An AIO liquid CPU cooler is a self-contained cooling unit combining a pump, pre-filled tubing, and radiator that dissipates CPU heat without manual filling or custom loop assembly.

Last updated: October 2026

Quick Answer: How Do You Install a Liquid CPU Cooler?

Installing a liquid CPU cooler takes 20 to 30 minutes and eight steps: verify socket compatibility, install the backplate, attach standoffs or mounting brackets, apply thermal paste, mount the pump head onto the CPU using a criss-cross tightening pattern, attach fans to the radiator, mount the radiator in the case, then connect the pump cable to the CPU_FAN or AIO_PUMP header. That’s it. No special skills required.

Most people think AIO liquid cooling is complicated or reserved for advanced builders. It’s not. The process is actually more straightforward than troubleshooting a misbehaving air tower cooler that won’t clear tall RAM. That said, a few specific mistakes, wrong mounting bracket, pump connected to the wrong header, fans installed backward, will cause real problems. This guide covers both Intel and AMD sockets, walks through radiator placement before you commit, and includes post-installation checks that most guides skip entirely.

What You’ll Need Before You Start

Tools and Materials Checklist

• Phillips #2 screwdriver: For backplate screws, fan screws, and radiator mounting
• Isopropyl alcohol (90%+) and lint-free cloth: To clean the CPU IHS if replacing an existing cooler
• Thermal paste: Most AIOs include pre-applied paste; keep a tube handy if yours doesn’t
• Your AIO’s hardware bag: Backplate, standoffs, brackets, thumbscrews, fan screws, count everything before you start

Compatibility Check: Do This First

This is where first-time builders go wrong. Installing the wrong bracket for your socket means the pump head won’t seat correctly, or won’t seat at all. Check your CPU socket before opening anything else. Your CPU box label, motherboard manual, or a free tool like CPU-Z will confirm it in seconds.

Socket	Common CPUs	Mounting Type	Backplate Needed?
LGA 1700	Intel 12th–14th Gen (Core i5/i7/i9)	Screws + standoffs	Yes, not pre-installed
LGA 1851	Intel Core Ultra 200 (Arrow Lake)	Screws + standoffs	Yes, not pre-installed
LGA 1200	Intel 10th–11th Gen	Screws + standoffs	Yes, not pre-installed
AM4	Ryzen 1000–5000 series	Screws or clips	Usually pre-installed on motherboard
AM5	Ryzen 7000, 8000G, 9000 series	Screws	No, stock backplate stays

Once you know your socket, cross-reference it with your AIO’s supported socket list. That list is always in the manual and on the product page. Don’t assume, confirm. If you’re unsure how your AIO cooler’s internal components actually work before mounting it, this breakdown of how AIO liquid cooling works covers the pump, cold plate, and radiator loop in detail.

Radiator Size and Placement: Plan This Before You Build

Most installation guides start with screwdrivers. They skip the part where you figure out where the radiator goes, which is a decision that affects your CPU temps, your GPU temps, and whether everything physically fits. Make this call before touching any hardware.

Which Radiator Size Should You Use?

Bigger radiators dissipate more heat, but they’re not always better for your specific build. A 360mm radiator in a case with poor front-panel airflow can underperform a 240mm with clear intake. Match radiator size to your CPU’s TDP and your case’s clearance specs. For a closer comparison, see our guide on AIO radiator sizes from 240mm to 360mm.

As a rough guide: a 120mm suits budget builds and small cases, a 240mm covers mid-range CPUs in most ATX cases, a 280mm gives hotter chips more headroom in a mid-tower or larger, and a 360mm is the usual pick for Core i9 and Ryzen 9 class CPUs. How many degrees you actually gain depends on your CPU, your case airflow and your room temperature, so there’s no honest fixed number to pin on each size.

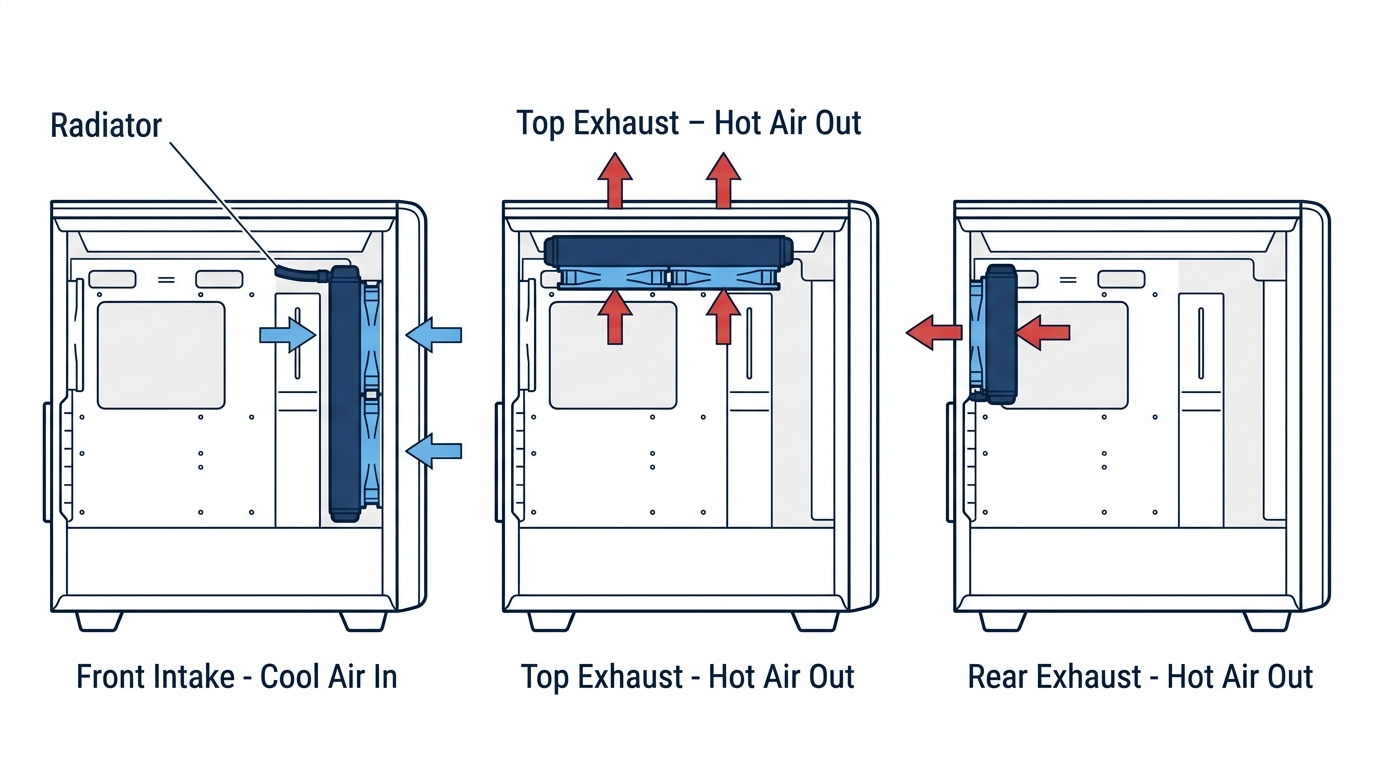

Where to Mount the Radiator in Your Case

• Top mount (exhaust): CPU heat leaves the case straight away instead of being fed to your GPU. NZXT calls it the best spot, and it’s a sensible default for most builds.
• Front mount (intake): The radiator gets cooler outside air, which is good for CPU temps. The trade-off: the air reaching your GPU and the rest of the case is slightly warmer. NZXT’s radiator guide adds that radiator size and fan setup matter far more than top versus front.
• Rear mount (exhaust): Usually limited to 120mm and 140mm radiators, but useful when top clearance is limited by RAM or a VRM heatsink.

Always check your case’s clearance specs. Some cases list top radiator support as “up to 360mm” but that assumes low-profile RAM. If your DDR5 sticks have tall heatspreaders, measure first.

Fan Direction: Intake or Exhaust?

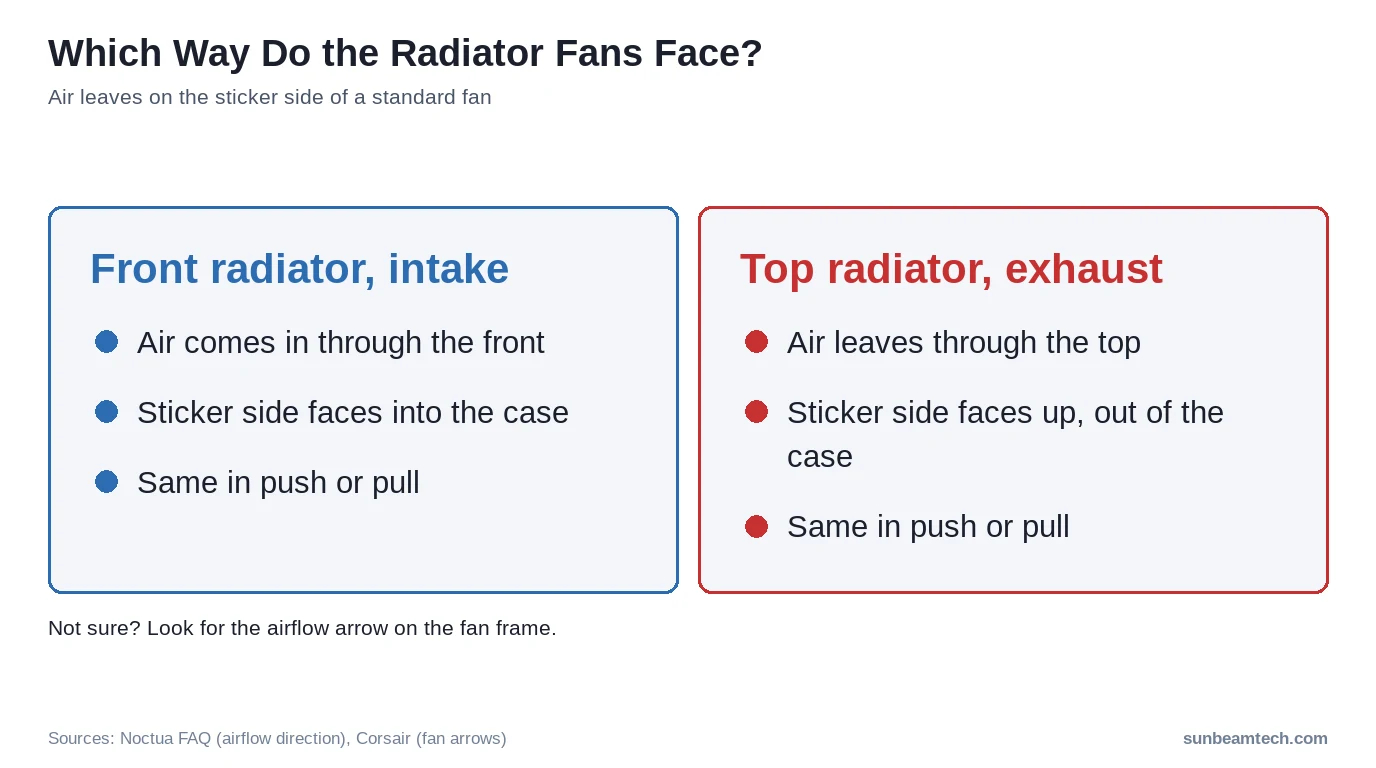

The rule is simple: on a standard fan, air enters on the open side and leaves on the side with the motor struts and the label. With the logo sticker facing you, the air blows toward you. So the sticker side is the exhaust side, not the intake. Check the frame too: Corsair puts small arrows on its fans, and the vertical one shows the airflow direction.

• Top mount (exhaust): Sticker side points up, out of the case, so air goes up through the radiator and out the top vents
• Front mount (intake): Sticker side points into the case, so cool air comes in through the front panel and the radiator

Get this backward and the radiator pushes air against the rest of your case fans instead of working with them. Not great.

Step-by-Step: How to Install a Liquid CPU Cooler

Step 1: Install the CPU First

The CPU must be seated and locked down before the cooler goes anywhere near it. If you’re starting from scratch, get the processor installed and secured first. On Intel LGA sockets, the socket lever ejects the plastic CPU protector automatically, don’t remove it manually before seating the chip. For a full walkthrough, our step-by-step CPU installation guide covers every Intel and AMD socket in detail.

Step 2: Prepare and Install the Backplate

Intel (LGA 1700 / LGA 1851 / LGA 1200): Intel boards don’t ship with a pre-installed cooler backplate, so you’ll use the one in your AIO’s hardware bag. Lay the motherboard flat with the back facing up. Thread the backplate posts through the four holes surrounding the CPU socket from the rear. Attach any rubber or plastic insulators included, these prevent the metal backplate from touching PCB traces and causing shorts.

AMD AM4: Most AM4 motherboards ship with a stock backplate already attached. Check your AIO’s instructions, some require you to remove it and use their own; others mount directly to it. Cooler Master and CORSAIR AIOs frequently use the stock AM4 backplate unchanged.

AMD AM5: AMD’s AM5 socket ships with the backplate already screw-fixed to the motherboard, don’t remove it. Most modern AIOs include AM5-specific mounting brackets and standoffs that attach to that stock backplate rather than a replacement backplate. Follow your AIO’s manual precisely here, bracket designs vary between brands.

Step 3: Attach the Standoffs or Mounting Posts

For Intel builds: screw the threaded standoffs into the backplate posts from the front of the motherboard. Hand-tight only at this stage. For AMD builds: clip or screw the AIO’s bracket arms onto the backplate, again per your manual.

Before doing anything else, read the label on each bracket. Most AIOs include three to four different brackets for different sockets. Using the wrong one is the single most common installation mistake. The pump head will either sit too loose, too tight, or misaligned. Worth the 10 seconds it takes to double-check.

Step 4: Apply Thermal Paste

Check the cold plate on the bottom of the pump head first. If you see a gray or silver material on the copper surface, thermal paste is pre-applied. Don’t touch it. Don’t add more. Remove any protective film right before mounting.

If your AIO doesn’t include pre-applied paste, place a pea-sized dot, roughly 3 to 4mm in diameter, centered on the CPU’s integrated heat spreader (IHS). The pressure from mounting spreads it evenly. Don’t spread it by hand; that introduces air pockets. Too much paste causes it to squeeze onto the socket. Too little creates hot spots. For more detail on application technique, see our guide on how to apply thermal paste correctly.

Step 5: Mount the Pump Head onto the CPU

Confirm the correct mounting bracket is attached to the pump head. Lower it straight down onto the CPU, don’t slide or drag it across the IHS. Align the bracket holes with the standoffs.

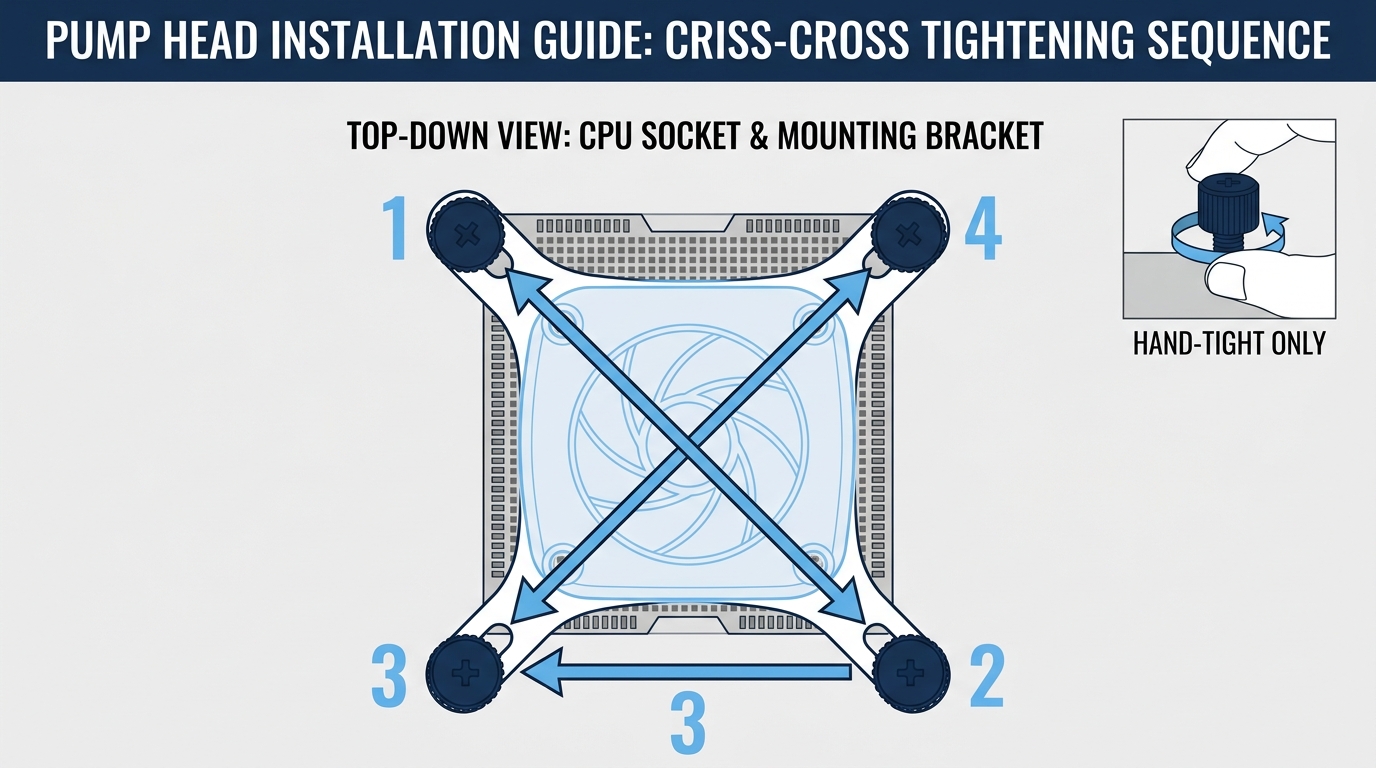

Thread the thumbscrews by hand in a diagonal criss-cross pattern, like tightening lug nuts on a wheel. Never tighten one corner fully before touching the others. The sequence is: top-left, bottom-right, top-right, bottom-left (or equivalent diagonal pairs for your bracket layout). This ensures even pressure across the IHS, which is what gives you consistent thermal contact.

Stop when you feel firm resistance. You should not need a screwdriver for thumbscrews. Over-torquing can bow the PCB or crack the substrate around the socket. Snug and even beats tight every time.

Step 6: Install Fans onto the Radiator

Attach the radiator fans using the included screws (use the ones from the AIO box: they’re cut for your fan thickness plus the radiator’s thread depth, and a screw that’s too long can puncture a radiator channel). Before you drive a single screw, confirm fan orientation. The sticker side is where the air comes out: on a top or rear exhaust it points out of the case, on a front intake it points into the case. Tighten screws in an alternating pattern so the fan frame seats evenly against the radiator.

Step 7: Mount the Radiator in the Case

Slide the radiator assembly into your chosen mount position. Secure it with the case-provided screws or the AIO-included screws, don’t mix them unless the thread pitch matches. Check that tubes route without sharp kinks. A kinked tube restricts coolant flow and raises temperatures noticeably, even if the pump is running full speed.

Cable	Connects To	Purpose
Pump cable (3-pin or 4-pin)	CPU_FAN or AIO_PUMP header	Powers and monitors the pump
Radiator fan cables	CHA_FAN headers or fan hub	Powers and controls radiator fans
USB 2.0 header (if applicable)	USB 2.0 header on motherboard	RGB and software control (iCUE, NZXT CAM, etc.)
ARGB/RGB cable (if applicable)	ARGB or RGB header on motherboard	Pump head or radiator lighting
SATA power (some models)	PSU SATA cable	Powers an integrated hub or controller

The pump connection is the one that matters most, and the right BIOS setting depends on your cooler. NZXT tells Kraken Core owners to use AIO_PUMP (or CPU_FAN if the board has no pump header) and set it to Full Speed, because that pump is built to run flat out. ARCTIC’s Liquid Freezer III manual wants the header set to PWM instead of DC. On a chassis header with a quiet fan curve, a pump can end up running slower than intended. Follow your AIO’s manual.

For a full breakdown of header types and their functions, the guide on motherboard fan headers covers CPU_FAN, AIO_PUMP, CHA_FAN, and the differences between them.

Post-Installation Checks: Don’t Skip These

BIOS Verification

Boot into BIOS before loading Windows. Check two things:

• Pump RPM: The header the pump is on should show a real RPM reading, not 0 or N/A. The exact number varies by model, and ARCTIC notes the Liquid Freezer III reports a pump speed 50% higher than the real one, so don’t chase a specific figure.
• CPU temp at idle: Note it, but don’t judge the install on it. Idle readings vary between CPUs and BIOS settings; the stress test below tells you far more.

If the pump header shows 0 RPM or N/A, power down and recheck your connections before running any load. NZXT’s diagnosis guide reads that as a pump that isn’t getting power or has seized.

Stress Test for Temperature Verification

Run a 10-minute stress test using Cinebench R23 multicore or Prime95 small FFT. Watch your temperatures with HWiNFO64 or HWMonitor. Leaks on AIOs are extremely rare, but it’s smart to watch the pump fittings during the first boot.

Don’t hold your result up against a generic chart. Your CPU’s own limit is the number that counts: Intel lists 100°C as the max operating temperature for chips like the Core i9-14900K, and 95°C for Ryzen chips like the Ryzen 9 9950X and Ryzen 9 7950X (X3D chips run lower: 89°C for the Ryzen 7 7800X3D). Under load, temps should climb and then level off. Touching the limit on its own doesn’t mean the mount is bad: AMD told PCGamesN that Ryzen 7000 chips are “engineered to live” at 95°C. What does point to a problem is a pump reading 0 RPM, or temps that keep rising until the chip throttles while the pump looks fine.

If that happens, check the pump header and its RPM first, then reseat the cooler and reapply thermal paste. One tell from NZXT: if the paste comes off unspread, the cold plate never made proper contact.

Common AIO Installation Mistakes (and How to Avoid Them)

These seven are the ones to watch for, and all of them are preventable.

• Wrong bracket for your socket: The system boots but the cooler rocks on the CPU or won’t tighten evenly. Always read the socket label printed on the bracket before attaching it to the pump head.
• Pump connected to a chassis fan header: A CHA_FAN header can follow a quiet fan curve, so the pump runs slower than it’s built for and your CPU temps suffer. Use AIO_PUMP or CPU_FAN, set the way your AIO’s manual says.
• Over-torquing thumbscrews: Excessive force bows the PCB and can crack solder joints around the socket. Hand-tight is the correct final state. No tools needed.
• Fans mounted backward: Air moves through the radiator the wrong way and fights your other case fans. Remember that the sticker side is where air comes out, or check the arrows on the frame, before final mounting.
• Sharp tube kink: Restricts coolant flow. Temperatures run higher than they should, even with the pump running correctly. Plan your tube routing before securing the radiator.
• Forgetting to remove the thermal paste protective film: Some AIOs ship with a clear film over the pre-applied paste. Leaving it on creates an insulating layer between the cold plate and CPU. The result is CPU temps that spike immediately. Classic mistake.
• Not checking pump head height clearance: A tall pump head can physically contact tall RAM heatspreaders or VRM heatsinks on compact motherboards. Measure before you commit to a mounting orientation.

FAQ: AIO Cooler Installation Questions Answered

Do liquid CPU coolers need to be filled?

No. Every AIO cooler comes pre-filled and factory-sealed. You never add coolant, open any fittings, or bleed the loop. That’s the entire point of “all-in-one”, it’s a closed system. Custom loop cooling does require manual filling, but that’s a fundamentally different product category with a much steeper setup process. If your AIO is pre-filled and sealed, just install it and go.

How do I set up a liquid CPU cooler for the first time?

Follow the eight-step sequence: verify socket compatibility and select the correct bracket, install the backplate, attach standoffs or bracket arms, apply (or check pre-applied) thermal paste, lower the pump head onto the CPU and tighten in a criss-cross pattern, attach fans to the radiator, mount the radiator in the case, then connect the pump to CPU_FAN or AIO_PUMP and the fans to CHA_FAN or a hub. Total time is 20 to 30 minutes for a first-time builder.

What is the correct way to install an AIO cooler pump head?

Lower the pump head straight down onto the CPU without sliding it across the IHS. Align the bracket holes with the standoffs, then thread thumbscrews in diagonal pairs, top-left and bottom-right first, then top-right and bottom-left. Tighten gradually and evenly until you feel firm resistance. Hand-tight only. Using a screwdriver or applying more torque than your fingers provide can damage the motherboard PCB.

How hard is it to install liquid cooling?

AIO installation sits at roughly 2 out of 5 on the difficulty scale. If you can seat a CPU and plug in a fan cable, you can install an AIO. The process is more physically straightforward than routing custom cable management or aligning a large air tower cooler. Custom loop water cooling is a different situation entirely, 4 to 5 out of 5, involving reservoir filling, leak testing, and custom tubing runs. This guide covers AIO only.

Does radiator placement affect CPU temperatures?

Yes, but less than you might expect. Radiator size and fan setup matter far more than top versus front. Front intake gives the radiator cooler outside air, which helps the CPU, but the air inside the case gets slightly warmer, which can nudge up your GPU temps. Top exhaust sends CPU heat straight out of the case instead of past the graphics card. How much any of this shows up depends on your case’s airflow design. Rear mounting is usually limited to 120mm and 140mm radiators.

The Short Version

Install the CPU first, fit the correct backplate for your socket, attach standoffs or bracket arms, apply a pea-sized dot of thermal paste if it’s not pre-applied, lower the pump head straight down, and tighten the thumbscrews in a diagonal criss-cross pattern until snug. Mount fans in the correct airflow direction, secure the radiator, then connect the pump to CPU_FAN or AIO_PUMP, not a chassis header. Boot into BIOS, confirm the pump header shows a real RPM reading, then run a 10-minute stress test before closing up the case. Once you’ve got cooling sorted, the next logical steps are installing your GPU and running your first full system POST. Get the cooling right first and everything that follows goes smoother.
