EZ Debug LEDs Explained: CPU, DRAM, VGA, BOOT

EZ Debug LEDs are four diagnostic indicator lights on MSI motherboards, labeled CPU, DRAM, VGA, and BOOT, that identify which hardware component is failing during POST.

Last updated: July 2026

Quick Answer: What Does the EZ Debug LED Mean on an MSI Motherboard?

Each EZ Debug LED corresponds to a hardware initialization stage during the Power-On Self-Test (POST). During a normal boot, every LED lights up briefly and then turns off as the system moves to the next stage. If one of those LEDs stays solid and the system never reaches the OS, the board has detected a fault at that specific hardware stage. The stuck LED tells you exactly where to start troubleshooting.

You just finished assembling your build, pressed the power button, and nothing appeared on screen. Then you noticed a small amber or red glow on the motherboard. Or maybe your system was running fine for months and suddenly refuses to POST. Either way, that lit LED is the most useful diagnostic tool your board gives you. This guide covers MSI EZ Debug LEDs specifically, but notes where other brands use equivalent systems.

Two scenarios bring people here: “my PC won’t boot and I see a glowing LED” and “I just want to know what these lights do before I run into trouble.” Both are covered below. If your system is already dead on the bench, you can jump straight to the per-LED troubleshooting section. For a broader no-boot checklist, the PC Won’t Turn On step-by-step fix checklist covers every angle from power supply to front panel cables.

What Is the EZ Debug LED on a Motherboard?

POST is the sequence every PC runs before handing control off to the operating system. During POST, the motherboard tests each core hardware component in a fixed order: CPU first, then RAM, then GPU, then the boot storage device. If any stage fails, the system halts and can’t move forward.

EZ Debug LEDs are MSI’s way of showing you exactly where that halt happened. They’re a row of four small indicator lights, physically located in the top-right corner of most MSI boards near the 24-pin ATX power connector, though the exact position varies by model. The labels are printed directly on the PCB next to each LED.

The distinction that matters most: LEDs cycling through during boot is completely normal. Every one of those lights should briefly illuminate and then turn off as POST advances. A LED that stays solid for more than 30 seconds is the signal something went wrong at that stage.

MSI’s EZ Debug LEDs are standard on their MEG, MPG, and MAG series boards. Models like the MAG B550 TOMAHAWK, MEG Z790 ACE, MPG B650 EDGE WIFI, and B850 TOMAHAWK WIFI all include them. Not every MSI board has this feature. Some entry-level boards in the A520 and budget B-series lineups omit it entirely, so if you don’t see the four labeled LEDs, your board may simply not have them.

The 4 EZ Debug LEDs: What Each One Means

Each LED corresponds to one hardware initialization phase. They light up in a fixed sequence during POST: CPU first, then DRAM, then VGA, then BOOT. A brief glow on each is expected. The one that won’t turn off is your diagnostic clue.

CPU LED (Red)

The CPU LED illuminates during the processor initialization phase. On most MSI boards it’s red, though some board revisions use white instead. Same meaning, different color. It should clear within 5 seconds on a healthy system.

A stuck CPU LED means the board can’t detect or initialize the processor. Common causes include an unseated CPU, bent socket pins (on AM5 boards the pins are on the motherboard socket, not the CPU itself; Intel LGA1700 and LGA1851 work the same way, with pins on the motherboard socket rather than the processor), an incompatible CPU for the installed BIOS version, or a dead processor. a white CPU LED carrying the same fault message is one of the more common points of confusion in MSI forums.

DRAM LED (Yellow/Amber)

The DRAM LED lights up during memory initialization. It’s yellow or amber and can legitimately take longer than the CPU phase to clear, especially when XMP or EXPO memory profiles are enabled. Ten to fifteen seconds during DRAM initialization is normal on some configurations. Don’t panic yet.

A stuck DRAM LED usually means RAM isn’t fully seated, the kit is in the wrong slots, an XMP/EXPO profile failed to initialize, or the memory isn’t on the board’s Qualified Vendor List. DDR5 modules require noticeably more insertion force than DDR4, and partial seating is the single most common cause of DRAM LED faults on AM5 and Intel 12th through 15th gen platforms.

VGA LED (White)

The VGA LED covers GPU initialization. It’s white and typically clears in 2 to 5 seconds. A stuck VGA LED means the board can’t initialize a graphics source. That points to an unseated GPU, missing PCIe power connectors, or a failed card.

It can also trigger when a BIOS display output setting is pointed at the wrong source. If your CPU has integrated graphics and you’re using a discrete GPU but the BIOS is set to iGPU output, the VGA LED may stick. Same issue in reverse if you expect iGPU output but the BIOS is forcing PCIe.

BOOT LED (Yellow/Amber)

The BOOT LED handles storage and boot device initialization. It’s also yellow or amber, which causes occasional confusion with the DRAM LED. They’re separate, labeled lights. The BOOT LED should clear in 2 to 8 seconds depending on drive speed.

Stuck BOOT LED means no bootable device was found, the OS bootloader is corrupted, or the storage drive has failed. This is also the LED that lights up when an NVMe drive isn’t fully seated or its M.2 slot is disabled in BIOS.

LED Label	Color (MSI)	Boot Phase	Typical Duration (Healthy)	Stuck LED Suspects
CPU	Red (or White on some SKUs)	CPU Initialization	<5 seconds	Unseated CPU, bent pins, incompatible CPU, outdated BIOS
DRAM	Yellow/Amber	Memory Initialization	5–15 seconds (longer with XMP/EXPO)	Unseated RAM, wrong slots, incompatible kit, failed XMP profile
VGA	White	GPU Initialization	2–5 seconds	Unseated GPU, missing PCIe power, wrong display output source in BIOS
BOOT	Yellow/Amber	Storage/Boot Device Init	2–8 seconds	No bootable drive, corrupted OS bootloader, failed SSD/HDD, disabled M.2 slot

Understanding the EZ Debug LED Boot Sequence (And Why Timing Matters)

POST runs in a strict linear order. The system can’t advance past a failed stage. That sequential nature is what makes EZ Debug LEDs so useful as a diagnostic tool.

Here’s the key insight: if your CPU LED lights up and then turns off, but the DRAM LED stays solid, the CPU phase passed. The processor itself is almost certainly fine. Your problem lives in the memory phase. Work backward from the stuck LED, not from the beginning of the chain.

The difference between a flashing LED and a solid one also matters. On some MSI boards, a flashing debug LED indicates the board is actively retrying initialization. A completely solid LED that hasn’t moved in 30 or more seconds indicates a hard failure where the board has stopped trying.

Some MSI boards cycle back to the CPU LED between retry attempts. Seeing the CPU light briefly before the DRAM LED sticks again isn’t a new CPU failure. That’s normal retry behavior. Don’t let it send you down the wrong troubleshooting path.

One more timing note: if the DRAM LED lingers for 15 to 20 seconds but eventually clears, that’s almost always XMP or EXPO profile negotiation, not a fault. Flag it only if it never clears.

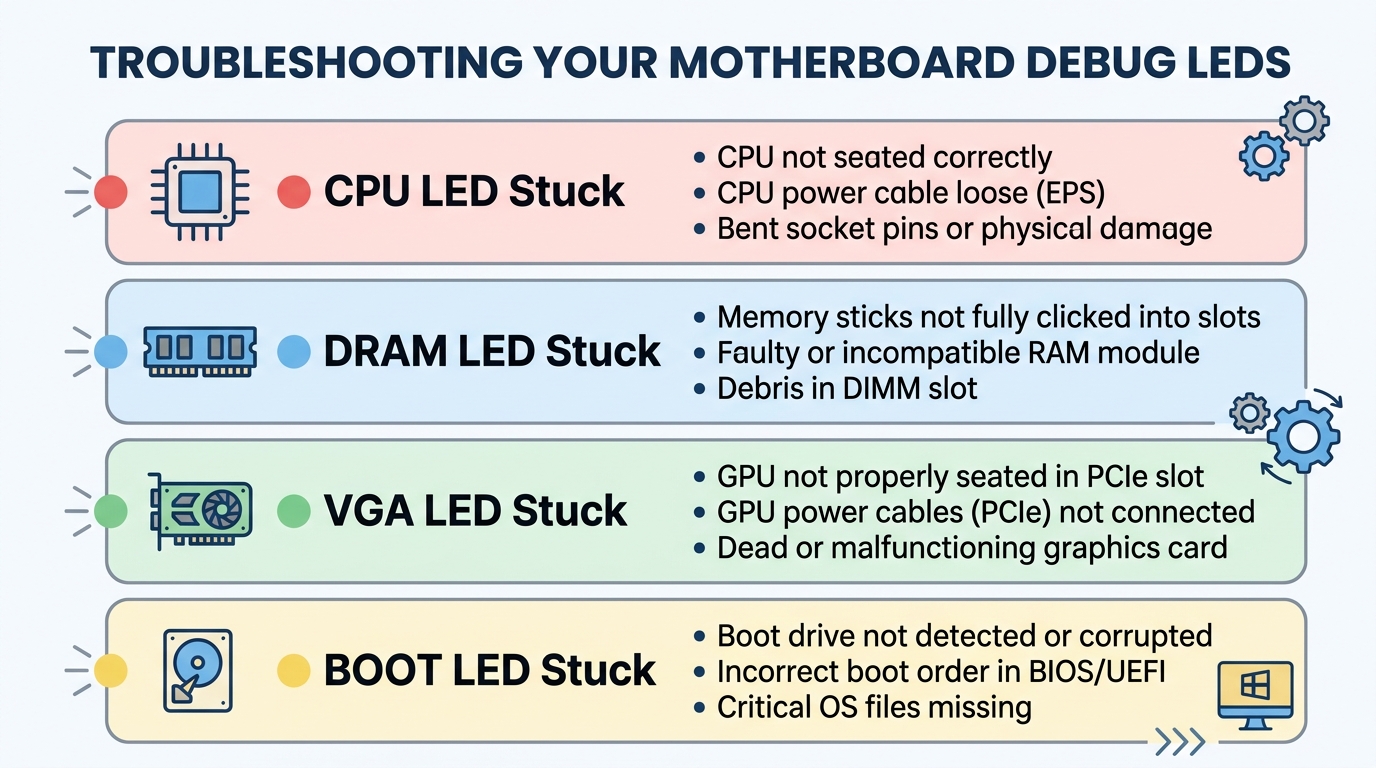

How to Fix Each EZ Debug LED: Step-by-Step Troubleshooting

Before touching anything inside your case: power off completely, unplug from the wall, and hold the power button for 5 seconds to discharge any capacitors. Do this every time before reseating hardware. BIOS updates are frequently the recommended first step when pairing a new CPU with an existing board.

1. Check CPU compatibility on MSI’s official support page for your specific board model. Some boards need a BIOS update before they’ll recognize newer CPU generations.
2. Reseat the CPU. Remove it, inspect the socket for bent pins, and reinstall with correct orientation. On AM5 boards, pins are on the motherboard socket. On Intel LGA1700 and LGA1851, pins are also on the motherboard socket, not the processor.
3. Confirm the CPU power connector is fully seated. That’s the 8-pin EPS connector near the top-left of the board. High-end MSI boards may have two 8-pin connectors. Both must be connected.
4. Clear CMOS. Use the jumper method or the dedicated CMOS reset button if your board has one (MEG and higher-end MPG boards often do).
5. Try a known-working CPU if you have access to one.
6. If you confirm bent pins: don’t boot. Seek professional repair or initiate an RMA.

EZ Debug LED DRAM: Troubleshooting Steps

1. Power off, unplug, and reseat your RAM with firm, even downward pressure until both retention clips snap closed. DDR5 requires considerably more force than DDR4. This is the most common fix on AM5 and B650/X670 builds.
2. Test with a single stick in the A2 slot (second slot from the CPU on most MSI boards). Check your manual to confirm the correct single-stick slot for your model.
3. Disable XMP or EXPO in BIOS and boot at JEDEC default speeds. If the system posts with XMP off, the profile settings are the issue, not the hardware.
4. Test each stick in every slot individually to isolate whether the fault is in the RAM stick or the slot itself.
5. Check the QVL (Qualified Vendor List) on MSI’s website for your board. Not every DDR5-6000 or DDR5-6400 kit is validated for every chipset. This is especially common on B850 and X870E platforms with high-speed kits.
6. Update BIOS if you’re running a launch version. Early AM5 BIOS releases had documented RAM compatibility problems that were resolved in subsequent updates.

EZ Debug LED VGA: Troubleshooting Steps

1. Reseat the GPU. Remove it, lightly clean the PCIe slot contacts, and firmly reinsert until the retention clip clicks.
2. Verify all PCIe power connectors are attached. RTX 40 series cards use the 16-pin 12VHPWR connector, while RTX 50 series cards use the updated 16-pin 12V-2×6 connector (same physical form factor, revised PCI-SIG spec). RTX 30 series typically uses two 8-pin connectors. Missing power is a surprisingly common cause of VGA LED faults on new builds.
3. Check the BIOS display output setting. Make sure it points to PCIe/GPU rather than iGPU when using a discrete card.
4. Try the GPU in the primary PCIe x16 slot if it isn’t already there. That’s typically the slot closest to the CPU.
5. Test the GPU in another system, or test a different GPU in this system.
6. Inspect the PCIe slot for physical damage.

EZ Debug LED BOOT: Troubleshooting Steps

1. Confirm your NVMe SSD is fully seated in its M.2 slot and secured with the retention screw. An unsecured drive can lift slightly at the contact end and lose connection. The SSD installation guide for SATA and M.2 drives walks through correct seating and screw placement.
2. Check SATA data and power cables on 2.5-inch or 3.5-inch drives.
3. Enter BIOS by pressing DEL at POST and confirm the drive appears under the Storage configuration section.
4. Verify boot order. The correct drive must be first in boot priority.
5. If the drive appears in BIOS but won’t boot, the OS bootloader may be corrupted. Use the Windows Recovery Environment or reinstall.
6. Test with a known-working storage device.
7. If an NVMe drive isn’t detected at all: check whether the M.2 slot is enabled in BIOS. Some MSI boards automatically disable specific M.2 slots when certain SATA ports are in use. Check your board manual for slot sharing rules.

What If Multiple EZ Debug LEDs Are Lit at Once?

Seeing two LEDs lit at the same time confuses a lot of builders. It’s one of the more common forum questions. Not great when you’re staring at it at midnight with a new build on the table.

EZ Debug LEDs don’t stay on cumulatively in normal operation. If both CPU and DRAM LEDs appear lit simultaneously, the board is almost always stuck in a POST retry loop, cycling rapidly between phases, or it has halted between those two stages.

The most common multi-LED scenario is red CPU plus amber DRAM together. This usually points to a RAM issue that’s also preventing CPU initialization from completing cleanly, or a BIOS version that doesn’t have microcode support for the installed CPU. It’s a frequent result of pairing a newer Ryzen 9000 or Intel Core Ultra 200 series processor with a board that shipped with an older BIOS. The board can’t identify the CPU properly, which cascades into a memory initialization failure.

Start by clearing CMOS. Then update the BIOS if the board has a Flash BIOS button that supports CPU-less updates (select MSI MEG and MAG boards do). After that, address LEDs in POST order, starting with the CPU phase first.

EZ Debug LED Equivalents on Other Motherboard Brands

MSI isn’t alone here. Every major motherboard manufacturer has a version of this diagnostic system. If you landed on this article but you’re not running an MSI board, here’s how the feature maps across brands.

Brand	Feature Name	LED Count	Notes
MSI	EZ Debug LED	4 LEDs (CPU, DRAM, VGA, BOOT)	Standard on MEG/MPG/MAG; absent on some budget boards
ASUS	Q-LED / Debug LEDs	4 LEDs (same categories)	ROG/TUF/Prime mid-range and above; ROG boards add Q-Code 2-digit hex display
Gigabyte	Debug LED / Q-Flash Plus LED	4 LEDs	AORUS series includes full LED debug; standard Gigabyte boards may use a single LED
ASRock	POST Status Checker (PSC)	4 LEDs (CPU, DRAM, VGA, BOOT)	Present on mid-range and above (Steel Legend, Taichi)

ASUS’s Q-Code system on high-end ROG boards goes further than any LED-based system by displaying a two-digit hexadecimal POST code, which maps to a specific initialization event in the UEFI documentation. If you’re building on an ROG board and need more granular diagnostics, ASUS’s official support page maintains Q-Code tables for each board generation.

How to Prevent EZ Debug LED Errors on Future Builds

Most debug LED faults are preventable. A few habits eliminate the majority of them.

• Check the CPU support list before buying: Especially on AM5 (B850, X870, X870E) and Intel Z890 or B860 platforms, BIOS versions matter. A board that shipped before your CPU launched may need an update it can’t perform without a supported CPU installed first.
• Use MSI’s Flash BIOS button: Select MAG and MEG boards let you update BIOS from a USB drive without a CPU installed. Do this before dropping in a new-generation processor.
• Populate the correct RAM slots from the start: On most MSI boards, A2 and B2 (second and fourth slots from the CPU) are the correct slots for a two-stick dual-channel configuration. Using A1/B1 first is a common new-builder mistake.
• Apply firm, even force on DDR5: DDR5 spec requires more insertion pressure than DDR4. If the retention clips aren’t fully closed, the module isn’t seated.
• Install GPU with the case horizontal: Inserting a beefy GPU with the case upright can cause partial seating from the card’s own weight before the clip locks. Lay the case flat to seat it cleanly and avoid the kind of GPU sag that can eventually stress the slot.

For memory configuration specifics on AM5, MSI’s official motherboard support portal maintains QVL lists updated per BIOS revision.

Frequently Asked Questions About EZ Debug LEDs

What does a solid EZ Debug LED mean?

A solid EZ Debug LED that stays lit after 30 or more seconds means the motherboard detected a hardware fault at that POST stage and can’t proceed. Normal boot behavior causes each LED to light briefly and then turn off as POST advances. If it’s still glowing while you’re reading this paragraph, that’s the component to investigate first.

What are the most common causes of the DRAM EZ Debug LED staying on?

The most common causes are RAM not fully seated (especially DDR5, which needs firm downward pressure), incorrect slot population (use A2/B2 for dual-channel, not A1/B1 on most MSI boards), an XMP or EXPO profile the board can’t initialize at that speed, or a memory kit that isn’t on the board’s QVL. Start with one stick in the A2 slot and XMP disabled. That single step resolves the majority of DRAM LED faults.

Why is my EZ Debug LED showing both red (CPU) and yellow (DRAM)?

Simultaneous or rapidly alternating CPU and DRAM LEDs almost always indicate a POST retry loop. The most frequent cause on AM5 and Intel 12th through 15th gen platforms is a BIOS version that lacks microcode support for the installed CPU, or RAM seated without sufficient force on DDR5. Clear CMOS first, then reseat RAM. If the board supports CPU-less BIOS flashing via a Flash BIOS button, update the firmware before anything else.

What does the white EZ Debug LED on the CPU mean?

On certain MSI board revisions, the CPU debug LED is white instead of red. It means exactly the same thing. A white CPU LED that stays on indicates the board can’t initialize the processor. Troubleshoot it identically to a red CPU LED: check seating, inspect for bent socket pins, verify CPU compatibility with the installed BIOS version, and clear CMOS.

Does the EZ Debug LED stay on during normal operation?

No. During a successful boot, each LED briefly illuminates as the system tests that component, then turns off. If all four LEDs cycle on and off in sequence and the system reaches Windows or your OS of choice, every component passed POST cleanly. A permanently lit LED only appears when that hardware stage fails and POST cannot continue.

What You Should Do

The core principle is simple: a cycling LED is normal, a stuck one tells you where to look. CPU, DRAM, VGA, BOOT. That sequence is your diagnostic roadmap. Before you assume hardware failure, always try the cheap fixes first. Reseat the component the LED points to. Clear CMOS. Disable XMP. Test one stick of RAM at a time. Most EZ Debug LED faults are resolved in under 15 minutes without replacing anything. If reseating and CMOS clears don’t move the needle, that’s when you start isolating components by swapping them out one at a time, always working in POST order starting from the first stuck LED.
