DRAM Light on Motherboard: Causes and Fixes

The DRAM light on a motherboard is a POST debug LED that illuminates when the system cannot detect, initialize, or communicate with installed RAM modules.

Last updated: July 2026

Quick Answer: What Does the DRAM Light Mean on a Motherboard?

A lit DRAM debug LED means your motherboard failed to complete memory initialization during POST (Power-On Self-Test). It does not automatically mean your RAM is dead. The fault could be as simple as an unseated stick, an XMP profile your board can’t handle, RAM in the wrong slots, or a BIOS version that doesn’t support your CPU or memory kit. In almost every case, you can fix this yourself without sending anything back.

You power the system on, fans spin up, everything looks ready to go, and then… nothing. No display, no boot, just a solid red or orange DRAM light staring back at you from the corner of your motherboard. Frustrating, especially after a fresh build or an upgrade. The good news is that this is one of the most common POST errors builders run into, and the fix is usually straightforward.

What Does the DRAM Light Mean on a Motherboard?

Every modern mid-range and high-end motherboard includes a set of debug LEDs to help you pinpoint exactly where a POST failure occurs. These LEDs are your first real diagnostic tool when a system won’t boot. Understanding what they’re telling you saves hours of guesswork.

How Debug LEDs Work (Boot Order Explained)

During POST, your motherboard runs through a fixed initialization sequence: CPU first, then DRAM, then VGA (GPU), then BOOT. Each debug LED lights up temporarily as that component is being checked. On a healthy system, you’ll see each LED flash briefly and go dark as the board moves to the next stage.

If the DRAM light stays solid and the system doesn’t advance to VGA or BOOT, the board has confirmed that the CPU initialized correctly but memory initialization failed. That’s actually useful information. It rules out the CPU itself as the primary suspect (with one exception covered later).

The LED label varies by manufacturer. You might see it written as “DRAM,” “D,” or represented by a small RAM icon. On MSI boards, this system is called EZ Debug LED; ASUS calls theirs Q-LED. ASRock and Gigabyte use similar four-LED arrays on their mid-range and high-end models. Budget boards sometimes only include a single POST code display instead of individual LEDs.

One thing to watch: the LEDs cycle through all four positions briefly on every boot. A DRAM light that flashes for half a second and goes out is normal. A DRAM light that stays lit while the system stops advancing is the problem you need to solve.

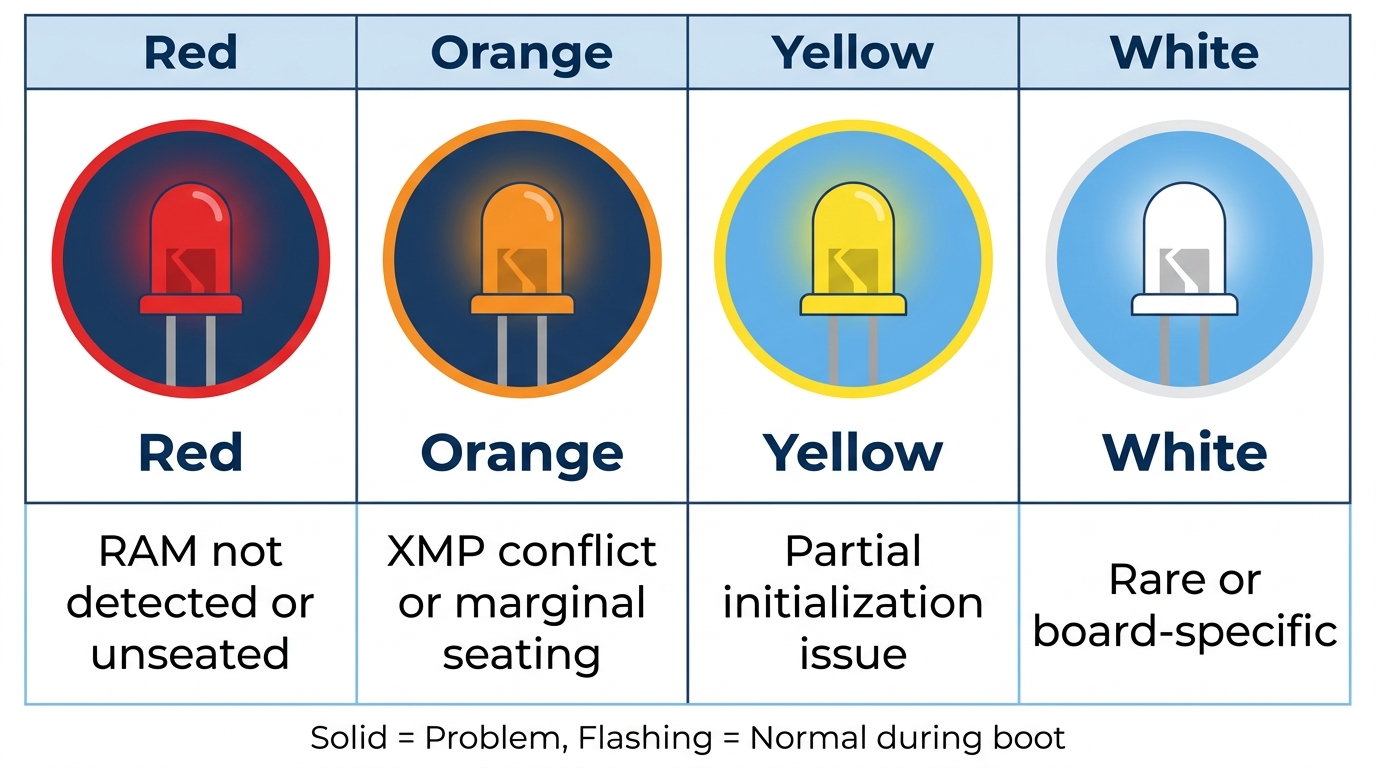

DRAM Light Colors and What Each Means

Most guides treat the DRAM light as simply “on” or “off,” but the color carries real diagnostic information. Different brands use different color conventions, and the same brand can use different colors for different severity levels.

Light Color	Common Meaning	Urgency
Red (solid)	RAM not detected, incompatible, or fully unseated	High, system will not POST
Orange	Partial detection issue; often an XMP/EXPO conflict or marginal seating	Medium, may boot with reduced speed
Yellow	Seen most often on ASUS boards; functionally the same as orange, initialization failure	Medium-High
White	Rare; seen on some ASUS ROG boards during first-boot memory training	Low, usually self-resolves within 90 seconds

A red DRAM light almost always means zero memory communication. Orange and yellow often appear when the board finds the RAM but can’t complete training, which is a narrower problem. White is the least alarming, some ASUS ROG boards illuminate the DRAM LED white while running through DDR5 training on first boot or after a CMOS clear, and it clears on its own.

Common Causes of the DRAM Light on Your Motherboard

There are several distinct reasons your DRAM light is on, and diagnosing the right one determines which fix actually works. Not worth randomly swapping parts, work through these systematically.

Unseated or Loose RAM Modules

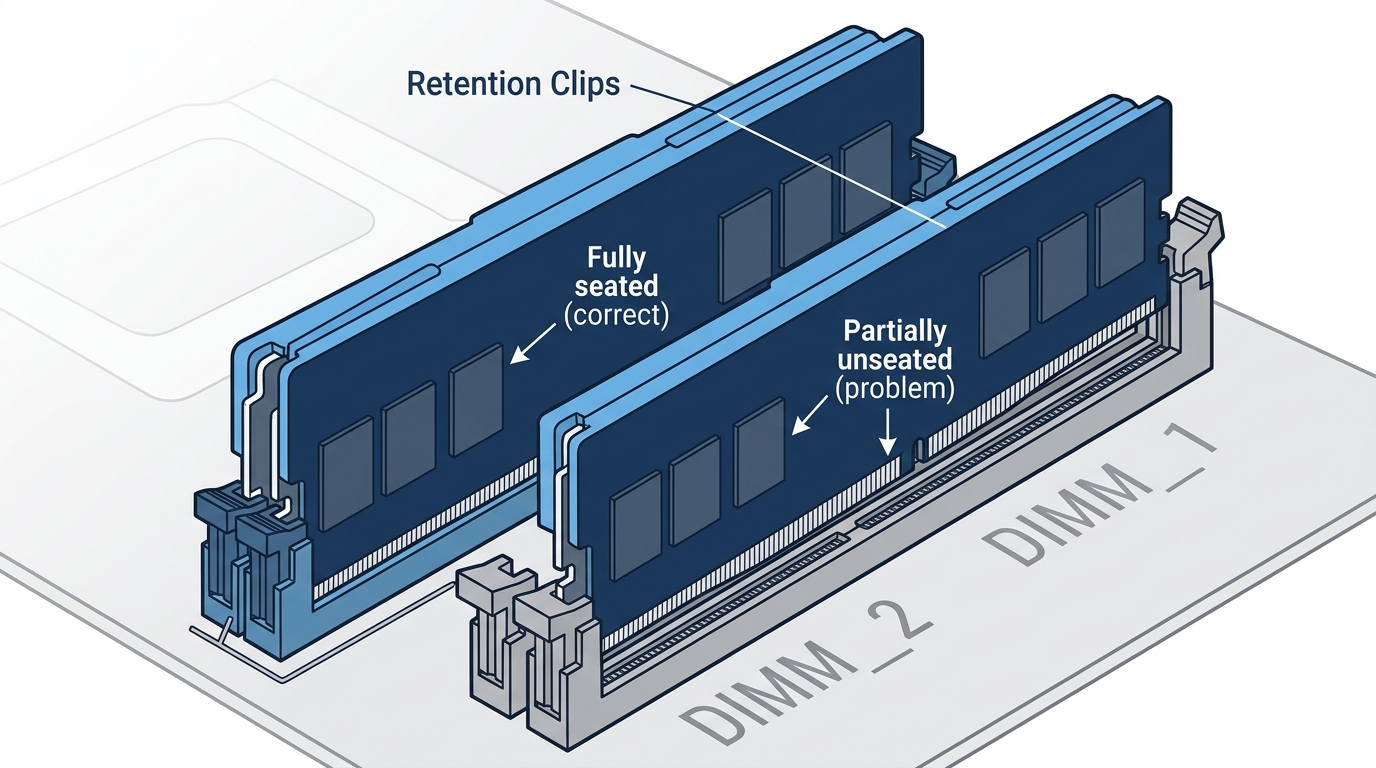

The single most common cause. DDR4 and DDR5 slots have a keyed notch that prevents cross-installation (DDR4 notch at pin 120, DDR5 at pin 144), but even correctly oriented sticks can sit just a millimeter short of full contact. The retention clips require roughly 20 to 30 pounds of even downward pressure to click into place. Many first-time builders push the edge of the stick rather than pressing along the full length, which causes one end to seat fully while the other stays marginally raised.

Not seated. That’s it. Try this fix first every time.

Dirty or Oxidized Gold Contacts

The gold fingers on your RAM sticks develop oxidation over time, particularly in high-humidity environments or on systems older than two to three years. Oxidation increases contact resistance to the point where the board can’t read the SPD data stored on the module. You don’t need expensive cleaning equipment to fix this.

RAM Installed in Wrong Slots (Dual-Channel Configuration Error)

Most motherboards require RAM in specific slots to initialize correctly, especially with a single stick. The wrong slot won’t just reduce performance, on some boards, it will prevent POST entirely.

On most Intel Z790, B760, Z890, and B860 boards, the preferred single-stick slot is the second slot from the CPU socket, labeled A2 or DIMM_B2. AMD B550, X570, B650, X670, B850, X870, and X870E boards follow the same convention. If you have two sticks, populate A2 and B2 before using A1 and B1. Always check your specific manual, the silkscreen printing on the board labels these slots, and the manual includes a population diagram.

XMP/EXPO Profile Conflicts

This one trips up builders constantly, and it’s almost entirely absent from competing troubleshooting guides. Enabling an XMP 3.0 or EXPO profile on RAM running above JEDEC spec is a very common cause of the DRAM light appearing, particularly on first boot or after a BIOS update.

Here’s the scenario: you have a DDR5-6000 or DDR5-6400 kit, you enable XMP or EXPO in the BIOS, and the board can’t train that frequency because the BIOS microcode predates the kit’s timing tables. The board falls back to a memory error. This affects Ryzen 7000 and 9000 series builds with EXPO and Intel 12th through 15th Gen (Arrow Lake Core Ultra 200) builds with XMP 3.0 DDR5 kits. Resetting CMOS and booting at stock JEDEC speeds almost always resolves it. Understanding the difference between XMP and EXPO helps you apply the right profile for your platform.

Incompatible RAM (Not on QVL)

Every motherboard has a Qualified Vendor List (QVL), a tested and certified list of RAM kits the manufacturer has validated. A DDR5-7200 kit may not initialize on a B650 board without a specific BIOS version that added support for that kit’s timing configuration. Incompatibility isn’t the same as defective. The RAM may work perfectly in a different board or after a BIOS update adds QVL support.

Faulty RAM Stick

One or both sticks may have failed cells or a damaged SPD chip. Distinguishable from incompatibility by testing each stick in a separate, known-good system. If a stick fails there too, it’s dead. If it works in another board, suspect your motherboard or BIOS.

BIOS Version Incompatibility (Especially with New CPUs)

New CPUs often require a BIOS update before the board can initialize memory properly. AMD Ryzen 9000 series (Zen 5) CPUs dropped into older X670 or B650 boards without updated firmware will sometimes show a DRAM light because the board can’t get past the CPU initialization stage, which cascades into a memory error. Intel Core Ultra 200 series (Arrow Lake) has had similar compatibility gaps on Z790 boards running outdated microcode.

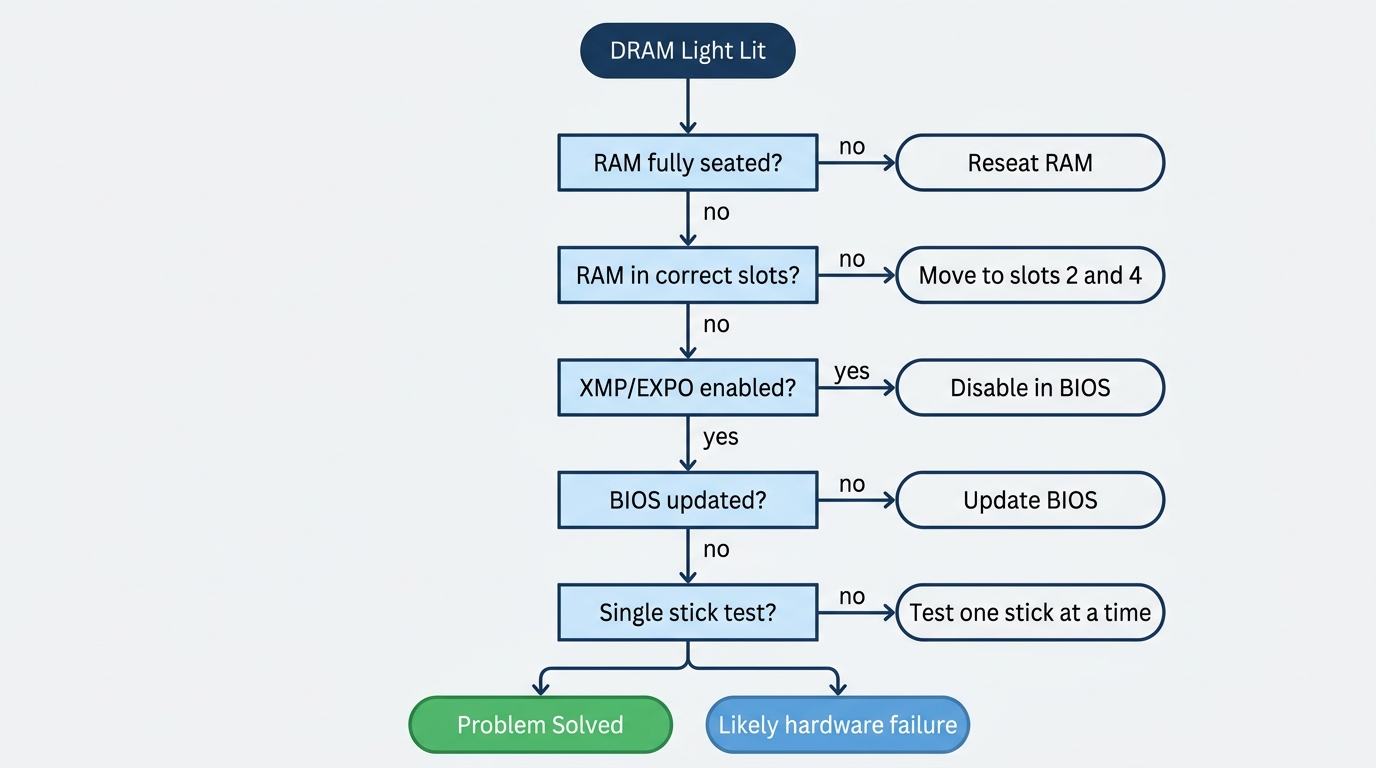

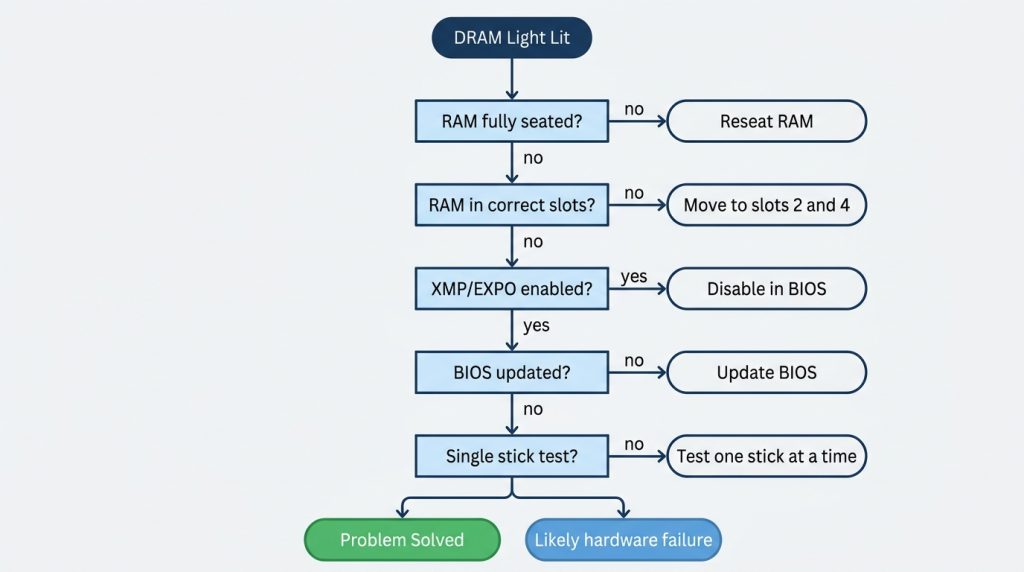

How to Fix the DRAM Light on Your Motherboard, Step by Step

Before you start: Power off your PC, flip the PSU switch to off, unplug the power cable from the wall, and hold the case power button for five seconds to discharge capacitors. Do not touch internal components with the system live.

Step 1, Reseat Your RAM Modules (Start Here)

This resolves the DRAM light more often than any other fix. Do this before anything else.

1. Power off completely, unplug the PSU, and discharge capacitors by holding the power button for five seconds.
2. Open the retention clips on both sides of the RAM slot by pressing outward until they click open.
3. Remove both sticks by holding them by the edges only. Don’t touch the gold contacts or green PCB traces.
4. Start with a single stick. Insert it into the manufacturer-recommended slot (usually A2 or DIMM_B2, check your manual).
5. Line up the notch on the stick with the key in the slot. Press down firmly and evenly along the full length of the stick until both retention clips click into place. Both sides must lock.
6. Power on and test. If no DRAM light, add the second stick in B2 and test again.

Step 2, Clean the Gold Contacts

A clean pencil eraser (white vinyl preferred) works well. Light, even strokes along the length of the gold contacts, not across them. Follow up with 99% isopropyl alcohol on a lint-free cloth or cotton swab to remove eraser debris. Finish with compressed air to clear the slot.

Don’t use water, household cleaners, or abrasive cloths. Don’t use 70% or 91% IPA, the water content leaves residue.

Step 3, Test RAM Sticks Individually in Each Slot

Systematic elimination. Run through every stick-and-slot combination to isolate whether the fault is in the RAM or the slot itself.

Stick	Slot	Result
Stick A	Slot A2	POST / No POST
Stick A	Slot B2	POST / No POST
Stick B	Slot A2	POST / No POST
Stick B	Slot B2	POST / No POST

If Stick A posts in A2 but not B2 while Stick B also fails in B2, your B2 slot is suspect. If Stick A fails in every slot but Stick B works fine, Stick A is likely the dead one. Methodical. No guessing.

Step 4, Clear the CMOS

Clearing the CMOS resets all BIOS settings, including any XMP/EXPO profiles, memory training data, and anything else that might be locking your board into a broken memory configuration. This is particularly effective if the DRAM light appeared after a BIOS settings change.

• Method 1 (CMOS jumper): Locate the 3-pin CLR_CMOS header on your board (check the manual). With the system unplugged, move the jumper cap from pins 1-2 to pins 2-3. Wait 10 seconds. Move it back.
• Method 2 (CMOS battery): Remove the CR2032 battery from the motherboard with the system unplugged. Wait 60 seconds. Reinstall the battery.
• Method 3 (dedicated button): High-end boards from ASUS ROG, MSI MEG, and some Gigabyte Aorus models have a physical CMOS reset button on the rear I/O panel or the board itself. Press and hold for three to five seconds with the system powered off but the PSU plugged in (some buttons require standby power).

A real-world example: one builder on Reddit reported that their orange DRAM light disappeared immediately after removing the CMOS battery, suggesting they had enabled a BIOS setting that conflicted with memory initialization. Classic CMOS fix.

Step 5, Disable XMP/EXPO and Test at JEDEC Speeds

If the system posts after clearing CMOS, go into BIOS and leave XMP/EXPO disabled for now. Let the board run at default JEDEC speeds, DDR4 at 2133 or 3200 MHz, DDR5 at 4800 MHz. Confirm the system is stable at stock before re-enabling the profile.

If the DRAM light only appears with XMP or EXPO enabled, a BIOS update is almost certainly the solution. You can learn how to properly enable XMP in your BIOS after updating firmware to avoid re-triggering the error.

Step 6, Update Your BIOS

Required when you’re running a new CPU on an older board, using a high-speed DDR5 kit, or installing RAM that wasn’t on the QVL at the time your board shipped. All four major manufacturers maintain searchable QVL databases by board model, check ASUS, MSI, Gigabyte, and ASRock’s support pages directly.

The real challenge: if you can’t POST, you can’t access the BIOS to update it through normal means. Every major brand now has a flash-without-CPU feature for exactly this situation:

• ASUS (BIOS FlashBack): Place the BIOS file (renamed to a specific filename) on a FAT32-formatted USB drive and plug it into the labeled FlashBack USB port on the rear I/O. Hold the FlashBack button for three seconds until the LED blinks.
• MSI (Flash BIOS Button): Same concept. Rename the file “MSI.ROM,” plug into the dedicated USB port, hold the Flash BIOS button on the rear I/O for five seconds.
• Gigabyte (Q-Flash Plus): Rename the file “GIGABYTE.bin” and place it on a FAT32 USB drive. Press the Q-Flash Plus button on the rear I/O with the system off but PSU plugged in.
• ASRock (Instant Flash): Requires a posting system for most models. On select boards, BIOS Flashback is available, check your specific model’s manual.

Step 7, Check the CPU (CPU and DRAM Light On Together)

When both the CPU and DRAM lights are on simultaneously, the fault often lives at the CPU level rather than the RAM. Both lights staying solid points to CPU seating issues, socket pin damage, or BIOS incompatibility with the installed processor.

AMD AM5 CPUs use an LGA socket, so inspect the motherboard socket itself for bent pins in the memory controller region using a flashlight and magnifying glass. AM4 is the opposite: it’s a PGA design with the pins on the underside of the CPU, so check the processor itself rather than the socket. Intel LGA1700 and LGA1851 platforms follow the same layout as AM5, pins live in the socket, so inspect the socket for damaged or recessed contacts.

An overtightened CPU cooler can also cause this. If the cooler mounting pressure is uneven or excessive, it can slightly flex the PCB around the socket, affecting pin contact in the memory controller area.

If the CPU light clears during POST but the DRAM light stays solid, you’ve confirmed a memory-specific fault and the CPU’s gross initialization is fine.

Brand-Specific DRAM Light Troubleshooting

The fix is often the same across brands, but knowing what’s normal for each manufacturer saves you from misreading the situation.

ASUS Motherboards (DRAM Light Orange, Yellow, or White)

ASUS ROG, TUF Gaming, and Prime boards all use the Q-LED system with four LEDs: CPU, DRAM, VGA, and BOOT. An orange or yellow DRAM light on ASUS is the most common color reported, and it often indicates RAM training still in progress rather than a hard failure.

Important: after a CMOS clear on an ASUS board, wait up to 90 seconds before concluding something is wrong. DDR5 memory training takes time, and the DRAM light stays on throughout that process. Interrupting it by shutting down mid-training can corrupt memory training data and make the issue worse.

White DRAM light on ASUS ROG boards is typically a first-boot training indicator. Not a fault. Leave it running.

Boards most commonly reported with DRAM light issues include the TUF Gaming B550-Plus, ROG Strix B550-F, ASUS Prime X570-P, and various B650 and X670E models with early firmware.

MSI Motherboards (EZ Debug LED, DRAM Red)

MSI calls their debug LED system EZ Debug LED. The Tomahawk B550 MAX and B450 MAX boards had a well-documented run of DRAM red light issues tied specifically to BIOS versions that lacked Ryzen 5000 series support. MSI released critical BIOS updates that resolved the majority of those cases.

For Polish-speaking builders searching “tomahawk 2 max dram light co to jest”, “co to jest” means “what is it.” The answer is the same: it’s the EZ Debug LED indicating a memory initialization failure, and the fix starts with reseating RAM and checking BIOS version compatibility with your CPU and RAM kit.

MSI-specific BIOS flashback: put the file on a FAT32 USB, rename it “MSI.ROM,” plug into the labeled USB port on the rear I/O, and hold the Flash BIOS button for five seconds with the PSU plugged in and power switch off.

Gigabyte Motherboards (DRAM LED Red)

Higher-end Gigabyte Aorus and Gaming boards include the standard four debug LEDs. Budget-tier Gigabyte boards (DS3H, UD series) may only include a two-digit POST code display instead of individual LEDs. A POST code of “55” or “d3” on Gigabyte typically indicates a memory initialization failure.

Gigabyte boards on BIOS versions with XMP auto-detect enabled can trigger the DRAM light with kits that don’t have a matching XMP profile in the board’s database. Q-Flash Plus is available on the B660M DS3H and higher for BIOS updates without a working CPU.

Common on the Z790 Aorus Elite AX and similar boards: DDR5 kits above 6400 MHz require a BIOS update to initialize correctly. Don’t assume the RAM is dead.

ASRock Motherboards

ASRock B550M and X570 boards are known to briefly illuminate both the CPU and DRAM lights simultaneously during normal memory training. This is expected behavior on ASRock platforms and not automatically a fault indicator. The concern is when both lights stay solid past two minutes with no progression.

ASRock Instant Flash requires a functioning system to access, since it runs from within the BIOS. If your board won’t POST, you’ll need either a different compatible CPU to boot with, or an ASRock board that supports BIOS Flashback (available on select Steel Legend and Taichi models). Check your specific model’s feature list on ASRock’s product page before assuming Flashback is available.

When the DRAM Light Is On But RAM Seems Fine

Sometimes you’ve tested the RAM in another system and it’s completely healthy, yet the DRAM light persists on your board. Not a dead end. Several non-RAM factors produce this exact situation:

1. First-boot memory training: DDR5 systems commonly take 60 to 120 seconds on first boot to complete memory training. The DRAM light stays on during this entire period. Don’t shut the system down. Give it time. DDR4 training typically finishes in under 15 seconds, so a prolonged DRAM light on a DDR4 system is more likely a real error.
2. Post-CMOS-clear training: Same behavior after clearing CMOS. The board has to re-train memory from scratch. Normal.
3. Marginal slot contact: RAM technically works but the connection degrades under thermal expansion and contraction over many boot cycles. The stick that seemed fine could be borderline.
4. PSU instability: An underpowered or failing PSU causes voltage droop on the memory bus. The DRAM light appears intermittently as the 1.1V (DDR5) or 1.2V (DDR4) rail fluctuates. If the DRAM light comes and goes without pattern, check your PSU’s 12V rail stability under load.
5. Damaged DIMM slot: Physical damage to the slot pins, from previous rough RAM installation, dropped components, or ESD, causes persistent DRAM errors even with perfect RAM. Visible under magnification. This typically requires board RMA or professional repair.

The DDR4 vs DDR5 training time difference matters here. If you’re on DDR4 and the DRAM light has been on for 30 seconds with no progress, don’t wait. Something is wrong. If you’re on DDR5 and it’s been 60 seconds, wait another 60 before concluding failure.

Can a Faulty CPU Cause the DRAM Light?

Yes. The CPU contains an integrated memory controller (IMC), and the IMC handles all communication between the processor and your RAM. If the IMC is damaged, from overvolting, electrostatic discharge, or physical damage to the socket, the DRAM light activates even when the RAM itself is perfectly fine and correctly installed.

Bent or damaged pins in the memory controller pin group cause the same symptom, but where those pins physically live depends on the socket design. AMD AM5 and Intel LGA1700/LGA1851 are all LGA sockets, so the pins sit on the motherboard side, a bent pin on the board affects memory controller signals. AMD AM4 is the exception: it’s a PGA design, so the pins are on the CPU itself, and a damaged CPU pin can produce the same result.

Diagnostic approach: if your RAM tests clean in another system and you’ve exhausted all RAM and BIOS fixes, try a different CPU in your board. If the DRAM light clears with the alternate CPU, the IMC on your original CPU or the CPU socket itself is the problem. A red CPU light and yellow or orange DRAM light appearing together almost always points to this scenario rather than a RAM defect.

DRAM Light Troubleshooting Checklist

Step	Action	Tools Needed	Time
1	Reseat RAM in correct dual-channel slots	None	5 min
2	Clean gold contacts with eraser and IPA	Eraser, 99% IPA, compressed air	10 min
3	Test each stick individually in each slot	None	15 min
4	Clear CMOS via jumper, battery, or button	Jumper cap or flathead screwdriver	5 min
5	Disable XMP/EXPO, boot at JEDEC speeds	BIOS access	5 min
6	Update BIOS via FlashBack/Q-Flash Plus	USB drive, internet access	20 min
7	Test RAM in another known-good system	Secondary PC	30 min
8	Inspect CPU socket for bent pins	Magnifying glass, flashlight	10 min
9	RMA RAM, board, or CPU as indicated	Shipping materials	Days

FAQ, DRAM Light on Motherboard

What does the DRAM light mean on a motherboard?

The DRAM debug LED means your motherboard failed to detect or initialize your RAM during POST. It doesn’t automatically mean your RAM is dead. Common causes include an unseated module, RAM in the wrong slots, an XMP or EXPO profile the board can’t support, or an outdated BIOS that doesn’t recognize your CPU or memory kit. Start by reseating the RAM before assuming anything is broken.

Why is my PC stuck on the DRAM light?

A PC stuck on the DRAM light can’t complete POST and will show no display output. The most common causes are incorrectly seated RAM, sticks installed in the wrong slots, an XMP or EXPO profile the board can’t train at your current BIOS version, or a BIOS version incompatible with the installed CPU. Clear the CMOS and reseat the RAM first. Those two steps resolve the majority of cases.

Can a faulty CPU cause the DRAM light?

Yes. The CPU’s integrated memory controller (IMC) handles all RAM communication. A damaged IMC, from overvolting, ESD, or physical socket damage, will trigger the DRAM light even with fully functional RAM seated correctly. Bent pins in the memory controller pin group, on the AM5/Intel LGA socket or on an AM4 CPU’s underside, cause the same symptoms. If RAM tests fine in another system and all other fixes fail, suspect the CPU or socket.

Can I fix the DRAM red light myself?

In most cases, yes. Reseating RAM, cleaning gold contacts, clearing CMOS, and updating the BIOS are all DIY fixes that require no special tools and carry no significant risk when done with the system unplugged. Only physically damaged RAM, a cracked DIMM slot, or bent CPU socket pins typically require professional repair or RMA. Don’t spend money on a repair shop before working through the checklist above.

Is the DRAM light supposed to come on during a normal boot?

Briefly, yes. Debug LEDs cycle through CPU, DRAM, VGA, and BOOT during every POST sequence. The DRAM light flashes momentarily on every normal boot as the board checks memory. It’s only a problem when it stays solid and the system doesn’t advance past that stage. On DDR5 systems, the light can stay on for up to 90 to 120 seconds on first boot or after a CMOS clear due to memory training, this is normal and should not be interrupted.

When to RMA Your Hardware

After working through all steps above, here’s how to determine what actually needs to go back:

• RMA the RAM: if a single stick fails in all slots on multiple different boards.
• RMA the motherboard: if a known-good RAM stick fails in specific slots but passes in others on the same board, indicating damaged DIMM slot pins.
• RMA the CPU: if bent socket pins are corrected but the DRAM fault persists, and RAM tests clean in a separate system.

Most DDR5 kits from G.Skill, Corsair, and Kingston Fury carry lifetime warranties. ASUS, MSI, Gigabyte, and ASRock boards are typically covered for three years. Don’t throw hardware away before checking warranty status, RMA is free if you’re within the window. You can find G.Skill’s warranty terms at gskill.com/warranty and Corsair’s at corsair.com warranty support.

For platform-specific memory compatibility, both Intel’s ARK database and AMD’s processor specification pages list supported memory speeds and IMC limits by CPU model, cross-reference your kit’s XMP or EXPO speed against your CPU’s official IMC rating before assuming the board is at fault.

What You Should Do

A solid DRAM light with no display is alarming the first time you see it, but it’s fixable in the vast majority of cases without replacing any hardware. Start with the simplest fix, reseat the RAM with firm, even pressure in the correct slots. Clear the CMOS if reseating doesn’t work. Disable XMP/EXPO and confirm the board can boot at JEDEC speeds. If all that fails, update the BIOS using your board’s USB flash feature. Work through the checklist in order, and you’ll have a clear picture of what actually needs to be replaced before you spend a dollar on new parts.
