Is 100% GPU Usage Bad? When to Worry and When It Is Normal

100% GPU usage means your graphics card is fully utilized, working at maximum capacity to process and render frames or compute workloads.

Last updated: April 2026

Most people see that 100% GPU usage figure in MSI Afterburner and immediately panic. They’ve read forum posts warning about damage, seen Reddit threads claiming it’s a sign of cryptomining malware, and now they’re convinced their graphics card is about to die. They’re wrong. But there are specific situations where 100% GPU usage genuinely is a warning sign, and knowing the difference could save your hardware.

Here’s the clear, scenario-based answer you’ve been looking for.

What Does 100% GPU Usage Actually Mean?

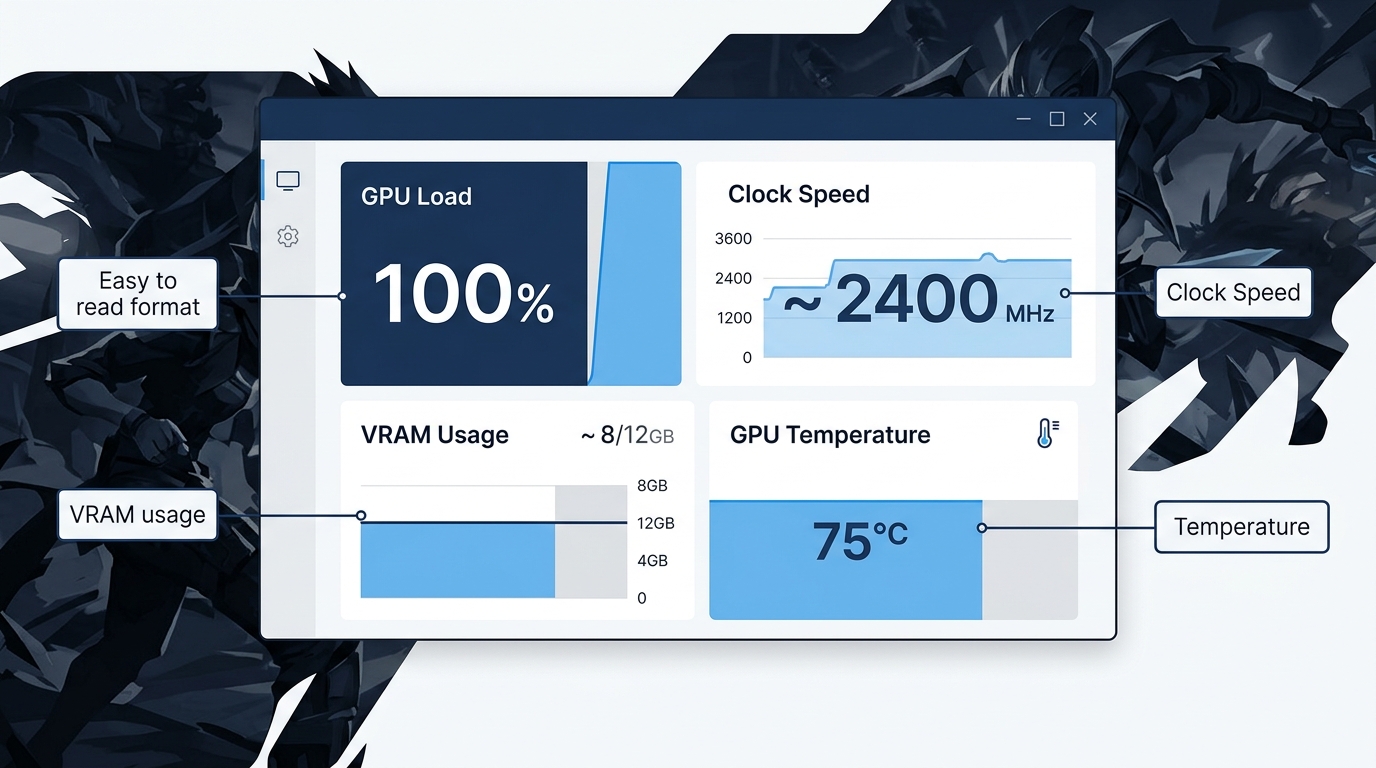

GPU Utilization Explained in Plain Terms

GPU utilization is a percentage that tells you how much of your graphics card’s processing capacity is actively being used. When you see 100% in a monitoring tool, it means the shader processors, render pipeline, and associated compute units are fully occupied. They have no idle cycles. They’re working.

A common mistake is treating GPU usage as a single number that tells you everything. It doesn’t. There are four separate metrics that actually matter, and they often get lumped together incorrectly.

Metric	What It Measures	What 100% Means
GPU Usage (Load %)	Shader core utilization	Fully occupied, no idle cycles
GPU Clock Speed	Operating frequency (MHz)	Running at max boost clock
VRAM Usage	Video memory consumed	Texture/asset buffer full (can cause stuttering)
GPU Temperature	Die temperature in °C	Dependent on cooling, not just load

100% GPU usage does not mean 100% temperature. Those are completely separate readings. You can have a GPU pegged at 100% load running at a perfectly safe 72°C.

How GPUs Are Designed to Be Used

GPUs are not delicate instruments. They’re workhorses built specifically to sustain full load for extended periods. NVIDIA and AMD both design their power limits, thermal solutions, and voltage curves around continuous operation at maximum utilization. That’s not an edge case for these cards, it’s the expected operating condition.

According to the Tom’s Hardware community in multiple GPU usage discussions at forums.tomshardware.com, 100% GPU usage is normal and not inherently bad. The concern isn’t the utilization percentage itself. It’s temperature. Running a GPU at 100% load with safe thermals causes no damage whatsoever.

Tools like FurMark and 3DMark intentionally push GPUs to 100% for minutes at a time. That’s literally their purpose. Your hardware is rated for it.

When 100% GPU Usage Is Completely Normal

In the majority of cases, 100% GPU usage means you’re getting full value from your hardware. Not a red flag. A green one.

During Gaming, The Most Common Scenario

100% GPU usage while gaming means the GPU is the bottleneck in your system. That’s the intended bottleneck in a gaming PC. You bought a graphics card to render frames, when it’s doing exactly that at full capacity, the system is working correctly.

You’ll see this most often with:

• High-fidelity AAA games like Cyberpunk 2077, Hogwarts Legacy, and Alan Wake 2
• Maxed-out graphics settings at any resolution
• Hardware that’s well-matched to the target resolution (a mid-range GPU at 1080p ultra, for example)

So is 100% GPU usage bad while gaming? No. The opposite is actually worth worrying about. A GPU sitting at 60-70% during a demanding game usually means you have a CPU bottleneck limiting how many frames the GPU can even receive to render. You’re paying for GPU capacity you’re not using.

With Uncapped Framerates

Turn off V-Sync, remove any frame cap, and your GPU will sprint as hard as it can to render every possible frame. It will hit 100%. Every time. That’s not a problem, that’s physics. The GPU has work available and it’s doing it.

If thermals are a concern, the answer is a frame limiter, not panic. NVIDIA and AMD both offer frame caps in their driver control panels. RTSS (RivaTuner Statistics Server) can also cap frames globally. Capping at your monitor’s refresh rate is usually enough to pull GPU usage down to 85-95% while eliminating screen tearing.

During GPU-Intensive Workloads

These all belong in the “100% is correct” category:

• Video rendering in DaVinci Resolve or Adobe Premiere Pro
• GPU-accelerated rendering in Blender Cycles
• Machine learning training or AI inference workloads
• Game development viewport previews in Unreal Engine

If you’re doing creative work and your GPU hits 100%, you’re using the tool correctly. Faster render. Good.

During Benchmarking or Stress Testing

FurMark, 3DMark, and Unigine Superposition are explicitly designed to hit 100% GPU usage and hold it there. If your GPU stays at 100% through a FurMark run with stable temperatures, that’s a passing result, not a failure.

When 100% GPU Usage IS a Problem

There are specific scenarios where 100% GPU usage is a red flag worth investigating.

100% GPU Usage While Idle or on the Desktop

This is the one that’s actually suspicious. If your GPU spikes to 100% while you’re browsing Reddit, watching a YouTube video, or sitting at the desktop with nothing demanding open, something is consuming resources it shouldn’t be.

Common causes:

• Malware or cryptomining software, the most frequently cited concern, and a real one
• Runaway background process, a poorly coded app consuming GPU via compute APIs
• Browser hardware acceleration, Chrome, Edge, and Firefox all use GPU acceleration by default, and some sites (video players, WebGL apps) can push usage surprisingly high
• Outdated or corrupt GPU drivers, driver bugs can cause erratic utilization spikes

How to diagnose it: Open Task Manager in Windows 10 or 11, click the “GPU” column header to sort processes by GPU consumption, and identify what’s using it. If it’s a process you don’t recognize, that’s worth investigating further with Malwarebytes.

100% GPU Usage With Severely Low FPS

Your GPU is at 100% but you’re getting 20fps in a game that should run at 60+. That combination points to a real problem. Possible causes:

• Thermal throttling: The GPU is downclocking itself to stay cool, reducing performance while the usage meter stays pegged
• VRAM overflow: When a game exceeds your VRAM capacity, assets spill to system RAM over the PCIe bus, performance collapses
• PCIe slot misconfiguration: If your GPU is seated in an x4 slot instead of the x16 slot (easy mistake on some boards), bandwidth is choked and performance tanks
• Failing hardware: A GPU with degraded memory or damaged compute units can show 100% usage while delivering far less actual throughput

Check temperatures first. If thermals are fine, reduce texture quality one step to free VRAM and see if performance recovers. Then physically verify your GPU is in the correct PCIe slot.

100% GPU Usage With Extreme Temperatures

High utilization is fine. High utilization plus high temperatures is where actual damage risk enters the picture. The temperature section below covers exact numbers by GPU generation. The short version: 100% load at 75°C is fine. 100% load at 97°C is not.

Stuttering and Microstutter at 100% Load

This one almost nobody talks about. Not great.

When a GPU is pinned at exactly 100% utilization, it has zero processing headroom. Games don’t render perfectly evenly, the engine sends occasional spikes of geometry, particle effects, or draw calls. A GPU at 92% can absorb those spikes. A GPU at 100% can’t. It falls behind, and you get microstutters even when the average framerate looks acceptable on paper.

The fix is specific: drop one or two expensive settings to bring average GPU usage to 90-95%. The settings that give you the most headroom per visual quality trade are Ray Tracing, Shadow Quality, Ambient Occlusion, and Draw Distance. Turning Ray Tracing from Ultra to High often buys 10-15% headroom with minimal visual impact at normal viewing distances.

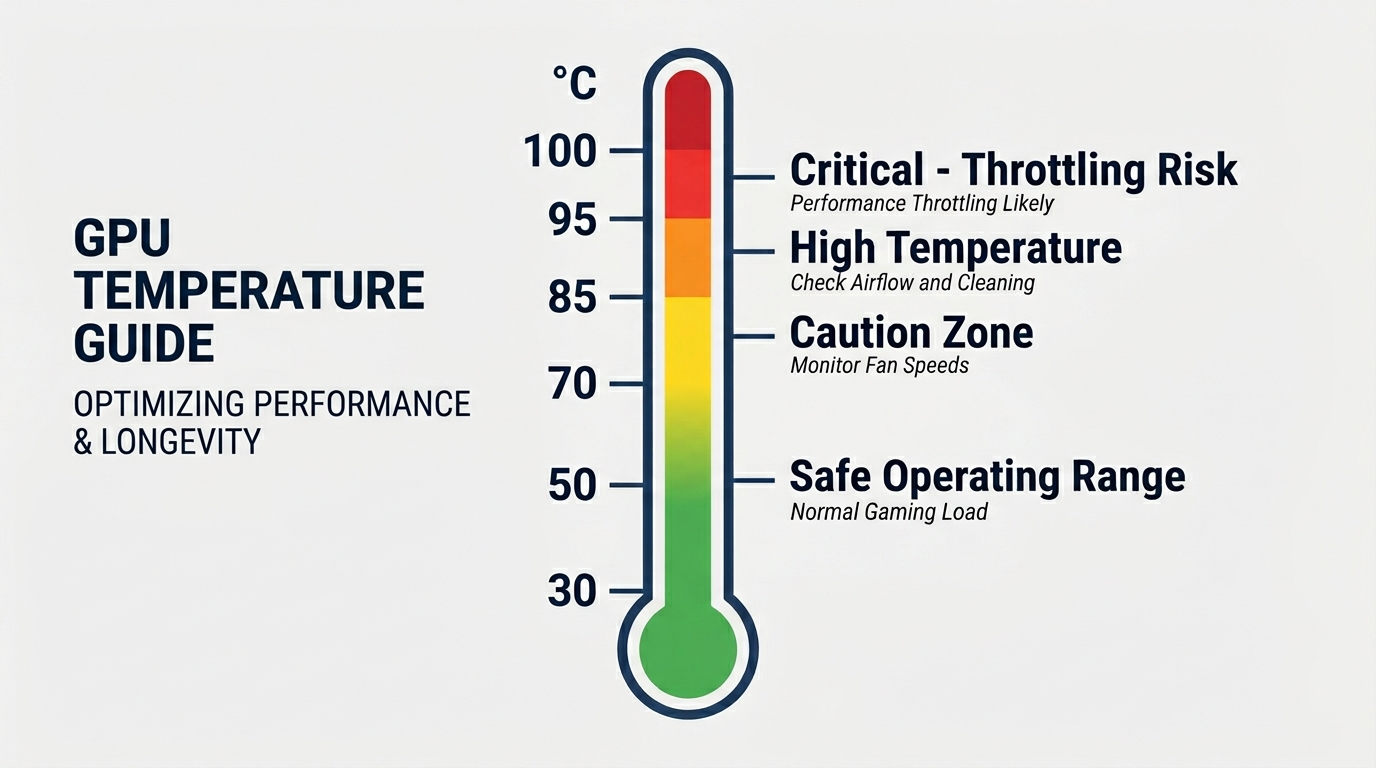

GPU Usage vs. GPU Temperature: The Real Danger Zone

Usage is a number. Temperature is the actual risk factor. Here are the real numbers by GPU generation, not vague advice about “watching your temps.”

Safe GPU Temperature Ranges by Generation

GPU Generation	Manufacturer	Safe Gaming Temp	Throttle Threshold	Danger Zone
RTX 40 Series (Ada)	NVIDIA	60-83°C	83°C (default power limit)	90°C+
RTX 30 Series (Ampere)	NVIDIA	60-84°C	84°C	90°C+
RTX 20 Series (Turing)	NVIDIA	60-85°C	88°C	93°C+
RX 7000 Series (RDNA 3)	AMD	60-85°C (Edge)	110°C (Junction)	110°C junction+
RX 6000 Series (RDNA 2)	AMD	60-85°C (Edge)	110°C (Junction)	110°C junction+
GTX 10 Series (Pascal)	NVIDIA	55-80°C	84°C	90°C+

AMD users: you’ll see two temperature readings in monitoring software. Edge temperature is the GPU die surface temperature, roughly equivalent to what NVIDIA reports as core temp. Junction temperature (also called hotspot) is the highest temperature point measured across the die. AMD’s RDNA 2 and RDNA 3 cards are rated to 110°C junction, that number sounds alarming but it’s within spec. Check AMD’s RDNA 2 architecture page for official thermal specifications.

NVIDIA’s newer Ada Lovelace cards also report a separate hotspot temperature alongside core temp. HWiNFO64 shows both clearly.

The rule of thumb that actually matters: 100% usage at 75°C is completely fine. 80% usage at 95°C is a real problem. It’s the temperature number you need to watch, not the utilization number. You can find safe normal GPU temperature ranges for gaming and idle in detail if you want to dig deeper into what’s normal for your specific card.

What Causes High Temperatures at 100% Usage

If your GPU runs hot under load, the usual culprits are:

• Dust-clogged heatsink or fans, the single most common cause in cards over 18 months old
• Poor case airflow, intake fans at the front/bottom, exhaust at top/rear, with cables routed away from airflow paths
• Dried-out thermal paste, GPU thermal paste typically degrades after 3-4 years, especially under sustained high load. If you’re running an older card and temps have gradually climbed, a repaste is worth considering. A quality compound like those reviewed in our Thermal Grizzly Kryonaut review can bring temps down significantly on older hardware.
• Ambient temperature above 30°C, a room that’s hot means your GPU’s cooling margin shrinks accordingly
• Aftermarket shroud blocking airflow, some third-party case panels or cable management routes can interfere with GPU fan intake

How to Check and Monitor Your GPU Usage

Best Free Tools for Monitoring GPU Usage

You don’t need anything paid for this. These are the tools I use:

• MSI Afterburner + RivaTuner Statistics Server, the gold standard combination. Afterburner handles monitoring and logging; RTSS puts an in-game overlay on screen showing GPU usage, temps, VRAM, and FPS simultaneously. Free. Works on NVIDIA and AMD.
• GPU-Z, detailed real-time specs and sensor data, useful when you want to verify what your card is actually clocked at. Download from TechPowerUp’s official GPU-Z page.
• Windows Task Manager, the GPU tab in Windows 10/11 Task Manager is genuinely useful for idle diagnosis. Good for quickly identifying which process is eating GPU resources.
• HWiNFO64, the most granular monitoring tool available. Shows hotspot temperatures, VRAM temperatures, individual sensor readings. Overkill for casual monitoring, perfect for troubleshooting.
• AMD Adrenalin / NVIDIA GeForce Experience, both have built-in overlays that work well if you’re already running the manufacturer software.

For gaming, configure MSI Afterburner’s OSD to show GPU usage %, GPU core temperature, VRAM used, and FPS. Four metrics, one overlay, everything you need to know at a glance.

How to Fix or Reduce 100% GPU Usage (When Needed)

In-Game Fixes

If you want to pull GPU usage down from 100% to give the card some headroom for microstutter prevention, or if thermals are creeping up, start here:

• Enable V-Sync or set a frame cap, cap at your monitor’s refresh rate (60, 144, 165, 240Hz). This alone usually brings GPU usage from 100% to 85-95%.
• Lower Ray Tracing first, RT is the most GPU-expensive setting in modern games per visual quality unit. Going from Ultra RT to High RT often saves 10-15% load with minimal visible difference at normal gameplay distances.
• Then reduce Shadow Quality and Ambient Occlusion, both are expensive and both look nearly identical one step down.
• Use DLSS, FSR, or XeSS upscaling, NVIDIA DLSS, AMD FSR, and Intel XeSS all reduce the native render resolution while outputting at your target resolution. Quality mode typically reduces GPU load by 20-30% with minimal visual impact.

Driver and Software Fixes

If GPU usage is high at idle or in light tasks:

• Update GPU drivers, or clean-install using DDU (Display Driver Uninstaller) in safe mode. Driver bugs causing erratic utilization are more common than people realize.
• Disable browser hardware acceleration, in Chrome: Settings → System → turn off “Use graphics acceleration when available.” Do the same in Firefox and Edge if you suspect they’re the culprit.
• Scan for malware, run Malwarebytes, check Task Manager’s GPU column for unrecognized processes.
• Adjust Windows power plan, High Performance mode can keep the GPU in a higher power state at idle. Balanced mode is sufficient for most users and allows proper low-power states.

Hardware Fixes

If GPU usage is high and temperatures are following:

• Clean the heatsink and fans, compressed air, with the PC off and unplugged. Do this outdoors or the dust goes everywhere.
• Improve case airflow, at minimum, you want positive pressure: more intake fans than exhaust. Front/bottom intakes, top/rear exhaust.
• Repaste the GPU, if the card is 3+ years old and temps have climbed over time, the thermal paste is likely dried out. This is the single highest-impact maintenance task for older GPUs running hot.
• Verify PCIe slot, physically confirm your GPU is in the motherboard’s primary x16 PCIe slot, not an x4 or x1 slot. Some boards label slots confusingly. Check your motherboard manual for which slot provides full x16 bandwidth.

One clarification that causes a lot of confusion: if you see 100% GPU usage but low CPU usage, your GPU isn’t broken. That’s a classic CPU bottleneck. The GPU is finishing frames faster than the CPU can feed it new render data, so it fills idle time with work and stays pegged at 100%. The fix is the CPU, not the GPU.

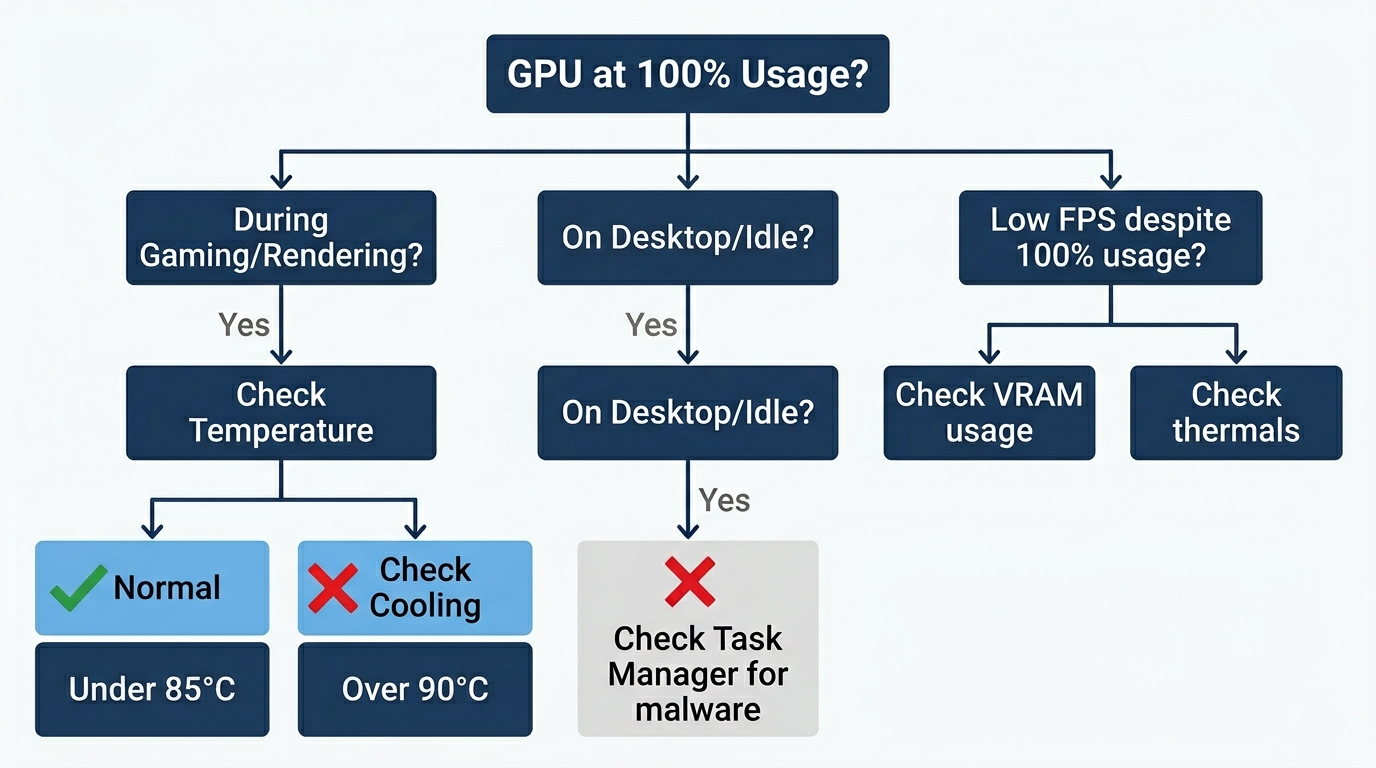

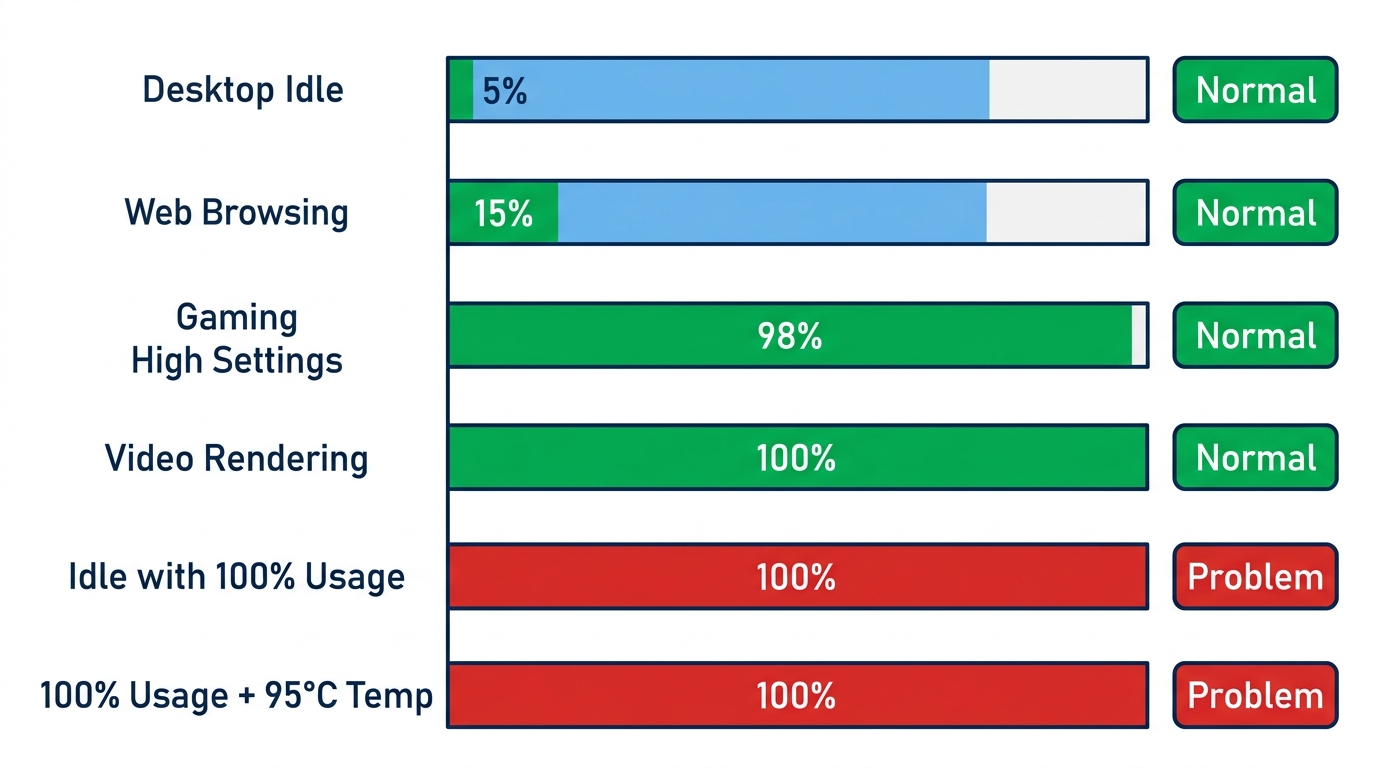

Quick-Reference Scenario Table

Not sure if your situation is normal? Find your scenario below.

Scenario	GPU Usage	Normal or Problem?	Action Needed
Gaming at max settings	95-100%	✅ Normal	None, this is ideal
Uncapped framerate gaming	100%	✅ Normal	Consider frame cap for thermals
Desktop / idle browsing	100%	⚠️ Investigate	Check Task Manager for culprit process
Gaming + temps above 90°C	100%	🔴 Problem	Improve cooling immediately
Gaming + very low FPS	100%	⚠️ Investigate	Check thermals and VRAM usage
Video rendering / 3D work	100%	✅ Normal	None
Benchmark or stress test	100%	✅ Normal	None
GPU at 100% with no apps open	100%	🔴 Problem	Scan for malware, check Task Manager

Frequently Asked Questions

Is 100% GPU usage bad while gaming?

No. 100% GPU usage while gaming is normal and expected. It means your graphics card is fully utilized doing exactly what it was built to do. As long as temperatures stay below 85-90°C and your framerate is stable and consistent with what the game should deliver, there’s nothing to fix. This is the healthy state for a gaming GPU.

Is 100% GPU usage bad at idle or on the desktop?

Yes, this is unusual and warrants investigation. A GPU sitting at 100% while you’re doing nothing GPU-intensive suggests something is consuming resources it shouldn’t be. The most common causes are cryptomining malware, runaway background processes, and browser hardware acceleration on resource-heavy pages. Open Task Manager in Windows, click the GPU column to sort by GPU usage, and identify the process. If you don’t recognize it, run a malware scan.

Can running at 100% GPU usage damage your GPU?

No. Sustained 100% GPU usage does not damage a healthy graphics card. These chips are engineered for continuous full-load operation. The temperature stress tests manufacturers run during validation involve extended 100% load scenarios. Damage comes from excessive heat, not from the utilization percentage itself. A GPU running at 100% load at 70°C is in better shape than one running at 50% load at 97°C.

Why is my GPU at 100% usage but my FPS is low?

Low FPS at 100% GPU usage usually points to thermal throttling, where the GPU has automatically reduced its clock speed to manage heat. The second most likely cause is VRAM overflow, when a game’s texture settings exceed your card’s VRAM capacity, assets constantly spill to system RAM over the PCIe bus, causing massive stuttering and frame drops. Check GPU temperatures first. If thermals are fine, reduce texture quality by one step and see if FPS recovers. Also verify your GPU is seated in the correct x16 PCIe slot.

What is a healthy GPU usage percentage for gaming?

For gaming, 90-100% GPU usage is healthy and means you’re fully utilizing your hardware investment. Consistent usage below 70% during demanding games usually indicates a CPU bottleneck, your processor isn’t delivering frames to the GPU fast enough. If you want smooth, stutter-free gaming, targeting 90-95% average usage (rather than a constant 100%) gives the GPU headroom to handle engine-side spikes without dropping frames.

The Short Version

100% GPU usage is not inherently bad. In gaming, rendering, and compute workloads, it means the hardware is doing its job. The two things that actually matter are temperature (stay within the ranges in the table above for your GPU generation) and which application is causing the load. If a game is driving 100% usage with stable temps and good FPS, you’re fine. If nothing obvious is running and your GPU is still pegged at 100%, that’s worth investigating. Set up MSI Afterburner with an in-game overlay to track GPU usage, temperature, VRAM, and FPS simultaneously. Four numbers, and you’ll know everything you need to know about what your GPU is doing.
