Best Mini ITX Cases for SFF PC Builds in 2026

A mini ITX case is a compact PC enclosure designed for Mini-ITX motherboards (170x170mm), typically ranging from 4 to 20 liters in total volume.

Last updated: May 2026

You’ve decided you don’t need a full tower taking up half your desk. Smart. You want a capable gaming rig or workstation that fits neatly on a shelf, travels to LAN parties, or just doesn’t dominate your living room. Mini ITX is the answer, but picking the wrong case will have you fighting clearance issues, thermal throttling, and regret.

The best mini ITX cases in 2026 include the Fractal Design Terra, Cooler Master NR200P Max, Hyte Revolt 3, Dan Cases A4-SFX v4.1, and NZXT H1 v2. Each one suits a different use case, budget, and GPU size. This guide breaks down exactly which one fits your build, what specs actually matter, and where builders consistently go wrong with SFF cases.

What Makes a Mini ITX Case Different From ATX and Micro ATX

Mini-ITX motherboards measure exactly 170x170mm, confirmed in the official Mini-ITX form factor specification. That’s substantially smaller than Micro ATX (244x244mm) and full ATX (305x244mm). The case volume follows the board size, which is where things get interesting and complicated.

A mini ITX case gives you one PCIe slot, typically two RAM slots, and limited storage bays. That’s the trade. What you gain is a system you can actually carry under one arm, a smaller thermal footprint on your desk, and in many builds, comparable gaming performance to a full tower rig using the same GPU.

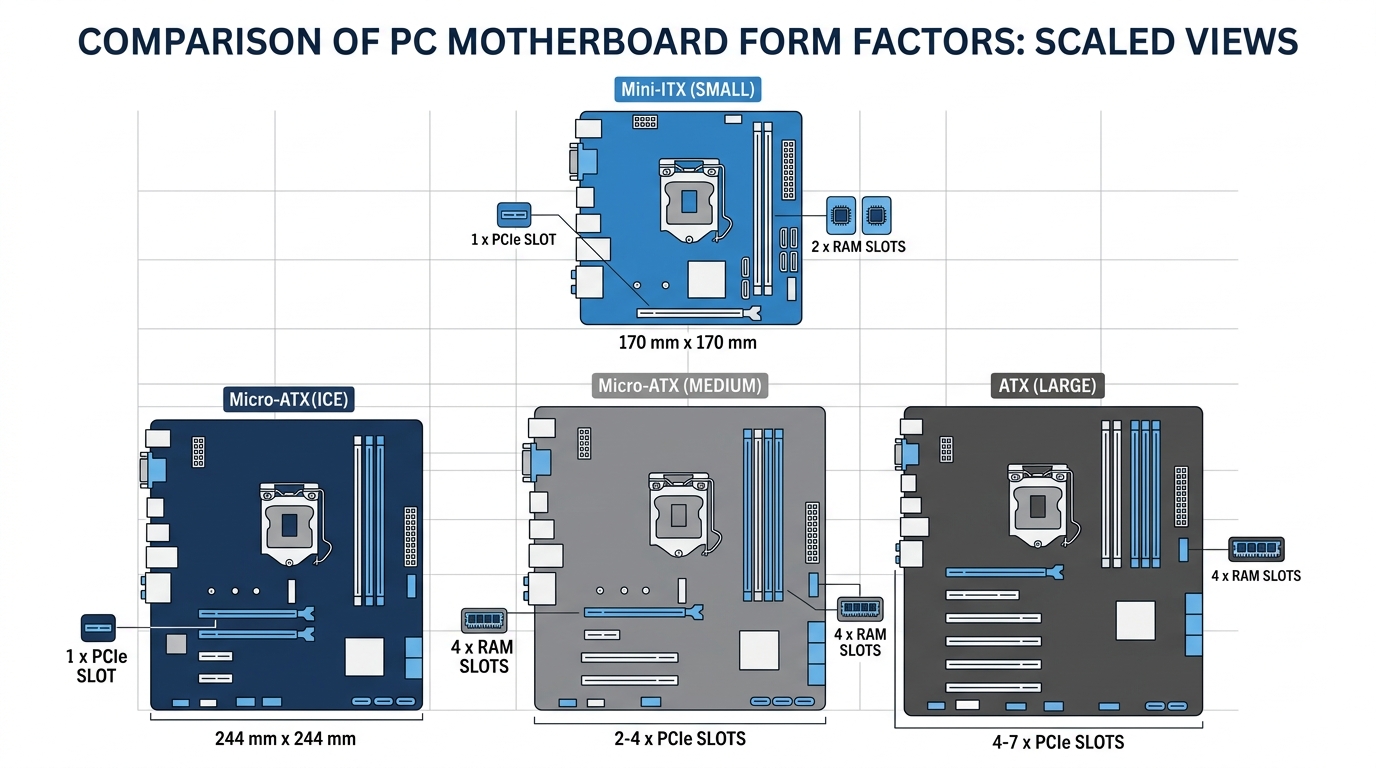

Mini ITX vs Micro ATX: Which Form Factor Should You Choose?

Feature	Mini ITX	Micro ATX	ATX
Motherboard Size	170x170mm	244x244mm	305x244mm
PCIe Slots	1	2-4	4-7
RAM Slots	2	4	4
Typical Case Volume	4L-20L	15L-30L	30L-60L+
Expansion Options	Minimal	Moderate	High
Portability	Excellent	Good	Poor
Cooling Headroom	Tight	Moderate	Ample
Price Premium	Yes (boards cost more)	Minimal	None

If you need four RAM sticks for ECC memory, multiple capture cards, or sound cards, Micro ATX makes more sense. But if you’re building a gaming PC or a clean workstation and don’t need expansion beyond one GPU, Mini ITX gives you everything you actually need in a much smaller footprint.

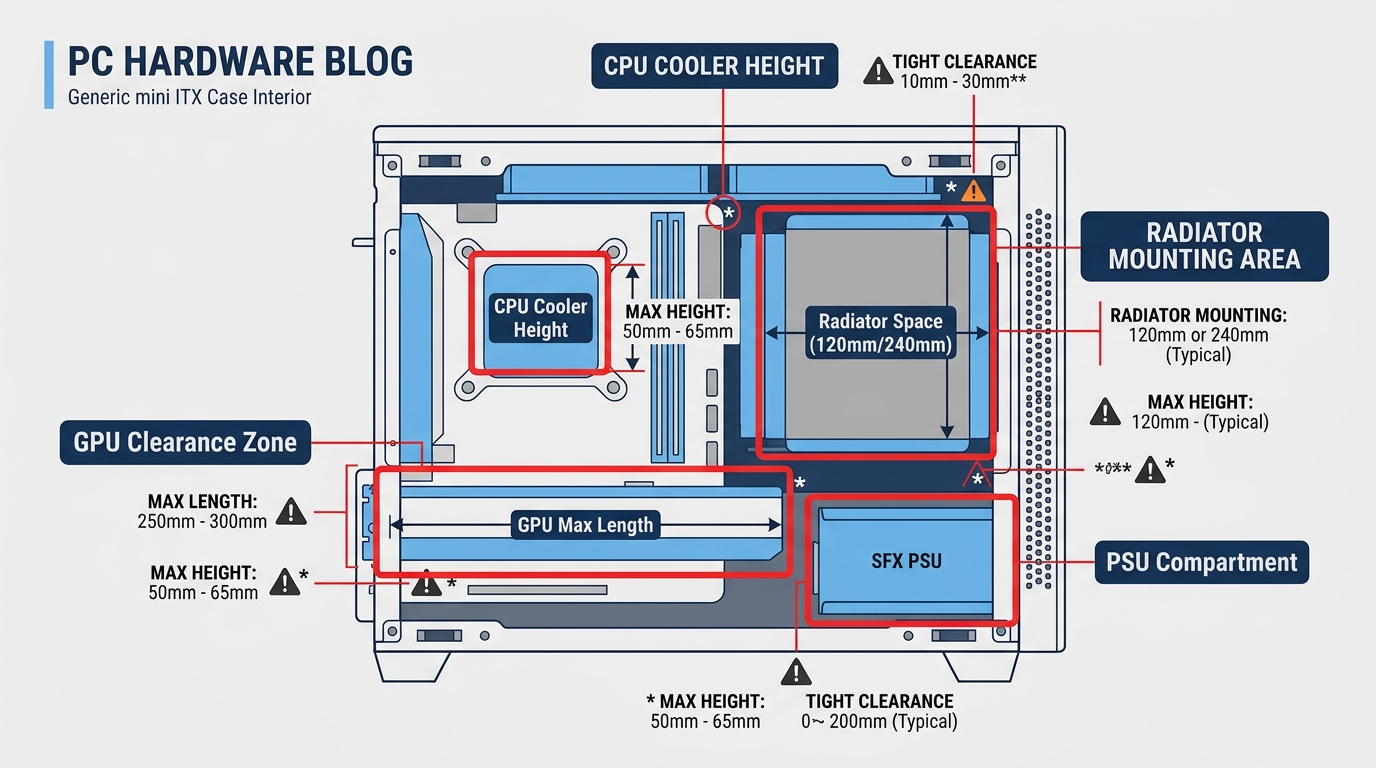

Key Specs to Check Before Buying Any Mini ITX Case

This is where a lot of builders get burned. You buy a case, then discover your GPU is 30mm too long, or your AIO radiator won’t fit, or there’s no room for the SFX PSU you ordered. Check these specs before you commit to anything.

Case Volume

Mini ITX cases range from ultra-compact 4-5 liter designs like the Dan Cases A4-SFX all the way up to 20-liter cases like the Cooler Master NR200P. Smaller volume means tighter builds, more cable routing frustration, and less thermal headroom. Under 8L and you’re in truly challenging territory for anything above a 200W GPU.

GPU Length and Width Clearance

This is the big one. A beefy GPU like the RTX 4080 Super or RX 9070 XT can be 340mm long and run three slots wide. Many ITX cases physically cap GPU length at 320mm or less. Some, like the Hyte Revolt 3, use a riser to mount the GPU vertically, which changes the clearance math entirely. Always cross-reference the case GPU length spec with your actual GPU dimensions. Not optional.

Speaking of risers, many modern ITX cases rely on a PCIe riser cable to position the GPU in a way that fits the case layout. The quality of that riser cable matters for both signal integrity and physical fit.

PSU Form Factor: SFX vs ATX

Most cases under 12L require an SFX or SFX-L power supply, not a standard ATX PSU. SFX units are 125×63.5mm. SFX-L stretches to 130mm depth to accommodate higher wattage. Expect to pay $20-50 more for a quality SFX unit compared to an ATX equivalent. The Corsair SF series and Seasonic Focus SGX are the go-to options in this category.

CPU Cooler Height

Compact cases limit CPU cooler height to anywhere from 37mm (low-profile only) to 90mm for taller ITX-friendly cases. A standard tower cooler is 150-165mm tall. It won’t fit. Check the manufacturer’s listed CPU cooler clearance, and if it’s under 55mm, look at low-profile options like the Noctua NH-L9i or Thermalright AXP120-X67.

Radiator Support

If you want to run a 240mm AIO, only certain cases support it, and often only in specific orientations. Cases like the NR200P and NZXT H1 accommodate 240mm radiators. The very smallest cases (under 7L) often don’t support AIOs at all. If you’re pushing a high-TDP processor, this matters a lot. CPU overheating in a poorly ventilated ITX build is a real problem, and if you’re seeing warning signs, recognizing the signs of CPU overheating early can save your components.

Best Mini ITX Cases in 2026: Detailed Breakdown

Fractal Design Terra: Best Overall Design-Focused Case

The Terra is the most talked-about ITX case of the last two years. Gorgeous. It comes in four colorways (Jade, Graphite, Bamboo, and Silver), uses a natural wood and anodized aluminum exterior, and measures approximately 10.4 liters. That’s a manageable size without going completely extreme.

GPU clearance sits at 322mm with up to a three-slot card. It requires an SFX or SFX-L PSU. CPU cooler height ranges from 48mm to 77mm depending on the movable spine position, which can limit cooler options at tighter configurations. For mid-tier CPUs paired with an AIO, this case shines. It’s not the best case for pure airflow, but it’s visually unmatched in the ITX segment. Pricing sits around $180-200 depending on retailer.

Cooler Master NR200P Max: Best for First-Time SFF Builders

The NR200P Max comes with a 280mm AIO, an 850W SFX-L PSU, and solid mesh ventilation already included in the box. That’s exceptional value for someone who doesn’t want to source every component separately. The full case volume is about 18.4 liters.

GPU length support reaches 336mm. CPU cooler height without AIO goes up to 155mm. The mesh panels on all sides give it genuinely good airflow. It’s the case the r/sffpc community recommends most often to builders who ask “what should I start with?” and for good reason. Worth the extra cost over buying the base NR200 separately and then adding cooling components.

Hyte Revolt 3: Best for LAN Parties

At roughly 18.4 liters, the Revolt 3 is larger than most dedicated ITX cases but offers a built-in handle and a dual-chamber layout that suits regular transport. The dual-chamber design separates the PSU and GPU from the motherboard, which improves thermal separation compared to single-chamber designs. It requires SFX or SFX-L PSU. GPU support goes up to 335mm. The top tempered glass panel looks clean. If you’re regularly transporting your PC to events or a friend’s place, this is the case to get.

Dan Cases A4-SFX v4.1: Smallest Full-Performance ITX Case

At 7.25 liters, the A4-SFX is one of the most space-efficient cases you can actually build a gaming PC in. It’s not for the faint of heart. Cable routing is miserable. The build process is fiddly. And thermals are tighter than you’d like with anything above a 200W GPU.

But when you’re done, you have a genuinely pocket-sized gaming system. GPU support reaches up to 295mm without bracket (306mm including slot bracket). It requires SFX or SFX-L PSU and a low-profile or AIO cooler depending on orientation. The A4-SFX consistently shows up on lists of the best small form factor PC cases because nothing else matches its volume-to-performance ratio. Airflow design is what separates good SFF cases from bad ones, particularly whether the GPU receives adequate air circulation under sustained load. The A4-SFX passes this test in vertical GPU orientation, but only if you’re deliberate with fan configuration.

NZXT H1 v2: Best All-in-One Compact Package

The H1 v2 is NZXT’s attempt to make ITX building as simple as Micro ATX. It comes with a 140mm AIO cooler, a 750W SFX PSU, and a PCIe 4.0 riser cable pre-installed. Volume is about 15.5 liters.

GPU support is 325mm at up to a three-slot width. It’s narrower than some options, which can cause issues with some triple-slot GPUs. But for a 2-slot card setup, the H1 v2 is one of the cleanest builds you’ll assemble in this size class. Pricing is higher (around $349 with bundled components), but factor in that you’re not buying a PSU or AIO separately.

Lian Li A4-H2O: Best for AIO-Focused Compact Builds

The A4-H2O from Lian Li is a direct competitor to the Dan Cases A4-SFX but adds dedicated 240mm radiator support at around 11 liters. The design accommodates the radiator in the front panel area, allowing you to cool a high-TDP CPU without sacrificing a massive amount of GPU support.

GPU clearance is 322mm. It uses SFX or SFX-L PSU. Build difficulty is moderate, not as painful as the Dan Cases A4-SFX but not as forgiving as the NR200P. If you want a tight build with an actual AIO rather than a low-profile cooler, this is your most space-efficient option.

Silverstone SG13: Best Budget Mini ITX Case

At around $45-55, the Silverstone SG13 is the cheapest way into a real mini ITX build. It’s not glamorous. Plastic construction, mesh front panel, and a modest 11.5-liter volume. But it supports standard ATX PSUs (saving you the SFX price premium), up to 270mm GPU length, and CPU coolers up to 82mm tall.

Not great for a beefy GPU. But if you’re building a budget gaming system or a compact Plex server, it gets the job done without the premium pricing of cases like the Terra or H1 v2.

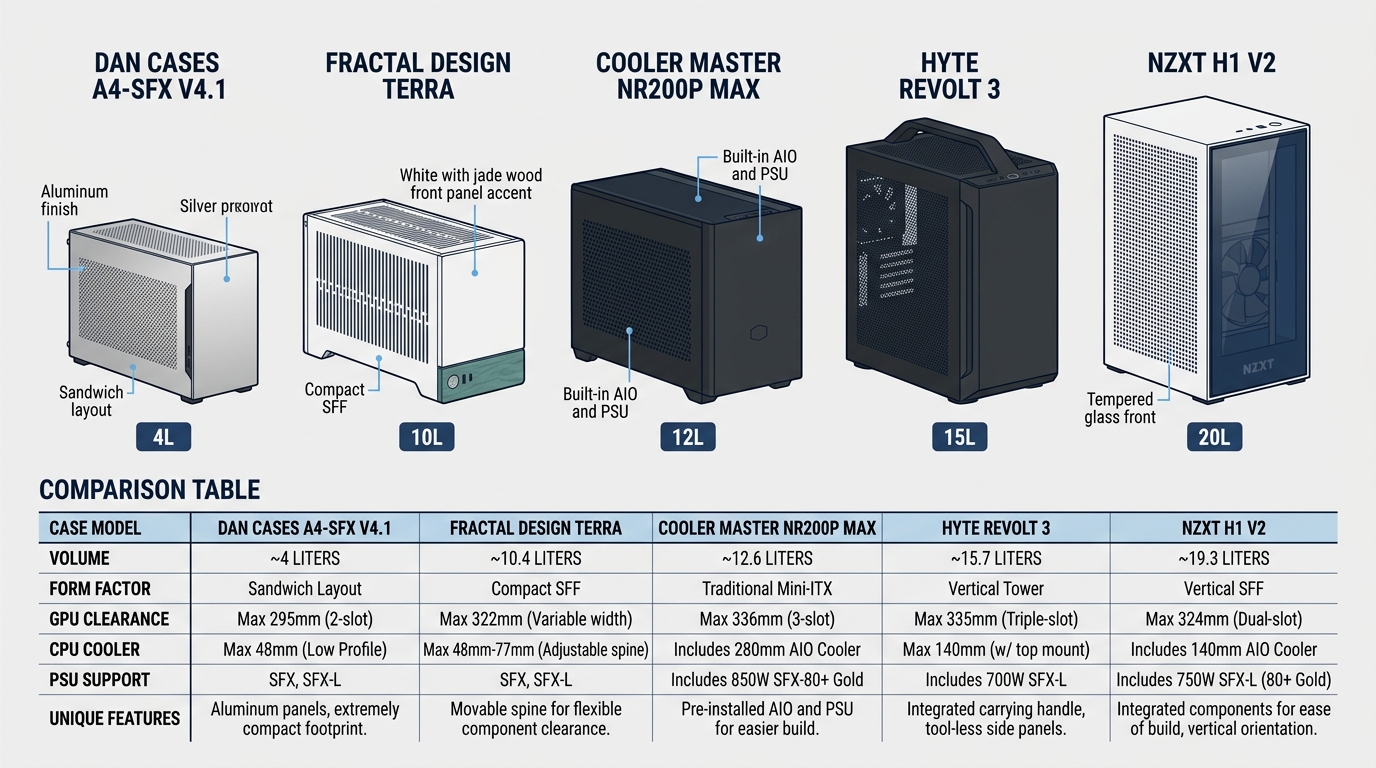

Mini ITX Case Comparison Table

Case	Volume	GPU Length	PSU Type	Max CPU Cooler	Radiator	Price (approx.)
Fractal Design Terra	10.4L	322mm	SFX / SFX-L	77mm (max)	240mm (limited)	$185
Cooler Master NR200P Max	18.4L	336mm	SFX-L (included)	155mm	280mm	$280 (bundle)
Hyte Revolt 3	18.4L	335mm	SFX / SFX-L	140mm	240mm	$130
Dan Cases A4-SFX v4.1	7.25L	295/306mm	SFX / SFX-L	52mm (air) / AIO	240mm	$175
NZXT H1 v2	15.5L	325mm	SFX (included)	AIO only	140mm (included)	$349 (bundle)
Lian Li A4-H2O	11L	322mm	SFX / SFX-L	52mm (air) / AIO	240mm	$160
Silverstone SG13	11.5L	270mm	ATX	82mm	None	$50

Thermal Performance in Mini ITX Cases: What You Need to Know

This section doesn’t get enough attention in most buying guides. A mini ITX case that looks great in renders can be a thermal nightmare under real load. A case with good overall panel ventilation but poor GPU-directed airflow will still run hotter than a less-ventilated case with smarter internal duct design.

Practically, this means you should prioritize:

• Mesh panels directly adjacent to the GPU intake side
• Positive pressure setups (more air in than out) to avoid hot spot buildup
• Avoiding cases where the GPU exhausts directly into a solid panel with no exit path
• Checking if your case has a separate chamber for the PSU, which keeps PSU heat away from GPU and CPU

If you’re pushing a high-TDP GPU in a sub-10L case, watch your GPU temperatures closely. Normal gaming GPU temps should stay under 85°C for most cards. If you’re seeing sustained temperatures above that, check your safe GPU temperature ranges to understand if your cooler configuration needs adjustment.

In compact builds, water cooling can help significantly. If you’re considering going that route, a beginner’s guide to PC water cooling will walk you through what’s actually involved before you commit to that approach in a tight chassis.

Common Mistakes When Building in a Mini ITX Case

Buying the GPU Before Checking Case Clearance

Done by more builders than anyone admits. An RTX 4080 Founders Edition is 304mm long, and the Dan Cases A4-SFX v4.1 supports 295mm without bracket or 306mm with bracket, leaving virtually no margin for the FE and none for most AIB cards. Always check GPU dimensions against case specifications before purchasing either component. GPU manufacturers publish exact dimensions on their product pages. Use those numbers, not the rounded estimates in review articles.

Ignoring the PSU Upgrade Cost

If you already own a quality ATX PSU and switch to a case requiring SFX, you’re buying a new PSU. A quality SFX-L 850W unit (Corsair SF850, Seasonic SGX) runs $150-200. That’s a real addition to your build cost. Cases like the Silverstone SG13 that accept ATX PSUs are worth considering if you want to reuse existing hardware.

Underestimating Cable Management Difficulty

Building in a 7-10L case is harder than building in a full tower. Not a little harder. A lot harder. Cable management in tiny cases requires shorter custom cables or careful modular cable selection. Cheap ribbon-style cables from cases like the Silverstone SG13 work fine. But sleeved cables in a Dan Cases A4-SFX will make the build genuinely difficult. Order shorter cables from vendors like CableMod if you care about the internal appearance.

Running a High-TDP CPU With Air Cooling Only

A Ryzen 9 9950X or Core i9-14900K under full load will generate 200W+ of heat. A 65mm tall air cooler doesn’t have the surface area to handle that in a closed ITX case. Either pair those CPUs with a 240mm AIO, drop to a lower TDP chip (Ryzen 7 9700X at 65W TDP is excellent for ITX), or choose a larger case with proper cooler height clearance. Check the AMD product specification pages for official TDP figures before finalizing your CPU choice.

Forgetting About Low Profile GPU Options

If you’re going extremely small, you may need to consider a low profile GPU instead of a full-height card. For HTPC builds or ultra-compact systems, low profile graphics cards are purpose-built for cases where standard GPU height won’t fit the bracket opening.

Who Should Build a Mini ITX PC in 2026

Mini ITX makes sense for you if you’re in one of these situations:

• You want a living room PC that doesn’t look like a server rack
• You attend LAN parties and need portability
• You’re working in a tight desk space and every inch matters
• You want to build a secondary rig or dedicated streaming system without taking up extra room
• You’re building a high-end single-GPU gaming system and don’t need multi-card or heavy expansion

Mini ITX doesn’t make sense if you need multiple PCIe expansion cards, four RAM sticks for a high-channel-count workload, or if you’re not comfortable with tighter build tolerances. Micro ATX will serve those needs with a slightly larger footprint but considerably more breathing room.

Frequently Asked Questions

What is the smallest mini ITX case you can actually game in?

The Dan Cases A4-SFX v4.1 at 7.25 liters is the smallest widely available case that can fit a full-performance GPU and an SFX PSU. The GPU clearance is 295mm without bracket (306mm with bracket), so card selection matters. Builds like a 4.5-liter home theater gaming PC are possible with more limited GPU choices, but for gaming with a current-gen card, the A4-SFX or Lian Li A4-H2O represent the practical floor. Below 7 liters, GPU support becomes severely restricted.

Do mini ITX cases run hotter than ATX cases?

Generally yes, because there’s less physical space for airflow and heat dissipation. However, well-designed mesh ITX cases like the NR200P with the right fan configuration can keep thermals close to a mid-tower result for most gaming workloads. The difference becomes more pronounced when you’re running a 250W+ GPU at sustained load, where larger cases have a clear thermal advantage. Choosing a case with mesh panels and running fans in positive pressure reduces the gap significantly.

Can you put an RTX 4090 or 5090 in a mini ITX case?

Technically yes, but it depends on which variant. The RTX 5090 Founders Edition is 304mm long and two slots wide, fitting most cases in this guide. Cases like the Hyte Revolt 3 (335mm clearance) accommodate it comfortably. Third-party 5090 cards from ASUS, MSI, and Gigabyte are often 340mm or longer and require careful case selection. Always verify exact GPU dimensions against case specs and accept that thermals will be tighter than in a full tower.

Is mini ITX more expensive than ATX to build?

Yes, typically by $100-300 depending on how you account for it. Mini ITX motherboards cost $20-60 more than comparable ATX boards. Many ITX cases require SFX PSUs that run $30-80 more than equivalent ATX units. The cases themselves are often priced higher than mid-towers despite using less material, partly due to engineering complexity and lower production volumes. Budget for this premium when planning your build.

What PSU wattage do I need for a mini ITX gaming PC?

For a mid-range build with a GPU in the RTX 4070 / RX 7800 XT class, 650W SFX is comfortable. For a high-end build with a 300W+ GPU, go for 850W SFX-L. Don’t undersize the PSU in a compact case, because thermal stress on an underpowered PSU in a tight enclosure shortens its lifespan and creates instability under peak load. The Seasonic Focus SGX and Corsair SF series both offer solid options at these wattage levels.

What You Should Do

Start by locking in your GPU choice and measuring its exact dimensions. Then work backward to find a case that fits it with at least 5mm of clearance. For most first-time ITX builders, the Cooler Master NR200P Max is the right call: it includes the PSU and AIO, it handles nearly every current GPU, and it doesn’t punish you during the build process. If you want something more compact and you’re comfortable with a challenging build, the Lian Li A4-H2O at 11 liters gives you proper AIO support without going as extreme as the Dan Cases A4-SFX. Pin down your GPU clearance, PSU type, and CPU cooler height before you buy anything else.
